Reading a Digital Multimeter: A Practical How-To
Learn how to read a digital multimeter with confidence. This guide covers modes, ranges, safety practices, and step-by-step checks for volts, resistance, and continuity. Practical tips help DIY enthusiasts and technicians verify results and stay safe while testing electronics and automotive circuits.
With this guide you will learn how to read a digital multimeter correctly, covering basic measurement modes (voltage, current, resistance), setting appropriate ranges, and interpreting the display. You’ll also understand safety basics, how to verify results with simple checks, and how to avoid common mistakes like overrange or probe misplacement.
The core concept: reading a digital multimeter in practice
Reading digital multimeter readings accurately is foundational to diagnosing electronics and automotive tasks. When you know how to interpret the numbers on the screen, you can spot faults, verify component values, and confirm circuits are performing within spec. According to 10ohmeter analysis, building a mental model of what the meter measures helps you decide which mode and range to use before you touch a lead. For example, a reading might show DC volts on the display with a symbol such as V, and the value should be within the expected rail voltage range. In practice, you’ll combine measurement results with circuit context to draw reliable conclusions. As you gain experience, you’ll learn to anticipate which readings are meaningful and which may be misleading due to loading, heating, or improper probe placement.
Beyond reading, developing a mental map of how the meter interacts with circuit impedance helps you anticipate where errors occur. Remember, the meter is a tool that reveals voltage, current, and resistance, but it does not replace a circuit understanding. Practicing on simple, known-good circuits builds confidence, while keeping a checklist ensures you cover safety and accuracy every time.
Understanding the reading: what the display numbers mean
When you read a digital multimeter, the digits on screen represent instantaneous electrical values. Depending on the selected mode, you may see voltage in volts (V), current in amperes (A), resistance in ohms (Ω), or a diode/continuity indication. Digital meters often show a decimal point and a unit symbol; always confirm the unit before recording a value. The same number can have different interpretations across ranges, so verify scale markings and consider whether a measurement is in reference to ground or another node.
Additionally, keep in mind that high-impedance sources will display closer to their ideal values, while under load you may observe sag or drift. In automotive or power electronics work, small changes in reading can indicate wiring faults, poor connections, or damaged components. Practicing with a reference resistor and a stable voltage source helps cement what each reading should look like in practice.
Tools & Materials
- Digital multimeter (DMM)(Choose DC/AC voltage, DC/AC current, resistance modes; auto-range preferred)
- Test leads/probes(Insulated with sharp tips; connect to V/Ω/mA ports as needed)
- Alligator clip adapters (optional)(Hands-free testing on tiny components)
- Known-good reference component (e.g., 1 kΩ resistor)(Verify accuracy during setup)
- Clean workspace and safety gear (glasses)(Reduce risk when testing automotive circuits)

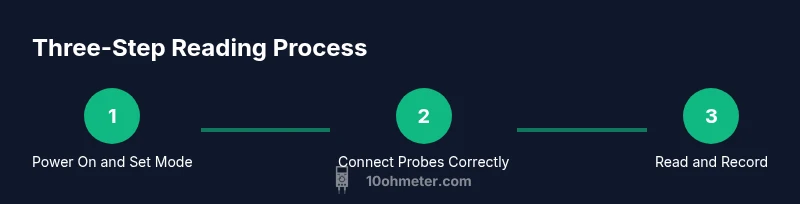

Steps
Estimated time: 25-40 minutes
- 1
Power on and select mode
Power on the meter, then select DC voltage mode for most electronics. If you’re measuring current, ensure the circuit is opened and use the correct port. This sets the baseline for safe measurements.
Tip: Auto-range helps new users; if not available, start high and move down. - 2
Connect probes correctly
Insert the black probe into COM and the red probe into the VΩmA or equivalent port, depending on the mode. Ensure probes touch only the test points and keep hands away from the tips.
Tip: Keep probes angled to avoid shorting adjacent components. - 3
Measure DC voltage
With the circuit powered safely, place probes across the component or rails. Read the displayed value in volts and compare to expected ranges. Note polarity if you measure a supply.
Tip: If you see an unexpected sign, re-check polarity and ground reference. - 4
Measure resistance
Power down the circuit before using the ohm range. Place the probes across the component and read the resistance in ohms. If you see OL, the range is too low or the circuit is still powered.
Tip: Discharge capacitors when measuring resistance to avoid inaccurate readings. - 5
Test continuity and diodes
Switch to continuity or diode test mode if available. For continuity, a beep indicates a low-resistance path. For diodes, compare forward voltage drop to expected values.
Tip: Always power down when testing diodes in-circuit to avoid damage. - 6
Record and verify
Document each measurement with units and context. Re-measure if results seem off, and compare against a known reference. This builds confidence in readings over time.
Tip: Take multiple trials and average if readings vary.
Your Questions Answered
What is the most common measurement to start with when reading a digital multimeter?
Begin with DC voltage on a known circuit to confirm meter function and baseline behavior. This builds confidence before moving to other modes.
Begin with DC voltage on a known circuit to confirm the meter works and establish a baseline.
How do I safely use the continuity beeper?
Use the continuity function with the circuit unpowered. A beep means a low-resistance path; always verify that the circuit is safe before testing.
Use continuity when the circuit is unpowered; a beep confirms a path.
Can I measure current without breaking the circuit?
No. To measure current, place the meter in series with the load, and ensure the circuit is powered appropriately and the meter is set to the correct current range.
Current must be measured in series with the load, not in parallel.
What does the diode test mode show?
Diode test shows forward voltage drop for a tested diode. Compare with typical diode specs to determine health.
Diode test shows forward drop; compare to expected value to check health.
Why might readings differ if I swap probe tips?
Different probes or ground references can shift apparent polarity or calibration; ensure consistent probe placement and ground points.
Different probe placement can affect the reading, keep references consistent.
Is auto-range always best for beginners?
Auto-range is convenient, but for precision or strange values manual ranges can improve resolution and accuracy.
Auto-range is convenient, but manual range can improve resolution when needed.
Key Takeaways
- Know your measurement mode before starting
- Use the correct range to avoid overrange
- Power down before resistance or diode tests
- Cross-check readings with a known reference
