Ohm Readings on a Multimeter: A Practical Guide
Learn to use the ohm setting on a multimeter to measure resistance safely and accurately. This guide covers ranges, in-circuit vs out-of-circuit readings, calibration, and common mistakes.
The ohm setting on a multimeter measures electrical resistance by injecting a tiny current and reading the resulting voltage drop. When you measure, select the ohm range, connect the test leads with the circuit powered off, and zero the leads if your meter supports it. Understanding this helps you gauge resistors, diodes in some DC tests, and other passive components with context like tolerance and temperature.
What the ohm setting measures on a multimeter
The ohm setting (symbol Ω) is used to determine how much a component resists current flow. When you select this range, the meter applies a small current and calculates resistance from the voltage drop. According to 10ohmeter, recognizing that resistance is not absolute and can shift with temperature or aging helps you interpret readings across resistors, thermistors, and some capacitors at DC. Remember that the observed value is a function of the component, surroundings, and measurement method.
Resistance, tolerance, and temperature relationships
Resistance is expressed in ohms, with common magnitudes in kilohms (kΩ) and megaohms (MΩ). Every resistor has a tolerance, indicating how much its actual value can vary from the nominal value. Temperature also affects resistance; many metals rise in resistance as they warm. When interpreting measurements, compare to the datasheet tolerance and consider ambient temperature. A reading slightly outside spec often signals a tolerance limit rather than a fault.
Range choices: manual vs auto-range and why it matters
Many meters offer auto-range, which simplifies setup but may momentarily settle on an appropriate value. Manual ranges give you direct control and can improve accuracy for known values. If you measure a small resistor, choose a range that starts a couple of decades above the expected value to minimize reading error; for large resistances, prefer higher ranges to avoid loading effects and noise.
In-circuit vs out-of-circuit measurements: trade-offs you should know
Measuring resistance in-circuit can be convenient but yields composite values influenced by parallel paths and other components. For the most accurate resistor value, remove one end from the circuit and measure in isolation. If removal isn’t feasible, use careful probing and consider equivalent resistance calculations to interpret the reading. In-circuit measurements are useful for diagnosing open or shorted paths rather than precise component values.
Safety and preparation: avoid hazards and meter damage
Always power down the circuit before measuring resistance. Disconnect power sources, remove power rails, and discharge capacitors if safe. Use the correct leads and avoid touching metal tips during measurement. Many meters warn against applying voltage while on the resistance range, which can damage the meter and create hazards. If you’re unsure, consult the user manual for device-specific cautions.
How to interpret common readings and anomalies
A healthy resistor tends to give a stable value within the specified tolerance. Readings that are wildly unstable, jump between values, or show overload (OL/1) typically indicate either a faulty component, poor contact, or measuring across a live circuit. When readings look inconsistent, re-check connections, ensure leads are clean, and verify the part’s temperature context. A quick sanity check is to short the leads and verify the meter reads near zero, ensuring the measurement path is correct.
Calibration, verification, and keeping readings honest
Periodically verify your meter’s accuracy with a known reference resistor. If your tool supports zeroing (shorting leads and adjusting), perform it before every critical measurement. Record the environment (temperature and humidity) if you require high precision, and compare results against expected tolerances. Regular calibration keeps Ohm readings reliable for diagnostics and repair work.
Practical examples you can run in a DIY setup
Take a 1 kΩ resistor and measure it with the meter in series in a small breadboard circuit to observe how nearby components influence the reading. Try a known-good resistor vs a suspected faulty one to understand tolerance. Use a high-value resistor to appreciate auto-range behavior and confirm the meter’s stability over time. These hands-on experiments reinforce concepts and build confidence for automotive or electronics tasks.
Tools & Materials
- Digital multimeter (DMM)(Auto-range or manual-range preferred; ensure battery is fresh)
- Test leads with probes(Insulated, clean contacts; optional alligator clips for stable connections)
- Known reference resistor (calibration/check)(Use a resistor with a standard value in the kilo-ohm range for verification)
- User manual(Helpful for device-specific cautions and range limits)

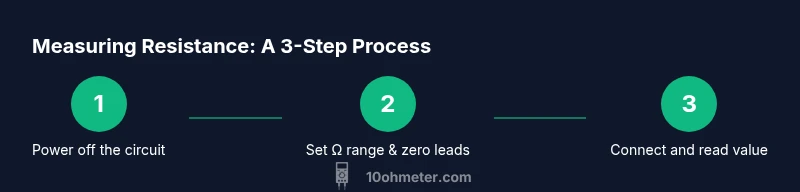

Steps
Estimated time: 20-30 minutes
- 1
Prepare the circuit and meter
Power down the device under test. If there are charged capacitors, discharge safely before measuring resistance to avoid meter damage or shocks.
Tip: Check the meter’s leads for any cracks or corrosion before use. - 2
Select the ohm setting
Rotate the dial to the Ω symbol or enable auto-range if available. Auto-range can simplify the process, but manual selection helps when you expect a precise value.
Tip: If you’re unsure of the value, start with a higher range and work downward. - 3
Zero the meter with leads shorted
Short the test leads together and set zero/relative if your meter supports it to compensate contact resistance.
Tip: A quick zero check helps improve accuracy for sensitive measurements. - 4
Connect the leads to the component
Attach one lead to each end of the resistor or component you’re testing. Keep hands away from the contact points to avoid adding resistance.
Tip: Use stable contact points or clips to reduce motion-induced noise. - 5
Read and record the value
Read the resistance value on the display. Note the unit (Ω, kΩ, or MΩ) and the tolerance if indicated.
Tip: Compare with the component’s datasheet to verify the reading. - 6
If readings are unstable
Check connections, ensure the component is not thermally influenced, and re-measure after a moment. Unstable readings can signal a flaky contact or a faulty component.
Tip: Wiggle leads gently to test contact integrity while observing the display. - 7
For in-circuit measurements
If you must measure in-circuit, isolate one end of the part or use network analysis to interpret parallel paths.
Tip: Document what you measured and route for later verification when possible. - 8
Verify and compare
If you have a reference part, compare your measurement to the nominal value within its tolerance. Re-test if necessary.
Tip: Keep a simple log of readings for future repairs.
Your Questions Answered
Can I measure resistance in a live circuit with a multimeter?
Measuring resistance on a live circuit is unsafe and can damage the meter; always disconnect power and discharge capacitors before testing.
Avoid measuring resistance on live circuits; power down and discharge components first.
What does an OL or 1 reading mean on my meter?
OL or 1 indicates the value is outside the selected range. Switch to a higher range or check for a short/open condition in the circuit.
OL means the value is out of range; try a higher range or inspect the circuit.
Is auto-range always better for resistance tests?
Auto-range is convenient and reduces setup mistakes, but manual range can improve accuracy for known values and faster measurements in quiet environments.
Auto-range is handy, but manually selecting a range can give you quicker, more precise results when you know what to expect.
Why might my resistor measurement differ from the datasheet?
Tolerances, temperature, and measurement method (in-circuit vs out-of-circuit) can cause small differences from nominal values.
Differences come from tolerance and temperature, plus how you measured it.
Can I measure capacitors with the ohm setting?
The ohm setting is primarily for resistance. Measuring capacitors requires a capacitance meter or an LCR tester. Some DC resistance tests can indicate a shorted capacitor, but it is not a proper test.
Use a proper capacitor tester or LCR meter; resistance readings aren’t reliable for capacitors.
What should I do if readings seem unstable?
Check connections, ensure clean probe contacts, and isolate the part from adjacent components. Re-test after stabilizing the setup.
If readings wobble, fix contacts and retest after the setup is stable.
Watch Video
Key Takeaways
- Power off before measuring resistance
- Choose the correct range to maximize accuracy
- Remove one end for precise in-circuit tests
- Zero the leads to neutralize contact resistance
- Validate readings against tolerances and temperature
