Ohm Meter Guide: How to Measure Resistance and Test Continuity

What is an ohm meter and what it measures

An ohm meter is a versatile tool used to quantify electrical resistance, a property that describes how strongly a component or circuit resists current flow. In most hobbyist and professional contexts, the phrase 'ohm meter' is shorthand for a digital multimeter (DMM) set to the resistance mode, with the OHM symbol on the dial. A good ohm meter can also perform continuity checks, diode tests, and, in many models, measure small capacitances or voltages. Fundamental concepts you’ll encounter include ohms, the unit of resistance, and tolerance, which explains how much a nominal value can vary. When you connect the meter’s probes to a resistor, you should see a stable reading that corresponds to the resistor’s value (adjusted for tolerance). If you test a short circuit, you’ll see a reading close to zero; for an open circuit, the display will show 'OL' or an infinite value. Understanding these basic readings will help you validate components, diagnose faulty wires, and identify damaged traces in both electronics projects and vehicle electrical systems.

For DIYers and technicians, the ohm meter is the starting point for debugging circuits, testing legacy components, and verifying new builds. As you grow comfortable, you’ll incorporate additional features like continuity beeps, diode tests, and capacitance checks to build a fuller diagnostic toolkit. In short, a good ohm meter helps you translate electrical behavior into actionable information, reducing guesswork and protecting parts from damage.

Safety prerequisites before you start

Safety comes first when you’re working with electricity. Before you touch any component, power down the device and disconnect the power source; never measure resistance on a live circuit, since the meter injects a small test current that can be distorted by the circuit’s active paths. If you’re testing components within a product, remove them from the circuit, discharge any capacitors you may encounter, and isolate the work area from other live lines. Inspect your test leads for nicks or exposed conductors, and keep the probes away from your skin. Use one hand to hold each probe only when necessary; if a mistake happens, the other hand remains free to move away from the device. For automotive work, wear eye protection around the engine bay and avoid touching metal tips when the system is energized. The goal is to minimize the risk of electric shock, component damage, or unintended short circuits while you perform measurements.

If you must test near high voltages, use insulated tools and keep your workspace dry. Always set the meter to the lowest safe range first when you’re unsure of the value. After completing a measurement, power down the circuit again before connecting components back into place. Keeping a safe distance from live circuits protects you, your equipment, and the project at hand.

Understanding meter modes and features

Modern ohm meters (digital multimeters) offer a suite of measurement modes that extend beyond simple resistance. The core modes you’ll use include:

• Ohms (Ω): for measuring resistance. Start with a mid-range if your meter is manual-range, or rely on auto-range if available.
• Continuity/beep: a quick way to check if two points are electrically connected. A brief beep usually indicates a closed circuit; no beep often means an open circuit.
• Diode test: checks the forward voltage drop of diodes and some semiconductor devices; helps identify faulty diodes.
• Voltage (AC/DC): measure live circuits, but never combine voltage measurements with resistance checks on the same setup without reconfiguring the circuit.

Familiarize yourself with the display, the function dial, and any hold or relative-zero features. Auto-range meters simplify usage, while manual-range meters require you to choose a suitable resistor value to land in a readable window. Probes come with red and black leads—keep polarity straight for most measurements, though resistance and continuity checks are often polarity-insensitive. When in doubt, consult the user manual for your model’s specific capabilities and safety notes.

Practical tips:

• Calibrate the meter by shorting the leads and pressing a zero/relative button if available.
• For in-circuit resistances, remove one end of the component whenever possible to avoid parallel paths that skew readings.
• Keep the probe tips clean and free of oxidation for stable contact.

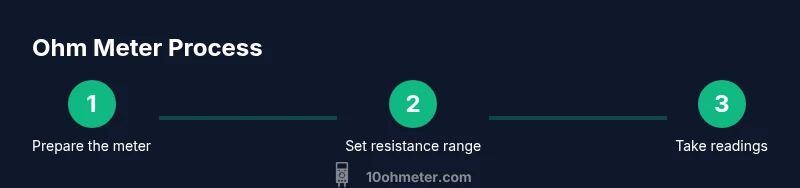

How resistance is measured in practice

Resistance is measured by injecting a small current through a component and observing the resulting voltage. The ohm meter uses Ohm’s law (V = IR) to calculate resistance from the measured voltage and current. Here’s what happens in practice:

• Power down the circuit and isolate the component.
• Select the resistance (Ω) mode on the meter. If your meter is manual-range, begin with a mid-range such as 1 kΩ or 10 kΩ depending on the expected value.
• Connect the probes across the component. Ensure a solid contact without wiggling the leads. If the reading is unstable, re-seat the contacts and wait a moment for the display to settle.
• Read the value. Compare it to the expected resistance. If you’re testing a resistor, consider the tolerance band (for example, a 1% 1 kΩ resistor may read between 990 Ω and 1010 Ω).
• If the component is connected in a circuit, disconnect or isolate one end to prevent parallel paths from skewing the measurement.

Common caveats include measuring through solder joints, flux residues, or damaged leads. Such conditions can yield misleading numbers. With practice, you’ll be able to spot when a reading doesn’t make sense and apply the proper corrective step—replacing a suspect resistor or cleaning a corroded connection.

Practical use cases for an ohm meter

Owners of electronics projects and automotive hobbyists frequently use ohm meters to verify components before circuit assembly or during troubleshooting:

• Verify resistors: check fixed-value resistors against their color codes. Use the meter to confirm nominal resistance and tolerance.
• Check wiring and fuses: continuity tests reveal broken wires or blown fuses in harnesses and panels.
• Test diodes and transistors: diode mode helps confirm forward bias and identify shorted devices.
• Diagnose battery connections: measure resistance in leads and battery terminals to detect corrosion or loose connections.

For automotive work, you’ll want to check sensor resistances, wiring harness continuity, and sometimes the condition of ignition coils. In electronics projects, you’ll frequently verify that your components are accurately rated and properly connected before applying power. An ohm meter becomes a practical diagnostic partner when combined with good documentation and a resistance reference chart.

As you gain experience, you’ll learn to create quick reference checks for common components, enabling faster n troubleshooting and more reliable builds.

Common mistakes and how to avoid them

Even experienced hobbyists make easy-to-miss errors. Here are the most common and how to avoid them:

• Measuring in-circuit resistance without isolating a component: results will reflect parallel paths; solution— lift one end or desolder if necessary.
• Ignoring scale or range: start with auto-range or a mid-range for manual meters to avoid overflow or underflow; your display should be stable before recording data.
• Using damaged probes: frayed insulation or bent tips leads to poor contact and erroneous readings; replace worn probes.
• Not discharging capacitors: stored charge can produce misleading values or injure the meter. Discharge capacitors safely before measurement.
• Touching probe tips with fingers: body resistance affects readings; hold the probes by the insulated handles.

By adopting a systematic approach—power down, isolate, choose the right range, ensure clean contacts, and interpret results against expected values—you’ll improve accuracy and learn faster.

Maintenance, calibration, and care

A well-maintained ohm meter lasts longer and provides accurate readings. Regular care includes:

• Check the batteries and display. Low power can cause erratic numbers; replace batteries as recommended by the manufacturer.
• Inspect test leads for cracks and replace if damaged. Keep tips clean and free of oxidation.
• Calibrate or check the zero/relative function if your meter supports it. Short the leads and verify the indicated baseline is near zero when in resistance mode.
• Store in a dry, dust-free environment. Avoid exposing the meter to extreme temperatures or moisture.
• Keep it clean and free of flux residues or oil that might degrade contact quality.

If you suspect calibration drift or unusual readings, compare results with a known reference resistor or another meter to confirm accuracy. Periodic checks help you diagnose issues early and maintain accuracy over time.

Integrating an ohm meter into your toolbox and next steps

An ohm meter is a foundational tool for any electronics or automotive toolkit. To maximize its value:

• Pair it with a few common references: a set of resistors with known values, a few diodes, and a battery source for voltage tests.
• Practice in a controlled setting with labeled components before tackling complex circuits.
• Build a simple reference chart for quick comparisons: expected resistance values, typical tolerances, and common wiring faults.
• Upgrade gradually: if you’re using a basic meter, consider models with auto-range, diode test, and capacitance measurements as a next step.

The goal is to build confidence through practical exercises, small projects, and repeatable measurement routines. With a solid foundation in ohm meter use, you’ll be prepared to diagnose issues efficiently and safely in the shop or the carport.
