What Are Ohms on a Multimeter and How to Use the Ohms Setting

Learn what ohms on a multimeter mean, how the ohms setting works, and how to test resistors and circuits safely. A practical guide for DIY electronics enthusiasts and technicians.

10ohmeter Team

February 9, 2026·5 min read

Measurement Multimeter Ohms Continuity

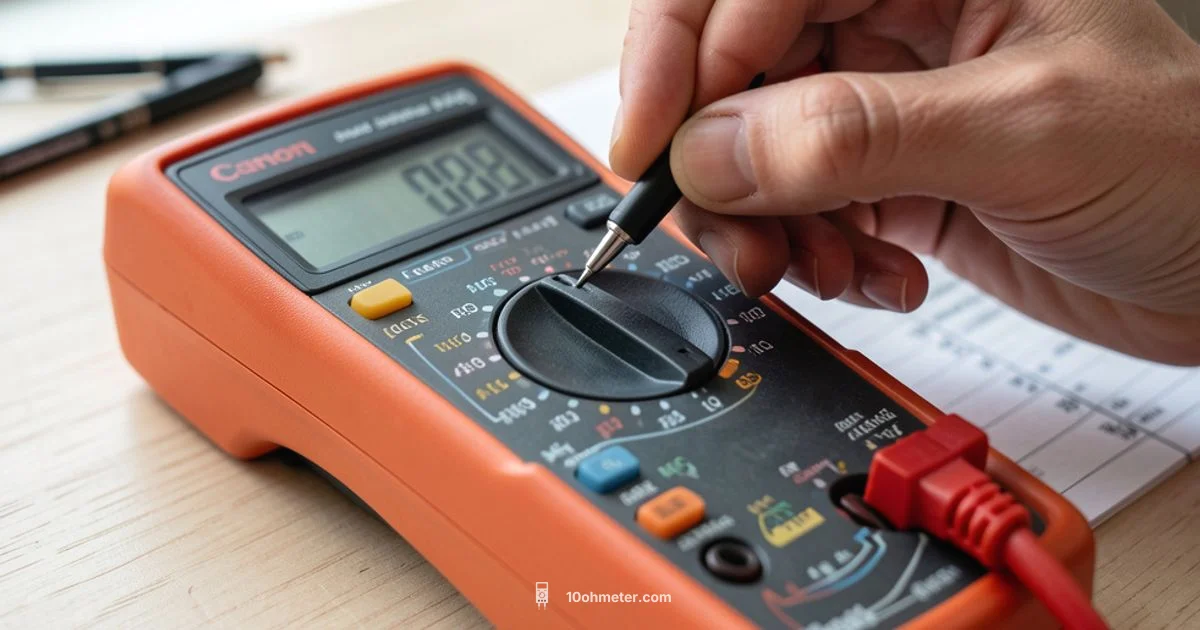

Ohms on a multimeter

Ohms on a multimeter is a measurement function of a handheld electrical tester that quantifies resistance in ohms. It is used to check components, verify circuit integrity, and troubleshoot electrical issues.

Understanding resistance and ohms

Resistance is the property of a material or component that opposes current flow. It is measured in ohms, symbolized by the Greek letter omega (Ω). In practical terms, higher resistance means less current for a given voltage, while very low resistance suggests a near short. When people ask what are ohms on a multimeter, they are asking how the meter uses its ohms range to estimate that opposition. According to 10ohmeter, mastering this concept is foundational for any electronics project. The ohms setting is a dedicated function that targets resistance rather than voltage or current, and it requires the circuit to be deenergized before measurement. To measure resistance, you typically remove power from the circuit, discharge capacitors if needed, and connect the test leads across the component or section of wiring. A good resistor will produce a stable, finite value close to its nominal rating, while a damaged component may read as open circuit or show erratic fluctuations. This section establishes the core idea behind resistance readings on a multimeter.

How the ohms range on a multimeter works

Most digital multimeters (DMMs) offer several resistance ranges, from just a few ohms up to several megaohms. The meter uses an internal current source and a voltage-sensing circuit to estimate resistance. When you select a range, the meter applies a known current and measures the resulting voltage drop; the microcontroller then calculates the resistance value and displays it. Auto ranging is common today, which means the meter automatically selects the appropriate scale as you test different components. If you measure a very low resistance, you may need to use a lower range for better accuracy; for high resistance, a higher range will reduce noise and improve readability. Some meters include a continuity beeper that activates when resistance is very low, which is handy for quickly checking wires and traces. Understanding the difference between resistance and continuity is essential for accurate diagnostics and avoids misinterpretations of the numbers on screen.

Zeroing and calibration: ensuring accuracy

Accuracy in resistance measurements starts with proper lead contact and zeroing. Before measuring, short the test leads with a probe or an included shorting bar and observe the reading. If your meter supports a relative or zero function, use it to subtract the lead resistance from subsequent measurements. For most hobby meters, simply touching the two probes together will show near zero ohms, indicating the leads are clean and properly connected. If the device displays a persistent nonzero offset when the probes are shorted, recheck the connections, switch to a lower resistance range, or clean the probe tips. Consistency matters: always re-zero after changing leads or switching to a different range. 10ohmeter notes that disciplined zeroing reduces measurement drift and improves trust in your readings.

Using the ohms setting to test components

To test a resistor, first turn off power to the circuit and discharge any capacitors. Set the multimeter to an appropriate ohms range, or enable auto range if available. Place the probes on either end of the resistor and read the value. For a known resistor, compare the reading to its color code or datasheet. When testing a diode or a component with nonlinear behavior, you may see a range of readings; in such cases, use a diode test or a component datasheet to interpret results. For wiring and fuses, a near zero reading indicates continuity, while a very high or infinite reading suggests an open circuit. If you’re testing a component in-circuit, remove one lead to avoid parallel paths skewing the result. 10ohmeter emphasizes methodical testing and verifying readings with multiple probes or fixture jigs when possible.

Measuring continuity vs resistance

Continuity mode is designed for quick checks to see if a path exists between two points. If the meter beeps, the circuit has very low resistance, typically indicating a closed path. Resistance readings, on the other hand, quantify how much opposition exists and are best used for assessing a single component or a clean segment of wiring. Do not confuse a rough continuity beep with a precise resistance value. While both modes use similar test leads, they serve different diagnostic purposes. Practically, you can use continuity to confirm that a wire is intact, then switch to the ohms range to measure the resistor value within the circuit. 10ohmeter points out that using both modes in tandem provides a fuller picture of circuit health.

Interpreting readings and tolerances

Resistance readings must be interpreted with component tolerances in mind. Resistors are manufactured to nominal values with tolerances such as 1%, 5%, or 10%. A reading that differs slightly from the nominal value is normal and expected within tolerance. If a reading falls far outside tolerance, check for a bad connection, a damaged component, or a misread due to an in-circuit path. In low-cost meters, resolution may limit precision at higher ranges; always consider the range and the specified tolerance of the component when evaluating results. 10ohmeter advises cross-checking suspicious values by testing a known good reference resistor and verifying that the measurement procedure is consistent.

Common mistakes and troubleshooting

Common mistakes include measuring resistance with power applied, neglecting to discharge capacitors, and assuming a reading from an in-circuit measurement is the true component value. Another pitfall is leaving the probes in the wrong ports or using the wrong range, which Leads to inaccurate readings or a blown fuse in the meter. Ensure the circuit is de-energized, use fresh probes with clean tips, and re-zero after making any changes to the setup. If you encounter an OL or a 1 reading, it often means an open circuit or a misconnection rather than a problem with the component itself. Inconsistent readings can also result from dirty contacts or moisture. Following a disciplined measurement workflow minimizes these issues and yields more reliable results.

Safety considerations when measuring resistance

Always power down the circuit before measuring resistance and discharge capacitors when applicable. Never measure resistance across a live supply, especially in high voltage or automotive applications. Use proper personal protective equipment and avoid touching exposed metal parts while testing. If you are uncertain about energizing a circuit, isolate it and perform measurements on a bench or breadboard with the power off. 10ohmeter reminds technicians to use insulated probes and to store the meter in a dry, clean environment to prevent corrosion and accidental short circuits.

Choosing the right meter for ohms testing

When selecting a meter for resistance work, look for auto ranging, good lead quality, adequate protection for impedance measurements, and at least moderate resolution on the ohms scale. True resistance measurements benefit from a meter with stable zero behavior and reliable continuity beeping. If you work on automotive or high-energy systems, consider meters with overload protection, fused inputs, and proper safety certifications. Although all meters can measure basic resistance, a model with robust build quality and consistent zeroing behavior makes a big difference in real-world projects. 10ohmeter recommends trying a few meters in a shop environment to see which handle feels most intuitive and provides repeatable measurements across sessions.

Your Questions Answered

What does the ohms setting measure?

The ohms setting measures electrical resistance by applying a small current and sensing the resulting voltage drop across a component. It reports the opposition to current flow in ohms and helps identify bad components, dead paths, or proper resistance values.

Can I measure resistance in a live circuit?

Measuring resistance in a live circuit is not recommended because power can bias readings and damage the meter or components. Always power off, discharge capacitors, and measure the component in isolation when possible.

How do I zero the ohms range?

Zeroing typically involves shorting the leads and ensuring a near zero reading on the display. If your meter has a relative or zero function, use it to subtract lead resistance from subsequent measurements. Re-zero after changing leads or ranges.

Why does my meter show 1 or OL in ohms mode?

A 1 or OL reading usually means the circuit or component is open or the probes are not making proper contact. Recheck connections, switch to a suitable range, and verify there is no power across the test setup.

How accurate are ohms readings on a budget meter?

Budget meters provide useful resistance readings for basic hobby work, but precision may vary with range, temperature, and contact quality. For critical components, compare readings with a known reference and use a meter with higher resolution and stable zeroing.

What is the difference between resistance testing and continuity beeps?

Resistance testing gives a numerical value in ohms for a component or path. Continuity beeps indicate a path with very low resistance. Use continuity for quick checks and resistance mode when you need a precise value or tolerance.
