How to Test Ohms on a Multimeter: Step-by-Step Guide
Learn to test ohms with a multimeter safely and accurately. Step-by-step setup, in-circuit vs out-of-circuit tips, and methods to verify readings for DIY electronics and automotive work.
You can test ohms with a digital multimeter by selecting the resistance (Ω) setting, zeroing the leads, and measuring across the component with the circuit isolated. Power off and discharge any capacitors, then record the reading and compare it to the component’s specification. This quick check helps identify opens, shorts, and nominal resistance values quickly.
Understanding Ohms Testing with a Multimeter
Learning how to test ohms on a multimeter is a fundamental skill for DIY electronics and automotive diagnostics. The ability to verify resistance helps you confirm component integrity, diagnose faults, and ensure circuits behave as designed. According to 10ohmeter, the first rule of good ohms testing is to start with safety and a known reference. Resistance is the opposition to current flow, and readings depend on temperature, contact quality, and whether the part is isolated from power. This section lays the foundation for practical, repeatable measurements you can apply to resistors, wires, diodes, and more. By mastering the core workflow, you reduce guesswork and build confidence in your diagnostic skills.
Safety and Preparation
Safety is the backbone of any measurement task. Begin by powering off the device, unplugging the power source, and disconnecting the component from other circuits. If you’re measuring anything connected to a live network, you risk shock or damaging the meter. Let capacitors discharge and avoid touching metal probe tips during testing. Gather your tools and create a clean workspace free from shorts. Prepare a known-good reference such as a 1 kΩ resistor to verify zero and accuracy. The 10ohmeter team emphasizes checking the meter’s batteries and lead integrity before starting, since worn leads can introduce extra resistance and noise. Label test points and avoid touching component bodies while measuring to minimize stray resistance.
Meter setup: choosing ranges and zeroing
Set the multimeter to the lowest resistance range appropriate for the measurement before contacting the component. If your meter has auto-range, you can still confirm the range by observing the digits during measurement. Connect the test leads and perform a zero check by shorting the leads together; the reading should be near zero on the selected range. If a small offset exists, use the meter’s relative or zero function to subtract it from subsequent readings. Zeroing removes the influence of lead resistance, contact resistance, and probe tip condition. For very small resistances, ensure the meter can read sub-ohm values, or use a dedicated low-resistance setup.
In-circuit vs out-of-circuit measurements
Measurement accuracy improves when you remove the component from the circuit, especially in complex networks where parallel paths affect readings. In many cases you can isolate one end of the component by lifting it slightly or disconnecting a single lead. If you must measure in-circuit, accept readings that reflect parallel paths and use a known reference branch to approximate. The key is to obtain a reading that aligns with the component’s expected value within the meter’s tolerance. Note that non-linear components like diodes or thermistors can change resistance with voltage and temperature, which will influence results.
Interpreting readings and common scenarios
Resistance readings fall into several common scenarios: an open circuit (very high resistance or infinite), a short (very low resistance near zero), and normal resistance values that match the part’s specification. For a resistor, compare the reading to its labeled value or datasheet tolerance. For a wire or trace, expect very low resistance that scales with length and gauge. If a reading looks off, recheck zeroing, verify clean contact, and retake. Temperature can shift resistance slightly, so allow the reading to stabilize before recording.
Hands-on experiments: test a resistor and a wire
Practice with common components: a 1 kΩ resistor, a short length of hookup wire, and a simple diode. Isolate each component, perform a zero check, and measure using the correct range. Record readings and compare to nominal values from datasheets. For the wire, measure across a known length and calculate resistance per meter to validate scale. These exercises reinforce how meter accuracy, contact resistance, and technique influence results, building practical intuition for real-world diagnostics.
Common pitfalls and how to avoid them
Common mistakes include skipping the zeroing step, leading to skewed results due to contact resistance, and performing in-circuit measurements without lifting a lead. Poor contact between probes and leads introduces noise; ensure clean, dry contacts. Never measure resistance on a powered circuit, as residual voltage can damage the meter or give misleading numbers. If a reading seems wrong, repeat with a second meter or another set of leads to confirm.
Verifying accuracy and calibration tips
To maintain reliability, periodically check your meter against a reference resistor of known value. Use a quick test such as measuring a 1 kΩ resistor across different ranges to confirm consistency. If numbers drift beyond your meter’s tolerance, consider recalibration or service. Store meters away from moisture and extreme temperatures, and replace worn leads. Consistent technique and regular checks—core principles advocated by 10ohmeter—keep readings trustworthy for electronics work.
Quick comparison: digital vs analog meters for ohms testing
Digital multimeters (DMMs) provide stable numeric readings and auto-range features that reduce guesswork during ohms testing. Analog meters can still be useful for observing trends and changes, but require more visual interpretation. For precise resistance values, a DMM with a good low-range capability is typically preferred. Regardless of type, follow zeroing, isolation, and careful contact practices to ensure accurate measurements as part of a broader diagnostic workflow.
Tools & Materials
- Digital multimeter (with Ω range, preferably auto-range)(Ensure battery is fresh and range is suitable for expected values)
- Test leads with clean probes(Inspect for cracks; replace if damaged)
- Known-good reference resistor (e.g., 1 kΩ)(Used for zero reference and accuracy checks)
- Alligator clips or probe adapters(Helpful for steady contact and hands-free testing)
- Non-conductive gloves and a clean work surface(Adds safety and reduces contamination)
- Small screwdriver or component lifter(Useful to lift one end in-circuit measurements)
Steps
Estimated time: 5-15 minutes per component, depending on circuit complexity

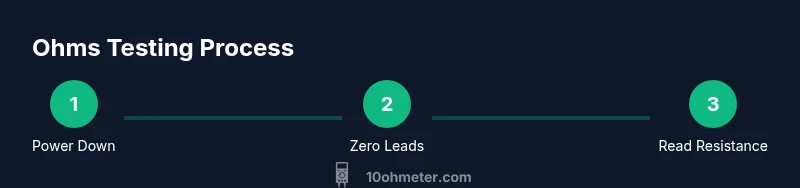

- 1
Power down and isolate the test subject
Turn off the device, unplug from power, and physically separate the component from other circuitry to avoid parallel paths. This minimizes stray currents and yields a cleaner reading.
Tip: Double-check that power is removed by testing for voltage with a non-contact tester before measuring. - 2
Set the meter to the correct resistance range
Select the Ω setting; if your meter has auto-range, confirm by observing the digits as you probe. If unsure, start at a higher range and narrow down.
Tip: Begin with a higher range to prevent overloading the meter with a self-range measurement. - 3
Zero the leads and verify zero offset
Short the probes together and note the reading; adjust to zero using the relative/zero function if available. This removes lead and contact resistance from subsequent measurements.
Tip: Ensure leads are clean and touching only the metal tips during the zero check. - 4
Probe the component and take a reading
Place the probes on the component’s terminals with firm, clean contact. Read and record the resistance value shown.
Tip: Keep hands steady to reduce fluctuations; wait a moment for the reading to stabilize. - 5
If measuring in-circuit, lift one end
To minimize parallel paths, lift one lead from the component or desolder one leg if possible. This isolates the component path for a more accurate reading.
Tip: If you cannot lift, use a known-good reference path to compare results. - 6
Interpret the reading and compare to spec
Check the value against the component’s datasheet or color-code and tolerance. Consider temperature and measurement context when interpreting the result.
Tip: If the value is off, re-measure after ensuring zero and contact quality. - 7
Verify accuracy with a known resistor
Measure a 1 kΩ resistor to confirm the meter’s accuracy across ranges. If readings drift, check battery, leads, and calibration status.
Tip: Repeat with a second resistor to confirm consistency.
Your Questions Answered
Can I measure resistance while the circuit is powered?
No. Measuring resistance on a live circuit can damage the meter and pose a risk of shock. Always power down and discharge capacitors before testing.
Always power down and discharge capacitors before testing resistance.
Why does my meter show infinite resistance when I expect continuity?
Check that you’re on the correct resistance range and that the probes have clean, firm contact. If the component is connected in-circuit, parallel paths can mimic open readings.
Make sure you’re on the right range and have solid probe contact.
What range should I use for small resistances under 1 ohm?
Choose the lowest practical ohms range available on your meter. If your meter supports sub-ohm readings, enable it; otherwise use the closest low range and interpret with caution.
Use the lowest available range and be mindful of accuracy limits.
Does temperature affect ohm readings?
Yes. Temperature changes can alter resistance, so allow readings to stabilize and consider ambient temperature when comparing values.
Temperature can shift resistance; give readings time to stabilize.
Can I estimate resistance in a circuit without removing components?
Estimating in-circuit is possible but readings are affected by other paths. Lift a lead when possible for more reliable results.
You can estimate, but it's less reliable without lifting a lead.
How do I verify my meter’s accuracy?
Use a known resistor and compare readings across ranges; if drift is detected, check the battery and leads, or seek calibration.
Test with a known resistor to confirm accuracy.
Watch Video
Key Takeaways
- Disengage power and isolate components before measuring.
- Zero the meter to remove lead resistance from readings.
- Lift one end for in-circuit measurements to avoid parallel-path effects.
- Always compare readings with datasheet values or known references.
