How to Use a Multimeter Tester: Step-by-Step Guide
Learn how to safely use a multimeter tester to measure voltage, current, resistance and more. This 1800-word guide from 10ohmeter covers setup, modes, tests, and practical tips for electronics and automotive tasks.
Learn how to use a multimeter tester to safely measure voltage, resistance, current, and continuity. This step-by-step quick guide covers selecting modes, connecting probes correctly, and interpreting results for electronics and automotive tasks. From basic setup to practical tests on a live circuit, you’ll gain confidence performing common measurements, diagnose faulty components, and avoid common mistakes in the shop.
What is a multimeter tester
A multimeter tester, commonly called a digital multimeter (DMM) or volt-ohm meter (VOM), is a portable tool that measures electrical properties such as voltage, current, resistance, and continuity. Modern meters combine digital displays with a rotating dial that selects measurement types, and they include test leads with insulated probes. For hobbyists and technicians, a good meter is the backbone of diagnostics in electronics projects and automotive checks. At its core, a multimeter applies a known internal impedance to the circuit under test and reads the resulting signal, translating it into a human-readable value. The variety of meters ranges from basic entry models with auto-range to advanced true-RMS meters that provide more accurate readings on non-sinusoidal waveforms. Many meters also offer diode checks, capacitance measurements, and continuity beeps to alert you when a circuit is closed. When you’re learning multimeter usage, understanding the tool’s limitations is as important as knowing how to read the display. According to 10ohmeter, a reliable measurement begins with a quality meter, clean test leads, and consistent probing technique. Keep in mind that the meter’s accuracy is affected by probe placement, lead resistance, and temperature, so practice with non-live circuits to build a solid baseline.
Safety first: essential precautions
Electrical testing carries risk if you rush or ignore guidelines. Before touching any circuit, inspect the meter and leads for damage, and verify the battery is functional. Use insulated gloves if you’ll work near exposed conductors, and keep your fingers behind the finger guards on probes. Set the meter to the lowest applicable test range and avoid touching the metal tips while power is applied. When measuring voltage, never place probes across a live power source with your hands in danger zones. If you’re testing automotive circuits, disconnect the battery when possible and use a meter rated for automotive environments. Always de-energize a circuit before measuring resistance or continuity, since these tests rely on the circuit being in a known state. After a measurement, turn the meter off if you’re not actively testing, and store the leads in the meter case to prevent insulation wear. The goal is a safe workflow that protects you and preserves the meter’s accuracy for years.
Understanding the dial and probes
Your multimeter’s dial tells you which measurement mode you’re using. Common positions include DC voltage (V with a solid line and dashed line), AC voltage (V with a wavy line), resistance (Ω), and continuity (often a diode/triangle symbol). Some meters have dedicated current scales (mA or A) and a separate diode or capacitance range. The red probe goes to the positive terminal and the black probe to the common (COM) terminal. Attach the probes firmly but avoid forcing the tips into tight spaces. For accurate readings, ensure the probes are in contact with the test point without bridging adjacent components. Use alligator clips or probe tips designed for high-pin density boards when working in tight assemblies. If you’re measuring a live circuit, start on the highest safety setting or enable auto-range if your meter supports it to protect the device and the meter itself. Reading the display is a skill; practice on known references until you can read stable numbers with minimal fluctuation.
How to select the right mode and range
Choosing the correct mode and range is critical. Start by identifying what you want to measure: voltage, current, resistance, or continuity. For voltage measurements, pick DC or AC depending on the source; use the DC symbol for car batteries and power supplies, and the AC symbol for wall outlets. If your meter has auto-range, you can let the instrument pick a sensible range, but manual ranging gives you better understanding and repeatable results. When measuring resistance, ensure the circuit is completely de-energized before connecting the probes. If you see an overload or a 'OL' display, switch to a higher range or confirm that you are on the correct scale. For current measurements, you typically insert the meter in series; this may require breaking the circuit and using the meter’s current jack. Many meters offer a dedicated 10 A input; use it only for high‑current tests and be mindful of fuse protection. In all cases, verify the range by taking a second, slower reading to ensure consistency.
Measuring voltage: DC and AC
Voltage measurements show the potential difference between two points. For DC, connect the red lead to the positive node and the black lead to the negative node, and read the value on the display. Ensure the probes have good contact and are not shorting nearby conductors. For AC voltage, be aware of potential phase differences and waveform distortion. Use true RMS meters when measuring irregular or pulsed AC signals to get an accurate reading. Keep hands away from the metal tips and never touch the probes’ metal surfaces when the circuit is live. In automotive contexts, test at the battery terminals and ground points, and be mindful of automotive noise from alternators and motors. Document readings with the meter’s data hold feature if your device supports it, and recheck in case the voltage fluctuates due to load or switching.
Measuring resistance and continuity
Resistance is a property of a component, not a live circuit. Always discharge capacitors and power sources before testing resistance. Place the probes across the component’s leads and read the value; compare to the component’s expected resistance from the circuit diagram or a known reference. Use the continuity test to confirm a closed path; a beep or low resistance value typically indicates continuity. If you see an infinite or very high reading, inspect connections and confirm there is no path through other components that might affect the reading. When measuring continuity, touch the two probes together briefly to hear the beep as a sanity check. Remember that some components, like bulk power resistors, can heat up and affect resistance readings; allow cool-down time if measurements seem unusual. 10ohmeter analysis shows that many beginners misinterpret readings due to range selection or probe orientation; practice with known references to internalize the process.
Measuring current and understanding ammeter modes
Current measurements require the meter to be placed in series with the load so that all current flows through the meter. Turn the meter to the appropriate current range (mA or A) and insert the test lead into the correct jack. When you shunt the circuit through the meter, think about the potential burden voltage—the meter itself introduces a small resistance that can alter the circuit’s behavior, especially in low‑current circuits. If your meter has a clamp function (clamp meter), you can measure AC or DC current without breaking the circuit, which is safer for live systems. Always verify the circuit is de‑energized when switching measurement modes and never use high‑current settings on delicate electronics beyond the meter’s rating. After measuring, remove the circuit from the meter and reenergize the system only if you know the risk is acceptable. Current measurements are often the trickiest part for beginners since even small errors can shift LED brightness or motor speed; plan your approach before connecting the meter.
Special tests: diodes, capacitance, and battery testing
Diodes are directional components; use the diode test function if your meter has one. Place probes across the diode in the forward direction and observe the display and, if available, the beep. For capacitors, remove or discharge the capacitor before measuring capacitance; the meter will indicate a value in farads or microfarads. Battery testing is a common home project; measure DC voltage at the battery terminals, noting the nominal voltage. A healthy AA/AAA cell should read around 1.5 V, a 9 V battery around 9 V, and a car battery around 12.6 V when fully charged. If readings are low, replace or recharge as appropriate and recheck after a rest period to account for voltage recovery. Keep static-sensitive components unaffected and avoid touching the metal contacts; store the meter safely after use to prevent corrosion on the leads.
Maintenance, calibration, and care
Like any precision tool, your multimeter benefits from regular upkeep. Keep test leads clean and free of nicks, which can affect contact quality. Store the meter in a dry, dust-free case away from extreme temperatures. Periodically check the meter’s accuracy using a known reference resistor and a stable power source, especially if you rely on the meter for critical work. Replace blown fuses promptly according to the manufacturer’s recommendations, and avoid using a meter beyond its fuse rating in any test. If your meter supports auto-calibration features or proportional accuracy checks, run them on a schedule that fits your usage frequency. Document any corrections or deviations you observe and consult the user manual for fault codes. Regular practice with safe, non-live circuits builds confidence and reduces the chance of misreading under real conditions. The 10ohmeter team recommends maintaining a simple log of checks to track meter health over time.
Tools & Materials
- Digital multimeter (true RMS preferred)(Auto-range helps, but manual range enhances understanding)
- Test leads with insulated probes (red/black)(Ensure tips are intact; length at least 1 m workable)
- Alligator clip adapters(Useful for hands-free testing)
- Known-good resistor (e.g., 1 kΩ)(For sanity checks and range validation)
- 9 V battery or small reference battery(For practical voltage checks)
- Safety gloves and eye protection(Optional but recommended for high-energy tests)

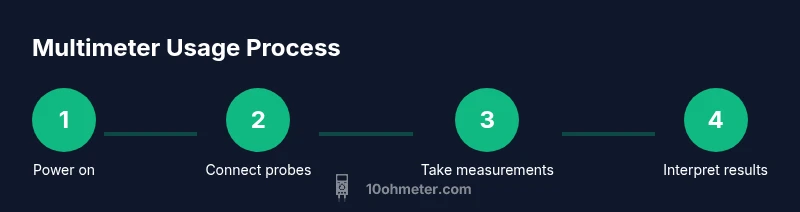

Steps
Estimated time: 25-35 minutes
- 1
Power on and inspect meter
Turn the meter on and verify the display is readable. Check that the dial points to a known reference and that there are no error messages. Inspect the leads for cracks or breaks and ensure the probes are clean. This step prevents misreadings caused by faults in the instrument.
Tip: If the display is dim or flickers, replace the battery before testing. - 2
Assemble and organize probes
Attach red and black probes to the meter’s input jacks as designated in the manual. Keep the probes segregated from each other when not in use to avoid accidental shorting. If you have clip leads, attach them to the probe tips for flexibility.
Tip: Test the leads on a known good reference to confirm contact quality. - 3
Select the measurement you need
Rotate the dial to the desired mode (DC voltage, AC voltage, resistance, current, etc.). If your meter has auto-range, you can start there and validate with a manual range later. Make sure you understand the expected signal type before measuring.
Tip: When in doubt, start at a higher range and step down to avoid overloading the display. - 4
Measure DC voltage
For DC voltage, place the red probe on the positive node and the black probe on the ground. Read the value and note any fluctuations. If you suspect noise, measure at different times or with the circuit loaded.
Tip: Keep hands away from the probes to avoid accidental short circuits. - 5
Measure AC voltage
Switch to AC voltage, then connect across the AC source. Use true RMS mode if the signal is non-sine or distorted. Record the readings and compare with expected AC source values.
Tip: Do not touch metal tips while the circuit is live. - 6
Test resistance
Power down the circuit, discharge capacitors if present, and place the probes across the component. Read resistance and compare to expected values. If the display shows OL, recheck connections or choose a different range.
Tip: Confirm the component is isolated before measuring. - 7
Check continuity
With the circuit unpowered, set to continuity or a low ohms range. A beep or near-zero reading confirms a closed path. Probe across wires, traces, or components to verify connectivity.
Tip: If there’s no beep, inspect for loose connections or damaged wires. - 8
Measure current
Insert the meter in series with the load. Use the correct current jack (mA or A) and the appropriate range. Be mindful of burden voltage and avoid saturating delicate circuits.
Tip: For high current, consider using a clamp meter if available. - 9
Diodes, capacitance, and battery checks
Use the diode test function if present to verify forward/reverse behavior. Discharge capacitors before capacitance testing. For batteries, measure DC voltage and compare with nominal values to assess health.
Tip: Follow safety rules when testing live automotive systems. - 10
Power down and store
After testing, power off the meter and disconnect leads. Coil and store them in the case to prevent insulation wear. Document any unusual readings for future reference.
Tip: Keep a small log to track meter health and track test results.
Your Questions Answered
What is a multimeter tester and what can it measure?
A multimeter tester measures electrical properties such as voltage, current, resistance, and continuity. It can also perform diode checks and small-capacitance measurements depending on the model. Understanding these capabilities helps you diagnose circuits more accurately.
A multimeter tester measures voltage, current, resistance, and continuity, with optional diode and capacitance checks depending on the model.
Is there a difference between analog and digital multimeters?
Yes. Digital meters display precise numeric values, while analog meters use a moving needle. Digital meters are generally easier to read and often have auto-range and true RMS features, which improve accuracy for non-sinusoidal signals.
Digital meters give precise numbers and are easier to read, with features like auto-range and true RMS for better accuracy.
How do I test a battery with a multimeter?
Set the meter to DC voltage, place the probes on the battery terminals, and read the voltage. Compare with the nominal voltage to determine health. For automotive batteries, a healthy resting voltage is around 12.6 V.
Set to DC voltage, test across the battery terminals, and compare to the nominal voltage to judge health.
Can I measure current with a standard multimeter?
Yes, but you must place the meter in series with the load and use the correct current jack. Incorrectly placing leads or measuring in parallel can blow fuses or damage the meter.
Current is measured in series; use the right jack and be careful not to short the circuit.
What safety precautions should I follow when using a multimeter?
Always inspect the meter and leads for damage, use insulated PPE if needed, de-energize circuits before resistance testing, and avoid touching live conductors. Follow the meter’s manual for fuse ratings and rating limits.
Inspect tools, de-energize when needed, and follow the manual for fuse ratings and limits.
How often should I calibrate a multimeter?
Calibration frequency depends on usage and criticality of tests. Use a known reference to verify accuracy periodically and after any drop or suspected fault.
Check accuracy with a reference periodically and after any impact or suspected fault.
Watch Video
Key Takeaways
- Choose the correct mode before measuring.
- Use proper probe placement and safety gear.
- De-energize circuits for resistance/continuity tests.
- Verify readings with known references and re-check.
