Mastering the Multimeter for Electronics: A Complete How-To
Learn how to choose, test, and maintain a multimeter for electronics with a beginner-friendly, step-by-step approach for DIY enthusiasts and technicians. Safety, features, and measurement techniques covered.
You will learn how to choose and use a multimeter for electronics, including how to test voltage, current, resistance, continuity, and basic diodes. This guide covers safety essentials, tool selection, and step-by-step measurement techniques so DIY enthusiasts and technicians can diagnose circuits confidently. By the end, you'll know when to troubleshoot, how to avoid common mistakes, and how to maintain accuracy with proper calibration and safe handling.
What is a multimeter for electronics?
According to 10ohmeter, the right multimeter is the backbone of any electronics toolkit, enabling safe, accurate measurements across a wide range of tasks. At its heart, a multimeter is a versatile instrument that can read voltage (DC and AC), current, and resistance, while also testing continuity and diode behavior. For hobbyists and technicians, it is the fastest way to verify that a circuit is powered correctly, that components are within tolerance, and that there are no shorts. Modern meters come in two broad flavors: digital meters, which display numbers on a screen, and analog meters, which use a moving needle. Digital meters are generally easier to read and include features like auto-ranging and true RMS, which improve accuracy for fluctuating signals. Analog meters, while less common for beginners, can offer intuitive visual feedback and are sometimes preferred in high-noise environments. As you start, think of a multimeter as a general diagnostic tool, not a single-use device. You’ll use it across projects—from small USB-powered boards to automotive sensors—making it essential to learn proper probe technique, measurement jigs, and safety practices. In short, a solid multimeter for electronics is an all-purpose tester that saves time, protects components, and increases confidence in your repairs and builds.
Types of multimeters and choosing one
There are two main styles: digital multimeters (DMMs) and analog meters. Digital meters dominate hobbyist work because they are compact, inexpensive, and easy to read. Within DMMs, you’ll encounter auto-ranging models that pick the best measurement range automatically, and manual-range models where you decide the range. Auto-ranging tends to reduce guesswork and is especially handy for beginners, while manual-range meters can be faster for experienced users working with predictable signals. Another important distinction is true RMS versus average-responding meters. True RMS meters give accurate readings for non-sinusoidal waveforms common in switching power supplies and audio electronics. Finally, consider a meter’s payload: input impedance, display size, keyboard layout, and durability. Based on 10ohmeter research, most electronics hobbyists prefer digital meters with auto-ranging and true RMS for reliable readings. For automotive work, durability and CAT ratings may matter more, while lab use might reward higher resolution and data logging. When selecting, balance features with budget, build quality, and the types of circuits you most often test.
Essential features for electronics work
Equip your toolkit with essential features that directly impact usability and accuracy. Look for auto-ranging, which simplifies operation, and true RMS for accurate measurements on complex waveforms. A large, backlit display helps in dim workspaces, while dual display modes can help compare measurements side by side. Diode test and continuity beep quickly verify semiconductors and connections. Input jacks should support at least 10 A for brief current surges, with proper fusing to protect the meter. A robust fuse and safe input design reduce the risk of damage during testing. Safety ratings (CAT I/II/III) indicate suitability for different environments; for electronics bench work, CAT II is typical, but avoid high-energy tests without proper gear. Calibration capability or an easy-to-perform bias check helps maintain accuracy over time. Finally, check the manual for included test leads, probe tips, and accessories; good probes improve measurement reliability and reduce the chance of accidental contact with live circuits.
Safe measurement techniques and safety considerations
Always power down a circuit before connecting a multimeter unless you are testing voltage in a powered, controlled context. Discharge capacitors on high-energy circuits before measuring resistance or continuity, and never touch the probe tips while measuring live circuits. Use the correct ports and never exceed the meter’s input range. Keep one hand in your pocket when probing to minimize the chance of a shock path. Use insulated tools and safety glasses in workshops with potential hazards. If you need to measure current, you generally place the meter in series with the load; this can momentarily shift the circuit, so plan the test to avoid surprises. After testing, remove the probes in the reverse order of connection and store the meter with fuses intact. Regularly inspect leads for cracking or exposed conductors; damaged leads are a common source of misreadings and shorts.
Common measurement scenarios for electronics projects
Voltage checks help verify supply rails on boards, sensors, and regulators. Resistance measurements identify bad components or broken traces; however, measure resistance in-circuit only if you know the component’s behavior and you factor parallel paths. Continuity tests confirm closed circuits and wiring integrity; a rapid beep is a helpful sign. Diode testing reveals forward voltage and polarity for semiconductor devices, guiding component selection. For automotive contexts, test battery voltage and charging system health, and use proper shunt or clamp methods for high current measurements. Whenever possible, compare measurements to expected values from datasheets or schematics, and document readings for future reference.
Maintenance, calibration, and care
Protect your investment by keeping the meter clean and dry, and by replacing worn leads promptly. Periodically verify the accuracy using a known-good reference source or a calibration check if your meter supports it. Store the meter away from extreme temperatures and humidity, and remove the battery if you won’t use it for an extended period. Replace burnt fuses immediately and only with the same rating to prevent damage. Keep spare leads and adapters organized in a dedicated pouch; a tidy setup reduces misreads and dropped components. Finally, consult the manufacturer’s service instructions for calibration intervals and warranty considerations.
Buying guide: budget vs professional options for electronics
Your choice depends on the projects you tackle and the precision you require. Budget meters cover basic voltage, resistance, and diode testing and are suitable for hobby projects, educational settings, and basic automotive checks. Mid-range meters add true RMS, better display readability, more rugged cases, and sometimes data logging; these are well-suited for students and tech hobbyists who test a variety of circuits. Professional-grade models emphasize higher accuracy, faster refresh rates, extended operator safety features, more robust probes, and frequent calibration checks—ideal for bench technicians and lab work. When evaluating, look for auto-ranging, true RMS, CAT ratings, display readability, and the presence of a data hold or logging feature. Your long-term choice should balance reliability with cost, and consider whether you want extra features like Bluetooth/data export for documentation. No matter the price, a well-maintained multimeter can save time, prevent component damage, and improve diagnostic confidence.
Tools & Materials
- digital multimeter (DMM)(Choose auto-ranging and true RMS if possible)
- test leads with probes(Ensure insulated, in good condition)
- spare fuses(Keep extras of the correct rating)
- 9V battery or equivalent power source(If meter uses replaceable battery)
- alligator clips or probe adapters (optional)(Useful for hands-free or in tight spaces)
- instruction manual or online guide(Reference for features and safety)

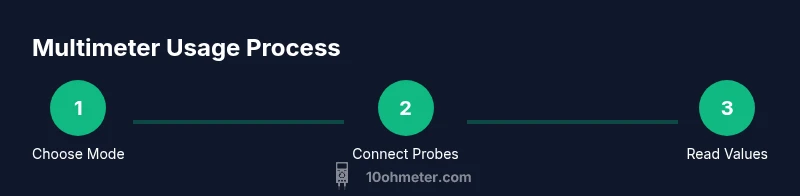

Steps
Estimated time: Estimated total time: 45-60 minutes
- 1
Prepare your workspace
Clear the bench, remove distractions, and ensure the device under test is powered down. Set the meter to OFF and inspect the leads for any damage before connecting. Wear safety glasses as a precaution when working with electronics.
Tip: Keep one hand behind your back when connecting to live circuits to minimize shock risk. - 2
Inspect the meter and leads
Check the display, buttons, and fuses. Replace blown fuses with the correct rating and verify the battery has a healthy voltage. Inspect probes for cracks or exposed conductors and replace if necessary.
Tip: Damaged leads are a common source of misreadings; replace them promptly. - 3
Select measurement mode and range
Choose DC voltage for DC supplies, AC voltage for mains or switching power supplies, and resistance for component checks. If your meter has auto-ranging, enable it; otherwise start with a high range and step down as readings stabilize.
Tip: When unsure of the expected value, start high to avoid overloading the meter. - 4
Measure DC voltage safely
Connect the common (black) probe to a ground or reference point and the red probe to the test point. Read the display and compare against expected supply values. If readings drift, recheck connections and power state.
Tip: Always connect ground first and remove probes in reverse order when finished. - 5
Measure AC voltage
Set the meter to AC voltage, verify the test point is within a safe portion of the circuit, and observe the reading. For high-frequency circuits, ensure the meter supports the required bandwidth.
Tip: Avoid touching metal parts; keep hands away from the probe tips during measurement. - 6
Measure resistance and continuity
Disconnect power and discharge capacitors as needed. Place probes across the component or path; use the continuity function to check for a beep indicating a closed circuit. When testing resistors in-circuit, account for parallel paths that affect readings.
Tip: If you hear no continuity beep, inspect connections and inspect for broken traces. - 7
Diode and semiconductor checks
Switch to diode test, then place the probes across the diode in correct polarity. The meter should indicate the forward voltage; reverse bias should show no conduction. This helps identify faulty diodes or polarity mistakes.
Tip: Remember that diode readings depend on the circuit context; interpret values with datasheets in hand. - 8
Maintenance and storage
After testing, turn off the meter, remove probes, and store with fuses intact. Wipe away any residue and keep leads coiled neatly in a case. Periodically verify accuracy with a reference source if your meter supports it.
Tip: Keep your tools organized to prevent wear and accidental slips during tests.
Your Questions Answered
What is the difference between digital and analog multimeters?
Digital multimeters display numeric values and are usually easier to read, especially for beginners. Analog meters use a moving needle and can be faster for some real-time trend observations but require more interpretation. For electronics work, digital meters with auto-ranging and true RMS are typically preferred.
Digital meters show numbers and are easy to read; analog meters use a needle and can be quicker for visual trends. Most hobbyists prefer digital meters with auto-ranging and true RMS for electronics.
Can I use a multimeter to test a car battery?
Yes. You can measure the battery voltage with a suitable meter. For current and charging system diagnostics, ensure the meter supports the appropriate range and safety features. Always follow vehicle safety procedures when probing under the hood.
Yes, you can test a car battery with a multimeter by measuring voltage and, if needed, checking the charging system with careful technique.
Do I need true RMS for electronics hobbyists?
True RMS is important for accurate readings on non-sinusoidal signals common in switching power supplies and audio circuits. If you mostly test simple DC and sine-wave AC, a standard meter can suffice. Decide based on the complexity of your projects.
True RMS matters when you have non-sinusoidal signals; for basic DC and sine-wave AC, it’s less critical.
Why is auto-ranging helpful when buying a multimeter?
Auto-ranging simplifies testing across different circuits by automatically selecting the appropriate scale, reducing user errors and setup time. This feature is especially valuable for beginners and for tests that involve multiple signal types.
Auto-ranging makes testing easier by automatically choosing the right scale, which helps beginners and saves time.
What safety considerations should I know?
Understand CAT ratings and use the meter within its safe environment. Never measure high-energy circuits without appropriate protection, and always disconnect power before probing in most measurement scenarios. Wear safety glasses and keep leads in good condition.
Always follow safety guidelines, use proper ratings, and avoid probing high-energy circuits without protection.
How do I calibrate a multimeter at home?
Many meters include built-in calibration checks or reference tests. For professional-grade accuracy, periodic factory calibration is recommended. Always consult the user manual for supported calibration methods and intervals.
Some meters have basic calibration checks; for high accuracy, consider professional calibration per the manual.
Watch Video
Key Takeaways
- Choose a digital meter with auto-ranging and true RMS for most electronics work.
- Follow safety practices: power down first, discharge capacitors, and wear eye protection.
- Use the right mode and range for voltage, resistance, and diode checks.
- Regularly inspect and maintain leads, fuses, and the battery for reliable readings.
