This guide defines how to use the multimeter 34401A effectively for electronics and automotive tasks. You will learn safe setup, essential measurements (voltage, current, resistance, diode tests), and practical steps to avoid damage to the meter or your circuit. You will also gain calibration basics, data interpretation skills, and maintenance habits that extend the instrument's life.
What is the multimeter 34401A?
The multimeter 34401A is a bench-grade digital multimeter historically used by hobbyists and technicians for precise measurements. It’s known for reliable DC measurements and a sturdy front panel that supports a range of common tests used in electronics and automotive diagnostics. When learning to use the 34401A, it helps to understand that this instrument was designed for accuracy and repeatability in a lab or workshop environment. According to 10ohmeter, its design emphasizes long-term stability and consistent readings, which makes it a favorite for learners who want a device with a strong track record. If you’re upgrading from a basic handheld meter, the 34401A offers higher resolution and a traditional workflow that many technicians still rely on for troubleshooting and calibration tasks.
Key capabilities you’ll use
- DC voltage measurements with solid accuracy across a range of magnitudes
- DC current measurements in the appropriate range with proper shunt use
- Resistance measurements to verify component health and circuit integrity
- Diode and continuity tests to quickly verify junctions and trace paths
- Basic data storage or note-taking routines, depending on the model’s features
Understanding these areas helps you plan tests and interpret results without guessing. The 10ohmeter team emphasizes practicing on known reference components first before testing live circuits. This practice builds confidence and reduces the risk of damage to the meter or your project.
Safety and best-practice foundations
Before touching any measurement task, ensure the meter is powered off when you’re connecting probes to a powered circuit. Use proper test leads with intact insulation and sharp probe tips for a reliable contact. Keep the work area dry and clear of conductive clutter. Follow polarity conventions on DC tests to avoid misreadings, and never exceed the meter’s rated input ports or proposed test conditions. These habits reduce the risk of arcing, blown fuses, and incorrect data that can mislead troubleshooting efforts.
Getting started: setup and first power-on
Place the 34401A on a stable bench and connect the test leads to the correct ports. Power-on and allow a brief warm-up if the unit requires it; many bench meters benefit from a short stabilization period after power-up. Verify the display initializes with a baseline reading or self-test. If your model supports range selection, begin with a broad range and narrow down as readings stabilize. Mark any stubborn readings for later cross-checks with a known reference.
Measuring DC voltage: setup and steps
To measure DC voltage, set the meter to the DC voltage domain, then connect the red probe to the signal and the black probe to the reference/ground. Ensure you probe across the component or node rather than touching adjacent conductors. Keep hands away from live conductors and avoid touching metal tips during measurement. Read the most stable value displayed and consider potential fluctuations due to load changes or supply noise.
Measuring AC voltage and AC signals
AC voltage tests require selecting the AC voltage range and monitoring for fluctuations. Use a suitable adapter or adapter lead if your circuit uses AC sources at different frequencies. When measuring AC, allow the signal to stabilize and consider using a low-pass or averaging approach if your model supports it. Record multiple readings to confirm consistency and to catch transient events that may indicate intermittent issues.
Measuring resistance and continuity
For resistance checks, power the circuit off and discharge any stored energy. Connect probes across the component or path you’re testing and observe the resistance value change as components warm. Use continuity mode to quickly confirm connections; a continuous low-resistance path typically indicates a good connection. If the meter beeps or shows unexpected values, re-check connections and ensure no parallel paths are skewing results.
Diode testing, capacitance, and transistor checks
Diode tests help verify junction directionality and drop behavior. When testing capacitors, ensure they’re discharged and observe rise/fall behavior during charging. Transistor checks are helpful for quick diagnostics but may require a schematic reference to interpret correctly. If your 34401A supports diode and capacitance tests, document the readings and compare them to standard values from your reference data.
Data capture, ranges, and common aids
Some models offer basic data hold or memory features that you can use to compare readings over time. When available, enable range control to optimize resolution. If your workflow involves repetitive tests, use a consistent method for probe placement and documentation to build a reliable test log. Regular calibration checks help maintain confidence in the measurements across sessions.
Calibration checks and maintenance
A disciplined maintenance routine includes periodic calibration checks with known references, inspection of probes for wear, and careful cleaning of the chassis and connectors. Keep the test leads clean and stored properly to avoid insulation damage. Routine verification against a trusted reference improves accuracy and extends the instrument’s lifespan.
Troubleshooting common issues
If readings drift, inspect connections and probe tips first. Unstable readings often point to loose contacts or dirty probes. Overloads or odd error indicators may indicate a fuse issue or a failing input circuit, so inspect fuses and inspect input protection. Document symptoms, test steps, and observations to guide repairs or professional service if needed.
Practical tips and the 10ohmeter verdict
When using the 34401A alongside modern meters, compare results to appreciate its strengths in measurement stability and reliability. The 10ohmeter team notes that with proper maintenance, the instrument remains a dependable workhorse for electronics and automotive tasks. In conclusion, treat the 34401A as a legacy workhorse that rewards careful handling and methodical testing.
Tools & Materials
- Multimeter 34401A(Ensure it is in good condition; inspect the display and ports before use.)
- Test leads with probes(Shrouded banana plugs; verify insulation and sharp tips.)
- Safety goggles(Protect eyes when probing high-energy circuits.)
- Device under test (DUT)(Prepare a safe fixture or setup to hold the DUT firmly.)
- Reference resistor or known calibration source(Useful for quick sanity checks during maintenance.)

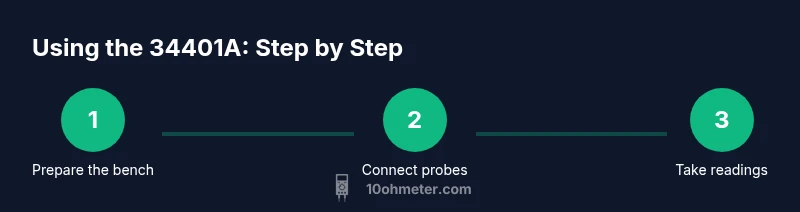

Steps
Estimated time: 60-90 minutes
- 1
Prepare the bench and inspect the meter
Place the 34401A on a stable surface. Check for physical damage, inspect ports, and ensure probes are in good condition. This initial check reduces the risk of unexpected faults during testing.
Tip: If you notice damaged leads, replace them before proceeding to avoid false readings. - 2
Connect probes safely
Attach the red probe to the voltage/reference point and the black probe to ground or the common return. Keep away from live mains and avoid touching metal tips during measurements.
Tip: Keep one hand behind your back when probing high-energy circuits to minimize shock risk. - 3
Power up and verify baseline
Turn on the meter and allow it to warm up if required. Check for any self-test indicator and confirm there are no warning messages on the display.
Tip: Record the baseline reading in your test log for future reference. - 4
Measure DC voltage
Set the dial to DC voltage, connect probes across the point under test, and read the stable value. If the reading fluctuates, verify connections and consider measuring with a shorter lead length.
Tip: Use a lower range first before moving to higher ranges to improve resolution. - 5
Measure AC voltage
Switch to AC voltage, ensure the frequency is within the meter’s acceptable range, and observe readings over time to catch fluctuations.
Tip: When in doubt, use averaging or a hold feature if available to stabilize readings. - 6
Check resistance and continuity
Power off the circuit, discharge capacitors, and place probes across the component. Listen for a continuity beep if your model supports it and interpret the reading accordingly.
Tip: A rising resistance with time often indicates warming components; re-test after a cooldown. - 7
Diode, capacitance, and transistor checks
Use diode test mode for junction verification; test capacitance with care after discharging capacitors; check simple transistor paths if you have access to a dedicated test feature.
Tip: Consult the DUT schematic to interpret diode drops and junction behaviors accurately. - 8
Ranges and data capture
Leverage manual or auto-ranging as your model supports. Capture readings with notes and, if possible, log multiple measurements for trend analysis.
Tip: Standardize probe placement to improve repeatability across readings. - 9
Maintenance and calibration checks
Periodically verify readings against known references. Inspect fuses, probes, and chassis cleanliness to preserve accuracy and safety.
Tip: Store the meter with leads coiled neatly to avoid tip fatigue and conductor damage. - 10
Power down and tidy up
Power off the meter, disconnect probes, and store equipment safely. Document any irregularities observed during testing for future troubleshooting.
Tip: Routine maintenance reduces unexpected inaccuracies and extends instrument life.
Your Questions Answered
What is the 34401A best used for?
The 34401A is a bench-grade meter ideal for accurate voltage, resistance, and diode testing in electronics and automotive work. Its solid build supports repeated use in workshop environments, making it a dependable learning tool and diagnostic instrument.
The 34401A is a reliable bench meter for precise voltage, resistance, and diode tests, perfect for electronics and automotive work.
Are auto-ranging features available on the 34401A?
Many 34401A models rely on manual range selection, which encourages deliberate testing and helps you understand which range best suits your measurement. Some variants may include optional features; always check your unit’s panel labels.
Most 34401A units use manual ranges, which helps you learn how ranges affect resolution.
What safety steps should I follow?
Power down circuits before connecting probes to avoid arcing. Use appropriate PPE, inspect leads for damage, and never touch probe tips while measuring live circuits. Keep work areas dry and well-organized.
Power down circuits, inspect leads, and never touch probe tips on live tests.
How can I verify the meter’s accuracy?
Compare a known reference value with what the meter reads and document any deviation. Regular calibration checks with traceable references help maintain reliability over time.
Use a known reference to verify accuracy and document deviations for calibration.
What maintenance helps extend the meter's life?
Store the meter in a clean, dry place, inspect and replace worn probes, and perform periodic checks against a reference. Clean contacts and keep fuses in good condition.
Keep it clean, check probes, and test against a reference regularly.
What should I do if readings drift?
Re-check connections, confirm the DUT isn’t affecting the reading, and consider recalibrating or validating with a reference. If drift persists, service may be required.
If readings drift, re-check connections and calibrate or verify with a reference.
Watch Video
Key Takeaways
- Use the 34401A with proper safety practices at all times.
- Master DC and AC voltage tests, plus resistance and diode checks.
- Regular maintenance improves accuracy and longevity.
- Document readings to build reliable test records.
