Measure AC Amps with a Multimeter: Step-by-Step Guide
Learn how to measure AC amps safely and accurately using a multimeter. This guide covers true-RMS clamp meters, shunts, in-line methods, and practical tips for electronics and automotive tasks.
Goal: measure AC amps with a multimeter safely and accurately. The most reliable method is a true-RMS clamp meter that surrounds a single conductor and reads current without disconnecting the circuit. If you must use a standard DMM, you can estimate current only by adding a known shunt and calculating from voltage drop—but do this only on de-energized circuits. Always follow safety procedures.
Why measure AC amps with a multimeter matters
According to 10ohmeter, safely measuring AC current starts with using the right tool and understanding the differences between true-RMS and basic meters. AC current represents how much electrical load flows in a circuit; knowing it helps with motor startup, heater sizing, and fuse selection. For DIY electronics and automotive work, measuring current gives you insight into power consumption, component stress, and system health. This guide focuses on practical, hands-on methods you can perform with common tools while highlighting safety considerations. We’ll explore when a clamp meter is preferable and how to work around the limitations of a traditional multimeter.
AC current basics you should know
AC current is expressed in amperes and varies with time. In clean sine-wave situations, the RMS value equals the effective DC equivalent; with non sinusoidal loads, true RMS meters provide the correct reading while average-responding meters can misread. A multimeter can measure current only when placed in series or using a clamp accessory. Understand that the unit of measurement reflects instantaneous flow, and the RMS value is what devices rely on for heat and wear calculations. Grasping these terms helps you choose the right tool and interpret results correctly.
Clamp meter vs inline measurement: which to choose
The clamp meter approach is the safest and most convenient for AC current. It surrounds a single conductor and outputs a current reading without breaking the circuit. Inline measurements with a classic multimeter require breaking the circuit and introducing a shunt, which increases the risk of shock and arc flash if done on live mains. For complex loads or non linear waveforms, a true-RMS clamp meter maintains accuracy where a simple meter may fail. If your work involves automotive wiring or portable equipment, a clamp meter is often the best first choice.
Essential tools and accessories
Before you start, gather your equipment to minimize interruptions. A true-RMS clamp meter is recommended for measuring AC current without disconnecting the circuit. If using a traditional multimeter, have a known low resistance shunt, test leads, and a safety-rated probe. A non contact voltage tester helps verify de energization. For higher accuracy, check the meter’s documentation for AC current ranges and maximum conductor diameter. Keeping a digital notebook or app record helps you track readings and improvements over time.
In-line measurement with a standard multimeter (when a clamp isn’t available)
In some cases you may need to use a shunt method. This involves placing a known low resistance in series with the load and measuring the voltage drop across the shunt with the meter. Current is calculated as I = Vdrop / Rshunt. This technique requires careful setup, solid calibration of the shunt, and assurance that the circuit is de-energized during the measurement. It is not ideal for high power mains or live-safety critical tasks.
Using a dedicated clamp meter for true-RMS AC measurements
A true-RMS clamp meter reads the AC current directly by clamping around one conductor. It handles non linear loads and distorted waveforms more accurately than a basic meter. When measuring, align the conductor and ensure the clamp fully closes around a single wire only. Read the display and, if needed, switch the meter to the appropriate AC current range. This method minimizes risk and simplifies the process for most DIY projects and automotive work.
Safety first: de-energize, PPE, and safe work practices
Always start by powering down the circuit and disconnecting power from the source. Use PPE such as safety glasses and insulated gloves when handling exposed conductors. Verify there is no voltage present with a non contact tester before touching any wires. Keep hands and tools dry and work on a insulated surface. If you are not confident, pause and seek someone with more experience. Safety is not optional when dealing with AC currents.
Common mistakes and how to avoid them
Common errors include measuring across the wrong conductor, overloading the meter, or trying to measure current on a live mains circuit without proper tools. Double check the meter’s settings, ensure the load is within range, and never bypass safety accessories. Keep the conductors clear of moisture and metal finishes that could cause accidental shorts. Practice on a low power, known-load circuit before attempting real work.
Practical example: measuring current in a lamp circuit
Suppose you want to measure AC current drawn by a lamp. Use a clamp meter around the hot conductor only. Power the lamp and read the current on the meter display. For inline measurement with a shunt, first insert the shunt into the hot leg while the circuit is de energized, then measure the voltage drop across the shunt and calculate I = Vdrop / Rshunt. Record the value and compare with the lamp’s rated wattage to verify.
Maintaining measurement accuracy: calibration and environment
Regularly calibrate your meters against a known reference source if possible. Maintain a clean environment, free from electromagnetic interference, and store meters in a safe place away from extreme temperatures. For DC bias drift, recheck zero readings and ensure the clamp or shunt is in good condition. Document the accuracy spec and keep your tools up to date with the manufacturer’s recommended maintenance.
What this means for practical electronics work
Measuring AC amps helps you size fuses, select motor ratings, and prevent overheating. Selecting the right tool whether a clamp meter or an inline shunt depends on circuit safety, voltage level, and the load’s waveform. When in doubt, consult the meter manual and follow 10ohmeter guidelines for best practices. You will gain deeper insight into circuit behavior and improve fault-finding efficiency.
Tools & Materials
- true-RMS clamp meter(Measures AC current without breaking the circuit; ensure it handles the expected current range)
- test leads with proper probes(Insulated, rated for your voltage; use shrouded probes for safety)
- known value current shunt (low resistance)(Needed if your DMM does not support in-line current; calibrate before use)
- non contact voltage tester(Quickly verify de energization before handling wires)
- insulated gloves and safety glasses(Personal protective equipment for mains work)
- manual or datasheet for the meter and shunt(Reference for ranges, accuracy, and safety warnings)

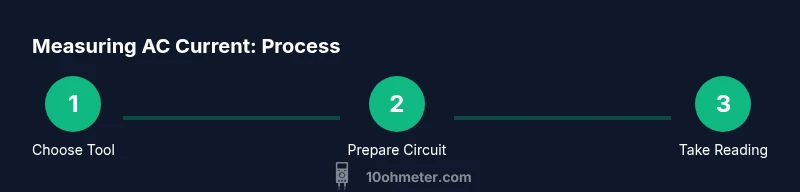

Steps
Estimated time: 40-60 minutes
- 1
Power down and verify
Turn off the circuit and unplug the device if possible. Use a non contact tester to confirm there is no voltage present before touching any conductors.
Tip: Always start with de energization to reduce shock risk. - 2
Choose your measurement method
Decide whether to use a clamp meter for a non invasive measurement or an inline shunt if your DMM supports current mode. Clamp meters are safer for live circuits; inline methods need a stable setup.
Tip: If you’re unsure, choose the clamp meter option first. - 3
Set the meter to AC current mode
On the clamp meter, select the AC current range or auto range. If using a DMM with a shunt, ensure you configure the input and range correctly and never exceed the shunt rating.
Tip: Consult the manual to confirm the correct port for current and the correct range. - 4
Make the measurement
For a clamp meter, simply clamp around a single conductor and read the display. For inline, insert the shunt in series with the load and measure the voltage drop across the shunt.
Tip: Clamp around only one conductor; clamping around multiple wires will skew results. - 5
Record and verify
Note the reading and compare it to the expected current from the load's rating. If you used a shunt, recalculate I = Vdrop / Rshunt.
Tip: If readings are off, retighten connections and recheck the conductor placement. - 6
Power up and recheck
Power the circuit back on and observe the current again. If you still see anomalies, check wiring and load conditions.
Tip: Document any anomalies for future fault finding.
Your Questions Answered
Can I measure AC current with a standard digital multimeter without a clamp?
Only if your meter includes a dedicated current input and is true RMS. Most basic DMMs cannot safely measure AC current in a live circuit. In those cases, use a clamp meter or a calibrated shunt with proper procedure and de energization.
A standard DMM may not safely measure AC current in live circuits unless it has a true RMS current input. If in doubt, use a clamp meter.
Do I always need a clamp meter for AC current?
Not always. For some projects you can measure using a known shunt with a DMM, but clamp meters are safer and easier for in situ measurements, especially with mains or automotive circuits.
Clamp meters are safer and easier for measuring AC current in place. Inline shunt methods are possible but require care.
What is true RMS and why does it matter for AC current?
True RMS measures the actual effective voltage or current of an AC waveform, especially with distorted loads. It gives a correct reading where non true RMS meters can misrepresent current, leading to incorrect assumptions about load and safety.
True RMS gives the real current value for distorted waveforms, which is important for accuracy.
Is it safe to measure AC current in automotive circuits?
Yes, but you must disconnect the battery before wiring or clamp measuring, use insulated tools, and avoid metal jewelry near live circuits. Use a clamp meter for ease and safety when possible.
Yes, with caution. Disconnect battery, use insulated tools, and prefer a clamp meter for safety.
How do I calculate current when using a shunt?
Measure the voltage drop across the known shunt resistance and apply I = V drop divided by R shunt. Ensure the circuit is de energized and resistance is accurately known.
Measure the voltage drop across the shunt and divide by its resistance.
What should I do if readings look unstable?
Check for loose connections, vibration, or heat in the conductor. Make sure you’re measuring a single conductor and avoid measuring across buses or tied wires.
If readings wobble, check connections and measure around a single conductor.
Watch Video
Key Takeaways
- Choose the safest method when measuring AC current.
- Understand true RMS versus average readings for accuracy.
- Always de energize circuits and use PPE.
- Document readings and verify with calibration checks.
