How to Use an Electrical Multimeter: A Practical Guide for DIYers
Learn to safely use an electrical multimeter to measure voltage, resistance, and continuity. This comprehensive guide covers setup, step-by-step procedures, safety, and practical tips for electronics and automotive tasks.
With an electrical multimeter, you’ll safely measure voltage, resistance, and continuity, and even check current in some models. This quick answer outlines the core steps: set the meter to the right range, connect the probes properly, perform a basic voltage test on a live circuit with care, and interpret readings to troubleshoot electronics or automotive components.
What is a multimeter and why use one
A multimeter is a compact instrument that combines several measurement functions into a single device. It typically can measure voltage (AC and DC), current, resistance, and sometimes continuity, capacitance, and diode tests. According to 10ohmeter, the core value of a multimeter is its versatility: it lets you verify circuits, diagnose components, and validate repairs without guessing. Whether you’re an electronics hobbyist or a professional technician, a basic digital meter is a foundational tool for safe, informed work. In practice, a multimeter gives you objective data you can trust, turning guesswork into test-driven decisions. This article focuses on how to use an electrical multimeter effectively in both electronics and automotive contexts.
Safety first: essential precautions when using a multimeter
Safety is non-negotiable when testing live circuits or automotive wiring. Always wear eye protection for high-energy systems and ensure your hands are dry. Inspect the test leads for cracks or exposed conductors, and keep them organized to avoid accidental contact. Start with the lowest voltage range if you’re unsure, and never exceed the meter’s input rating. If a reading seems unusual, double-check the connections and remove power before rechecking. These precautions help prevent shocks, short circuits, and damage to the meter or the circuit under test.
Voltage measurement basics: AC and DC, ranges, and probes
Voltage measurement is one of the most common uses for a multimeter. Distinguish between AC and DC voltage and select the appropriate setting on the dial. For DC voltage, connect the red probe to the positive point and the black probe to the ground or negative point. For AC voltage, take extra care around high-energy circuits and use the proper probes rated for the voltage level. When in doubt, start on a higher range and work down to the most suitable one. Probe tips should be pressed firmly but gently, ensuring a stable contact without slipping.
Resistance, continuity, and current: what you should test and how to interpret results
Resistance is tested by isolating the component and applying a small, safe current through it. A low resistance reading generally indicates a good connection, while a very high or infinite reading may indicate a broken circuit or component. Continuity tests produce an audible beep when a path is complete, which is useful for tracing wires or checking connections. Measuring current typically requires breaking the circuit and placing the meter in series; some meters offer current ranges, but always verify the meter’s CAT rating and never exceed the probe’s limits. Interpreting readings requires considering tolerance, component type, and circuit context.
How to use the voltage test in automotive vs electronics scenarios
In electronics projects, you’ll often measure low DC voltages (e.g., 3.3V or 5V rails) with relatively low current. In automotive contexts, voltages can be higher and circuits are often pulsating with engine management signals. Use a meter with appropriate input protection and leverage auto-ranging modes when available to minimize range guessing. When testing in cars, avoid probing live sensors directly while the engine is running unless you’re trained to do so, and consider clamps or専念 alternative methods for current measurements to reduce risk.
Common mistakes and how to avoid them
Common mistakes include using the wrong setting, touching probes while testing, and measuring on live high-energy circuits without protection. Always double-check the meter is on the correct range before touching circuits, and keep fingers behind insulated barriers. Don’t assume a diode test or capacitance reading will be valid if the circuit is powered. When in doubt, remove power and re-test with fresh probes to ensure accuracy.
How to maintain and calibrate your multimeter
Regular maintenance extends the life of your meter. Keep it clean and store it in a protective case. Periodically verify readings with known reference standards if you have access to them. Replace worn leads and batteries as needed, and calibrate according to manufacturer guidelines or service labs for precision-critical work. Document battery changes and calibration dates to track performance over time.
Tools & Materials
- Digital multimeter (prefer auto-ranging)(Choose a model with CAT II/III ratings and auto-ranging if possible)
- Test leads with probes(CAT-rated leads; 1-2 m length recommended; ensure shrouded probes)
- Probe tips with protective caps(Spare tips help when switching measurement types)
- Alligator clips or grabber attachments(Useful for hands-free testing and securing connections)
- Calibrated reference resistor (for accuracy checks)(Optional for periodic verification)
- Small screwdriver set(For battery access or terminal connections)

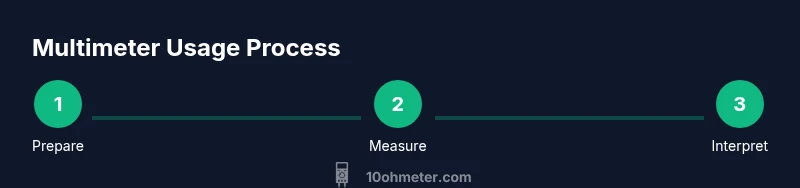

Steps
Estimated time: 20-40 minutes
- 1
Prepare your workspace and safety checks
Clear the area, ensure dry hands, and inspect the meter and leads for damage. This initial check helps prevent shocks and shorts and confirms you have the right tools at hand.
Tip: Confirm the meter’s battery is fresh before starting. - 2
Power down the circuit and isolate
If possible, power down the circuit and discharge any residual energy. Avoid testing while live unless you’re confident in your setup and the circuit can tolerate testing with the meter.
Tip: Never test resistance or continuity on a powered circuit. - 3
Set the meter to the correct range and mode
Select AC or DC voltage based on your task, or use auto-ranging if available. For resistance, disconnect the component and place the meter in resistance mode; for current, place the meter in series with the load.
Tip: If unsure of the voltage, start at a higher range to protect the meter. - 4
Connect the test leads properly
Insert the black lead into the common jack and the red lead into the appropriate jack for the measurement. Ensure the probe tips contact the test points firmly without slipping.
Tip: Keep hands behind the protective barrier and avoid touching metal tips during measurement. - 5
Take the measurement and read the display
Touch the probes to the test points and read the display carefully. If measuring current, observe the in-series path and ensure you’re not opening the circuit unexpectedly.
Tip: Record readings and note the measurement context (voltage type, circuit state). - 6
Interpret the results and cross-check
Compare readings to expected values or manufacturer specs. Use multiple checks (e.g., measure in different modes if safe) to verify consistency.
Tip: If readings seem off, re-check connections and range, then re-measure. - 7
Disconnect, store, and document
Power down the meter, disconnect leads, and return everything to its case. Note calibration date and any protection issues observed during testing.
Tip: Store the meter with fresh batteries and organized leads.
Your Questions Answered
What is a multimeter and what can it measure?
A multimeter is a versatile tool that measures voltage, current, resistance, and sometimes continuity, capacitance, and diode tests. It helps you diagnose circuits and verify repairs without guesswork.
A multimeter measures voltage, current, and resistance, and can test other properties like continuity and diodes, aiding diagnostics.
How do I choose between auto-ranging and manual-ranging meters?
Auto-ranging meters simplify setup by selecting the correct range automatically, which reduces guesswork and the risk of incorrect readings. Manual-range meters give you more control and can be faster for experienced users in predictable tasks.
Auto-ranging meters are beginner-friendly, while manual-range meters offer precision for experienced users.
Can I measure current without breaking the circuit?
Measuring current typically requires placing the meter in series with the circuit, which often means opening the circuit. Use a clamp-on meter for non-contact current measurements when possible.
Current is usually measured in series; clamps can measure current without breaking the circuit.
How do I test resistance safely?
Ensure the circuit is de-energized and components are isolated before testing resistance. A reading in ohms indicates how much a component resists current flow, which helps identify faults.
Always de-energize the circuit before checking resistance; readings show resistance in ohms.
What safety precautions should I follow?
Wear eye protection, inspect leads for damage, avoid touching sharp probes, and never measure live circuits beyond the meter’s rating. If you’re unsure, stop and re-check before proceeding.
Wear protection and inspect tools; don’t test beyond the meter’s rating and stop if unsure.
What additional features are worth upgrading for?
Capacitance tests, diode testing, and true-RMS measurement are useful for advanced electronics work. For automotive diagnostics, ensure the meter supports the relevant voltage ranges and safety standards.
Capacitance, diode tests, and true-RMS can be helpful for advanced projects.
Watch Video
Key Takeaways
- Know your measurement type and range before testing
- Always follow safety practices when testing live circuits
- Use correct leads and settings to prevent damage
- Document readings and calibration history
- Practice on low-risk circuits to build confidence
