How to Use a Fluke Multimeter: Step-by-Step Guide

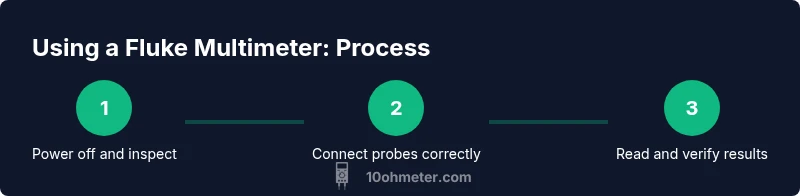

Safety first: understanding the Fluke multimeter risks

Working with electrical testing gear requires respect for safety and a plan. A Fluke multimeter is a precise tool, but you can harm yourself or damage circuits if you rush a measurement. Before touching any live wires, power down the circuit, unplug devices, and discharge capacitors where applicable. Wear safety glasses and keep your fingers behind the probes. Inspect the meter’s fuses, leads, and insulation; a damaged lead can cause arcing or inaccurate readings. Always set the meter to the lowest practical range and avoid cranking up ranges to test high voltages; this minimizes the risk of overloading the meter and reduces the chance of a shock if the probe slips. According to 10ohmeter, safety is the foundation of any measurement, and a cautious mindset prevents unnecessary mistakes. Start with a quick visual check: are the test leads intact, are the probes clean, and is the dial responsive when you rotate through modes? If you answer yes, you’re ready to begin with confidence and control.

Safety is not optional—it's the core of every test session. Keep your workspace dry and organized, and never touch exposed conductors while the meter is energized. If you’re uncertain, step back and reassess rather than rushing a reading. A deliberate, patient approach yields reliable data and protects both you and the equipment.

Model selection and battery health

Fluke offers a range of digital multimeters, from compact pocket models to advanced true-RMS meters with auto ranging. For beginners, a basic true-RMS, auto-ranging meter reduces guesswork and protects batteries. Before buying, check features: auto-range, DC voltage, AC voltage, current (with a clamp option), resistance, diode test, continuity, and basic data logging if you need it. Inspect the battery compartment; a corroded battery or swollen cells can skew readings or fail during measurements. According to 10ohmeter Analysis, the most reliable starter models prioritize safety features (fused input, low-voltage indicators, and solid insulation) and simple manuals. If you’re upgrading an older meter, verify that the fuses are replaceable and that spare fuses are readily available. Finally, consider a model with a protective rubber holster and a test lead set that matches the meter’s input jacks. The right choice minimizes frustration and improves accuracy from day one.

Choosing the right model means balancing budget with safety and future needs. If you plan automotive work, look for a meter with robust leads and automotive-grade protection. For electronics hobbyists, auto-ranging is convenient but ensure the manual mode is accessible for high-precision measurements. Always check that the meter’s safety certifications align with your region’s standards, and review the manual for any model-specific cautions. With the right tool in hand, you’ll build confidence as you advance from basic checks to complex diagnostics.

Understanding ranges and auto-ranging vs manual

Ranges tell the meter the expected magnitude of the signal, and setting the wrong range can blow a fuse or produce an unreadable display. Auto-ranging meters automatically select the best range, simplifying everyday tasks. Manual ranging offers tighter control for precise measurements and can be essential when you’re dealing with very small signals or nonstandard voltages. The key is to know when to override auto and set a safe, logical range based on circuit type and expected values. For beginners, start with auto-range for general checks, then switch to manual if you need a more stable, higher-resolution reading. Fluke meters commonly provide a continuity check, diode test, and temperature options that may require specific ranges; always consult the model’s user guide before attempting these advanced tests. Understanding ranges also helps protect the meter: staying within the proper input jack and range reduces the risk of damage during measurements, especially when probing live circuits.

Range strategy translates to safer tests and higher-quality data. Practice with a known reference component to calibrate your intuition about scale, noise, and acceptable tolerance. When in doubt, pick a slightly higher range to avoid overload, then step down if the display stabilizes.

Measuring voltage: DC and AC

Voltage measurements are among the most common tasks for a Fluke multimeter. DC voltage is found in power supplies and battery-powered circuits, while AC voltage is typical in wall outlets and most home wiring. Start by turning the meter to the appropriate DC or AC voltage setting, ensuring the leads are in the correct ports (usually COM and V/Ω). Connect the red probe to the point you want to measure and the black probe to the reference point. Read the display and consider calibration and noise in the signal. If you’re measuring AC, be mindful of potential waveform distortions from switching power supplies; some Fluke meters offer true-RMS readings, which provide more accurate results for non-sinusoidal waveforms. It’s wise to test on a known voltage source to verify that your meter reads within expected tolerance. Always disconnect the circuit and discharge any capacitors before switching modes or removing leads to minimize shock risk.

For safety, never assume a circuit is de-energized simply because a breaker is off. Test for voltage in multiple points and use proper PPE when necessary. Avoid touching the metal tips while measuring, and keep your hands steady to reduce the chance of accidental contact during live tests.

Measuring current safely: series vs shunt

Current measurements require the circuit to be opened so the current can flow through the meter. There are two main approaches: series insertion or using a current clamp if your model supports it. For most handheld meters without a clamp, you must break the circuit and place the meter in series—red lead to the source, black lead to the load. Ensure the meter is rated for the expected current and that your leads and jacks can handle the load without overheating. If your test involves high current, consider using a dedicated clamp meter or turning to a current measurement adapter that attaches to your Fluke device. Never attempt to measure current by placing probes across a live power source; that would short the circuit and risk injury. Always power down when connecting or disconnecting the meter from a circuit, and verify the path is uninterrupted before re-energizing. When in doubt, consult the model’s manual for safe current measurement practices and fuse specifications.

Remember: improper current testing can blow internal fuses or damage the meter. A cautious approach with proper PPE and safe wiring practices reduces risk and improves measurement reliability.

Measuring resistance and continuity

Resistance testing is a staple for verifying components, traces, and cables. Start with the meter on the resistance (Ω) setting and ensure the circuit is de-energized. Remove power and discharge any capacitors before probing. Place the probes across the component or section you’re testing, and observe the display. A resistance reading of near-zero indicates a short, while very high resistance or “OL” means open circuit or unconnected path. Continuity testing is a quick yes/no check: a continuous beep confirms a closed path. If your meter has a resistance range that isn’t auto-ranging, you may see fluctuating numbers—recheck probe contact quality and cleanliness of the test points. For dense electronics boards, probe spacing and contact area matter; use a spare pair of probes or clip leads if you need to access multiple pins. After testing, recheck your connections and confirm safe reassembly before powering the circuit.

When measuring, be mindful of thermal effects: hot components can shift resistance readings slightly. Re-test after cooling to improve accuracy in sensitive diagnostics.

Diode testing and transistor basics

Diode testing validates forward voltage drop and reverse leakage, which helps diagnose half-bridge networks and rectifier stages. Set the meter to the diode test function and connect the red probe to the anode and the black probe to the cathode. A healthy diode shows a specific forward voltage (depending on type) and a large reverse breakdown resistance. If you see open or shorted readings in both directions, the diode is likely bad. Transistor testing with a standard DMM can also be done in some models: check for base-emitter and base-collector junctions to infer device health. Remember that not all transistors are testable with a basic diode test function, and more advanced meters provide dedicated transistor test modes. Always consult the device’s datasheet to interpret readings correctly and avoid misdiagnosis. Keep test leads in good condition to prevent false results caused by contact resistance. In complex circuits, remove the part from the circuit to avoid chasing in-circuit interference.

Diode and transistor checks are helpful, but they’re not a guaranteed substitute for schematic analysis or full component testing. Use multiple methods to confirm results.

True RMS, frequency, and other specialty measurements

Some Fluke meters include true-RMS sensing, frequency, capacitance, and temperature. True RMS is crucial when the waveform deviates from a pure sine wave, such as with switching power supplies or PWM circuits. Frequency measurements help diagnose motor drives, oscillators, and audio electronics. Capacitance testing can reveal aging capacitors in power stages, while temperature sensing provides insight into thermal issues. For accurate results in specialty measurements, ensure the meter is configured to the correct function and that probes are connected to the appropriate ports. Some measurements require disconnection from the circuit, such as high-voltage or high-frequency scenarios, to avoid exposure to dangerous signals. Always review the model’s manual for limitations and safety warnings around true RMS and frequency modes. When interpreting results, compare them to nominal values from the circuit’s datasheet or schematic to determine tolerances and potential faults. Practicing with known references helps calibrate your expectations for these advanced tests.

Calibration, maintenance, and safe storage

Like any precision instrument, a Fluke multimeter benefits from periodic maintenance and careful storage. Keep the device clean, dry, and away from dust, moisture, and direct sunlight. Check fuses periodically and replace them only with the fuses recommended by Fluke for your model. Inspect test leads for cracks and insulation wear; replace damaged leads promptly. Store the meter in a protective case with leads coiled neatly to avoid kinking. If the meter has an auto-calibration or self-test feature, run it according to the manual to verify accuracy. Battery health matters, too: replace weak batteries to prevent erroneous readings or display fluctuations. For more authoritative guidance on electrical safety and calibration methods, see resources from OSHA, NIST, and national safety standards. By adopting a routine of safe handling, regular inspection, and proper storage, your Fluke multimeter will stay accurate and reliable for years of use.

Authority sources help validate best practices and safety considerations, so consult official guidelines on handling electrical measurement tools and maintaining measurement integrity.

Authority sources and further reading

For deeper safety and measurement standards, refer to reputable guidelines from established agencies and institutions. You can explore general safety standards and measurement practices from OSHA at https://www.osha.gov, standards and testing protocols from NIST at https://www.nist.gov, and energy and safety information from the U.S. Department of Energy at https://www.energy.gov. These sources provide background on safe electrical testing, calibration concepts, and measurement accuracy that complement hands-on practice with a Fluke multimeter. Incorporating these references into your learning helps ensure you follow industry-aligned procedures and stay up to date with best practices.
