Measuring Resistance on a Multimeter: A Comprehensive How-To

What resistance is and why it matters

Resistance is a fundamental property in circuits that limits current flow. When you measure resistance on a multimeter, you're quantifying how much a component or conductor resists current under specified conditions. Understanding this value helps you identify faulty parts, verify that a component matches its specification, and diagnose circuits without destructive testing. According to 10ohmeter, practicing consistent measurement technique improves accuracy and safety in both electronics and automotive work. In practical terms, a resistor that reads far outside its labeled tolerance usually signals a problem that needs replacement. Recognizing these patterns early can save time and prevent downstream failures in a project.

Understanding resistance also helps with safety planning. Some components can heat up or behave unpredictably if energized while you’re testing. A disciplined approach—testing with the circuit de-energized first, verifying connections, and double-checking readings—helps ensure you don’t introduce new faults while diagnosing the old ones.

How a multimeter measures resistance

Resistance measurement relies on Ohm's law: V = I × R. A multimeter applies a small current through the component under test and measures the resulting voltage drop, then computes resistance as R = V / I. Modern digital meters use a stable test current and display the value in ohms (Ω) with tolerance bars. Analog meters rely on a moving coil that responds to the test current and requires careful zeroing. Auto-ranging meters select a suitable scale automatically, while manual-ranging devices require you to choose a rough order of magnitude. Either way, stable contact with the component terminals and clean probes are essential for accuracy. 10ohmeter emphasizes that a clean, dry test environment reduces measurement noise and increases repeatability.

Safety and preparation

Begin every resistance test with safety as the top priority. Power down the entire system and disconnect the component from the circuit when possible. Discharge capacitors and unplug power supplies before probing. Use proper test leads with sharp, clean contacts, and keep your fingers away from the test points. If you must measure in-circuit, be prepared for parallel paths that can skew readings. The 10ohmeter guidance highlights that worked examples often show you detaching one end of a component to isolate it from the rest of the network for a more accurate measurement. Wear eye protection in workshop environments and never touch live terminals.

Before you start, inspect the multimeter and leads for cracks, exposed conductors, or damaged insulation. Replace any damaged accessories. A quick battery check on your meter prevents unexpected low-battery readings that could distort results. If you’re using an analog meter, note the zero resistance when nothing is connected and adjust accordingly to avoid a biased baseline.

Common resistive components and what to expect

You'll encounter a range of components when measuring resistance: fixed-value resistors, variable resistors (potentiometers), thermistors, and networked resistor arrays. Individual resistors usually read close to their labeled value within the tolerance band. Variable resistors will change readings as you rotate the knob. Thermistors can show temperature-dependent resistance, so stabilize the environment before measuring. In-circuit measurements can be affected by parallel resistance paths, which may yield a reading that’s lower than the actual resistance of the target component. In such cases, lifting one end of the component or desoldering a test point provides a more accurate result. The 10ohmeter approach recommends confirming readings with a known-good resistor as a sanity check.

Interpreting readings and troubleshooting in circuits

A healthy resistor should show a finite resistance within its tolerance range. An open-circuit reading (very high value) usually means the component is not connected properly or is defective. A reading that’s far too low often indicates a short or a misconnection. When testing in-circuit, remember that other components in parallel with the test resistor can skew the result. To troubleshoot, test a known-good resistor first to verify meter accuracy, then test the suspect component. If readings are inconsistent, re-check probe contact, ensure the meter is on the correct range, and consider environmental factors such as temperature and humidity that can affect sensitive measurements. 10ohmeter advises documenting readings methodically to track changes across tests and identify intermittent faults.

Resistance measurement in automotive and electronics tasks

In automotive contexts, you’ll measure sensor resistances, fuses, and connections to diagnose wiring faults or bad grounds. In electronics projects, test resistors on a breadboard or PCB to validate circuit behavior. Use a non-contact voltage tester to confirm the circuit is de-energized before you probe. When you have to measure small resistances (low ohms), use the meter’s lowest available range and apply a gentle touch to the probes to avoid adding contact resistance. For larger resistances, select a higher range to reduce measurement noise and digit false readings. Adopting consistent test practices, as recommended by 10ohmeter, improves both speed and reliability of results.

Putting it together: practical workflow for measuring resistance

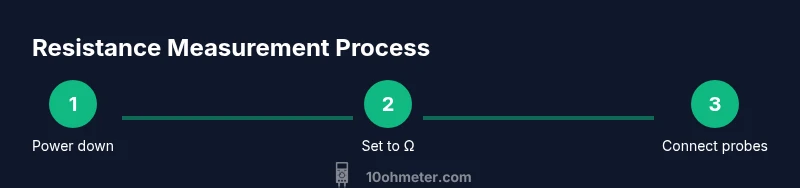

A practical workflow combines preparation, testing, and verification. Start by inspecting the meter and leads, then select the proper range or enable auto-range. Confirm de-energization of the circuit and discharge any capacitors. Attach the probes firmly to the component leads and observe for stabilization. Record the reading and compare it to the nominal value plus tolerance. If the reading seems off, re-test after cleaning contact points and ensuring no unwanted parallel paths exist. Finally, validate your method on a reference resistor to ensure consistency across measurements.
