How to Set Up a Multimeter: A Practical Step-by-Step Guide
Learn how to set up a multimeter for safe, accurate measurements. This comprehensive guide covers mode selection, range choices, safety checks, calibration basics, and common troubleshooting for electronics and automotive work.
In this guide, you will learn how to set up a multimeter for safe, accurate measurements. You’ll verify safety, select the correct measurement mode, choose an appropriate range, and perform a basic test before measuring. Gather your tools, read the safety notes, and follow the steps to measure voltage, resistance, and continuity with confidence.
Why correct setup matters
Setting up a multimeter correctly isn't merely procedural; it's foundational for safety and reliable results. This article explains how to set up a multimeter for safe, accurate measurements. According to 10ohmeter, a well-prepared workspace, properly rated leads, and a clear measurement plan dramatically reduce the risk of incorrect readings and equipment damage. A good setup begins long before you touch the meter: inspect the device for cracks, confirm the display is legible, and ensure the test leads are intact and properly labeled. Then verify the ports: most meters have a common COM and a dedicated measurement jack (VΩmA). Use the V or V– terminals for voltage tests, the ohm jack for resistance, and the mA or A jack for current, keeping in mind the current measurement path. Finally, check the fuse status; a blown fuse can distort readings or blow again under load. With these steps in place, you’re ready to move into safe, accurate measurements for voltage, resistance, continuity, or current. This is a practical, how to set up a multimeter guide you can follow step by step.
Safety first when using a multimeter
Safety is non-negotiable when working with electrical equipment. Always power down and discharge capacitors before probing, and avoid touching exposed conductors with bare hands. The one-hand rule is a prudent safeguard—keep one hand away from the circuit to reduce the chance of a path through your body in case of a fault. Wear safety glasses if you’re working with high-energy circuits. Inspect the test leads for cracks, and never use a damaged lead. Check the meter’s fuse and battery condition before testing. When measuring live circuits, set the meter to the lowest practical voltage range before connecting the leads, and never exceed the meter’s rated input. These precautions help prevent shocks, burns, and arc faults. The 10ohmeter team emphasizes a disciplined approach to safety as the foundation of any reliable measurement workflow.
Tools, environment, and basic checks
Create a clean, dry workspace away from water or conductive surfaces. Remove metallic jewelry and static-prone accessories that could accidentally contact circuitry. Gather essential tools: a digital multimeter with fresh batteries, a pair of insulated test leads, alligator clips for hands-free measurements, a non-conductive probe stand, and a small screwdriver for cap and fuse access. Confirm the environment is well-lit and free of obstructions. Inspect the meter’s probes for wear, test your leads against a known good reference (like a 9 V battery or a precision resistor), and confirm the device’s display reads correctly in the default mode. Store the meter in its pouch to protect it from dust and impacts. A well-prepared setup reduces drift, contact resistance, and misreads during subsequent measurements.
Understanding meter ranges and modes
Digital multimeters offer several modes, each with its measurement range. For DC voltage, select the DCV setting and start with a higher range (e.g., 200 V) if you’re unsure of the source level; you can step down to a more precise value if the display resolves the reading. For AC voltage, use the ACV setting with a similar cautious range. When testing resistance, switch to the ohm mode (Ω) and ensure the circuit is de-energized; cold-junctions or residual charge can skew results. The continuity setting helps verify open or short circuits with an audible beep; ensure the resistance is low enough to trigger the beep and test across the two points. For current measurements, you’ll typically insert the meter in series and often use a dedicated current jack and low mA range to protect the meter and the circuit. Understanding these modes and ranges helps you avoid overloading the meter while obtaining meaningful data.
Quick-start setup checklist
Before you measure, complete this practical checklist: 1) power off the circuit and discharge any capacitors; 2) select the correct mode (DCV, ACV, Ω, or continuity) and a safe range; 3) connect the black probe to COM and the red probe to the appropriate jack; 4) touch the probes to the test points with gentle, stable contact; 5) read and interpret the value, then compare against a known reference if possible. If the meter reads out of range, switch to a higher range and recheck the connection. Always re-check the leads, fuse, and battery after measuring. For automotive work, ensure the test area is secure, the engine is off, and you’re wearing eye protection. A clean, methodical approach reduces misreads and keeps your project moving forward.
Troubleshooting and getting the most from your setup
If readings don’t seem right, verify the probes’ contact is solid, or try a known reference to confirm meter accuracy. Check for drifting values when touching the same test point with the same setup; this can indicate poor contact, a worn probe tip, or a loose battery connection. The 10ohmeter analysis shows that most measurement errors stem from incorrect ranges, bad leads, or a blown fuse rather than a faulty meter. Regular calibration checks and good storage habits—keep the meter away from heat, dust, and moisture—help sustain accuracy over time. In doubt, consult the manual or seek a basic calibration check from an experienced technician.
Tools & Materials
- Digital multimeter(Ensure it has fresh batteries and a visible display)
- Test leads (V/Ω, with alligator clips optional)(Insulated, with intact tips)
- Alligator clips(Hands-free measurements when needed)
- Non-conductive mat or wrist strap(Adds safety on live work)
- Small screwdriver for fuse access(Only if you need to inspect or replace fuse)
- Safety glasses(Recommended for high-energy or automotive work)

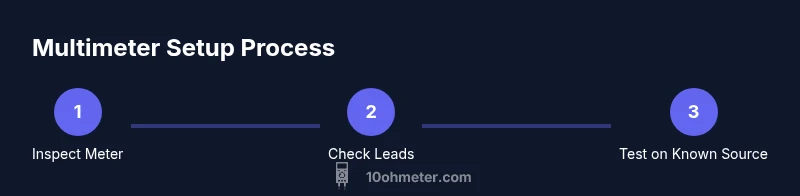

Steps
Estimated time: 20-30 minutes
- 1
Inspect the meter and leads
Unpack the meter and visually inspect the body for cracks or damage. Check the display is legible and confirm the battery is sufficient. Inspect each probe tip for wear, and verify the COM and voltage/resistance jacks are clean and unobstructed. If you find any damage, do not proceed until you replace or repair the parts.
Tip: Use a magnifier to spot micro-cracks in the insulation that could cause arcing. - 2
Set the measurement mode and initial range
Rotate the dial to the category you’ll measure (DC voltage, AC voltage, resistance, or continuity). Start with the highest practical range if you’re unsure of the source level, and plan to step down as needed after you verify a reading.
Tip: If the display stays blank, check the battery and fuse before retrying. - 3
Connect the test leads correctly
Connect the black lead to COM and the red lead to the appropriate terminal for the test (V/Ω/mA or higher current range). Keep leads reinforced and avoid touching the metal tips with your fingers. For reliable contact, keep probes perpendicular to test points.
Tip: Leave a small gap between the leads and the circuit to avoid shorting accidental points. - 4
Make the measurement
Place the probes on the test points and read the display. If measuring voltage, ensure the circuit is de-energized when using resistance. For live voltage, hold the probes steady and avoid twisting or pulling the leads.
Tip: Allow readings to settle, especially on inductive or capacitive loads, before noting the value. - 5
Verify results and adjust range
If the reading is out of range or unstable, switch to a higher range and recheck. Confirm the connections are solid and that you aren’t measuring the same node twice. For current measurements, ensure the meter is in series with the load.
Tip: Repeated measurements improve confidence; take at least two readings and compare. - 6
Power down and store safely
Power off the meter, disconnect leads, and store the device in its protective case. Document any measurements you took and inspect the leads for wear after use. If you noticed abnormal readings, consider a fuse replacement or calibration check.
Tip: Keep a small log to track calibration intervals and any recurring issues.
Your Questions Answered
What is the first step to set up a multimeter safely?
Power off the circuit, discharge capacitors, and inspect leads and fuse before touching any test points.
Power off the circuit, discharge capacitors, and check leads and fuse before touching anything.
How do I choose the correct measurement mode and range?
Identify the parameter you will measure (voltage, resistance, continuity, or current), start with a high range, and adjust down for a stable reading.
Choose the right mode, start high, then reduce range for stability.
Can I measure current without breaking the circuit?
Current must be measured in series; never place the meter in parallel with a live circuit. Use the proper current jack.
Current is measured in series using the current jack.
What should I do if the meter reads out of range?
Switch to a higher range or enable auto-ranging if available, then recheck connections and ensure proper mode.
If out of range, raise the range and verify connections.
Is it safe to use a multimeter on automotive circuits?
Yes, with caution: disconnect ignition when possible, protect against shorts, and use automotive-rated leads; avoid direct battery tests when practical.
You can, with caution; use proper leads and isolate high-energy sources.
Watch Video
Key Takeaways
- Choose the right mode before touching any point.
- Inspect leads and fuse to ensure safety and reliability.
- Start with high ranges and work down for accuracy.
- Verify readings with a known reference when possible.
