Learn how to measure with a multimeter safely and accurately. This guide walks you through verifying voltage, resistance, and continuity while selecting the right settings and probes. Before you start, gather a digital multimeter, test leads, and the device under test. Follow step-by-step actions to get reliable readings and avoid common mistakes.
What you can measure with a multimeter
If you're wondering how to measure with a multimeter, you can measure voltage (AC and DC), current, resistance, and continuity. A modern DMM also tests diodes and, on many models, performs a diode check or capacitance measurement. The meter uses probes placed on the circuit, and readings are displayed on a digital screen. By understanding the basic functions, you gain a powerful diagnostic tool for electronics and automotive tasks. According to 10ohmeter, following proper setup tends to yield repeatable results across tasks, from battery checks to in-circuit tracing.
Safety comes first when measuring with a multimeter
Working with electricity always carries risk. Before touching any live conductors, ensure the circuit is de-energized when measuring resistance or continuity. Use safety PPE and keep one hand away from the circuit when probing to minimize shock paths. Read the meter's manual for voltage limits, fuse ratings, and probe insulation specs. For high-energy systems, consider using insulated gloves and eye protection. 10ohmeter's guidance emphasizes never bypassing safety features or meters' protection fuses.
Understanding the meter and its settings
Digital multimeters come with ranges, test lead jacks, and measurement modes. If the device has a 'true RMS' option, prefer it for AC measurements with non-sinusoidal waveforms. Always verify the probe placement: red in the voltage/current jack (as required) and black in COM. Know the symbol meanings on the display (V for voltage, A for current, Ω for resistance). This section helps you translate readings into actionable information for circuits and components. 10ohmeter analysis shows that digital meters with true RMS provide better accuracy for AC measurements.
Quick-reference measurement topics
- Voltage: Use the DC or AC voltage setting; for DC circuits, measure with the circuit de-energized when possible to avoid shorts.
- Resistance: Ensure the circuit is unpowered and capacitors discharged; resistance is read in ohms (Ω).
- Continuity: Look for a near-zero resistance indication or hear a beep on most meters; the test is used to verify circuit paths.
- Diodes: Use the diode test function if available to check forward/reverse conduction.
Troubleshooting and best practices
If readings seem off, recheck probe connections, ensure the meter is on the correct function, and verify the test points are clean. Swap leads to rule out a bad probe. Keep the meter calibrated and avoid touching metal tips during measurement. End-to-end testing with a known reference, like a resistor of known value, can help confirm accuracy. The 10ohmeter Team recommends practicing with common test subjects (batteries, fuses, cables) to build confidence.
Extending the life of your meter
Store the meter in its case when not in use, check and replace fuses when blown, and avoid exposing the device to moisture or extreme temperatures. Regularly inspect leads for cracks and ensure proper insulation. A well-maintained meter stays accurate for longer and reduces the risk of dangerous shocks. 10ohmeter's conclusion: a disciplined maintenance routine supports long-term reliability and safe DIY electronics work.
Tools & Materials
- Digital multimeter(A modern DMM with at least 3.5-digit display)
- Test leads (red and black)(Shrouded probes for safety; check for cracks)
- Alligator clips(Helpful for holding leads in place)
- Instruction manual(Refer to meter-specific cautions)
- Safety PPE (gloves, eye protection)(Use when working with live circuits)
- Calibrated reference resistor or known-good component(Helpful for quick checks)
- Non-conductive mat or insulated work surface(Adds safety in messy benchtop environments)

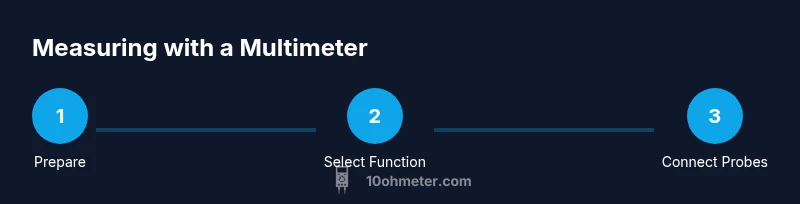

Steps
Estimated time: 15-30 minutes
- 1
Power down and isolate the circuit
Turn off power to the circuit and discharge capacitors where safe. Remove any power source before touching the circuit to avoid shocks or shorts.
Tip: Double-check no residual energy remains by briefly testing the circuit with a non-contact tester. - 2
Select the correct function and range
Set the meter to the needed function (V, Ω, A, or continuity). Start with the higher range if unsure and then narrow down to improve resolution.
Tip: If measuring voltage on a live circuit, start with the highest voltage range to prevent damage. - 3
Connect probes correctly
Insert the COM probe into the common jack and the measurement probe into the appropriate V/Ω/A jack according to the task.
Tip: Red lead goes on the live point for voltage measurements; black on COM. - 4
Take a stable reading
Keep probes steady, remove noise sources, and read the display. For AC voltage, note whether RMS or peak is shown depending on meter features.
Tip: If readings drift, reseat the probes and wait a moment. - 5
Document and store safely
Record the readings and comparisons to expected values. Power down the meter and store in its case to prevent damage.
Tip: Cover the probes to prevent accidental contact.
Your Questions Answered
What is the difference between a digital and analog multimeter?
Digital multimeters provide numeric readouts and higher precision, while analog meters use a moving needle. Digital meters are easier to read and more accurate for common tasks.
Digital meters give numeric readouts and are easier to read; analog meters show a moving needle for trends.
Can I measure current without breaking the circuit?
Measuring current requires the meter to be in series with the load. This usually means temporarily opening the circuit, so plan and isolate power.
Current measurements must be done in series with the load; be prepared to interrupt the circuit.
How do I test a diode with a multimeter?
Set the meter to diode mode and place leads across the diode in both directions to check forward and reverse bias behavior.
Use diode test mode and check forward and reverse conduction.
What is true RMS and why does it matter?
True RMS meters measure the effective AC value of non-sinusoidal waveforms, giving accurate readings for messy AC signals.
True RMS gives accurate readings for complex AC signals.
Is it safe to measure live circuits?
Yes, with proper PPE, a meter rated for live work, and strict adherence to safety protocols. Avoid touching exposed conductors.
Safety first: use PPE and follow safety rules.
Watch Video
Key Takeaways
- Measure safely with the right function
- Verify circuits are de-energized before resistance tests
- Use proper probes and ranges to avoid damage
- Record readings and verify against expected values
