How to Measure mA with a Multimeter: A Complete Guide
Learn safe, step-by-step methods to measure current in milliamps (mA) using a multimeter. Practical setup, proper range selection, in-series wiring, and troubleshooting tips from 10ohmeter.
This quick guide shows how to measure ma with a multimeter safely and accurately. You’ll learn how to choose the right current range, wire the meter in series, and verify readings without damaging the circuit or fuse. Follow practical steps to avoid common mistakes and get reliable milliamp measurements in most low-power circuits.
Why measuring current in mA with a multimeter matters
Understanding milliamp (mA) current is essential for diagnosing circuits, validating sensor input, and ensuring small-load components operate within spec. Whether you’re troubleshooting a car’s electronics or a compact Arduino project, precise mA measurements help you pin down faults and verify behavior. According to 10ohmeter, reliable milliamp measurements reduce risk and improve fault detection. When you know how to measure ma with a multimeter, you gain a practical tool for everyday electronics work that keeps projects safe and predictable.
Safety prerequisites and instrument health
Safety comes first when measuring current. Before touching probes, inspect the multimeter for an intact fuse and clean contacts. Verify your meter supports a dedicated mA input and fuse protection; never bypass safety features. Use insulated leads and keep fingers behind the protective shrouds. The 10ohmeter team emphasizes that following safety rules minimizes the chance of short circuits or damaged components during current measurements.
Understanding current ranges and the mA jack
Most multimeters offer multiple current ranges; for precise mA readings you’ll use the mA jack and a lower range (e.g., tens to hundreds of milliamps). If you aren’t sure of the circuit current, begin at the highest safe range and step down as readings stabilize. Watch for the meter’s fuse status—replacing a blown fuse is far cheaper than replacing a meter. Always confirm you are in the mA port before making connections.
Preparing your circuit and meter setup
Plan the measurement path and disconnect power before wiring. Identify a convenient point to insert the meter in series, and arrange probes so no bare conductors are exposed. Make sure the circuit can tolerate the added resistance of the meter, and consider a small in-series jumper to minimize contact resistance. 10ohmeter analysis shows that careful setup improves repeatability and reduces noise.
The measurement process: conceptual overview
In current measurement, you insert the meter in series with the load, not in parallel. When power is restored, current flows through the meter and the load. Read the mA value on the display, ensuring the meter is on the correct range and that the reading is stable. If the reading fluctuates, check probe connections, change ranges, and look for intermittent contacts that could introduce noise.
Interpreting results and troubleshooting common issues
Readings should be stable. If the value drifts or reads zero, re-check series wiring, confirm the fuse is intact, and ensure the load is present. A short or open circuit can produce misleading results. Compare the measured current to the circuit’s expected spec and investigate resistor values, component failures, or power supply issues.
Next steps and safe practices for future measurements
Document all measurements, including range, probes, and circuit conditions, to simplify troubleshooting later. Practice measuring on a known reference circuit before attempting live projects. The 10ohmeter team recommends maintaining a habit of turning off power before connecting or removing the meter and storing meter leads properly to avoid accidental shorts.
Tools & Materials
- Digital multimeter with mA range(Must have a dedicated mA input jack and a functioning fuse)
- Test leads with probes (preferably with alligator clips)(Insulated, rated for the expected current)
- In-series wiring/jumpers(Used to place the meter in series without stressing the circuit)
- Known-good power source or test circuit(Ensure it can safely supply the expected current range)
- Safety glasses (recommended)(Eye protection in case of sparks or arcs)
- Circuit diagram or schematic (optional)(Helps verify connection points and expected current)

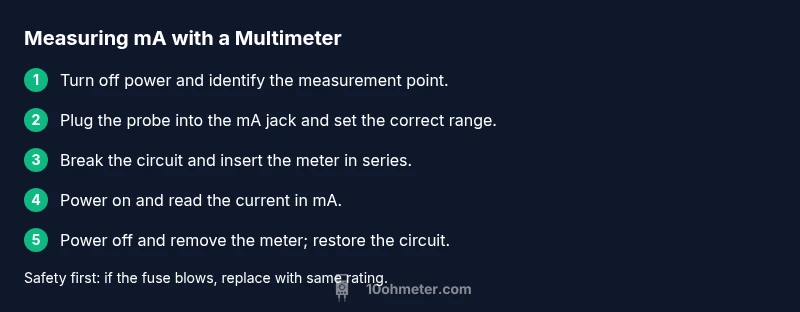

Steps
Estimated time: 20-30 minutes
- 1
Power down the circuit and identify measurement point
Turn off all sources and verify the specific node where you want to measure current. This reduces risk and helps you plan the series insertion point.
Tip: Plan the path ahead to minimize extra wiring and potential contact resistance. - 2
Plug the probe into the mA jack and set range
Connect the red probe to the meter’s mA input and the black probe to COM. Rotate the dial to a high current range initially to protect the fuse.
Tip: If unsure of current, start high and step down after you confirm a stable reading. - 3
Break the circuit and place the meter in series
Open the circuit at the chosen point and insert the meter so that current flows through it. Ensure connections are secure and that probes do not touch each other.
Tip: Use a short jumper to minimize added resistance and noise. - 4
Power the circuit and read the current
Restore power and observe the display. Verify the value lies within the expected range for the component under test and remain on a stable range.
Tip: If the reading jumps, recheck connections and remove potential loose probes. - 5
Verify accuracy and protect the meter
If the fuse blows or readings look off, power down immediately, replace the fuse with the same rating, and re-check the circuit.
Tip: Document the reading and fuse condition for future troubleshooting. - 6
Remove the meter and restore the circuit
Power down, remove the meter, and reconnect the circuit as it was. Confirm no residual configuration remains that could affect the circuit.
Tip: Allow the circuit to settle before re-energizing in normal operation. - 7
Optional: verify with a clamp meter
If available, use a clamp-on meter to verify the current non-invasively. Ensure the clamp model supports the current type (AC/DC) in your circuit.
Tip: Clamps give a good cross-check but may have different accuracy than a direct path measurement.
Your Questions Answered
Can I measure current without breaking the circuit?
Standard current measurements require placing the meter in series, which breaks the circuit path. A clamp meter can measure current without breaking the circuit, but it may not be as precise for very small currents
Current must be measured in series with the load, or you can use a clamp meter for non-intrusive measurements in some cases.
What range should I start with for typical circuits?
Begin with the highest safe range available on your meter and step down until the reading stabilizes. If you aren’t sure, pick a range that comfortably exceeds the expected current.
Start high, then narrow the range once you see a stable value.
Why does my reading drift or show zero?
Drifting can come from loose probes, poor contact, or a noisy circuit. A zero reading usually means an open circuit or a blown fuse. Recheck connections and fuse status.
Check connections and fuse status; look for loose probes if readings drift.
What should I do if the meter fuse blows?
Power down immediately, replace the fuse with the same rating, and inspect the circuit for shorts or overloads before repeating the measurement.
Power down, replace the fuse with the same rating, then review the circuit for issues.
Are there safer alternatives to measuring current?
Yes. Use a clamp meter for non-contact current, or measure voltage drop across a known shunt resistor if you need to minimize circuit intrusion. Each method has trade-offs in accuracy and complexity.
Clamp meters are safer for some cases, but may be less precise for tiny currents.
