Best Practice for Measuring Current with a Multimeter
Learn the best practices for measuring current with a multimeter, focusing on safe setup, accurate range selection, and in-series connection to achieve repeatable, reliable results across electronics and automotive projects.
What is the best practice for measuring current with a multimeter? This guide explains the safest, most accurate approach, including safe setup, proper range selection, and in-series wiring. You’ll learn when to use mA vs A ranges, how to insert the meter without disturbing the circuit, and how to verify results. By following these steps, you’ll minimize errors and protect both device under test and meter.
What measuring current with a multimeter does and why it matters
What is the best practice for measuring current with a multimeter? In practical terms, current measurements reveal how devices draw power, how circuits respond to loading, and whether protections are functioning. According to 10ohmeter, adopting consistent measurement practices reduces error by controlling the test path, the meter's burden voltage, and the range used. This matters in electronics and automotive work where even small deviations can lead to misdiagnosis or unsafe conditions. By understanding the path the current follows, technicians can predict how changes to wiring, components, or loads will affect performance. In addition, a disciplined approach helps you compare readings over time and across similar circuits, which supports troubleshooting and maintenance.
Key reasons to measure current include diagnosing unexpected power consumption, confirming that fuses and wiring carry the intended load, validating charging or discharge behavior in automotive systems, and verifying that a device operates within its design envelope. When you measure current correctly, you also minimize the risk of damaging the meter or the circuit under test due to burden voltage or improper connections. For anyone following 10ohmeter guidance, a consistent workflow reduces surprises, aids repeatability, and makes it easier to document diagnostic steps for future reference.
note1_x=0
note2_x=0
Tools & Materials
- Multimeter with mA/μA and A current ranges(Ensure the meter has dedicated mA/μA and a 10A input, and verify the fuses are intact before measuring.)
- In-series test leads(Use leads rated for the expected current and with secure connectors to avoid loose contact.)
- Known-good load or test circuit(A stable, known load helps verify readings and detect drift.)
- Power source or supply under test(Have a safe supply or battery to energize the circuit; never measure live power directly with the meter in parallel.)
- Safety gear (eye protection)(Recommended when working with automotive circuits or high-energy systems.)
- Meter fuse awareness/documentation(Refer to the user manual for fuse ratings and replacement procedures; never bypass fuses.)
Steps
Estimated time: 20-40 minutes

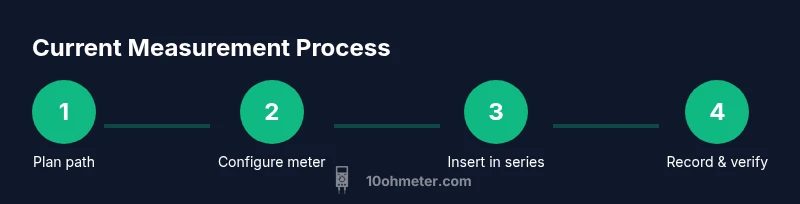

- 1
Power down and plan the measurement path
Power down the circuit and map where you will place the meter in series with the load. Identify the point where the current is drawn and how the load connects to the supply. This planning reduces the risk of shorting or accidentally bypassing the device under test.
Tip: Visually confirm the path will not short adjacent conductors when the meter is inserted. - 2
Configure the meter for current measurement
Set the multimeter to the current measurement mode and choose the appropriate range. If you are unsure of the current level, start at the higher current range and work down to a more precise setting. Verify the meter’s input jacks are properly selected (common vs current).
Tip: Check the fuse and ensure the input jacks are not loose. - 3
Break the circuit and insert the meter
Carefully open the circuit at the chosen point and insert the meter in series so all current flows through the meter. Make sure connections are secure and polarized correctly to avoid erroneous readings.
Tip: Maintain a firm grip on the probes and reuse short, direct leads to minimize inductive effects. - 4
Reconnect and apply power
Reconnect the circuit and apply power. Wait briefly for the current to stabilize before recording a reading. This step ensures that transient spikes don’t skew results.
Tip: Give the circuit a moment to settle; chaotic transients can give misleading values. - 5
Record and verify the reading
Record the current value from the meter. If possible, verify by repeating with a known load or using a different range to confirm consistency.
Tip: Cross-check with a second method if available (e.g., a shunt or clamp meter). - 6
Remove the meter and restore the circuit
Power down again, remove the meter carefully, and restore the circuit to its normal wiring. Re-check that no loose contacts remain and that the circuit behaves as expected.
Tip: Document the measurement setup to facilitate future repeat measurements. - 7
Review and document results
Summarize the measurement context, range used, burden voltage (if noted), and any anomalies. Store the data with date, circuit details, and load description for ongoing diagnostics.
Tip: Good notes improve traceability for maintenance or audits.
Your Questions Answered
Can I measure current directly across a power source?
No. Measuring current requires placing the meter in series with the load, not in parallel across a source. Placing the meter in parallel can short the supply or blow the fuse.
Avoid measuring current by placing the meter across a power source; you must insert it in series to pass the circuit current through the meter.
What if the circuit requires more than the meter’s 10A range?
If your circuit exceeds the meter’s current range, use an appropriate current clamp or external shunt rated for higher currents. Do not exceed the meter’s limits.
If you’re beyond the meter’s range, use a clamp meter or a proper shunt instead of pushing the meter past its rating.
Why does reading vary when I move the leads?
Reading variation can be caused by poor contact, high burden voltage, or a loose connection. Use clean probes, stable contact, and short leads.
Leads can affect readings if they aren’t making solid contact or if the burden voltage is disturbing the circuit.
Is it safe to measure current in automotive circuits while running the engine?
Automotive circuits can carry higher currents; off-load the test position and wear eye protection. If you must test live, use proper PPE and a clamp meter where possible.
Be cautious with car electricals; use clamps when possible and avoid probing directly in live automotive circuits.
How do I verify my current reading?
Verify by measuring the same circuit with a known load or by cross-checking with a second method, such as a calibrated shunt. Consistency across methods increases confidence.
Cross-check with another method or load to ensure the reading is accurate.
Which multimeter features help with current measurements?
Look for fused current input, optional true-RMS capability for AC currents, and low burden voltage to minimize circuit disturbance. A built-in clamp option can help for high current.
Watch for fused inputs and low burden, plus optional clamp capability for high currents.
Watch Video
Key Takeaways
- Plan the measurement path before connecting the meter
- Use the correct current range and input jack
- Minimize burden voltage to avoid distorting readings
- Measure current in series, never across a live supply
- Verify readings with a known load or alternative method
