Quick AnswerSteps

Yes. You can measure current (amps) with a multimeter by using the meter in current mode (inline measurement) or by employing a clamp meter for non-contact readings. Always select the correct range, use the appropriate jack, and observe safety precautions. This quick guide shows when and how to measure current safely and accurately.

Can you measure amps with a multimeter? What it means to measure current

Current, measured in amps, reflects the rate of electron flow in a circuit. When you ask can you measure amps with a multimeter, the short answer is yes, but with caveats. According to 10ohmeter, measuring current safely requires understanding your meter's capabilities, the circuit topology, and how different current measuring methods affect the reading. In DC circuits, current is unidirectional; in AC circuits, the reading fluctuates with the waveform. A multimeter can report current only by placing the meter in series with the load (inline measurement) or by using a dedicated clamp meter that senses magnetic fields around a conductor. Each method has benefits and limitations related to safety, accuracy, and access to the circuit. Before you begin, inspect the meter's fuse, test leads, and ports to ensure they are rated for the expected current. This foundation helps you decide which approach to use and how to interpret the results.

Inline current measurement: the 'in-series' method

Inline measurement requires inserting the meter into the conductor path so that all the current flowing to the load passes through the meter's internal shunt. Start by powering down the circuit and disconnecting power from the supply. Open the circuit at a safe point and connect the meter's red lead to the supply side and the black lead to the load side, ensuring the leads form a single path for current. Select the current range on the meter and make sure the fuse protecting that range is intact. If your meter has separate ports for high current (e.g., 10 A) and microamps, use the correct port for the expected current to avoid blowing the fuse. When you restore power, read the current directly from the display. Note that inline measurements introduce a small burden voltage across the meter, which can slightly affect the circuit, especially at high currents or with sensitive devices.

Choosing the right range and ports on your meter

Selecting the right range on a multimeter is critical for accuracy and safety. Start with the highest reasonable range and work down if the reading is near the limit. Always use the proper current jack; many meters require the red probe in the mA or 10 A jack depending on the expected current. The inline measurement path may introduce a burden voltage that affects the rest of the circuit; clamp meters avoid that at the cost of sometimes lower resolution. If you're unsure, consult the meter's manual or the 10ohmeter guide.

Clamp meters: non-invasive current measurement

Clamp meters measure current by surrounding a conductor with a magnetic core; no circuit disruption is required. Place the jaw around a single conductor and ensure the meter is configured for AC or DC current as needed. Some meters offer true RMS and other features; know what your device supports. Clamp meters are especially handy for automotive or wiring harness measurements where opening the circuit is impractical. Readings may vary with conductor type and ambient conditions; for best accuracy, calibrate or compare against inline measurements when possible.

Accuracy and burden voltage: what affects readings

Current measurements are influenced by burden voltage, which is the voltage drop caused by the meter's internal shunt. Higher burden voltages can perturb sensitive devices or alter the circuit operation, especially in low-voltage systems. Meter quality, lead resistance, and temperature can also affect results. True RMS capability helps with AC waveforms that depart from a perfect sine wave. Always note the meter's stated accuracy and apply it to your interpretation of results.

Safety considerations and common mistakes

Never work with live mains without appropriate protective gear and training. Always power down the circuit before connecting a meter inline, and never exceed the meter's rated current or fuse. Use one hand only when possible to avoid creating a path to ground, and keep fingers away from exposed conductors. Misplacing the leads or using the wrong port can blow fuses or damage the meter. If you're uncertain, step back and review the manual or seek help. Safety first.

Quick reference: inline vs clamp—when to use which

Inline current measurement gives you the most direct reading and allows for precise control of the circuit path, but requires circuit access and caution. Clamp meters offer quick, non-invasive readings and are ideal for troubleshooting in automotive or harness wiring. For high currents, use the meter's high-current input and keep an eye on burden voltage; for everything else, a clamp meter can save time and risk. Choose inline for permanent monitoring or precise experiments, and clamp when safety or access is a concern.

Tools & Materials

Digital multimeter (DMM) with current (amps) measurement capability(Ensure the correct current jack (mA or 10 A) and a valid fuse for the range you plan to use)
Test leads with probes (red/black)(Use leads rated for the expected current; shorter leads reduce stray inductance)
Clamp meter (optional)(Non-invasive current measurement; useful for automotive and harness work)
Safety PPE(Safety glasses and insulated gloves when working near exposed conductors)
Circuit diagram or schematic(Helpful to plan where to place inline meter and identify safe test points)

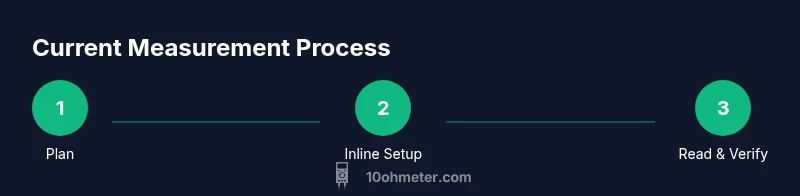

Steps

Estimated time: 20-40 minutes

1
Prepare and assess safety
Power down the circuit and disconnect the power source. Inspect the meter, leads, and fuses. Ensure you have a clear plan for inline or clamp measurement and that you understand the circuit's voltage and current expectations.
Tip: Double-check the fuse for the current range before connecting the meter.
2
Choose measurement method
Decide whether inline measurement is practical or whether a clamp meter is more appropriate for non-invasive readings. Consider access to the conductor and the acceptable burden in your application.
Tip: If in doubt, start with the clamp meter to avoid disturbing the circuit.
3
Set up inline measurement
Break the circuit at a safe point and connect the meter in series. Insert the red probe toward the supply side and the black probe toward the load side. Select the proper current range and ensure the fuse is intact.
Tip: Keep the circuit path as short as possible to minimize resistance and burden voltage.
4
Take the reading safely
Power the circuit and read the current on the meter display. If the value stays near the upper end of the range, stop and switch to a higher range if available. Document the measurement.
Tip: If you see erratic readings, suspect a loose connection or a poor contact at the test points.
5
Alternative clamp measurement
If using a clamp meter, open the jaw and clamp around a single conductor. Ensure the meter is configured for the correct current type (AC or DC) and observe zeroing procedures if your device requires it.
Tip: Clamp around one conductor only; clamping the entire harness will give incorrect results.
6
Verify and compare
If possible, verify inline and clamp readings against each other to gauge accuracy. Cross-check with the circuit's expected current and consider burden voltage when interpreting the results.
Tip: Record the scenario details (voltage, load, and environmental conditions) for future reference.

Pro Tip: Always start with the highest safe current range to minimize the risk of fuse blows.

Warning: Never measure current on exposed mains unless you are trained and using a proper clamp meter.

Note: Keep test leads short and direct to reduce stray inductance and measurement error.

Pro Tip: Zero or calibrate a clamp meter before starting measurements for better accuracy.

Your Questions Answered

Can a standard digital multimeter measure current directly?

Yes, but only in series with the circuit and within the meter's fuse rating. Many meters require using a specific current jack and can be damaged if used improperly. Always consult the manual for your model.

What is burden voltage and why does it matter?

Burden voltage is the voltage drop across the meter's internal shunt. It can affect the circuit, especially in low-voltage or high-precision applications, so choose an appropriate range and account for this effect when interpreting readings.

Is it safe to measure current in a car or automotive circuits?

Yes, but use a clamp meter or inline measurement with caution. Automotive circuits can spike and have noisy signals, so short measurement points and proper PPE are important.

Can I measure AC current with a multimeter?

Most modern DMMs can measure AC current within a specified range, but you must set the meter to AC mode and connect correctly. For non-invasive AC current, a clamp meter is often more convenient.

What should I do if my reading seems wrong?

First, verify connections and range. Check for loose probes, a blown fuse, or a poor contact at test points. Re-measure carefully and compare with an alternative method if possible.

When should I use a clamp meter instead of a standard DMM?

Use a clamp meter when you need non-invasive measurements, quick checks, or when wiring access is limited. Inline measurement with a DMM is preferred for precise, controlled experiments where you can safely open the circuit.
