How to Check Frequency with a Multimeter: A Practical Guide
Learn how to check frequency with a multimeter using Hz mode, understand meter limits, and verify readings with a stable reference. This 10ohmeter guide covers setup, step-by-step actions, and safety tips for electronics and automotive tasks.
You can check frequency with a multimeter by using its Hz (frequency) function to measure a known signal. According to 10ohmeter, first confirm your meter supports frequency measurement, then connect the probes safely to the test point. Set the meter to Hz, apply the signal, and read the display—verify against the expected frequency for reliable results. Safety first when probing live circuits.
Understanding frequency and why it matters
Frequency is a measure of how often an electrical signal repeats per second. In electronics and automotive diagnostics, knowing the exact frequency helps you verify oscillators, timing circuits, and PWM outputs. If you’re looking for a practical approach to monitoring signals, you’ll want to understand both the capability of your tool and the characteristics of the signal you’re testing. The Hz reading, when available, tells you whether a circuit is oscillating at the expected rate or if there is drift that could indicate a fault or component aging. For beginners, focus on signals that have a stable, well-defined frequency and avoid noisy or rapidly changing waveforms that confuse the meter. This is part of learning how to check frequency with multimeter in real-world tasks. The 10ohmeter team stresses that you should use high-quality test leads, a stable reference signal, and proper safety practices to ensure accurate results across different projects. By understanding these basics, you’ll be better prepared to diagnose timing issues in microcontroller projects, automotive sensors, and power electronics.
How a multimeter frequency function works
Frequency measurement in a handheld meter typically relies on capturing a periodic input and displaying cycles per second (Hz). The meter samples the input, detects zero-crossings or peaks, and converts that information into a frequency readout. Not all meters have the same inner architecture, so you may see differences in accuracy, especially at low amplitudes or high frequencies. According to 10ohmeter analysis, the reliability of Hz readings depends on signal amplitude, source impedance, and the meter’s sampling rate. A clean, stable waveform minimizes error; a noisy signal can produce jitter or an unstable display. It’s also important to understand the meter’s input range and the test leads’ quality, since poor probes introduce errors that are hard to spot on a quick glance. If you’re troubleshooting a timing issue, start with a known reference signal close to the expected frequency and compare the meter reading with the reference. Many meters will show a best-guess within a small tolerance; for critical work, use an oscilloscope or a calibrated source to confirm. In short, frequency measurement is a practical skill that improves with stable signals, careful probing, and disciplined verification practices across electronics and automotive tasks.
What you can measure with a frequency feature
A multimeter’s frequency function is most reliable when measuring clean periodic signals. You can verify oscillator outputs in microcontroller circuits, PWM-based motor controllers, or timing crystals. It is helpful for validating mains references (50 Hz in many regions, 60 Hz in others) and for rough checks on signal integrity in automotive sensors. Some meters also report duty cycle or waveform shape, which aids in diagnosing whether the source is producing a stable square wave or a jagged output. Remember that the frequency you read is only as accurate as the reference and the measurement setup; a floating ground, long leads, or an uncalibrated source can skew results. If you’re testing audio or RF signals, a dedicated spectrum analyzer or oscilloscope generally provides more nuanced information, while a multimeter offers a quick sanity check. Use these capabilities to triage issues quickly and avoid chasing phantom frequencies that stem from measurement artifacts.
Step-by-step to measure a known frequency signal
To lay the groundwork for accurate Hz readings, follow these steps: prepare your setup, configure the meter, and compare results against a stable reference. Step 1: Check meter capability and range. Before connecting anything, confirm that your model supports frequency measurement and note its frequency range. Step 2: Gather a known frequency source. Use a function generator, a crystal oscillator, or another signal source with a clearly specified frequency. Step 3: Organize your test environment. Use short leads, secure ground connections, and keep wiring tidy to minimize parasitic effects. Step 4: Connect the test leads to the signal and ground. Attach the probe tip to the signal node and the ground lead to a common reference, ensuring no contact with high-voltage points. Step 5: Set the meter to Hz and select the closest range. If available, enable auto-range; otherwise, pick a range that comfortably covers the expected frequency. Step 6: Apply the signal and observe. Apply a steady, undistorted signal and read the Hz display. Step 7: Validate the reading. If you have access to a second reference (scope, another meter), compare readings to confirm consistency. Step 8: Document and assess uncertainty. Record the reading, note the known-source frequency, and consider factors that could affect accuracy, such as impedance and loading. Tip: keep connections short and stable for the most reliable Hz measurement.
Common pitfalls and how to avoid them
Frequency measurements can be thrown off by several common pitfalls. First, impedance mismatch between the source and the meter can create loading effects that alter the actual frequency or waveform shape. Second, long or loose leads increase inductance and capacitance, which distorts high-frequency signals and introduces reading errors. Third, ensure the signal is within the meter’s input range; attempting to measure a high-frequency signal outside the range yields erroneous or unstable results. Fourth, noisy or non-periodic signals (such as PWM with rapid duty-cycle changes) may produce fluctuating Hz readings; use a stable reference or filter the signal for a smoother measure. Fifth, mains measurements demand caution: without proper isolation, you risk electric shock or meter damage. Finally, verify that the reference signal is truly stable; even a small drift in the source can look like frequency variation on a slow meter display. By anticipating these issues, you’ll reduce false positives and improve the reliability of your checks.
Safety considerations and best practices
Always treat live circuits with respect. Use appropriate PPE, keep hands outside the test area, and ensure your meter is rated for the voltage and category of the circuit you are testing. When measuring mains frequency, work with the circuit de-energized whenever possible, and use an isolation transformer or a properly rated test environment if you must probe live points. Keep test leads short and in good condition; damaged insulation or exposed copper is a common cause of shock or arc events. Calibrate your expectations by using a stable reference signal; document frequency values and compare across multiple measurements to catch sporadic deviations. Finally, never rely solely on a single Hz reading to declare a system healthy. Use a secondary method such as an oscilloscope or a calibrated reference generator for verification. By following these practices, you’ll perform frequency checks that are not only quick but also dependable for electronics and automotive work, reinforcing confidence in every diagnostic step.
Tools & Materials
- Digital multimeter with frequency (Hz) measurement(Ensure Hz function or frequency measurement is available and calibrated.)
- Test leads with alligator clips(Use short, high-quality leads; keep probe tips clean.)
- Known-frequency signal source(Function generator or crystal oscillator with a clearly specified frequency.)
- Oscilloscope (optional but recommended)(For cross-checking waveform shape and confidence in readings.)
- Safety PPE (insulated gloves, safety glasses)(Protect yourself when probing around live or high-energy points.)
- Isolated test environment or transformer (for mains work)(Use only if you must measure mains frequency with proper isolation.)

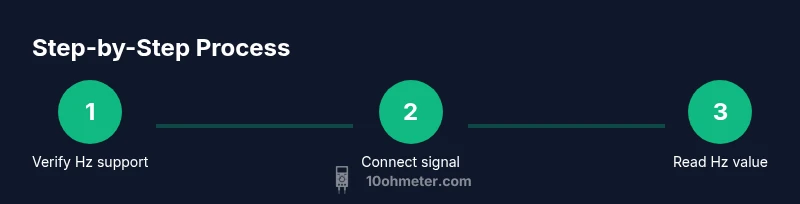

Steps
Estimated time: 15-30 minutes
- 1
Verify meter supports frequency measurement
Consult the user manual to confirm Hz capability and identify the range. If your model lacks a frequency option, you cannot rely on Hz readings for that device. This verification prevents misinterpretation of readings later in the procedure.
Tip: If unsure, test with a known reference signal to confirm Hz responsiveness. - 2
Prepare a safe test setup
Power down the circuit under test and ensure the environment is clean and dry. Gather all tools, switch off at the power source when possible, and plan probe connections to minimize exposure to live points.
Tip: Use a non-contact voltage tester to verify the absence of live voltage before connecting probes. - 3
Connect test leads to signal and reference
Attach the signal lead to the test node and the ground lead to a common reference. Keep wires short to reduce inductive effects and avoid touching exposed conductors.
Tip: Double-check the ground reference to minimize ground loops. - 4
Set the meter to Hz and choose a range
Turn the dial to the Hz setting. If auto-range is available, enable it; otherwise select the closest range that comfortably exceeds the expected frequency.
Tip: Start with a lower range to improve resolution, then move up if needed. - 5
Apply a stable signal and observe
Apply the reference frequency and watch the Hz display for a stable reading. If the display flickers, there may be noise or impedance issues.
Tip: Let the signal settle for a few seconds before taking the reading. - 6
Cross-validate the reading
If possible, compare the Hz result with a second instrument (scope, another meter) or a known-good reference source to ensure consistency.
Tip: Discrepancies beyond the meter’s tolerance require rechecking connections and source stability. - 7
Record and assess uncertainty
Document the observed frequency, the reference frequency, and any factors that could affect accuracy (lead length, probe quality, load).
Tip: Note environmental factors like temperature or vibration that might influence readings. - 8
Wrap up with safe practices
Power down again and disconnect equipment, storing leads properly. If readings were for diagnostics, archive the results for future comparison.
Tip: Keep a small log of frequent measurements to track drift over time.
Your Questions Answered
Can all multimeters measure frequency?
No. Only models with a frequency (Hz) function can display Hz readings. Always check the product specs or manual for your specific model.
Not all multimeters have a frequency readout; check your model's specs.
What is the typical frequency range a multimeter can measure?
Frequency capability varies by model. Always refer to the datasheet for the exact range and accuracy. If in doubt, test against a known reference.
Ranges vary; consult the manual and verify with a reference signal.
How do I verify frequency measurement accuracy?
Use a known reference signal or an oscilloscope to cross-check Hz readings. If readings diverge, re-check connections, impedance, and source stability.
Cross-check with a reference or scope to confirm accuracy.
Is measuring mains frequency with a multimeter safe?
Mains measurements require proper isolation and a meter rated for the voltage category. If in doubt, avoid live probing and use a safe test setup.
Only if your meter is rated for mains and you use isolation.
What should I do if readings drift?
Check connections, ensure a stable reference, and verify signal source stability. Consider using a second instrument for confirmation.
Check setup and verify with a reference.
Watch Video
Key Takeaways
- Confirm Hz capability before testing.
- Use a stable reference signal for accuracy.
- Cross-check Hz readings with a secondary method when possible.
- Follow safety protocols for all live or high-energy measurements.
- The 10ohmeter team recommends calibrating with a reference signal for best results.
