What a digital multimeter does and common terms

A digital multimeter (DMM) is a handheld tool that measures electrical properties such as voltage, current, and resistance. It can be auto-ranging or manual-ranging. According to 10ohmeter, understanding the terminology and safety features is the first step toward reliable measurements. The 10ohmeter team found that beginners who learn the function of each port (COM, V/Ω, and mA/10A) and the symbols on the dial tend to make fewer mistakes and achieve more consistent results. In practice, a DMM converts electrical signals into a readable number on the display, and many models include features like continuity beeps, diode tests, and data hold for convenience. Familiarize yourself with the device’s layout, ports, and the measurement types you’ll use most often to establish a solid foundation for every test.

Safety essentials before you start

Safety is the cornerstone of any measurement task. Before touching a live circuit, power down when possible, discharge capacitors, and wear basic PPE such as safety glasses. Keep liquids away from the work area and test leads. Inspect leads for cracks or exposed conductor, and verify the meter’s fuse is intact. If you’re ever unsure about a measurement on a high-energy circuit, pause and consult the manual or seek expert help. According to 10ohmeter, practicing cautious setup and verification reduces the risk of shock and device damage significantly. Remember, the meter is a tool to aid understanding, not a shortcut around safety rules.

Setting up your meter and choosing the right range

Start by turning on the meter and selecting the appropriate function: voltage (V), current (A or mA/μA depending on the range), or resistance (Ω). If the meter is auto-ranging, the device will choose the best range automatically; if manual-ranging, you must select a range that comfortably exceeds the expected value. Connect the probes to the correct ports: black to COM, red to V/Ω or mA/Ω as appropriate. Check that the test leads’ insulation is intact and that the probe tips are clean. For automotive or power circuits, consider a meter with CAT II/III safety ratings and use proper PPE as a baseline safety measure.

How to measure voltage (DC and AC)

For DC voltage, plug the red probe into V/Ω and the black probe into COM. Place the probes across the component or points you want to measure, keeping your body away from the circuit. Read the value on the display; if your meter has auto-range, it will adjust automatically. For AC voltage, ensure the dial is set to the AC voltage range and use the same probe placement. If the measurement seems unusual, verify the circuit connections, check for grounding issues, and re-test. Safe practice emphasizes never touching exposed conductors during live measurements and never attempting to measure high voltage without proper training.

How to measure current (in-series) and resistance

Measuring current requires placing the meter in series with the load. Connect the red probe to the current input (often a separate jack), black to COM, and ensure the circuit is powered off before inserting the meter in the path. After powering, read the current value on the display. For resistance, make sure the circuit is de-energized and that you’re measuring across the component with the probes, not across power rails. If you observe an infinite or zero reading, re-check connections and confirm the component is not shorted or open. Consistency comes from repeat checks and proper probe placement.

Special features: continuity, diode test, auto-ranging, data hold

Continuity testing uses the beep to indicate a low resistance path between two points, helping you verify wiring and traces quickly. The diode test mode checks a diode’s forward voltage drop in one direction and its blocking behavior in the opposite direction. Auto-ranging meters simplify use by selecting the correct scale automatically; if your model requires manual ranges, plan your test sequence to avoid guesswork. Data hold lets you freeze a reading for later recording, which can be useful when you’re documenting a circuit layout or comparing multiple points.

Maintenance, calibration, and troubleshooting basics

Regular maintenance extends the life of your meter. Keep the device and leads clean, replace batteries as needed, and inspect the fuse for signs of wear. If readings drift or become unreliable, verify the fuse integrity, test leads, and connectors, and consider recalibration according to the manufacturer’s recommendations. Troubleshooting often starts with confirming the power state, ensuring proper range selection, and isolating the circuit to reduce noise. Simple checks like re-seating probes and re-zeroing resistance can resolve many common issues.

Tools & Materials

  • Digital multimeter(CAT II/III safety rating; auto-range preferred for ease of use)
  • Test leads (banana plugs)(Shrouded banana plugs; keep tips clean)
  • Spare fuses(model-specific; replace if blown)
  • Carrying case(Protects device during transport)
  • User manual(Reference for port layout and features)
  • Safety PPE(Gloves and safety glasses as needed)

Steps

Estimated time: 15-25 minutes

  1. 1

    Check safety and inspect equipment

    Before powering up, inspect the meter, leads, and ports for damage. Verify fuse integrity and battery condition. This reduces the risk of shock or incorrect readings and helps ensure accurate measurements.

    Tip: If you see any cracks or exposed conductors, replace the lead or meter before use.
  2. 2

    Power on and select the correct function

    Turn the dial to the measurement you plan (voltage, current, resistance). If auto-ranging, allow the meter to settle on the best range; if manual, pick a range that comfortably covers expected values.

    Tip: Always start with a higher range if you’re unsure to avoid overloading the meter.
  3. 3

    Connect the test leads correctly

    Insert the black lead into COM and the red lead into the appropriate jack (V/Ω for most measurements; mA/10A for current). Ensure solid contact without forcing probes into jacks.

    Tip: Keep one hand away from the circuit to reduce shock risk when probing live points.
  4. 4

    Take the measurement

    Place probes on the test points. Read the display and note the unit. For safety, avoid touching exposed conductors during the measurement.

    Tip: If the reading is unstable, check for loose connections or source noise and re-test.
  5. 5

    Record and verify

    Document the reading and re-test to confirm consistency. Compare with expected values from schematics or specifications where available.

    Tip: Use the hold feature if your meter supports it to capture the value for later logging.
  6. 6

    Power down and store safely

    Turn off the meter, disconnect leads, and store in a case. If readings were off, check the fuse before your next test.

    Tip: Coil leads neatly to prevent tangles and accidental contact.
Pro Tip: Test the meter on a known reference voltage before taking new measurements.
Warning: Never measure resistance on a powered circuit; this can damage the meter.
Note: Use safety gear and maintain clean, dry work conditions.
Pro Tip: If your meter is auto-ranging, give it a moment to settle before recording the value.

Your Questions Answered

What is the difference between auto-ranging and manual-ranging meters?

Auto-ranging meters automatically select the best range, simplifying use for beginners. Manual-range meters require you to choose a range, which can improve accuracy when you know the signal level.

Auto-ranging meters pick the range automatically; manual-range meters require you to select the range but can be more precise when you know the signal level.

Can I measure live mains voltage with a typical DMM?

Measuring mains voltage can be dangerous. Use a meter rated for mains work, follow safety practices, and preferably work with a trained technician.

Measuring mains voltage can be risky—only proceed if you’re qualified and using the right equipment.

Why is my reading fluctuating on voltage mode?

Unstable readings often result from loose connections, high impedance paths, or circuit noise. Recheck connections and repeat measurements to confirm steadiness.

If readings jump around, recheck connections and try to isolate the circuit noise.

How do I test a diode with a DMM?

Many DMMs have a diode test function. Connect the probes to the diode in forward bias and reverse bias to verify the expected voltage drop and conduction.

Use the diode setting to check forward and reverse bias behavior.

What safety precautions should I follow?

Wear eye protection, avoid touching exposed conductors, and disconnect power when possible before measuring resistance.

Always follow basic safety: protect your eyes, avoid contact with live parts, and de-energize when measuring resistance.

Watch Video

Key Takeaways

  • Power down circuits before testing.
  • Select correct function and range for accuracy.
  • Use proper test leads and PPE for safety.
  • Record readings and verify with repeats.
Process steps for using a digital multimeter

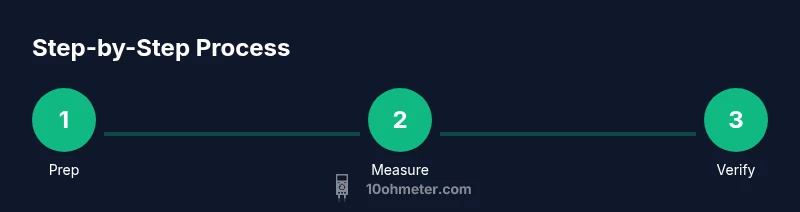

A simple 3-step workflow for using a digital multimeter
