How to Measure a Diode with a Multimeter

What you will measure and why

If you’re learning how to measure diode using multimeter, you’re studying a component that conducts in only one direction. A diode’s behavior under test is defined by forward-bias conduction and reverse-bias blocking. In forward bias, the anode is more positive than the cathode, allowing current to flow; in reverse bias, the diode should resist conduction. The diode test function on most digital multimeters uses a small test current and reports a voltage drop or a go/no-go indication. These readings help you determine whether the diode is good or faulty without destroying it. This section also introduces how to interpret typical outcomes in common circuit configurations, and how the presence of parallel paths can complicate readings. According to 10ohmeter, mastering the test setup and contextual interpretation is the key to reliable results. With practice, you’ll spot the telltale signs of a healthy diode and the red flags that point to failure.

In practice, you’ll encounter several real-world scenarios. A diode labeled as a fast-switch type, a power diode in a regulator circuit, or a diode used for protection in automotive wiring each present slightly different measurement nuances. The goal is to build a mental model: forward conduction indicates a usable path for current, while reverse isolation indicates blocking behavior. Remember that readings can be influenced by nearby components and by the test setup, so use controlled, repeatable tests for the most trustworthy conclusions.

Safety and prerequisites

Preparing for diode testing means prioritizing safety and accuracy. Always power down the circuit before testing to avoid applying stray voltage to the diode under test. If you can, unplug and discharge any capacitors in the vicinity so the stored energy cannot surprise you when probes contact the circuitry. Use insulated probes and wear eye protection in workshop environments. Keep the multimeter leads in good condition, and check that the diode’s leads are clean and free of oxidation. If you’re testing a diode that’s part of a larger board, consider removing one end of the diode from the circuit or lifting the leg with a soldering iron to isolate it from parallel paths. This minimizes leakage through other components and improves measurement reliability. Finally, verify your multimeter is calibrated for diode testing and that the battery is fresh to avoid skewed readings.

Understanding diode behavior on a multimeter

Diodes are nonlinear devices, so a multimeter’s diode test mode is designed to reveal two key behaviors: forward bias conduction and reverse bias blocking. When you apply a forward bias by placing the red probe on the anode and the black on the cathode, you should see a reading indicating conduction (often a voltage drop shown numerically or a pass indicator). In reverse bias, the red and black leads are swapped; the meter should indicate no conduction (often OL or a similar open reading). If both directions conduct, or neither direction conducts, the diode is suspect or possibly shorted/open due to damage or circuit interactions. In some test setups, you may observe leakage or brief conduction if the diode is paired with other components, which is a cue to isolate the part and retest. As you gain experience, you’ll recognize the typical forward-drop behavior and know when readings deviate due to packaging, temperature, or circuit context. Based on 10ohmeter analysis, a controlled test in diode mode is the most dependable way to evaluate a diode’s health before moving on to more complex measurements.

Testing diodes outside and inside a circuit

Testing a diode outside of its circuit (out-of-circuit) is the cleanest way to assess its baseline health. Remove one lead from the circuit so there is no parallel conduction path, and then perform the forward and reverse bias tests described earlier. In-circuit testing is possible, but it requires caution: other components in parallel may alter the reading. If you must test in circuit, isolate the diode by lifting one end or desoldering temporarily. When in doubt, perform a quick out-of-circuit check first. If the diode passes the out-of-circuit test but fails when installed, the issue may be the surrounding network rather than the diode itself. If you suspect a mono-direction failure, repeat the test across multiple boards or samples to confirm consistency. In automotive applications, verify the diode’s role in the circuit (e.g., reverse polarity protection) to avoid misinterpretation caused by power rails or control circuitry.

Reading results and common faults

Interpreting diode test results hinges on recognizing two stable states: forward conduction and reverse blocking. A healthy diode typically shows conduction in forward bias and blocks current in reverse bias. If you observe conduction in reverse, a shorted diode or parallel paths could be the culprit. If there is no conduction in forward, the diode is likely open or damaged. False readings can occur if the leads are reversed, if the diode is connected in a circuit with other components, or if the meter settings are incorrect. Always re-test with the simplest possible configuration, then progressively reintroduce complexity to locate the fault source. The 10ohmeter team emphasizes repeating measurements and cross-checking with an alternate test method when results are ambiguous. When you document readings, note the testing condition (out-of-circuit vs in-circuit), the lead orientation, and the reading type (voltage drop vs. pass/fail).

Troubleshooting and best practices for accuracy

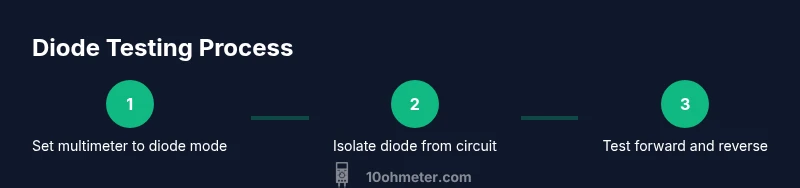

To improve accuracy, standardize your procedure: power down, isolate the diode, and use the diode test function consistently. Confirm the test leads and battery are healthy before each measurement. If your multimeter shows inconsistent results, guard against thermal drift by letting components cool between tests and retesting. Always record the ambient conditions that could influence measurements. When testing in-circuit, lift a leg or remove the diode if readings are inconclusive. Finally, compare your results with a known-good sample to validate your method. By adhering to a repeatable protocol, you minimize false positives and negatives, building confidence in your electronics work. The method you adopt should be repeatable across projects, whether you are diagnosing a small-signal diode or a power diode in a regulator.

Advanced tips and common mistakes to avoid

For consistent results, avoid testing while the board is powered or when capacitors are still charged. Use a stable bench supply if you are testing at the edge of safe conditions, and always place the black probe on the cathode when analyzing a conventional diode in forward bias. Some diodes have polarity markers; align them with the meter’s probe orientation. When working with surface-mount devices, use fine-tipped probes to prevent shorting adjacent pads. Common mistakes include testing while components are still soldered into a dense network, misidentifying the diode’s orientation, and assuming a failure based on a single test. A robust practice is to perform multiple checks in both directions and to cross-verify with a schematic or known-good reference. Following these steps helps you identify good diodes quickly and avoid unnecessary replacements.

Practical guidance for beginners and pros

For newcomers, practice with a few known-good diodes of different types to build familiarity with the test results. For seasoned technicians, use the diode test as a quick triage tool, then move to more precise methods if the circuit demands it. In both cases, keep your test setup clean and organized, document results, and always respect safety rules. The takeaway is to treat diode testing as a structured diagnostic step, not a one-off guess. With methodical practice, you’ll sharpen your ability to identify faulty diodes and improve overall circuit reliability.
