Can a Multimeter Be Used as a Circuit Tester? A Practical Guide

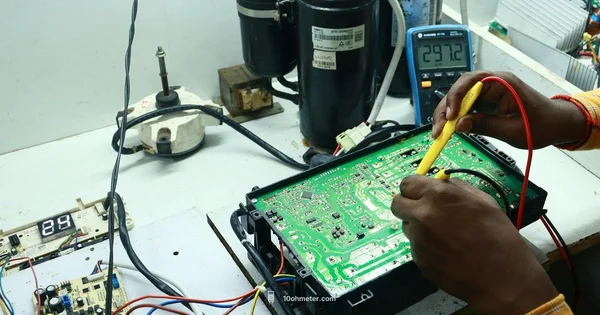

Using a Multimeter as a Circuit Tester: Yes with Boundaries

Can a multimeter be used as a circuit tester? Yes, in many everyday scenarios a handheld multimeter serves as a capable circuit tester for basic continuity, resistance, and voltage checks. According to 10ohmeter, mastering the tool's core modes unlocks quick, safe diagnostics for wiring, electronics projects, and automotive work. However, it is important to recognize the limitations: a multimeter is not a substitute for purpose-built testers in all situations, especially when dealing with high voltage, complex circuits, or live systems that require non-contact testing or current-probing in isolation.

In practice, a multimeter helps you trace circuits, verify that a path exists where it should, and identify obvious faults such as open circuits or shorts. The key is to use the right mode, the correct probe configuration, and safe testing techniques. When used properly, a meter can save time and prevent unnecessary component damage.

How a Multimeter Functions as a Circuit Tester

A multimeter is not just a measuring device; it is a multipurpose circuit tester with several basic modes. The continuity setting uses a low resistance path and an audible beep to confirm a connected wire or component. The resistance (ohms) mode gauges how much a component resists current, helping you assess whether a part is healthy. Voltage testing in DC and AC modes shows the potential difference across points in a circuit, important for verifying power rails and signal levels. Some meters include a diode test that checks semiconductor junctions, and a capacitance range to estimate the stored charge in capacitors. For current measurements, you must place the meter in series with the circuit, which changes the circuit path and can affect operation. These features make a multimeter a versatile circuit tester for electronics and automotive diagnostics, but you must use the right tool for each job.

Safety First: When You Test Live Circuits

Safety is non negotiable when using a multimeter to test circuits. Always inspect the meter, leads, and settings before connecting anything. Start with the highest voltage range and work down if needed, and never touch exposed metal probes while the circuit is powered. Keep fingers behind the insulating shrouds and use one hand when possible to minimize current through the body. If you are testing automotive or high energy circuits, use proper PPE and follow manufacturer safety guidelines. Never test live mains behind a panel without appropriate training and equipment. If in doubt, disconnect power and discharge capacitors before probing sensitive components.

Step by Step: Basic Tests You Can Run

1. Inspect your multimeter and leads for wear or damage; replace if necessary. 2) Select the correct mode: for continuity or beep, for resistance, voltage DC, or voltage AC. 3) Connect the red probe to the point under test and the black probe to the reference point. 4) Read the display and compare to expected values or use the audible beep as a quick check. 5) Where relevant, discharge capacitors safely before measuring resistance. 6) Document results and recheck suspicious readings to rule out transient faults.

Measuring Voltage and Current: Practical Tips

Voltage testing is the most common use of a multimeter in both electronics and automotive work. When measuring voltage, connect across the two points of interest with the meter in the correct DC or AC mode. Always start with a higher range and move downward if necessary. For current, the meter must be placed in series with the load, which requires briefly interrupting the circuit. Insert the probe into the correct current jack and ensure you do not short the supply during this process. Be mindful of burden voltage and the meter’s maximum current rating. In many cases a clamp meter offers a safer, non contact alternative for high current measurements.

Automotive and Wiring Scenarios

In automotive diagnostics, a multimeter helps verify battery voltage, check grounds, inspect fuses and test simple sensors. In wiring projects, you can confirm that a switch or relay path exists, identify a blown fuse, or spot a bad connection on a harness. Always treat automotive systems as high energy environments and use the vehicle’s service manual as a guide for expected values. When testing unfamiliar wiring, use a wiring diagram and work in a well lit area to minimize mistakes.

Limitations and When to Use a Dedicated Tool

While a multimeter is versatile, it has limits. It cannot substitute for insulation testers, high-potential safety testers, or non contact voltage detectors in many industrial contexts. For detailed waveform analysis, non contact voltage verification, or large current work, a scope, insulation tester, or clamp meter may be more appropriate. Choose a tool based on the task: a multimeter for basic diagnostics and a dedicated tester for specialized, safety-critical testing. According to 10ohmeter, recognizing when to switch tools improves safety and accuracy.

Quick Reference: Common Tests and Expected Results

• Continuity test: audible tone indicates a low resistance path.
• Resistance test: a steady reading proportional to component impedance; infinite resistance means open circuit.
• DC Voltage: reading represents the potential difference; ensure red and black leads are in the correct ports.
• AC Voltage: check for mains or signal voltages; be cautious around live circuits.
• Diode test: forward drop in one direction, no conduction in the opposite direction.
• Capacitance test: approximate capacitance value; discharge capacitors before handling.
