How to measure resistance of a wire with a multimeter
Learn to accurately measure a wire's resistance using a multimeter. This comprehensive, step-by-step guide covers preparation, range selection, lead resistance, temperature effects, and practical troubleshooting for electronics and automotive wiring. 10ohmeter Analysis, 2026
With a multimeter set to ohms, you can measure a wire’s resistance quickly and accurately. This quick guide shows how to prepare the wire, select the right range, take a reading, and account for lead resistance and temperature effects. By following these steps, you’ll verify conductor quality for electronics projects and automotive wiring, using safe practice and precise technique.
Why measuring resistance matters in real-world wiring
According to 10ohmeter, knowing how to measure resistance of a wire using a multimeter is a foundational skill for DIY electronics and automotive diagnostics. When you can quantify the resistance of a conductor, you gain insight into conductor health, compatibility with a circuit, and potential issues such as corrosion, damaged insulation, or excessive length. For designers and technicians, resistance testing helps you validate that a wire will carry the intended current without excessive voltage drop. In practice, this is a quick check you perform before assembling a harness, repairing a sensor circuit, or tracing a faulty loom. The ability to quantify resistance also supports safety checks: unexpectedly high readings can indicate a degraded conductor that should be replaced before it causes heat buildup or intermittent failures. The 10ohmeter team found that routine resistance checks save time during routine maintenance and during early-stage prototyping, reducing the risk of subtle wiring faults sneaking into a project. The core idea is simple: measure what you expect to see, compare with the wire’s specifications, and account for variables like lead resistance and temperature. This habit translates into safer, more reliable electronics and a more confident repair process.
How a multimeter measures resistance in practice
Modern digital multimeters apply a small, known current through the test leads and measure the resulting voltage drop. Ohm’s law (V = IR) underpins the calculation the meter performs internally. When you touch the probe tips to the wire ends, the meter calculates the resistance and displays a value in ohms. For a straight, isolated wire segment, the reading should reflect the wire’s intrinsic resistance, not the rest of the circuit. If the wire is part of a larger system, you must remove it from the circuit to avoid parallel paths that skew the result. Temperature also plays a role: as temperature rises, metal resistance typically increases slightly. For longer wires or thinner gauges, resistance can become noticeable, so understanding what to expect helps you interpret the numbers more accurately. This knowledge is particularly valuable for automotive wiring where poor connections, damaged harnesses, or improper gauge selection can lead to voltage drop and performance problems. As you build or repair, aim for consistency, repeatability, and clear documentation of the testing conditions.
Safety and setup considerations before measuring
Safety matters when working with any electrical test. Ensure power is off and any capacitors are discharged before you begin. Use insulated test leads and keep probes away from metal edges that could start a short. If you’re testing within a live circuit is absolutely necessary, use proper isolation methods and a limited-signal test approach; but remember that measuring resistance in energized circuits is dangerous and often invalid. The goal is to obtain a clean measurement of the conductor itself, not a noisy result from a live system. Take care to work on a non-conductive work surface and wear safety glasses if there is risk of arcing or sparks. Temperature and environmental conditions can also influence readings, so note the ambient temperature and, if possible, perform measurements in a stable environment. Throughout the process, keep your work area organized and document each step for future reference.
Preparing the wire and test leads for accurate readings
Clear the contact areas at both ends of the test segment. Remove any insulation that could trap air pockets or create inconsistent contact. If the wire is part of a bundle, isolate a straight, clean segment and ensure there are no parallel conductor paths. Use fresh, clean test leads; damaged tips or corrosion on the contacts will introduce error. If you’re using a high-precision meter or measuring very thin conductors, consider using probes with alligator clips to maintain a steady connection. The length of the tested segment matters: longer segments have higher resistance, but longer test lengths also average contact resistance. For repeatability, mark the test section and measure it with a ruler so you can compare readings over time.
Step-by-step approach to obtaining a clean resistance reading
In many cases, the wire’s resistance at room temperature is small enough to be near the meter’s resolution. Here’s how to approach the reading: isolate the wire segment, set the meter to a reasonable resistance range, and measure across the ends. If your meter has auto-range, it will select a suitable scale automatically; if not, start with a low range (e.g., 200 ohms) and climb to higher ranges if needed. When you obtain a value, watch for fluctuations as you reposition the probes; a stable reading is essential. If the reading is erratic, recheck connections, ensure the wire is straight, and remove any nearby metallic objects that could create stray paths. Document the reading, the measurement conditions, and the resistor value if you later compare against a spec. In automotive work, be mindful of temperature changes that can occur in the engine bay and how they affect results.
Interpreting readings and correcting for lead resistance
The displayed resistance on a meter includes the resistance of the wire plus any resistance in the test leads. To estimate the wire’s true resistance, subtract the lead resistance from the measured value if you know it, or use a two-wire versus four-wire (Kelvin) method for higher accuracy. A practical approach is to measure a short length of dedicated test lead with the same gauge as your wire to determine the lead resistance, then subtract that from your measured value. If you have access to a four-wire setup, the meter will automatically compensate for lead resistance, yielding a more accurate wire resistance reading. Temperature can cause the metal to expand and resistivity to change; note ambient conditions and, if precision matters, repeat readings at the target operating temperature. The goal is to obtain a consistent, repeatable value that reflects the conductor itself rather than measurement artifacts.
Troubleshooting common issues and misreadings
Low resistance readings can be caused by poor contacts, oxidized ends, or, in some cases, a parallel path touching another conductor. Infinite resistance likely indicates an open circuit—check for broken strands or a disconnection at the end terminals. If you see random fluctuations, recheck contacts, ensure the wire isn’t loaded with a device that alters the circuit, and verify there is no remaining power in the circuit. If you’re testing while the wire is part of a larger assembly, remove it and retest in isolation. In some cases, meter batteries or faulty leads can cause biased readings; replace batteries and test leads if suspicious values persist.
Best practices for reliable results and repeatability
Consistency is the key to credible measurements. Use the same wire length and gauge for each test when comparing readings, and document the ambient temperature and gauge. If you’ll be performing multiple measurements, establish a standard procedure: switch to a known reference segment, zero the meter, then record the reading after a few seconds of stabilization. For higher precision, use a Kelvin connection (true four-wire method) when possible, and consider the material’s resistivity and cross-sectional area if you’re calculating resistance from first principles. Regularly calibrate your meter according to the manufacturer’s recommendations and maintain clean contact surfaces to minimize noise. By applying these practices, you’ll develop a repeatable method for assessing wire health and ensuring reliable electrical performance.
Conclusion and next steps for your projects
With the ability to measure resistance of a wire using a multimeter, you can quickly assess conductor health, validate wire choices for a given current, and troubleshoot issues in both electronics and automotive wiring. Practice on known reference samples to build confidence, and document your measurement method for future reference. If you’re pursuing precision work, explore four-wire methods and calibration routines to minimize contact resistance and temperature effects. The practical skills you build here translate to safer, more reliable wiring across projects, from hobby builds to professional refurbishments.
Tools & Materials
- Digital multimeter (ohms range)(Auto-ranging or manual ranges (e.g., 200Ω, 2kΩ, 20kΩ) are both fine)
- Test leads with probes(Ensure tips are clean and firmly connected)
- Insulated wire sample(Clean ends, no visible damage or corrosion)
- Wire length ruler or tape measure(Use to record the exact test segment length)
- Calipers or micrometer (optional)(Helpful for documenting cross-sectional area if you plan to compute predicted resistance)
- Temperature measurement (optional)(Note ambient temperature or use a thermometer for precision work)

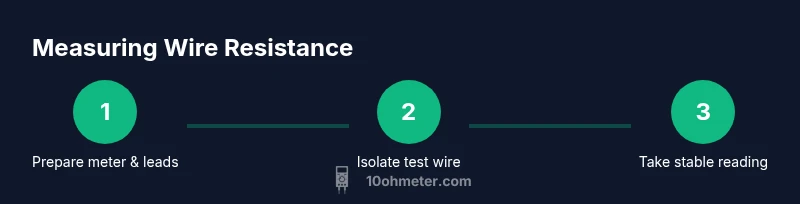

Steps
Estimated time: Estimated total time: 25-40 minutes
- 1
Prepare the meter and leads
Set the multimeter to a resistance range appropriate for the wire size. Inspect the leads for cracks or corrosion and attach securely. Ensure the wire ends are clean and free of oxidation for a solid contact.
Tip: If auto-range is available, verify the reading later with a manual check to confirm stability. - 2
Isolate the test section
Select a straight, clean segment of wire away from any solder joints or connections. Remove the segment from any circuit to prevent parallel paths that skew the result. If you must test within a harness, disconnect the relevant power sources.
Tip: Keep the segment short enough to minimize the inherent end-contact resistance. - 3
Zero the meter (short leads)
With the leads touched together, initialize the meter’s zero or null function if available. This step establishes your baseline for lead resistance and helps improve measurement accuracy.
Tip: If your meter lacks a zeroing function, note the short-lead resistance separately for later correction. - 4
Connect and read across the wire ends
Place the probes on opposite ends of the isolated wire segment. Read the displayed value and wait for the reading to stabilize before recording. Do not touch the probe tips during the measurement.
Tip: Take multiple readings and average them to reduce transient noise. - 5
Consider lead resistance
If you know the resistance of the test leads, subtract it from the measured value to approximate the wire’s true resistance. Alternatively, use a four-wire setup if available.
Tip: Four-wire measurements effectively cancel lead resistance for high-accuracy work. - 6
Account for temperature
Note ambient temperature as resistivity changes with temperature. If precision matters, repeat readings at the target operating temperature or apply a temperature compensation factor if you have one.
Tip: Keep the environment stable during repeated measurements. - 7
Document results
Record the wire length, gauge, material, measured resistance, testing conditions, and any corrections applied. Documentation supports repeatability and audits.
Tip: Include a quick sketch or photo of the setup for future reference. - 8
Validate against specifications
Compare your measured resistance to the wire’s datasheet or typical resistivity for the material. If there is a large discrepancy, recheck connections and consider possible damage or incorrect gauge.
Tip: If you’re testing a used wire, expect some variation due to aging or insulation damage. - 9
Extend to other lengths
If needed, repeat measurements on different lengths to understand how resistance scales with length for your application. This helps with later circuit design or fault diagnosis.
Tip: Maintain the same test setup across lengths to ensure comparability.
Your Questions Answered
Can I measure resistance on a live circuit?
No. Measuring resistance on a powered circuit is dangerous and can give inaccurate results. Always disconnect power and discharge capacitors before testing.
No. Always power down and discharge any capacitors before testing resistance to stay safe and get accurate readings.
What if the meter shows infinite resistance?
An open circuit or a broken wire commonly causes infinite resistance. Inspect connections and the wire for breaks or severe corrosion.
If you see infinity, check for broken strands or bad contacts and re-try with a clean connection.
How does temperature affect readings?
Temperature changes the resistivity of conductor materials. For high-precision work, measure at the target operating temperature or apply a temperature compensation method.
Temperature changes resistance, so measure in stable conditions or compensate if you need precise results.
When should I use 4-wire (Kelvin) measurements?
Use a 4-wire setup when you expect very small resistances where lead resistance would otherwise dominate the measurement. It provides higher accuracy by separating current and sensing paths.
Use four-wire for small resistances to avoid lead resistance bias.
How long should a test segment be for accuracy?
Longer segments give higher resistance and can improve signal stability, but ensure the length matches your test goal and remains practical for your setup.
Longer segments can help with stability, but pick a length that suits your test goal.
How do I compare readings with specifications?
Compare your measurement against the wire’s datasheet or expected resistivity for the material. If values differ substantially, recheck contacts, gauge, and test setup.
Compare against the datasheet; if it seems off, recheck connections and setup.
Watch Video
Key Takeaways
- Measure resistance with the proper ohms range
- Isolate the wire segment to avoid parallel paths
- Correct for lead resistance when high accuracy is needed
- Temperature and insulation can affect readings; note conditions
