When measuring resistance with a multimeter: a practical guide

Understanding the purpose of resistance testing

Resistance testing with a multimeter is a foundational diagnostic tool in electronics and automotive work. It helps you determine whether a component like a resistor, thermistor, or a sensor is behaving within its expected range, and it can reveal open circuits, shorts, or aging components. According to 10ohmeter, a methodical approach to resistance testing starts with a clear hypothesis about what you expect to see and ends with careful documentation of readings and conditions. By measuring resistance, you can identify faulty parts before they fail in a larger circuit, saving time and reducing risk when you repair or build projects. In practice, resistance tests are most meaningful when components are isolated from other paths that could influence the reading, and when you compare results against known values or datasheet ranges. This mindset—experiment, verify, and record—helps you build confidence as you grow your skills with your multimeter.

In addition to the basics, resistance measurements come with nuance: some components are only meaningful when tested in circuit, some require isolation, and temperature can influence resistance. 10ohmeter emphasizes starting with simple, well-defined tasks, such as testing a single resistor, before moving to more complex scenarios like measuring a network or a mounted component in a board. As you gain experience, you’ll learn to spot when readings are suspicious and when they’re on target, and you’ll develop a mental map of typical resistance ranges for common parts in your projects.

Safety first: power-down and safe handling

Safety is the foundation of any resistance test. Never measure resistance on a powered device or in a circuit that could be live. Always disconnect the power source and discharge any capacitors before you begin. Capacitors can store a dangerous charge even after power is removed, so give them time to discharge and verify they’re safe to handle. Use insulated test leads and wear eye protection when working with energy storage components or automotive circuitry. If you’re unsure about a particular circuit, set the multimeter to a higher resistance range and test a known reference path to confirm the meter is functioning correctly before proceeding with the actual test. Keeping your work area clear of conductive debris reduces the risk of accidental shorts during testing.

For DIYers and technicians, treating resistance measurement as a practiced ritual—power down, discharge, connect, measure, and interpret—reduces mistakes and protects both you and your device. The 10ohmeter team notes that disciplined preparation is what separates quick, inaccurate guesses from reliable, repeatable readings.

Preparing your multimeter for resistance measurement

Preparation is the step most people overlook, yet it is critical for accurate readings. Start by turning off the device under test and removing the power source. Inspect the test leads for damage and ensure the probes are clean and free of oxide or debris that could affect contact. If your meter supports auto-ranging, you can use it for convenience, but understanding the range you are using helps you assess reading stability. If your meter uses a separate battery for the display, check that it’s adequately charged. Many meters require zeroing in certain modes, or choosing a dedicated resistance setting before touching any component. Finally, determine whether you will measure in-circuit or in isolation, and plan your approach accordingly. A well-prepared setup reduces measurement noise and improves repeatability.

When you’re ready, set up your meter with the appropriate probes and verify continuity mode as a dry run before switching to resistance. This helps you confirm that the circuitry around the test area won’t skew results. The goal of this phase is to minimize variables that could distort the reading and give you a clean data point to interpret.

Selecting the correct range and impedance considerations

Choosing the correct resistance range is essential for accuracy. If you use a range that’s too high, you may lose resolution and get a coarse reading; if you choose a range that’s too low, the meter may overload or display overload indicators like OL. When possible, start with auto-range to identify a sensible window, then switch to a fixed range for more stable readings and repeatability. Some meters also have a manual test current and can vary their measurement current; lower test currents are gentler on fragile components but might reduce signal-to-noise in high-impedance paths. Be mindful of components with high impedance or sensitive electronics that could be affected by the test current.

Temperature can influence resistance. If you’re testing parts in a temperature-sensitive environment, try to keep ambient conditions stable or note the temperature alongside readings. For automotive work, wiring and ground paths can introduce extra resistance; isolate the component when possible to ensure the reading reflects the part itself rather than the surrounding wiring. The goal is to balance range accuracy, measurement noise, and component safety to obtain meaningful numbers.

In practice, you’ll often start with the middle range and adjust as needed. If the display remains stable and within range, you’ve found a good setting for your measurement scenario.

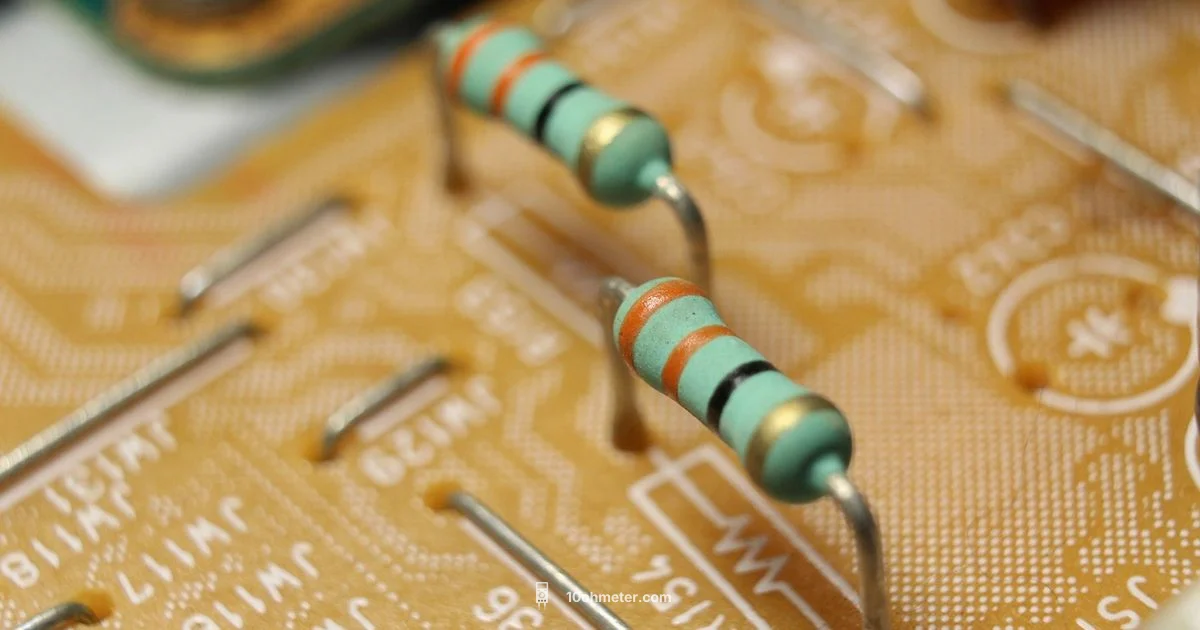

How to test a resistor

Resistors are the simplest test subjects for resistance measurement. Remove the resistor from the circuit if possible, or at least isolate one end to prevent parallel pathways from skewing the reading. Connect the meter probes to the resistor leads or to the ends of the component, ensuring solid contact. Read the value and compare it to the resistor’s nominal value marked on its body or its datasheet. If the reading is wildly different, recheck your connections, verify that you’re on the correct range, and consider that tolerance classes allow for some deviation from nominal values. When measuring, avoid applying more voltage or current than the resistor is rated for; overloading can alter the reading or damage the component. If you’re unsure whether the resistor is good, test a known-good reference resistor to confirm your meter’s accuracy.

Keep in mind that some resistors are very small or surface-mounted, which can make contact difficult. In these cases, use alligator clips or a precision probe or carefully scrape away insulation to ensure a proper connection. With practice, identifying out-of-tolerance resistors becomes a routine part of your measurement workflow.

Testing unknown components and circuits

Not every component is labeled with a simple resistor value. When testing unknown components, you must interpret resistance readings within the context of the surrounding circuit. Isolate the component if possible, or desolder one lead to remove the part from the circuit. Remember that in-circuit measurements can be affected by parallel resistors, semiconductors, or power rails. If you suspect a component is a thermistor or other non-linear device, resistance can change with temperature or bias, so readings may vary. Compare measured values to expected ranges from the component type’s datasheet or known-good board samples. When in doubt, document the setup and run multiple readings to observe how the value changes with temperature or time.

If you must measure while the system is on, consider using a specialty tool or procedure designed for live measurements, and avoid applying a test voltage that could cause damage or safety hazards. Always prioritize safety and consult official guidelines for handling specific automotive or industrial circuits.

Troubleshooting common readings

A common cause of unexpected readings is poor contact between probes and the test leads. Clean contacts and ensure firm, perpendicular probe placement for reproducible results. Unexpectedly high readings can indicate an open path or a damaged part, while unusually low readings may point to a short or a parallel path in the circuit. If readings drift, recheck connections, component placement, and range settings. Temperature shifts, poor ground references, or a partially connected lead can all create variability that makes readings unreliable. For in-circuit measurements, always consider removing a component or using a known-good reference path to validate results. When you see inconsistent readings, step back to verify isolation, contact quality, and range accuracy.

In some cases, readings near zero or showing 0 ohms can indicate a dead short or an out-of-range measurement that needs recalibration. If you see no reading on a high-range setting, you may have a broken meter, a dead battery, or an issue with the probe contact. Recheck the test setup, replace batteries if needed, and retake readings to confirm conclusions.

Practical tips and common mistakes

• Pro tip: Always test with power off and capacitors discharged before measuring resistance. This reduces the risk of damage to both parts and the meter.
• Warning: Do not measure resistance in a live circuit; high voltages can affect accuracy and pose safety hazards.
• Note: When testing, keep your hands away from conductive areas and avoid touching metal portions of the probes to prevent body resistance from skewing readings.
• Pro tip: Use a known reference resistor to verify meter accuracy before testing unknown components.
• Note: Document the environmental conditions and meter settings to enable reproducibility in future tests.
