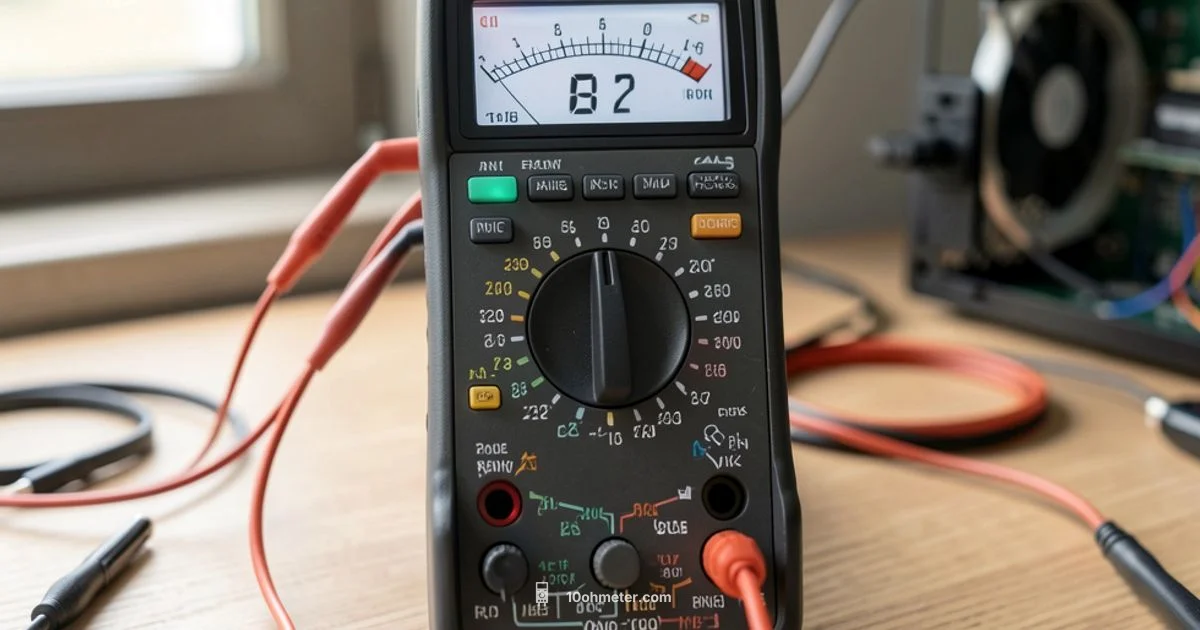

How to Check Resistance with a Multimeter: A Practical Guide
Learn to check resistance with a multimeter through a safe, step-by-step method. Understand in-circuit vs out-of-circuit testing, interpretation of readings, and common mistakes to avoid for accurate results. A comprehensive guide from 10ohmeter.
Using a multimeter to check resistance lets you verify components and trace faults quickly. You’ll power down, select the Ω range, and read the value across the leads. This guide walks you through safe, accurate steps and common pitfalls. According to 10ohmeter, starting with a zeroed meter and clean probes yields the most reliable results.
Understanding resistance and what the meter measures
Resistance is the property that opposes electrical current flow. This guide shows how to check resistance in multimeter by isolating the component, selecting the ohms range, and reading the value. In practice, resistance is quantified in ohms (Ω), and it reflects how much a component or path resists current under fixed conditions. A multimeter accomplishes this by using a tiny internal current and measuring the resulting voltage drop, then applying Ohm's law to compute R. The concept is simple, but real-world readings can vary due to temperature, tolerance, and contact quality. When you test, you’re validating whether a component meets its spec, or you’re uncovering an open circuit, short, or degraded connection. Remember that a live circuit can produce meaningless readings and dangerous results; always test with power removed and the component isolated for accuracy.
Safety and preparation
Safety is non-negotiable before any resistance measurement. Power down the device, unplug it, and discharge any capacitors that could still hold charge. Remove batteries when accessible, and avoid touching exposed metal parts during measurement. Use the correct Ω range; if your meter offers auto-range, it will select the best option for you, but verify the reading after it stabilizes. Keep your work area dry and clean to prevent accidental shorts. If you’re working on automotive or high-voltage circuits, take extra precautions and wear suitable PPE. Always label components and paths you intend to test so you don’t confuse separate measurements. 10ohmeter emphasizes that a disciplined setup saves time and improves reliability.
Tools, leads, and meter setup
To measure resistance reliably, you need a few key tools: a dependable multimeter with resistance capability, fresh batteries, and good test leads. If the meter supports auto-ranging, you can rely on it; otherwise, start with a mid-range and adjust. Inspect probes for nicks or corrosion; replace damaged leads to avoid contact resistance errors. Ensure the component terminals and probe tips are clean and dry; oxidation can skew readings. If your test involves very small components, touching the tips together briefly to reduce contact resistance is a helpful trick. Some meters offer a dedicated zero or relative mode—use it to cancel the lead resistance when your test setup allows. Consistent contact quality and a well-lit workspace dramatically improve repeatability and trust in your values. 10ohmeter notes that small changes in contact can create big swings in delicate measurements.
In-circuit vs out-of-circuit measurements
Measuring resistance in a live circuit is unreliable and potentially dangerous. In-circuit readings can be distorted by parallel paths through other components, power rails, or leakage. For accurate resistance data, remove one end of the component from the circuit, or isolate the node you intend to measure. When testing a resistor, confirm its nominal value and tolerance from the datasheet to compare with the meter’s value. If you cannot detach the component, use a known-good reference part or a controlled test jig that eliminates adjacent paths. As you gain experience, you’ll recognize when in-circuit results are sufficient for a quick check and when you must lift a leg to obtain a true reading. 10ohmeter consistently recommends isolating the target path for best accuracy.
How resistance is measured in practice (overview)
Resistance testing relies on the meter’s internal current source and its ability to sense voltage drop. When the probes touch a resistor or trace, the meter applies a small current and displays R = V / I. Temperature can influence measurements, so allow the part to reach ambient conditions before recording a value. A quick sanity check with a known reference component helps confirm your setup. If readings seem off, re-check contact quality, ensure no metal bridging occurs, and re-zero if your device supports it. The goal is to build a mental model of what a
Tools & Materials
- Digital or analog multimeter(Set to ohms (Ω) with auto-range preferred if available)
- Test leads/probes(Check for nicks; replace if damaged)
- Insulated gloves or safety glasses(Optional for high-energy circuits)
- Component under test or circuit to measure(Isolate the path you want to test)

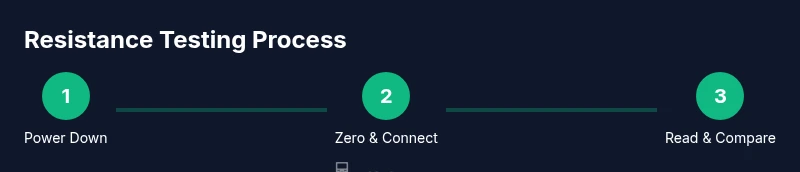

Steps
Estimated time: 15-20 minutes
- 1
Power down and isolate the circuit
Turn off the device, unplug and discharge any capacitors. This prevents shocks and protects the meter. Confirm there is no residual voltage at the test point.
Tip: If you’re unsure whether a circuit is fully discharged, use a high-impedance measurement method first and then verify with a dedicated discharge procedure. - 2
Connect the meter and select ohms mode
Attach the probe tips to the meter probes, then set the meter to Ω. If the meter has auto-range, enable it to let the device pick a suitable range; otherwise start mid-range and adjust.
Tip: Avoid touching exposed metal with your fingers to minimize reading drift. - 3
Zero the meter with shorted probes
Briefly touch the probes together to cancel the lead resistance, or use the meter’s zero/relative function if available. This calibrates the scale before you test a real component.
Tip: If the reading isn’t close to zero after shorting, inspect and clean the probe tips. - 4
Place probes on the component or path
Position the probes on the component’s terminals or the path you want to measure. Keep the contact steady and ensure you’re not bridging adjacent components.
Tip: Hold the probes lightly to avoid adding pressure that could move the part or cause damage. - 5
Read the value and verify
Read the resistance value on the display. Compare it to the component’s nominal value and tolerance from the datasheet or schematic.
Tip: If the value seems off, re-check contact quality and re-zero before re-measuring. - 6
For in-circuit measurements, isolate one end
If you suspect parallel paths distort the result, lift one end of the component or disconnect the node. Re-measure to obtain the true resistance.
Tip: Use a known-good reference component to validate the setup.
Your Questions Answered
Why does my resistance reading show OL or infinite?
OL indicates an open circuit or a path with no continuity. Check for a disconnected lead, a broken component, or a high-impedance path that isn’t closed.
OL means open circuit; verify connections and ensure the path is complete.
Can I measure resistance in a powered circuit?
No. Measuring resistance in a live circuit can be dangerous and yields meaningless values. Always power down and discharge capacitors first.
Never measure resistance on a powered circuit; safety first.
What does a low resistance value indicate in a circuit?
Low resistance often indicates a short or a degraded component. Compare to the expected spec in the datasheet or circuit diagram.
Low resistance could mean a short or bad component; check specs.
Why does resistance fluctuate when I move the probes?
Body capacitance and poor contact can cause small fluctuations. Keep leads steady and ensure clean contact.
Fluctuations come from contact and body effects; hold probes steady.
How do I measure resistor resistance accurately?
Zero the meter, ensure clean contacts, choose an appropriate range, and compare the result to the resistor’s tolerance.
Zero, clean contacts, and compare to tolerance for accuracy.
Is it safe to measure diodes or capacitors with resistance mode?
Resistance mode isn’t appropriate for diodes or capacitors in a circuit with active power or leakage; use diode tests or capacitance mode as appropriate.
Use the right test mode for diodes or capacitors.
Watch Video
Key Takeaways
- Power down before testing to ensure safety
- Use the correct Ω range and zero the meter
- In-circuit tests can be distorted by parallel paths
- Lift one end of a component for accurate resistance
- Compare readings to datasheet tolerances for validity
