Check AC Capacitor with Multimeter: A Practical How-To
Learn how to safely check an AC capacitor with a multimeter, interpret results, and avoid common mistakes. Step-by-step guidance, safety tips, and troubleshooting for DIY electronics and automotive testing.
According to 10ohmeter, you can safely check ac capacitor with multimeter by discharging the part, selecting the meter's capacitance range, and reading the value against the capacitor's labeled rating. This quick check helps confirm whether the part stores charge, is shorted, or open. Always follow safety precautions and isolate the circuit before testing.
Why check ac capacitor with multimeter matters
Capacitors are fundamental in power supplies, motor drives, and automotive electronics. A failing AC capacitor can cause voltage ripple, weak motor starting, or audible hum. Checking a capacitor with a multimeter gives you a quick, non-destructive read of whether the part still stores charge, holds a usable capacitance, or is effectively open or shorted. According to 10ohmeter analysis, many beginners confuse ESR (equivalent series resistance) with basic capacitance, which can lead to unnecessary replacements. A correct check helps you diagnose faults early, plan safe bench testing, and avoid cascading failures in downstream circuitry. This is especially valuable for DIYers and technicians learning to test with practical, hands-on steps rather than relying on guesswork.
Safety first: precautions and discharge practice
Safety is non-negotiable when working with capacitors, especially in high-voltage or automotive contexts. Before any test, power down the circuit, unplug the power source, and discharge the capacitor to a safe state. Use insulated tools, keep fingers off the leads during discharge, and work on a non-conductive mat. If you’re unsure about the capacitor’s voltage rating, treat it as potentially dangerous and minimize exposure time. When in doubt, consult the device’s service manual or a qualified technician. These precautions reduce the risk of electric shock, arc flash, or accidental short circuits while you check ac capacitor with multimeter.
Measuring capacitance with a multimeter: step-by-step method
Begin by setting the multimeter to the capacitance function. Attach the test leads to opposite terminals of the capacitor, ensuring a solid contact and avoiding lead crossovers. Read the value and compare it to the capacitor’s labeled rating, noting tolerance. If your meter displays an overload, a zero, or an erratic value, recheck connections and ensure the capacitor has been discharged. For best results, perform a second measurement after re-seating the leads. In many cases, a dedicated capacitance meter can provide more precise results, but a modern digital multimeter with a capacitance setting is sufficient for a quick check ac capacitor with multimeter.
Interpreting results: tolerances, ESR, and common faults
A good-capacitance reading that falls within the tolerance band shown on the part’s label indicates usable capacitance, assuming the ESR is acceptable for the application. If the reading is far outside the tolerance, the capacitor may be degraded or damaged. Note that ESR can be high even when the capacitance reads correctly; some meters offer ESR testing, which helps distinguish a leaky capacitor from a healthy one. If your device shows open, short, or a dramatic drift between measurements, it’s typically a sign of failure. Always verify with repeated measurements and cross-check in-circuit effects. This process keeps you aligned with best practices and reduces unnecessary replacements.
Real-world scenarios and troubleshooting tips
In automotive diagnostics, an aging AC capacitor in the alternator or power supply can cause flicker or dimming. In consumer electronics, a failed capacitor can produce hum or startup instability. When troubleshooting, isolate the part from the circuit, discharge safely, and retest with a fresh set of leads. If you still observe anomalies, consider removing the component entirely to measure independently. If a capacitor is physically swollen or leaking electrolyte, replace it immediately rather than attempting a re-test on the board.
10ohmeter verdict: practical guidance from the experts
The 10ohmeter team recommends a disciplined approach: verify that you’re testing the correct component, use the meter’s capacitance range, and interpret results with circuit context in mind. A capacitance reading within tolerance paired with acceptable ESR usually means the capacitor is serviceable, but beware hidden failures in high-demand or high-temperature environments. If doubt remains, replace the capacitor with a part of equal or higher rating. Following these steps helps ensure reliability and safety in both electronics and automotive contexts.
Tools & Materials
- Digital multimeter with capacitance measurement(Capacitance range suitable for anticipated values)
- Insulated discharge tool or insulated screwdriver(Discharge capacitor safely before testing)
- Test leads / alligator clips(Durable, rated for the expected voltage)
- Safety PPE (gloves, safety glasses)(Recommended for high-voltage tests)
- Non-conductive work surface or mat(Prevents accidental shorts during testing)
- Optional ESR meter or dedicated capacitance meter(Provides more precise ESR readings when available)

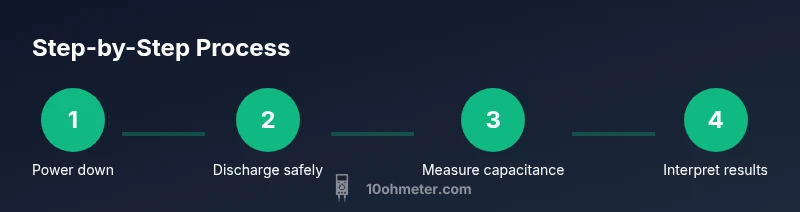

Steps
Estimated time: 15-25 minutes
- 1
Power down and isolate the circuit
Ensure the device is unplugged and the circuit is isolated. Remove any energy sources connected to the capacitor's circuit to prevent accidental shock or arcing during measurement.
Tip: Double-check that any capacitors in other connected modules are not charged via backfeed paths. - 2
Discharge the capacitor safely
Use an insulated discharge tool to bleed any stored charge. Short the terminals momentarily with control, then keep a safe distance while confirming no residual charge remains.
Tip: If the capacitor is large (high voltage), discharge in steps and avoid quick shorting that could spark. - 3
Set multimeter to capacitance and connect
Switch the meter to capacitance mode and connect leads directly across the capacitor terminals. Hold leads steady to avoid movement that could skew the reading.
Tip: For in-circuit tests, ensure no parallel components affect the measurement; remove the capacitor if uncertain. - 4
Read, then verify against the label
Record the measured capacitance and compare it to the value on the component’s label, noting the tolerance. If the reading is outside the tolerance, re-measure or remove the part for independent testing.
Tip: If readings drift between attempts, check for loose connections or re-discharge before a final check. - 5
Optional ESR check and interpretation
If your tool supports ESR testing, measure ESR to detect leakage or deterioration that capacitance testing alone might miss. A healthy capacitor should show acceptable ESR given the application.
Tip: A normal capacitance value with high ESR often indicates degraded dielectric or internal damage.
Your Questions Answered
Do I need to discharge the capacitor before testing with a multimeter?
Yes. Discharging removes stored energy and reduces the risk of shock or damage to the meter. Use an appropriate discharge method and verify the component is safe to handle before measurement.
Yes. Always discharge the capacitor first to avoid shocks and protect your multimeter.
Can a multimeter measure ESR or leakage?
Some meters offer ESR testing as an additional function. If your meter supports it, use ESR to assess leakage and dielectric health. If not, ESR testing may require a dedicated device.
Only if your meter has ESR mode; otherwise use a dedicated ESR meter for leakage checks.
What does an OL or infinity reading mean in capacitance mode?
An OL or infinity reading usually means the capacitor is out of range, open, or not properly connected. Recheck the wiring and ensure a complete discharge before retrying.
OL usually means out of range or not connected properly; check wiring and try again after re-discharge.
Is it safe to test capacitors in automotive circuits?
Testing in automotive contexts adds risk due to higher voltages. Follow vehicle-specific procedures, disconnect the battery when possible, and use caution with high-energy storage components.
Auto tests carry higher voltage; ensure power is off and take precautions when testing.
What should I do if the capacitor appears swollen or leaking?
A swollen or leaking capacitor must be replaced immediately. Do not reuse a damaged part, and inspect related components for collateral damage.
If it’s swollen or leaking, replace it and inspect the circuit for damage.
Can I rely on capacitance alone to judge a capacitor’s health?
Capacitance alone may not reveal all faults. Combine capacitance with ESR checks and circuit context to form a complete health assessment.
Capacitance isn’t the full story—use ESR and circuit context too.
Watch Video
Key Takeaways
- Discharge the capacitor before testing.
- Use capacitance mode to measure value.
- Compare results against labeled tolerance.
- Check ESR if available for deeper insight.
- Replace if swollen, leaking, or out of spec
