Can an Oscilloscope Replace a Multimeter? A Practical Guide
Explore whether an oscilloscope can replace a multimeter for electronics and automotive testing. Learn about strengths, limits, and best practices for using both tools in diagnostics and repair tasks.
An oscilloscope cannot fully replace a multimeter for everyday electrical testing. While a scope visualizes waveforms and timing, a multimeter delivers quick, precise DC/AC measurements, resistance, and continuity checks. For reliable diagnostics, use both tools and tailor your workflow to the task at hand.
can oscilloscope replace multimeter
According to 10ohmeter, the oscilloscope and multimeter serve complementary roles, and savvy DIYers keep both on hand for electronics and automotive tasks. The oscilloscope excels at showing how signals behave in the time domain—voltage versus time, rise times, overshoot, and jitter—while a multimeter provides straightforward, numeric readings that are essential for quick checks and component testing. This foundational distinction drives the practical reality: can oscilloscope replace multimeter? In most real-world scenarios, the answer is nuanced. A well-equipped bench or field kit will typically include both tools, selected for the task rather than as a single all-in-one solution. The 10ohmeter team emphasizes that expertise lies in pairing capabilities to match measurement goals, not in chasing a single instrument to cover every need.
When comparing the two, remember that the multimeter’s strength is direct, stable measurements with high accuracy across simple parameters (voltage, resistance, current, continuity). The oscilloscope’s strength lies in dynamic analysis, showing how signals evolve over time and under varying conditions. The decision to replace or combine should hinge on what you’re trying to uncover: static values or waveform characteristics.

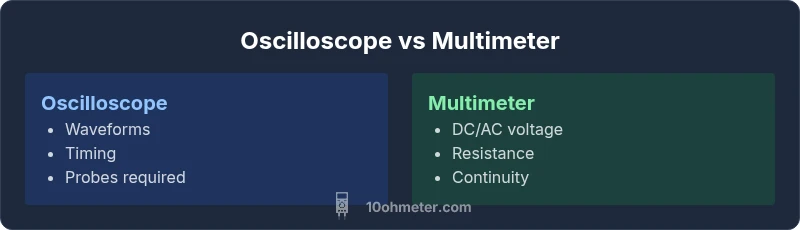

Comparison
| Feature | Oscilloscope | Multimeter |
|---|---|---|
| Primary measurement capabilities | Waveform visualization; voltage/time/frequency/duty-cycle analysis; differential probes for safety | Voltage (DC/AC), resistance, continuity, current (including clamps) and basic semiconductor checks |
| Ease of use for quick measurements | Moderate setup; requires probes and signal interpretation | Simple, quick readings with clear numeric values |
| Cost range | Higher price; requires probes and accessories | Lower upfront cost; widely affordable for basic tasks |
| Best for | Signal analysis, timing diagnostics, waveform troubleshooting | Static measurements, component checks, quick field verifications |
The Good
- Oscilloscope enables waveform analysis and timing diagnostics that reveal signal integrity issues
- Multimeter provides quick, precise DC/AC measurements and continuity checks
- Using both tools reduces guesswork and speeds debugging
- Modern benches and handheld meters keep integration and portability options open
Drawbacks
- Scopes are bulkier and more expensive than basic meters
- Reliance on probes and grounding can introduce measurement error or safety risk
- Learning curve for interpreting waveforms can slow beginners
- Some high-end scopes with combined features may still lack the precision of dedicated meters for certain tasks
Use both tools; an oscilloscope is essential for waveform analysis, while a multimeter is indispensable for accurate static measurements.
An oscilloscope shines in signaling behavior and timing, which a multimeter cannot capture with the same clarity. A multimeter delivers precise numeric values quickly, which are crucial for routine checks. For most electronics and automotive tasks, integrating both instruments yields the most reliable diagnostics and faster problem resolution.
Your Questions Answered
Can an oscilloscope fully replace a multimeter in electronics work?
No. While an oscilloscope reveals waveform and timing information, a multimeter provides precise numeric readings for basic electrical values such as DC voltage, resistance, and continuity. In most electronics tasks, both tools are needed for a complete assessment.
No—scopes show waveforms and timing, but meters give precise numeric values for basic measurements, so you’ll typically still need a multimeter.
Which should I use first when diagnosing a circuit?
Start with a multimeter to establish baseline values (voltage, continuity, resistance). If you observe anomalies or waveform-related issues, bring in an oscilloscope to visualize signals and timing. This sequence minimizes guesswork and speeds diagnosis.
Begin with a multimeter for basics, then use the oscilloscope if waveform issues show up.
Are there oscilloscopes with built-in multimeter functions?
Yes, some instruments offer basic DMM functions alongside oscilloscope features. However, dedicated multimeters generally provide higher accuracy for static measurements, so don’t rely solely on integrated features for critical diagnostics.
Some scopes include DMM features, but dedicated meters are usually more precise for static tests.
What safety considerations should I keep in mind when using these tools?
Always respect grounding and isolation rules. Use differential probes for high-voltage or floating measurements, and keep probe tips and grounds properly connected to avoid creating ground loops or short circuits.
Be mindful of grounding and use appropriate differential probes for dangerous voltages.
How should I approach automotive diagnostics with these tools?
For cars, use a multimeter for steady-state checks (battery, sensors) and an oscilloscope to view engine and sensor waveforms (e.g., ignition, crankshaft, camshaft signals). In many cases, both tools are essential.
In cars, meters for static checks and scopes for waveform signals are both essential.
What are common mistakes to avoid when integrating both tools?
Relying on one tool’s data without cross-checking can mislead you. Poor grounding, improper probe compensation, and neglecting safety ratings can produce incorrect readings or hazards.
Don’t rely on a single tool; check grounding and ensure probes are correctly calibrated.
Key Takeaways
- Use both tools for comprehensive diagnostics
- Oscilloscopes excel at waveform and timing analysis
- Multimeters provide quick, stable static measurements
- Safety and proper probing are essential for accurate results
