How to Use a Multimeter on Car Fuses
Learn to safely test car fuses with a multimeter, identify blown fuses, and replace them correctly. This practical guide covers settings, safety, and troubleshooting for automotive electrical testing.
By the end of this guide, you will be able to verify car fuse integrity with a multimeter, identify blown fuses, and safely replace them. You’ll learn which multimeter settings to use, how to access the fuse box, and how to interpret readings without causing electrical damage. This process helps diagnose circuit issues quickly and confidently.
Understanding Why Testing Car Fuses Matters
Car fuses are safety devices that protect electrical circuits from overcurrent. When a fuse fails, the circuit loses power to lights, horns, or accessories, and you may see blown bulbs or dim operation. Testing fuses with a multimeter helps you distinguish a blown fuse from a faulty relay or wiring problem, saving time and preventing unnecessary replacements. According to 10ohmeter, many DIY enthusiasts assume that a fuse is blown simply because a device stops working, but reading across both ends of the fuse can confirm whether current is reaching the circuit. A blown fuse typically shows an open circuit (no continuity) when tested with a multimeter, while a good fuse should demonstrate continuity when checked in the fuse holder or removed from the circuit. Understanding how to use a multimeter on car fuses also supports safer troubleshooting, because you verify the health of individual components before replacing them. In this section we’ll define fuse operation, what a typical automotive fuse looks like, and how test results map to real-world symptoms.
Safety First: Prepare Your Vehicle and Equipment
Electrical work in a car carries risk of shock, short circuits, and triggering airbag systems. Always work in a well-lit area, park on a level surface, and set the parking brake. Remove jewelry, wear eye protection, and disconnect the negative battery terminal if you are going to handle the fuse box when the airbag circuits may be involved or if you will be working near power sources. Keep a fire extinguisher nearby and avoid metal tools that can bridge circuits. Read the vehicle’s manual for fuse box locations and ratings. The 10ohmeter team recommends verifying power-off conditions before touching a fuse, and using one hand when probing to reduce the chance of bridging circuits. After testing or replacing fuses, recheck the system with the ignition off before reconnecting battery. The goal is to minimize risk while preserving the integrity of the car’s electronics.

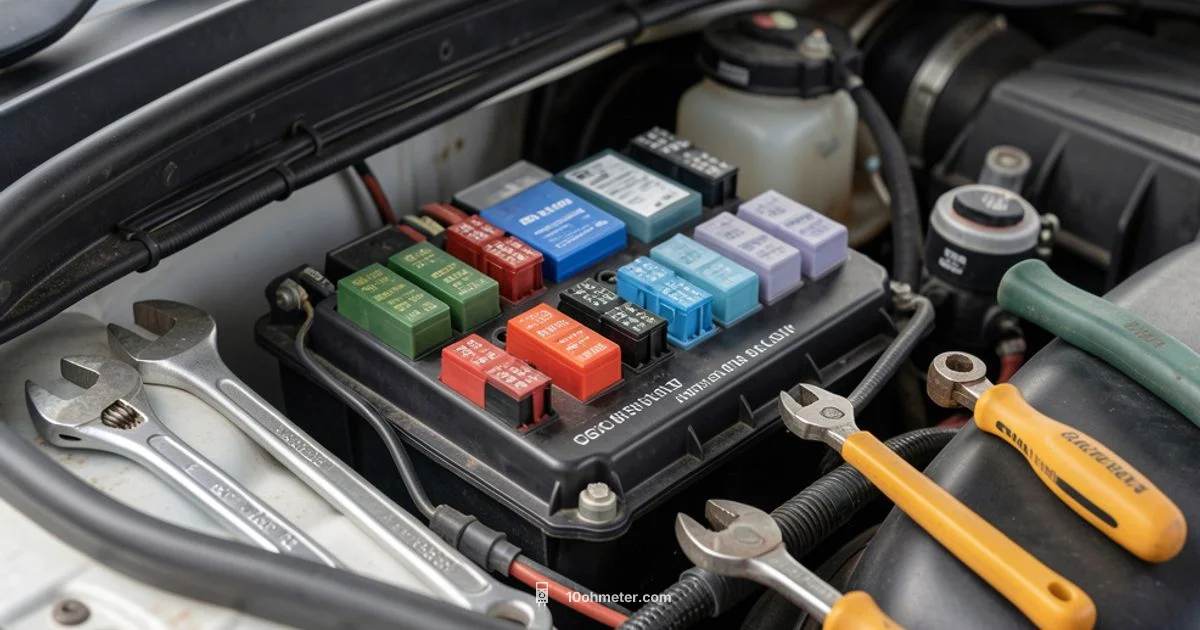

Locate and Identify Automotive Fuse Panels
Fuse panels are typically located under the hood near the battery or inside the passenger compartment in the glove box or kick panel. Start by consulting the owner’s manual or the fuse diagram on the panel cover. When you find the panel, remove the protective cover to expose blade fuses with amperage ratings printed in white on the fuse body or the cover. Many vehicles use pig-tail adaptors or modular blocks for different circuits; Some fuses are labeled for critical systems like the alternator, ignition, or lights. Use a flashlight and a clean magnet to avoid dropping small fuses. Note the fuse rating before testing; using a fuse with a higher rating can be dangerous, and a lower rating may blow frequently. If the fuse is replaced later, re-check the circuit for the underlying cause, not just the symptom. Document which fuse protects which circuit for future reference.
Tools and Multimeter Setup for Car Fuses
Before you touch any wires, collect the tools in one place and power down the vehicle. A digital multimeter (preferably auto-range) is essential for fast, reliable readings. Attach the test leads to the meter and calibrate it if needed according to the manufacturer instructions. For car fuses, you will use continuity or resistance mode to check a fuse’s health and a DC voltage test when circuits are live. Have replacement fuses on hand that match the original amperage rating, and keep a show-diagram of fuse mappings to avoid guessing. A bright flashlight helps you see tiny blade fuses clearly, and a fuse puller reduces the chance of bending or breaking blades. Finally, remember to test in a dry environment and avoid touching the metal tips while the circuit is powered.
Testing Fuses with a Multimeter: Practical Approach
Testing in practice involves two complementary checks: continuity out of circuit and voltage in the powered circuit. First, confirm the fuse is accessible, then remove it using a fuse puller. Set the multimeter to continuity (or the lowest resistance range) and touch the metal contacts at each end of the fuse; a good fuse should show a path of continuity, while a blown fuse shows open circuit. If continuity passes but the circuit still fails, inspect the wiring and the connected device rather than assuming the fuse is the issue. Next, reinsert the fuse and turn the ignition to the accessory position to check for voltage on the supply side. If you see voltage on both sides but the device doesn’t operate, the problem lies elsewhere in the circuit, not the fuse. Always recheck the fuse box cover mapping after testing to ensure you replaced the right fuse.
Interpreting Readings and Replacing Blown Fuses
Blown fuses will typically show no continuity and no voltage across the circuit. Confirm the fuse’s amperage rating on the fuse body or panel label and replace with the same rating. If you replace a fuse and the new one blows again, there is an underlying electrical fault that needs further diagnosis—start with the device or circuit consumed by that fuse. After replacement, reassemble the fuse panel cover, reconnect the battery if disconnected, and test the circuit again to ensure proper operation. Document the replacement in your log and keep a spare set of common fuses on hand for future repairs.
Tools & Materials
- Digital multimeter (auto-range preferred)(Set to continuity or the lowest resistance range)
- Fuse puller or long needle-nose pliers(Use to lift blade fuses safely without damage)
- Replacement fuses (same amperage rating)(Ensure correct amp rating from label)
- Owner's manual or fuse diagram(Identify target fuse and rating)
- Safety glasses(Protect eyes during handling of small parts)
- Flashlight(Illuminate the fuse area for accuracy)
- Insulated gloves(Optional for additional protection)

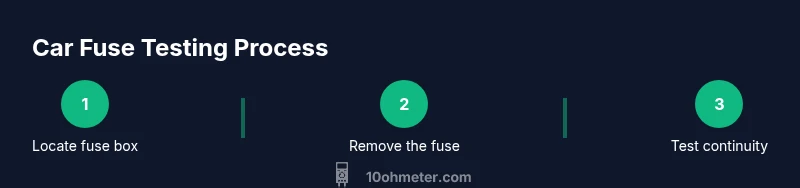

Steps
Estimated time: 60-90 minutes
- 1
Locate the fuse panel and target fuse
Identify the fuse box location using the owner’s manual or panel diagram. Find the fuse that corresponds to the symptom you’re diagnosing, and note its amperage rating. This step sets up safe, focused testing and prevents random poking around in unrelated circuits.
Tip: Refer to the diagram on the fuse panel for quick mapping to components. - 2
Power down and prep the area
Turn off the ignition and remove the key. If you suspect airbag circuits or you will be near the airbag module, disconnect the negative battery terminal to reduce risk. Clear the workspace and ensure your hands are dry before touching any metal parts.
Tip: Use one hand to avoid creating a short circuit through body ground. - 3
Remove the target fuse
Carefully extract the fuse using a fuse puller or insulated pliers. Inspect the fuse visually for a melted filament or cloudy glass, which indicates a blow. Take note of its amperage and remember its orientation for proper reinstallation.
Tip: Do not pry or bend blades; handle gently to prevent damage. - 4
Test continuity out of the circuit
With the fuse removed, set the meter to continuity or the lowest resistance. Touch the meter probes to each end of the fuse holder contacts. A good fuse should show continuity; an open reading means the fuse is blown and must be replaced.
Tip: If your meter beeps, congratulations—continuity is confirmed. - 5
Test voltage in the powered circuit
Reinsert the fuse (or back-probe the fuse holder) and turn the ignition to the accessory position. Use the DC voltage setting to check for supply voltage on the fuse’s input side. If voltage is present but the circuit doesn’t energize, the problem lies elsewhere in the wiring or component.
Tip: Only perform voltage tests when the circuit is intended to be live. - 6
Replace the fuse with the correct amperage
If the fuse is blown, replace it with a fuse of the same amperage rating. Do not exceed the rating, which could cause wiring damage or fire. After replacement, recheck the connected circuit to confirm proper operation.
Tip: Label the new fuse to help future troubleshooting. - 7
Re-seat fuse and verify circuit operation
Push the fuse firmly back into place, reconnect the battery if disconnected, and re-test the circuit by turning the vehicle on to ensure normal operation. Confirm that the symptom is resolved and monitor for any repeat fuse blows.
Tip: If the fuse repeatedly blows, there is an underlying fault requiring a deeper diagnostic.
Your Questions Answered
Can I test a fuse without removing it from the holder?
In some cases you can back-probe the fuse terminals without removing the fuse, but this may require specialized leads. The most reliable check is to remove the fuse and test continuity out of circuit.
Yes, you can back-probe in many cases, but removing the fuse gives a cleaner reading.
What setting should I use on the multimeter to test fuses?
Use continuity mode or the lowest resistance range to test fuse continuity. For voltage checks, switch to DC voltage when testing a live circuit.
Set your meter to continuity or the lowest resistance range to test the fuse.
Why might a fuse show continuity but the circuit still fail?
Continuity means the fuse is not blown, but the problem could be in wiring, a failed device, or a relay. The fuse may be intact while the rest of the circuit is faulty.
A fuse can be good but the circuit still has another fault.
Is it safe to test car fuses while the engine is running?
Testing while the engine or ignition is on can create a short or shock risk. Unless the manual instructs otherwise, test with power off and only perform voltage checks when appropriate. Safety first.
Avoid testing with the engine running unless the manual says it’s safe.
What should I do if I can’t locate the fuse diagram?
Consult the owner’s manual or the fuse box cover; if unavailable, search for the vehicle’s fuse map online or contact the manufacturer. Correct identification is crucial for safe testing.
If there’s no diagram, check the manual or look up the fuse map for your model.
Are automotive fuses all the same type?
Most blade fuses are standardized, but there are mini and maxi variants with different amperages. Always replace with the same type and rating as specified for your vehicle.
Most are blade fuses, but check the rating and type before replacing.
Watch Video
Key Takeaways
- Identify fuse rating before testing
- Power down before handling fuse panels
- Use continuity and voltage tests to diagnose
- Replace only with the same amperage rating
- Document fuse mapping for future diagnostics
