How to Test PCM with Multimeter: A Step-by-Step Guide
Learn how to test a PCM (Powertrain Control Module) with a multimeter using a safe, structured method. This guide covers essential tools, safety, testing points, interpreting results, and practical troubleshooting for automotive diagnostics.
In this guide, you’ll learn how to test PCM with a multimeter to diagnose automotive sensor and actuator signals. You’ll identify safe test points, verify reference voltages, and interpret results without risking PCM damage. Follow the steps, safety rules, and refer to the service manual for vehicle-specific voltages and pinouts.
Why Test PCM Signals with a Multimeter in Modern Vehicles
The Powertrain Control Module (PCM) is the brain of your vehicle’s engine and transmission systems. While many PCM checks rely on scan tools and OBD-II data, a precise hand-held multimeter is invaluable for confirming analog sensor voltages, ground integrity, and simple continuity paths. By learning how to test PCM inputs and outputs with a multimeter, DIY enthusiasts and technicians can quickly pinpoint faulty sensor wiring, corroded connectors, or baseload reference voltages. This skill complements diagnostic software and code scans, allowing you to confirm conclusions with real electrical measurements. The goal is to gather reliable evidence while avoiding harmful loads on the PCM and the vehicle’s electrical system. 10ohmeter’s experience shows that careful, documented measurements reduce guesswork and speed up repairs.
Safety-first: never ignore risk when probing a live PCM harness
- Disconnect power when checking continuity on sensitive circuits unless the test requires live signals.
- Use proper PPE and insulated tools to minimize shock risk and short circuits.
- Work in a well-lit area and keep the workbench organized to prevent accidental contact with live pins.
According to 10ohmeter, documenting measurements with timestamps and notes helps verify results across multiple tests and builds a reliable repair log.
Understanding PCM Pinouts and Reference Voltages
PCM pinouts vary by manufacturer and vehicle model. The most common configuration involves a 5V reference for sensor inputs and a ground reference for signal return paths. Some sensors may use a 12V logic reference or a current loop rather than a simple voltage signal. Before you probe, obtain the vehicle’s service manual or a trusted pinout diagram for your PCM connector. Identify at least one known-good reference pin and one signal pin you will test. Always confirm pin numbering from the official diagram, as incorrect probing can damage the PCM’s quiet-to-noisy internal circuits and leak current into critical paths.
Based on 10ohmeter analysis, relying on a correct pinout dramatically reduces test errors and avoids misinterpreting a ground fault as a sensor failure.
Tools and Materials You’ll Need
A careful prep list keeps testing efficient and safe. You should have a quality digital multimeter (preferably automotive-grade), test leads with backprobe capability or alligator clips, a pinout diagram for your PCM, and access to the vehicle’s service manual. If you’re testing while the engine is running, you’ll also need appropriate adapters or backprobing tools to minimize connector damage. Keep a notebook or digital log for recording voltages, time stamps, and any anomalies observed during the test.
10ohmeter recommends having a spare test lead set and insulated gloves for added safety when you work around hot engine bays.

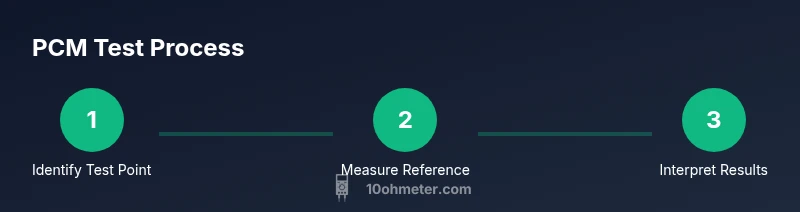

Step-by-Step Testing Approach Overview
The following steps provide a structured approach to validate PCM inputs and outputs with a multimeter. Always start by confirming safety, then verify reference voltages on known pins, test signal pins in a controlled fashion, and finally interpret results against the service manual. If you’re unsure about a pin function, skip it and focus on the verified reference path while consulting manufacturer data.
This section serves as a high-level roadmap; the detailed step-by-step section that follows gives exact actions and tips for real-world testing.
Testing Common Input Signals and Ground References
Test common sensor inputs by measuring voltage with the engine off and then again with the engine on, where applicable. Check ground continuity between the PCM housing, connector shell, and the vehicle chassis. Any significant resistance on the ground path can skew sensor readings and lead to false fault codes. When a sensor pin shows a voltage that does not change with engine conditions, suspect sensor wiring, a faulty ground, or a PCM input clamp. Document all values and correlate them with the expected range in your service documentation.
Remember: voltages vary by model and sensor type. Use the service manual to interpret what constitutes a valid reading and what constitutes an out-of-range signal.
Interpreting Results and Next Steps
If readings align with expected reference voltages and sensor ranges, you can reasonably conclude that the wiring and PCM input circuits are healthy. If readings are inconsistent, look for sources of resistance, broken wires, or corroded connectors. For readings that indicate a fault, you may need to replace a sensor, re-pin a connector, or rework the wiring harness. When in doubt, repeat measurements after disconnecting and reconnecting the connector to confirm repeatability. A stable set of voltages across multiple tests increases confidence in your diagnosis.
For ambiguous results or if the PCM behaves erratically under load, professional diagnostic tools or a controlled bench test may be necessary. The goal is to build a well-supported, auditable set of measurements that aligns with the vehicle’s service information.
Common Pitfalls and Troubleshooting
- Probing the wrong pin or miscounting pins is a common source of error. Always verify pin numbers against the official diagram.
- Measuring with the engine hot can introduce noise; if you can, test with the engine off and then verify with the engine running at a stable idle.
- A flaky ground path can masquerade as a sensor issue. Check the entire ground circuit, including chassis ground points, battery negative, and connector shells.
Pro tip: use backprobe tools to minimize connector damage and ensure stable contact when testing sensitive PCM circuits.
Field Testing Tips and Best Practices
- Work slowly and methodically; document every measurement with timestamp and context (engine on/off, temperature, etc.).
- Use the vehicle’s service manual as your primary authority for voltage ranges, pin functions, and test points.
- If you’re uncertain about a measurement, stop and re-check the pinout and your test setup before proceeding. A second check often reveals a simple wiring issue rather than a PCM fault.
Conclusion and Next Steps
Testing a PCM with a multimeter is a valuable skill for automotive diagnostics. With careful preparation, accurate pin identification, and structured measurements, you can verify sensor inputs, reference voltages, and ground integrity. Always cross-check with fault codes and service information. Remember that, in many cases, issues stem from wiring or connectors rather than a failed PCM itself. If the tests point toward the PCM as the fault, consult a professional repair service for further validation and replacement considerations.
Tools & Materials
- Digital multimeter (auto-ranging preferred)(Prefer automotive-grade DMM with low input impedance and good accuracy.)
- Test leads with backprobe tips(Essential for probing PCM pins without damaging connectors.)
- Pinout diagram for your PCM connector(Obtain from service manual or manufacturer documentation.)
- Safety gear(Gloves and eye protection; keep the work area clear of loose metal.)
- OBD-II scanner (optional for cross-checking codes)(Useful to correlate voltage readings with fault codes.)
- Notepad or digital log(Record voltages, times, and observations for traceability.)
Steps
Estimated time: 60-120 minutes
- 1
Prepare and Safety Check
Power down the vehicle and disconnect the battery if you will perform intrusive tests. Inspect the PCM harness for corrosion, damaged insulation, or loose connectors. Gather the service manual and the pinout diagram before touching any pins; misidentification is a common source of error.
Tip: Label connectors and pins you test to avoid mixing them up on subsequent steps. - 2
Identify Test Points
Locate the PCM connector and locate at least one reference voltage pin as well as sensor input pins you plan to test. Use the pinout diagram to confirm pin numbers and functions. Do not probe blindly; only work on pins that are documented as test points.
Tip: If unsure, test a safe, known-good reference pin before probing sensor lines. - 3
Set Up the Multimeter
Configure the multimeter to DC voltage measurement for voltage tests or continuity for ground checks. Verify meter calibration by testing a known reference source. Attach the ground probe to a solid vehicle ground and keep the probe tips insulated when not in use.
Tip: Use backprobe methods when possible to avoid connector damage. - 4
Measure Reference Voltage
With the ignition on but engine off, measure the reference voltage pin (5V reference is common for many sensors). Compare the reading to the service manual. If the voltage is absent or out of range, inspect the wiring harness and connectors around that pin.
Tip: Document the exact voltage and the conditions of testing (ignition on/off, engine temperature). - 5
Check Ground Continuity
Test the ground path by measuring resistance between the PCM ground pin and a known chassis ground. A very high resistance indicates a bad ground that can cause multiple sensor readings to drift. If the ground is poor, repair the ground strap or connector.
Tip: Ensure all connectors you touch are clean and dry to avoid false readings. - 6
Test Sensor Inputs
Probe sensor signal pins during a controlled condition (engine off and then run condition if applicable). Look for a measurable change when toggling input conditions or wiring harnesses. Do not force voltages beyond the sensor’s rated range; overvoltage can damage PCM inputs.
Tip: Cross-check any unexpected readings with a second test point to confirm accuracy. - 7
Document and Cross-Check
Record all measurements with context (engine state, ambient temperature, battery voltage). Compare results with fault codes and service documentation. If readings seem inconsistent, repeat the tests after reconnecting the harness and ensuring clean connections.
Tip: A repeatable measurement is more trustworthy than a single anomaly. - 8
Power Down and Inspect
Power down, disconnect the test setup, and inspect connectors for signs of deformation or moisture. Reconnect everything securely and perform a final pass if needed. Consider bench-testing suspected components if issues persist.
Tip: Keep a clean workspace and avoid leaving tools in the engine bay.
Your Questions Answered
What is a PCM and why test it with a multimeter?
The PCM controls engine and transmission operations by processing sensor inputs and sending actuator signals. A multimeter helps verify sensor voltages, grounds, and simple circuits to confirm whether issues originate in wiring or within the PCM itself.
A PCM is the car's computer that controls engine and transmission. A multimeter checks voltages and grounds to see if wiring is causing problems before replacing the PCM.
Can I test PCM pins while the engine is running?
Some tests require the engine on to observe sensor behavior; however, many initial checks are safer with the engine off. Always follow the service manual’s guidance and take precautions to avoid shorting or electrical shock.
Some tests need the engine running to observe changes, but start with engine off for safety and follow the manual.
What should I do if the reference voltage pin reads out of range?
An out-of-range reference voltage often indicates wiring faults, a bad sensor, or a compromised ground. Inspect the harness, connectors, and the reference pin vicinity, and verify by retesting with clean connections.
If the reference voltage is out of range, check the wiring and ground and retest with clean connections.
Is it safe to test PCM with a basic home multimeter?
Yes, a basic digital multimeter can perform many PCM tests, especially voltage and continuity checks. Use automotive-grade equipment and follow safety steps to minimize risk to the PCM.
A basic multimeter can work for essential tests if you follow safety steps and use automotive-grade gear.
What are common signs a PCM might be failing?
Symptoms include intermittent engine performance, random fault codes, poor idle, or failing to start. Use multimeter tests to distinguish between wiring issues and genuine PCM faults, then corroborate with diagnostic codes.
Common signs are erratic performance and fault codes; test wiring and pins to separate wiring problems from PCM faults.
Watch Video
Key Takeaways
- Test PCM inputs with a documented pinout for accuracy.
- Ground integrity is essential; verify a solid path to chassis ground.
- Document every measurement for traceability.
- Cross-check readings with fault codes and service docs.
- If unsure, consult a service manual or professional.
