How to Test Car Ground with a Multimeter

Why Ground Testing Matters in Automotive Electrical Systems

Grounding paths are the backbone of a vehicle's electrical reliability. A weak or corroded ground can introduce noise into sensor signals, cause parasitic battery drain, or trigger false fault codes. When the ground reference shifts, voltage readings drift, making it difficult for the ECU to interpret data from the crank sensor, oxygen sensor, or ABS module. The 10ohmeter team emphasizes that assessing grounding integrity is a high-value, low-effort diagnostic step. A robust ground path reduces noise, stabilizes voltage references, and helps you pinpoint faults more quickly. In practice, a good ground path minimizes voltage drop across the chassis and engine blocks, ensuring consistent operation of lights, starters, and control modules. This section clarifies why you should test grounds and how that test fits into broader electrical diagnostics.

Safety First: Battery Disconnect, PPE, and Working Precautions

Safety is non-negotiable when working on a vehicle’s electrical system. Begin with parking brake engaged and the ignition off. Disconnect the negative battery lead to eliminate the risk of shorting a live chassis during probe contact. Wear insulated gloves and safety glasses, and work on a dry, non-conductive surface. Keep metal tools away from exposed contacts and never bridge probes across a live circuit. If you must test near the battery, isolate the electrical system and ventilate the area to reduce the chance of sparks. By following these precautions, you protect yourself while you gather meaningful measurements.

Understanding Ground Points in a Vehicle

Vehicles rely on multiple grounding paths, including the battery negative to the chassis, engine block to chassis, and body grounds to the electrical system. The most important ground is usually the main engine-to-chassis strap and the battery negative post. Corrosion, loose bolts, or damaged straps can raise resistance and create intermittent faults. In some cases, the ground path travels through a painted metal surface; bare metal contact and clean strap connections are essential for a low-resistance path. Diagrammatic wiring helps locate these points, and understanding their roles helps you decide where to measure with a multimeter. The goal is to confirm that each primary ground path offers a solid, low-impedance connection to the common return node.

Tools You'll Use: Multimeter Setup for Ground Tests

Your multimeter is the primary tool for these checks. Ensure it has a reliable probe set and leads that can reach engine bays and undercarriage points. For ground tests, you’ll use the continuity/beep mode and the low-resistance ohm range. If your meter lacks continuity, use the resistance function to confirm a near-zero reading. Keep the red lead connected to the ground point and the black lead to the reference ground (often the battery negative or an approved chassis ground). Probes should have firm contact and be held steadily to avoid intermittent readings. Proper setup minimizes measurement errors and improves reliability of your results.

Interpreting Readings and Common Faults

A healthy automotive ground should show a strong, near-zero resistance and, in continuity mode, an audible beep. High resistance can indicate corrosion, a loose strap, or paint/primer insulation at the contact point. Intermittent readings often point to loose bolts, damaged clamps, or water intrusion in connectors. If readings vary across different ground points, focus on the weakest path first and inspect connectors, clamps, and the strap integrity. Document anomalies and compare with service manual specifications or wiring diagrams to determine if a replacement strap or cleaning is necessary. Remember, environmental factors like temperature and humidity can subtly affect resistance measurements, so consider repeated checks for consistency.

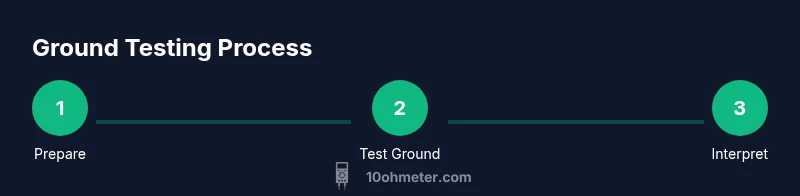

Step-by-Step Core Test Procedures (high-level concepts)

This section provides a high-level view of the testing approach so you understand the workflow before you dive into the hands-on steps in the dedicated STEP-BY-STEP block. Start from the most critical ground—the engine block and battery negative—then expand to chassis and body grounds. Ensure all test points are clean and accessible, and verify that panels do not shield contact areas. Compare readings across points to identify a single weak ground as the likely fault source. Finally, correlate findings with operational symptoms (e.g., misfiring or headlight dimming) to confirm the ground fault’s impact. The goal is a repeatable process you can perform with confidence during routine maintenance or troubleshooting.

AUTHORITY SOURCES

For safety and testing best practices, refer to established electrical-safety resources and engineering standards. These sources provide foundational guidance on grounding, continuity testing, and safe handling of electrical systems:

• https://www.osha.gov
• https://www.nist.gov/topics/electrical-safety
• https://ieeexplore.ieee.org

Practical Troubleshooting Scenarios and Best Practices

Ground faults in cars often arise from corrosion on battery terminals, loose ground straps, or wet conditions that compromise metal-to-metal contact. A common scenario is a flaky engine ground near the intake or valve cover, which can trigger sensor glitches during cold starts. In practice, test multiple known-good grounds and compare results to the suspect point. If a single strap shows higher resistance than others, replace it and re-run measurements to confirm improvement. Always reassemble and recheck all connections after testing and before road testing. The 10ohmeter team recommends starting with the main engine-ground strap and the battery negative terminal, then validating secondary grounds to ensure a robust return path for all circuits.

How to Reduce Risk and Verify Safety

After testing, reattach the battery and perform functional checks for critical systems (lights, instrument cluster, and ignition). If anything remains abnormal, inspect wiring harnesses and ground points for physical damage or corrosion. Keep a detailed log of readings, locations, and any repairs performed to guide future maintenance. Regular inspection of ground connections can prevent intermittent faults and extend the life of electrical components. The goal is a dependable electrical ground network that supports reliable diagnostics and safer vehicle operation.
