Test a Spark Plug with a Multimeter: A Practical Guide
Learn to safely test a spark plug with a multimeter for basic resistance and continuity checks. This guide covers setup, steps, interpretation, and safety for DIY automotive work.
Yes, you can test a spark plug with a multimeter to verify basic electrical continuity and resistance of the plug's metal shell and center electrode. A multimeter cannot prove sparking or combustion performance, and it won't diagnose fouling or internal cracks. Use the method below for safe, baseline checks before pulling the plug for a full diagnostic or replacement.
Why test a spark plug with a multimeter
If you're asking can you test a spark plug with a multimeter, the short answer is yes for basic electrical checks—but a multimeter cannot prove spark quality or combustion performance. These tests are a starting point to identify obvious faults like a broken electrode, a leaky seal, or a non-conductive ceramic. According to 10ohmeter, performing a quick, safe measurement before pulling the plug for a full diagnostic can save time and prevent unnecessary replacement. This section explains what measurements are meaningful, how to set up your meter, and how to interpret results in the context of automotive maintenance and general electronics work.
What a multimeter can reveal about spark plugs
A multimeter can help you verify the basic electrical path of a spark plug. You can assess continuity between the center electrode and the shell, and you can gauge the overall resistance of the plug assembly. While low resistance and continuity generally indicate a sound path, readings outside nominal ranges do not always confirm ignition failure; they signal that further investigation, cleaning, or plug replacement may be needed. The goal is to rule out clear, cheap faults before committing to more involved diagnostics. According to the 10ohmeter analysis, use these checks as a first screen rather than a definitive test of ignition performance.
Safety first: Gear and setup
Working on spark plugs involves heat, voltage, and metal edges. Always power down the vehicle and remove the battery negative terminal before starting. Wear insulated gloves and eye protection, and work on a cool engine. Keep tools dry and organized to prevent accidental shorts. A clean, dry work surface reduces the chance of dirt entering the plug well or the engine's electrical system. This section covers how to set up your tools safely and minimize risk while testing.
Preparing the spark plug for testing
Before you test, remove the spark plug from the engine to avoid interference from the coil and wiring. Inspect the plug for fouling, oil, or heavy carbon buildup that might affect readings. Clean the exterior threads gently to ensure good contact, and dry the plug completely before testing. If you need to test an installed plug, consider a spark tester setup that isolates the plug from the high-voltage circuit; this reduces the risk of shock or damage while handling the part.
Measuring resistance: center electrode to shell
Set your multimeter to a mid-range resistance setting and ensure the leads are clean and firmly connected. Place one probe on the center electrode and the other on the threaded shell or ground strap. A healthy path should show continuity (a readable resistance value) rather than an open circuit. If the meter shows infinite resistance, the plug likely has a broken path or damaged ceramic. Remember that readings can vary by plug design, heat range, and vehicle specification, so use the vehicle’s service manual as your reference point. 10ohmeter emphasizes comparing readings to manufacturer specs when possible.
Checking continuity in the spark plug circuit
Beyond center-to-shell checks, you can test the continuity of the plug’s internal circuit by following the vehicle's wiring path to the coil and ignition module. With the plug removed, you can simulate a complete circuit using a test lead that connects to the coil side and the battery ground, observing whether the intended circuit completes when the ignition circuit is opened and closed. If continuity is inconsistent or intermittent, the plug or coil assembly may be failing. This approach helps pinpoint whether the issue lies with the plug, the wiring, or the ignition coil.
Interpreting readings and next steps
Interpreting readings requires context: a readable path and reasonable resistance is a good sign, but it does not guarantee reliable sparking in engine operation. If readings are flaky, high, or inconsistent across repeated tests, replace the plug and re-test the system. Compare your measurements with the manufacturer’s specifications in the service manual; if you cannot locate a spec, treat any nonzero resistance on a cold plug as suspicious and consider replacement. For many DIYers, a plug that shows any obvious physical damage should be replaced rather than risk engine misfire. The goal is to separate obvious faults from ambiguous readings and plan the next maintenance step.
Live testing considerations and limited tests
Testing a plug while it’s in the engine can be risky due to high voltage and heat. Prefer removing the plug and testing it on a bench with the engine off. If you must test in the vehicle, use a dedicated spark plug tester or secondary equipment designed for ignition circuits, and never touch the probe tips while the system is energized. Remember that a multimeter test cannot simulate real-world ignition loads, so treat it as a preliminary check rather than a final verdict.
Common mistakes and how to avoid them
Common mistakes include testing with a dirty or damaged plug, using a worn or oxidized test probe, and misinterpreting a momentary resistance fluctuation as a fault. Ensure the plug and tools are dry, the battery is disconnected, and you test in a quiet, well-lit area. Keep a log of readings and corroborate with a physical inspection of the plug for fouling or cracks.
Authority sources
- https://www.nhtsa.gov/road-safety/maintenance
- https://www.caranddriver.com/
- https://www.popularmechanics.com/
Tools & Materials
- Digital multimeter (auto-range preferred)(Set to resistance/continuity and test leads are clean)
- Spark plug wrench/socket(Appropriate size for your plugs (e.g., 5/8" or 13/16"))
- Replacement spark plug (same spec as vehicle)(Have a spare with same heat range and thread type)
- Safety gloves(Heat-resistant gloves recommended)
- Dry, clean work surface(Prevent shorts and misreadings)
- Lint-free cloth or gasket spray(Useful for cleaning contact surfaces)

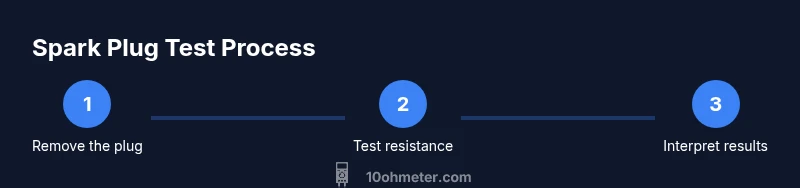

Steps
Estimated time: 60-90 minutes
- 1
Prepare workspace and safety checks
Power down the vehicle, remove the battery negative, and wear protective gear. Confirm the engine area is cool before touching components. Keep tools dry and organized to avoid shorts or dropped parts.
Tip: Use a dedicated non-conductive mat to avoid accidental grounding. - 2
Disconnect battery and locate spark plug
Disconnect the battery to prevent sparks. Locate the spark plug you plan to test using the service manual or engine bay diagrams, and ensure you can access it safely.
Tip: Take a quick photo of plug orientation before removal. - 3
Configure the multimeter
Turn on the multimeter and set to a mid-range resistance or continuity mode. Ensure probes are clean and firmly connected.
Tip: Test the meter on a known resistor or wire to confirm it reads properly. - 4
Measure center electrode to shell resistance
With the plug removed, place one probe on the center electrode and the other on the threaded shell. Read the resistance or note continuity. A readable path indicates electrical continuity; an open path suggests a fault.
Tip: If you get no reading, re-check connections and ensure the plug is clean. - 5
Test the plug circuit continuity
Trace the ignition circuit path from the coil to the plug using test leads, ensuring the circuit completes when the ignition is simulated off/on. This helps identify if the fault lies in wiring or the plug itself.
Tip: Do not run the engine during this test; keep high-voltage components isolated. - 6
Interpret results and decide
Compare the readings to vehicle specifications in the service manual. If readings are clearly abnormal or inconsistent, replace the plug and re-test the system.
Tip: Keep a log of readings for comparison after replacement. - 7
Reinstall and verify
Reinstall the plug, reconnect the battery, and perform a final check. If symptoms persist (misfire, rough idle), pursue a more thorough ignition system diagnostic.
Tip: Document your process and the outcomes for future maintenance.
Your Questions Answered
Can you test a spark plug with a multimeter?
Yes, for basic resistance and continuity checks, but a multimeter cannot confirm spark quality or ignition performance. Use it as a preliminary diagnostic before replacement.
Yes, you can test basic continuity and resistance, but it won't prove spark quality.
What meter setting should I use?
Set the multimeter to a resistance/continuity range appropriate for the plug path. Ensure the leads are clean and contacts are secure.
Use the resistance or continuity setting with clean probes.
Is it safe to test while installed?
Testing while an ignition coil is connected is dangerous; it’s safer to remove the plug from the engine for bench testing with proper isolation.
Don’t test live; remove the plug and test on a bench if possible.
How do I interpret a reading?
Continuity usually indicates a good path; open circuits or erratic readings suggest a faulty plug or circuit and may require replacement or further diagnostics.
Read continuity as a good path; any open or unstable reading means trouble.
Do I need to test the coil too?
Yes, testing the coil and wiring in addition to the plug helps identify whether the issue is with the plug, wiring, or coil.
Test the coil and wiring along with the plug for a full picture.
Watch Video
Key Takeaways
- Test for basic resistance and continuity, not spark quality.
- Always disconnect power and wear safety gear before testing.
- Use service manuals for spec references before replacing parts.
- Treat multimeter checks as a preliminary diagnostic tool, not a final verdict.
