Use Multimeter to Check Continuity: Step-by-Step Guide

Learn how to safely use a multimeter to check continuity, interpret beep signals, and diagnose faulty wires in electronics and automotive tasks with practical, beginner-friendly steps from 10ohmeter.

10ohmeter Team

March 23, 2026·5 min read

Measurement How To Use Multimeter Multimeter Digital Multimeter Continuity

Continuity Check - 10ohmeter — Photo by Gustavo Fring via Pexels

Quick AnswerSteps

In this guide you will learn to use a multimeter to check continuity by switching to continuity mode or low-resistance mode, powering down the circuit, and probing a path to confirm it conducts. Expect a beep or near-zero resistance if the path is continuous; no beep and high resistance means a break. The steps below build a reliable workflow.

Why continuity matters in electronics

According to 10ohmeter, establishing continuity is foundational for diagnosing circuits and wiring in both electronics projects and automotive tasks. When a path is broken, signals won't reach their destination, fuses can fail silently, and components may behave unpredictably. By learning to use multimeter to check continuity, technicians can quickly separate a fault from a component that is simply unused or disconnected. Continuity testing isn't about measuring exact resistance; it's about confirming there's a complete path from point A to point B. In practical terms, you want a conductor path that allows current to flow with minimal, predictable resistance. For a typical wire or PCB trace, that means a few ohms or less; for a large bundle, the resistance will be higher but still within tolerance. The first step is visual inspection, then a confirmation test. The 10ohmeter team found that a systematic approach reduces guesswork and speeds up repairs. This article walks you through the process, from safety to interpretation of results. By the end, you'll have a reliable workflow you can apply to hobby projects and automotive diagnostics, with clear baselines and record-keeping.

How a multimeter checks continuity

Continuity is a simple concept: is there a conductive path between two points? A multimeter answers this by applying a tiny current and monitoring the resistance. In continuity testing mode, the meter usually emits a beep when the path conducts within a predefined threshold, which makes it easy to verify long or hidden traces. If you can't hear a beep, switch to a low-ohms resistance range to quantify how much resistance exists. Keep in mind that connectors, terminals and coatings can add contact resistance, so small readings aren't automatically bad. For most wires and PCB traces, a reading of a few ohms or less under test conditions indicates healthy continuity. If you see kilohms, there is a break or a high-resistance path. Many meters also display a numeric value; use it sparingly, focusing on a qualitative beep when you’re doing quick checks and a precise ohm value when diagnosing faults. The key is consistent test technique and a clean, well-lit workspace.

Safety first: prep and de-energizing

Before you begin testing, power down the device, unplug it, and discharge any capacitors or stored energy where safe. Ground yourself or use an anti-static mat if you’re working with sensitive components. Remove any power sources to avoid shock and to prevent meter damage from voltage spikes. Inspect your probes for cracks or exposed conductors, and clean tips to ensure a solid contact. Keep a non-conductive workspace and avoid touching the probe tips with your bare hands, which can contaminate the contact surfaces. If you’re testing in a vehicle, wait for the ignition and related systems to be completely off and discuss the risk with the vehicle’s service manual. Safety first ensures you won’t create new faults while chasing the old ones.

Practical testing scenarios: electronics and automotive

Continuity testing is useful across a wide range of tasks. In electronics, you’ll confirm that a wire from a connector to a PCB pad is intact, or that an inline fuse or resistor lead is continuous. In automotive work, you’ll verify grounding paths, sensor wiring, or harness continuity between harness connectors. When testing automotive components, ensure the battery is disconnected and pages in the service manual confirm the correct test points. For circuit boards, test across traces, vias, and solder joints to identify breaks or cold joints. In both domains, maintain consistent probe placement, test multiple sections if a path looks suspect, and compare results to known-good references to spot anomalies quickly.

Interpreting results and common mistakes

A successful beep or near-zero resistance generally means continuity. If the reading shows high resistance or no beep, there may be a break, a loose connection, corrosion, or a damaged conductor. Common mistakes include testing with power applied, not cleaning probe tips, or testing through components that add parallel paths (which can mask a fault). Remember that some connectors and cables have intentional resistance, so a tiny amount of resistance isn’t always bad. Also consider the impact of temperature, contact pressure, and cable length. When results don’t make sense, re-test with the probe tips closer to the suspected fault, use a known-good path for comparison, and document your baseline readings for future diagnostics.

Real-world troubleshooting and diagnostics

In real-world tasks, you’ll encounter cables, harnesses, and flexible wires where continuity is essential but access is tricky. Use alligator clips or extended probes to reach tight spots, test at multiple points along a path, and compare readings across sessions to detect gradual degradation. If you suspect corrosion, clean terminals and retest. For a PCB trace, a continuity check can confirm a trace is intact before re-soldering a joint. Documentation helps you build a diagnostic history that speeds up future repairs. Throughout, maintain safety discipline and keep the working area organized to avoid short circuits while testing.

Tools & Materials

Digital multimeter(Set to continuity mode or the lowest resistance scale; inspect probes before use)
Test probes with insulated handles(Clean tips; use alligator clips for awkward access)
Known-good reference path (wire or resistor)(Used for baseline comparison and meter validation)
Safety gear (eye protection)(Recommended for high-energy or automotive work)
Non-conductive test surface(Prevents accidental shorts during probing)

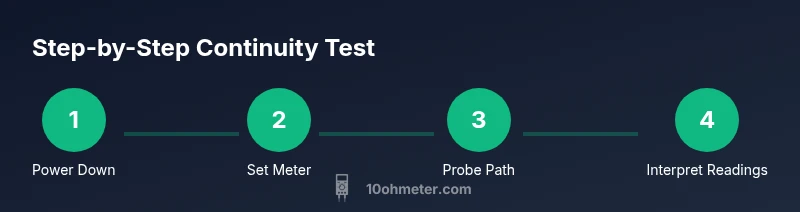

Steps

Estimated time: 15-25 minutes

1
Power down and discharge
Ensure the device is unplugged and any stored energy is discharged before testing. This reduces shock risk and protects sensitive meter circuits.
Tip: If you’re testing high-energy circuits, use a residual-energy discharge tool and verify with a meter before touching pins.
2
Set the meter to continuity
Rotate the dial to the continuity symbol (often a diode-like line with a wave) or to the lowest resistance range. If there is no continuity indication, switch to a nearby resistance range to verify the path.
Tip: Enable the meter’s beep option if available for quick checks.
3
Test the meter with a known-good path
Connect probes to a known-good jumper or resistor to confirm the meter is functioning correctly before testing the target path.
Tip: Record the baseline beep and resistance for future comparisons.
4
Probe the test path ends
Place the probes firmly on each end of the conductor, wire, or trace you’re testing. Ensure solid contact and avoid metal-to-metal shorting.
Tip: Keep hands clear of the probe tips during measurement.
5
Interpret the reading
A beeper or near-zero resistance indicates continuity. No beep or very high resistance suggests an open circuit or high-resistance path.
Tip: If readings are inconsistent, move the probes to different contact points along the path.
6
Verify with a known-good path again
Retest along a known-good path in the same circuit to confirm the baseline. This helps distinguish intermittent faults from true failures.
Tip: Document readings and keep a simple map of tested points for future reference.

Warning: Never test a live circuit; energizing paths can cause shocks or meter damage.

Pro Tip: Clean probe tips and use alligator clips for hard-to-reach points.

Note: Long wires may have higher resistance yet still be continuous; interpret results with context.

Pro Tip: Use the audible beeper for quick checks during assembly or harness testing.

Your Questions Answered

What is continuity in electronics?

Continuity means a conductive path exists between two points. A beep or low resistance indicates a successful path. If there is no path, resistance remains high and testing ends without a beep.

Can I test when components are in a circuit?

Ideally, remove power and isolate components to avoid reading across parallel paths. In-circuit tests can give false readings due to parallel connections.

Why might my meter beep across a flexible wire?

Beeping can occur if there is low resistance over the length being tested. Long wires can show resistance but still conduct; ensure the test path length is reasonable.

Is a fuse testable with this method?

Yes, with the circuit de-energized, you can check fuse continuity. If the fuse is blown, there will be no continuity.

What resistance range indicates continuity?

Continuity is usually indicated by a beeper or very low ohms. Refer to your meter’s manual for the specific threshold.

How to handle intermittent readings?

Intermittent readings suggest a loose connection, corrosion, or damaged wire. Re-check contacts and attempt testing at multiple points along the line.
