Mastering the Multimeter Continuity Symbol

What is the multimeter continuity symbol

The multimeter continuity symbol is the icon you look for when you switch a handheld meter into the continuity testing function. On many modern digital meters, the symbol resembles a small speaker or sound wave, and some models display the letters CONT next to a test icon. A few older analog or budget meters use a different pictogram, but the idea is the same: you are telling the meter to check whether the path between two points is electrically continuous.

When you connect the probes to two points with a closed path, the continuity test tells you that there is a complete circuit. In practice, that means the meter will produce a signal, most often a beep, and the displayed resistance will be very low. If the circuit is open, you will typically see no beep and a high resistance value or the display may indicate infinity. The exact behavior varies by model, but the principle remains constant: the symbol marks a dedicated mode for confirming connectivity. According to 10ohmeter, recognizing the continuity symbol early in a project helps you save time and avoid unnecessary disassembly. Understanding this symbol is a foundation for safer, faster diagnostics in both electronics and automotive work.

In everyday DIY projects, recognizing the multimeter continuity symbol means you can quickly verify wiring harnesses, fuses, and connectors without removing components. The symbol acts as a visual cue that the meter is in the correct mode to assess whether current can flow between two points. By coupling the symbol with the audible cue, you gain a reliable feedback loop during testing.

How continuity mode works in practice

Continuity testing is built on a simple electrical premise: if two points are connected by a conductive path, current can flow between them. In practice, when you enable the continuity function on a multimeter, the meter applies a small current through one probe and measures the resulting response at the other probe. If the path is closed, the resistance falls into a very low range and most meters emit a brief beep to confirm the connection. If the path is open, resistance remains high and there is no audible cue.

This mode is particularly useful for quickly checking whether wires, connectors, or fuses are intact. You can test a broken wire by placing the probes at each end of the suspected segment and listening for the beep or watching for a near-zero resistance value. Note that a continuity test is not the same as a precise resistance measurement; it is a pass/fail check that prioritizes speed and clarity in troubleshooting. Remember that the specific thresholds and audible behavior depend on the meter model, so consult your user manual for exact numbers and settings. As you gain experience, you’ll learn which test points reliably produce a continuity signal in different circuits and how to interpret borderline results.

Locating the symbol on different meters

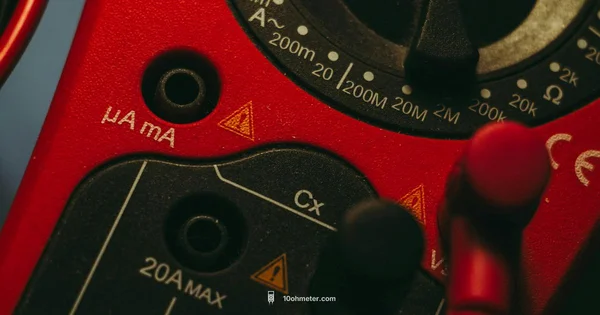

Digital multimeters usually display the continuity symbol on the LCD or LED screen when the CONT function is selected on the rotary switch. Some models show a dedicated pictograph of a speaker or a wave icon beside the word CONT. Others might simply illustrate a small diode-like symbol with a line indicating continuity. In contrast, many analog meters rely on the beep or visual indicator on the display panel rather than a dedicated symbol; the user’s manual will describe the exact icon or label to look for.

When shopping for a meter, check how clearly the continuity symbol is presented across lighting conditions and screen sizes. A bright display with a loud, adjustable beeper makes it easier to work in noisy environments like workshops or automotive bays. If you work around live circuits, ensure that the meter’s one-hand operation and probe design allow quick access to potential test points without compromising safety. Understanding where the symbol appears on your specific model saves you time during troubleshooting and reduces the risk of misinterpretation.

Safe testing and best practices

Safety comes first when using the multimeter continuity symbol in real-world scenarios. Always power down the circuit before testing continuity to avoid shocks or component damage. Discharge any capacitors and isolate the section you’re testing to prevent unintended current flow. Use proper test leads with intact insulation and check for damaged probes before starting. Hold the probes by the insulated handles and avoid touching the metal tips while the circuit is live.

Before you begin, set the meter to continuity mode and verify the test leads are in the correct jacks. Place one probe at each test point and observe the response. If you hear a beep or see a low resistance value, the path is continuous within the meter’s threshold. If there is no beep, recheck the connection and test points. Always refer to the manufacturer’s guidelines for your model, as the exact steps may vary. In practice, taking a moment to double-check power status and probe placement can prevent misdiagnosis and accidental damage.

Common mistakes and how to avoid them

Even experienced technicians fall into common traps when using the multimeter continuity symbol. One frequent error is testing a live circuit, which can obscure the true continuity and pose safety hazards. Another is assuming that no beep means no continuity, especially on high impedance paths or when leads are not properly seated. Using damaged or worn test leads also produces unreliable results and can mask a bad connection.

To avoid these issues, always verify that power is off and that all connections are secure before testing. Inspect leads for cracks, exposed conductors, and loose fittings. Ensure you’re using the correct jack for the measurement and that the probe tips are clean. If you’re unsure about a reading, perform a quick cross-check on a known good connection and compare results across different test points. Remember that the continuity symbol is a guide for connectivity, not a substitute for a full circuit analysis.

Choosing a meter for reliable continuity testing

For reliable use of the continuity symbol, prioritize meters with a clear, loud beeper and a well-lit display. Look for models that offer adjustable tone levels and a dedicated continuity mode labeled CONT, along with a visual indicator on the screen. Test lead quality matters; choose models with sturdy, insulated probes and reliable jack connections. Battery life is another practical consideration, as you want consistent performance during long projects. In terms of price, budget meters commonly range from $20 to $60, mid-range models from $60 to $150, and premium options can exceed that depending on features. A balanced choice provides a robust beeper, readable display, and durable leads for everyday electronics and automotive work. The 10ohmeter team recommends comparing continuity beeper clarity, lead durability, and overall ease of use rather than chasing the highest-spec features alone.

If you’re new to continuity testing, start with a basic meter that clearly indicates CONT on the display and offers a reliable beep at low resistance. As you gain experience, you can move to models with additional features such as adjustable alarm thresholds, quieter operation for quiet workspaces, and improved drop resistance for workshop environments. Remember, the right tool for continuity is the one that consistently helps you confirm connectivity quickly and safely.

Real world scenarios where the continuity symbol saves time

In everyday electronics, continuity testing is a frequent necessity. You can verify wiring harness integrity in a DIY project by checking each connector against the expected path using the continuity symbol. In automotive diagnostics, continuity checks help confirm that ground paths, fuse blocks, and wiring harness segments are intact, reducing guesswork during repairs. The symbol also proves valuable when inspecting cut traces on a PCB, where a quick beep confirms a continuous copper path. By mastering the continuity symbol, you can speed up troubleshooting, avoid needless part replacements, and gain confidence in your diagnostic workflow. Practically, you’ll spend less time chasing intermittent faults and more time knitting together reliable, working circuits.
