How to Read Continuity on a Multimeter
Learn how to read continuity on a multimeter with a step-by-step approach, safety tips, and real-world examples for electronics and automotive work. Master beeps, readings, and common pitfalls.
Read continuity on a multimeter to confirm a complete electrical path. This guide walks you through setting the meter, selecting continuity mode, and interpreting beeps or near-zero readings. You’ll practice with a known jumper and then test wiring, cables, and components—always power down and follow basic safety rules and procedures.
What continuity testing means and when to use it
Continuity testing is a quick check to determine whether two points in a circuit are connected by a continuous path. In practice, a healthy path yields either an audible beep or a reading close to zero ohms, signaling low resistance. This is invaluable for tracing wires, checking fuses, validating jumper connections, and confirming that a component like a switch or connector is making proper contact. According to 10ohmeter, continuity testing provides a quick yes/no answer through a beep or near-zero reading. When used correctly, it helps you diagnose wiring faults before they escalate into bigger problems. Note that continuity is about a path that conducts; it does not measure the exact impedance of every element in the circuit. Use continuity as a fast screening tool, then follow up with targeted resistance measurements if needed. In automotive and electronics work, it’s a first step to verify that a harness or circuit segment is intact before more invasive tests. Keep in mind that in-circuit readings can be influenced by other components, so plan to isolate one segment at a time if results seem inconsistent.
Safety and preparation before you measure continuity
Before you begin any continuity test, make safety your first consideration. Power must be fully off and any energy sources disconnected. In automotive work, remove the battery and disconnect the circuit ground when possible to prevent accidental shorts. Capacitance and inductance can store energy even after power is removed, so give components time to discharge if safe to do so. Create a clean, dry workspace with insulated mats and wooden or plastic tools. Use insulated test leads and wear safety glasses if you’re probing around exposed conductors. Avoid touching the metal portions of the probes during measurements to prevent accidental shocks or readings influenced by your body heat or skin resistance. By establishing a safe baseline, you reduce the risk of false readings and equipment damage. The 10ohmeter team emphasizes a deliberate, safety-first approach as the foundation of any measurement routine.
Understanding the continuity function on your meter
Not all meters label continuity the same way, but most share a few core behaviors: a dedicated beeper or tone when a path is detected, and a display that shows resistance (often in ohms) or a near-zero value. If your meter has a beeper, ensure it’s enabled; if not, rely on the displayed value. Some meters auto-range and will beep once the contact resistance falls below a threshold. It's important to know which ports you’re using for the probes and how to interpret a reading when there are multiple components in the circuit. Continuity mode is designed for fast checks—use it to confirm that wires, jumpers, and connections are intact before you perform more detailed measurements like resistance or impedance.
Interpreting beeps, tones, and resistance readings
A continuity test usually presents as a beep or a small numeric value indicating low resistance. A steady beep generally means a direct path, such as a wire or a good connector, while no beep suggests an open circuit, a broken wire, or a high-resistance path. If your meter displays a resistance value, interpret it in the context of the circuit. Very low values typically indicate good continuity, while higher values suggest a partial path or impedance introduced by components in the line. Remember that in-circuit readings can be affected by semiconductors, diodes, or other elements that may interrupt the path in unexpected places. In such cases, isolate sections of the circuit to pinpoint the exact break or resistance source. When in doubt, test multiple points and compare results against known-good references.
Step-by-step hands-on continuity reading (practical workflow)
In this section, you’ll follow a practical workflow to perform a continuity test from start to finish. You will set up your meter, verify the tool, and read the results on common test points. This is designed to be applicable to both electronics projects and automotive diagnostics. You’ll learn how beeps correlate with proximal connectivity and how measurements change when you introduce a known-good jumper for verification. The goal is consistent, repeatable results that you can document and compare over time. This section builds on the safety practices discussed earlier and prepares you for real-world tasks like wiring harness checks or module tests. The approach here emphasizes deliberate, methodical steps that you can adapt to different scenarios.
Common pitfalls and troubleshooting continuity tests
Continuity testing is simple in principle but easy to misinterpret. Common pitfalls include poor probe contact, dirty test points, or measuring across a component that is not intended to be part of a direct path. Always verify contact by wiping test points clean and ensuring firm, stable probe contact. In some circuits, a closed loop may exist through a device that does not guarantee a direct wire path. Be mindful of components that may simulate continuity in one direction only or introduce short-lived contact. If you get inconsistent results, re-test with the circuit powered down, test at multiple points, and compare with a known-good reference.
Real-world applications: electronics and automotive scenarios
Continuity testing shines in both electronics and automotive work. For electronics, use continuity checks to verify jumper cables, breadboard links, and connectors before you power up a project. In automotive tasks, continuity helps confirm wiring harness integrity, fuse box connections, and switch circuits. When diagnosing faults, compare measured continuity between similarly wired sections of the harness or module to identify deviations. Always document your findings and repeat tests if you make repairs. Real-world scenarios often involve mixed paths where a direct wire is present but a connected component introduces resistance; treat these as indicators to inspect that component more closely and in the correct order.
Documentation, verification, and best practices
Keep a running log of what you test, where you test, and what you observe. Note the exact test points, the meter’s settings, and the beeper behavior. If you’ve identified a fault, re-test after performing a repair to confirm the fix. The 10ohmeter Team recommends establishing a standard operating procedure for continuity tests in your workshop to ensure consistency across projects. Regular review of your test points and method will reduce misreads and improve diagnostic confidence.
Tools & Materials
- Multimeter with continuity function and beeper(Prefer a meter that clearly indicates continuity with an audible beep)
- Test leads with alligator clips(Insulated, probes in good condition)
- Known-good jumper wire(A short wire to verify meter operation)
- Insulated workspace mat(Provides safety and reduces slipping of leads)
- Non-conductive tools and safety glasses(Protect yourself during testing; avoid metal tools near exposed circuits)
- Cleaning alcohol and lint-free cloth(Use on test points to improve contact quality if needed)

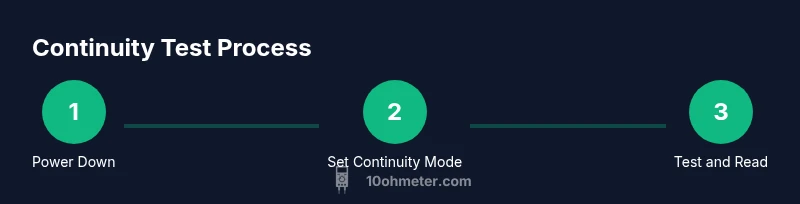

Steps
Estimated time: 20-30 minutes
- 1
Power down the device
Ensure the device is fully powered off and unplugged (or remove the battery in automotive work). Wait a moment for energy to dissipate before touching any conductors.
Tip: Always begin with de-energized circuits to minimize shock risk and meter damage. - 2
Plug in leads and set continuity mode
Connect the test leads to the correct meter ports and configure the dial to continuity mode or to a low-ohm resistance range if needed. Verify the meter shows a readiness cue and is stable before testing.
Tip: If your meter supports a beep, enable it so you can hear continuity even when you’re not looking at the display. - 3
Test the meter with a known-good jumper
Place the probes on the jumper wire or a short piece of metal to confirm the meter beeps. A successful test ensures the meter is functioning and that the leads aren’t damaged.
Tip: Use alligator clips for a stable contact during verification. - 4
Identify clean test points
Expose or access two points you want to test. Make sure both points have clean metal surfaces and no corrosion or paint that could hinder contact.
Tip: Wipe points with isopropyl alcohol if needed to improve contact quality. - 5
Make contact and observe the reading
Place the probes on the test points and observe the beeper and/or display. A continuous path will typically beep; a high resistance or no beep indicates an open circuit.
Tip: Hold probes steady for 1–2 seconds to avoid contact slip and inconsistent readings. - 6
Cross-check with alternate paths
If results are ambiguous, test another nearby path or route through the same circuit to confirm consistency. Note any paths that behave differently.
Tip: Testing multiple points helps identify intermittent faults or contact problems. - 7
Document results and plan next steps
Record test points, meter settings, readings, and whether continuity was confirmed. Use this data to guide repairs or further investigations.
Tip: Include whether the test was in-circuit or isolated to prevent misinterpretation later.
Your Questions Answered
What does a beep mean in a continuity test?
A beep typically indicates a direct, low-resistance path between the two test points. It’s a quick yes for continuity. If there’s no beep, there may be an open circuit or a high resistance path.
The meter beeps when there’s a complete path between the points, signaling continuity.
Why isn't there a beep when I touch two wires?
There may be no direct path between the points, or the contact is poor. Check that the meter is in continuity mode, that the leads are good, and try again with clean test points.
If there’s no beep, recheck your setup and probe contacts.
Can I test continuity on a powered circuit?
No. Continuity testing should be done with power removed to avoid damage and shock. Some meters can measure certain paths in-moment, but it’s unsafe and not recommended.
Don’t test continuity on a live circuit; power it down first.
How do resistors affect continuity readings?
Continuity across a resistor depends on its value; very low resistance may beep, while higher resistance will not. Use additional resistance measurements if the application needs it.
A resistor can still show continuity if its resistance is very low, otherwise it may not beep.
What about automotive wiring?
Continuity checks in automotive wiring help verify harness integrity between connectors. Compare readings to a known-good harness and test multiple paths to confirm reliability.
Continuity helps verify wiring between connectors in a car harness.
How should I choose test points for continuity?
Select clean, accessible metal contacts. Avoid testing through diodes or components that could block direct conduction. If needed, use short test leads for solid contact.
Pick clean metal points and stable contacts for clear readings.
Watch Video
Key Takeaways
- Power down before testing to stay safe and protect equipment.
- A beep usually confirms a direct continuity path.
- Clean, stable test points yield the most reliable results.
- Test at multiple points to avoid misinterpreting a partial path.
- Document results and compare against known-good references.
