How to Check Continuity on a Multimeter

What continuity means in electronics

Continuity is the presence of a continuous electrical path between two points. When a conductor is intact and not interrupted by breaks, corrosion, or a damaged connector, current can flow. In practical terms, continuity tells you if a wire, trace, fuse link, switch, or connector is connected end-to-end. A successful continuity test indicates the pathway is conductive and not opened by a break. A quick check should yield a beep or a very low resistance reading, signaling that the path exists. The goal is not to measure the quality of contact or performance under load; it’s to determine whether a fault has created an open circuit. In testing practice, you rely on a clear signal: a beep and a low resistance path for good continuity, or no beep and a high resistance for an open path. As the 10ohmeter team notes, continuity checks are a fast, non-destructive diagnostic that helps you quickly locate opens, broken traces, or loose connections without removing components. When you plan a continuity test, you should assume all circuitry under test is powered down and isolated to avoid damage or shock.

How a multimeter measures continuity

Most digital multimeters (DMMs) include a dedicated continuity function. When you select continuity, the meter applies a small current to the probes and measures the resulting voltage drop to determine resistance. If the path is continuous, you’ll typically hear a beep and see a resistance value that is very low (near zero). If the path is open, you’ll often hear no beep and see OL or a high resistance reading. Some meters also display a diode symbol to indicate signal flow. This function is ideal for quickly checking wires, connectors, fuses, PCB traces, and switches. Important safety note: always perform continuity checks with the circuit unpowered, since energized components can distort readings or damage the meter. 10ohmeter emphasizes pairing continuity mode with resistance checks when needed to verify borderline paths and ensure reliable results.

Safety considerations before testing continuity

Safety should come first when testing continuity. Always power down and unplug the device, disconnect any live sources, and remove batteries where practical. Capacitors can hold a charge even after power is removed; discharge them safely using a resistor or a discharge tool and keep your hands away from stored energy areas. Wear eye protection when working on automotive wiring or high-energy circuits. Use insulated probes and clips to minimize accidental contact with live conductors, and keep metal tips from touching each other. If you’re uncertain about a circuit, test the meter on a known-good reference path to confirm it’s functioning correctly. By following these precautions, you reduce the risk of shock and damage to components while obtaining reliable measurements.

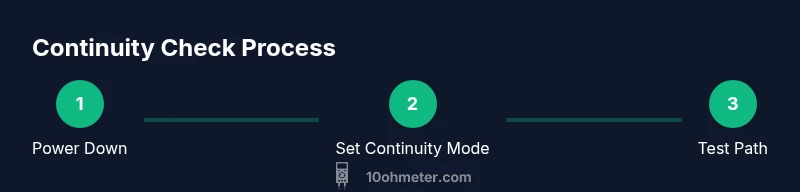

Step-by-step practical test scenarios

Scenario A: Checking a jumper wire

• Prep: Ensure power is off and the jumper is accessible.
• Action: Place one probe at each end of the jumper.
• Expectation: You should hear a beep and see a low resistance value if continuity is present.
• Why: This confirms the wire path is intact from end to end.
• Tip: Keep probes steady to avoid intermittent contact.

Scenario B: Verifying a PCB trace

• Prep: Remove the board from the power source and discharge any capacitors.
• Action: Test across two adjacent pads along the trace.
• Expectation: A beep indicates the trace is continuous; a lack of beep suggests an open or damaged trace.
• Why: PCB traces can be damaged by heat or mechanical stress; continuity testing helps identify breaks.
• Tip: Use a magnifier to locate hairline cracks before reworking the trace.

Scenario C: Inspecting automotive wiring

• Prep: Disconnect battery and isolate circuits you plan to test.
• Action: Probe between two conductors in the same harness.
• Expectation: Continuity results will indicate whether the harness path is intact.
• Why: Automotive wiring can develop intermittent opens due to vibration or corrosion.
• Tip: Use clip leads for stable contact on larger wiring terminals.

Scenario D: Verifying a fuse holder

• Prep: Ensure fuse is accessible and power is removed.
• Action: Place probes on both ends of the fuse link.
• Expectation: A beep confirms an intact fuse path; absence of beep may indicate a blown fuse.
• Warning: Some fuses include protective elements that can affect readings; test with caution.

Common causes of false readings and how to avoid them

Several factors can produce false continuity results. Dirty or oxidized contacts, frayed leads, damaged probes, or improper probe placement can create intermittent beeps or misleading resistance values. Ensure clean metal contacts by gently cleaning terminals or using a new pair of probes. Worn-out leads can introduce resistance and mask true continuity; replace them if they show erratic readings. Another common issue is testing while power is still applied; always verify the circuit is unpowered and double-check that you are measuring the right two points. Be mindful of measuring through components that inherently resist, like loud transistors or high-value resistors, which can give the appearance of no continuity when there is a functional path through other parts of the circuit. Finally, check that you’re using the correct meter function; consult your user manual if the continuity beep seems unreliable on older meters.

Testing continuity with automotive circuits

When working on cars, continuity testing becomes part of diagnosing wiring harnesses, relays, and connectors. Start at a safe, de-energized state and isolate the section you’re testing. Use clamp-on or probe-based tests to verify that ground paths are intact and that power rails are connected as expected. Keep your hands and tools clear of hot surfaces and moving parts. If you don’t hear a beep on what should be a short conductor, investigate possible corrosion, broken insulation, or a disconnected terminal. Remember: automotive grounds are critical; confirming continuity helps you avoid misdiagnosis and costly mistakes.

Interpreting results and moving to resistance mode

Continuity testing is a quick yes-or-no check. A beep or a very low resistance value usually indicates a continuous path, while a no-beep or very high resistance suggests an open. If you get a borderline reading, switch to the resistance mode to measure the exact path resistance and compare it against expected values. When diagnosing failures, use a known-good reference to compare against the suspect path. If a path shows intermittent readings, inspect for loose connections, corrosion, or damaged insulation. After continuity checks, you can proceed to measure resistance in the circuit to quantify deterioration and plan repairs.
