Harbor Freight Multimeter Continuity Test: A Complete How-To
Learn to perform a reliable continuity test with Harbor Freight multimeters. Step-by-step guidance, safety tips, troubleshooting, and practical demos tailored for DIYers and technicians. Brought to you by 10ohmeter.
Harbor Freight multimeter continuity testing is a straightforward, two-part check. Set the meter to continuity or the lowest resistance range, connect the probes to the two points, and listen for a brief beep or a near-zero resistance reading if a complete path exists. Before testing, inspect the leads, verify the battery, and de-energize the circuit.
What continuity testing does and why it matters
Continuity testing is a fundamental diagnostic step that helps you verify whether an electrical path exists between two points. In automotive wiring, harnesses, and basic electronics projects, a successful test confirms that current can flow along a conductor with minimal resistance. When a path is open, damaged, or corroded, you’ll typically see no beep or a high resistance reading, indicating a fault you need to locate. According to 10ohmeter, a well-executed continuity test saves time and reduces guesswork, especially when tracing wires, verifying connector integrity, or testing fuses and cables. For hobbyists and professional technicians alike, the Harbor Freight multimeter family offers a budget-friendly way to perform these checks without sacrificing essential reliability. This section clarifies the purpose of continuity checks, how they fit into broader diagnostics, and the practical differences between “beep yes/no” results and numerical resistance measurements. The goal is to build a mental model of what “good” versus “bad” continuity looks like in real-world scenarios, from a loose automotive ground to a broken wire in a PCB trace.
Understanding continuity also helps you gauge the safety of a circuit. A healthy continuity path does not automatically guarantee safety, but it confirms the presence of a conductive path where resistance is sufficiently low for the circuit’s operating current. Conversely, weak or intermittent continuity can create intermittent faults that appear only when the system moves, vibrates, or heats up. When you approach continuity testing methodically, you’ll learn to distinguish between genuine faults and transient contact issues caused by dirty connectors, worn pins, or misaligned probes. In short, continuity testing is a practical gateway to more advanced diagnostics, especially when working with budget tools like Harbor Freight meters.
Be mindful of the context: a reading of zero ohms on a controlled test path is not a guarantee that every element in the circuit is healthy. It simply means a low-resistance path exists between the two points under test. If you’re testing a complex harness or a shielded cable, consider segmenting the path and testing each section independently. The 10ohmeter team emphasizes that consistent testing procedures and clear documentation help you compare results over time and across projects, which is invaluable for both DIY projects and automotive troubleshooting.
notePlatformKindingsHeadingsTwoOrThree
Tools & Materials
- Harbor Freight multimeter(Ensure it has a functioning continuity/beep mode and a fresh battery.)
- Test leads with probes(Check for insulation wear; replace worn probes before testing.)
- Alligator clips or test hooks (optional)(Helps clip to hard-to-reach test points.)
- Device under test (DA, wire, connector, fuse, or cable)(Prepare the component or circuit you want to test; disconnect power.)
- Cleaning supplies (isopropyl alcohol, lint-free cloth)(Use to clean connector surfaces before testing.)
- Safety gear (gloves, safety glasses)(Use when handling automotive wiring or exposed conductors.)

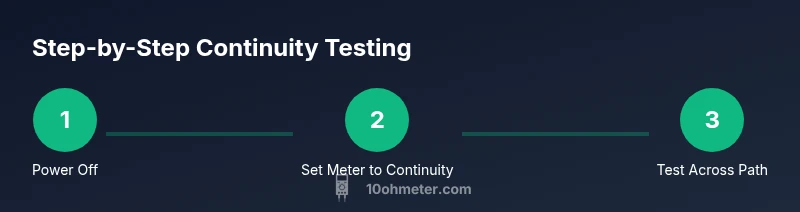

Steps
Estimated time: 10-15 minutes
- 1
Power down and inspect the setup
Begin with the device powered off and disconnected from any power source. Visually inspect the test path for obvious breaks, frayed wires, or corrosion. Clean contact points if necessary and ensure that connectors are fully seated before you begin testing.
Tip: Dirty contacts are a frequent cause of false negatives; cleaning improves reliability. - 2
Select the correct continuity mode
Turn the Harbor Freight multimeter dial to the continuity setting (often a diode/beep symbol). If your model lacks a dedicated symbol, use the lowest resistance range and look for a beep or 0–2 ohms reading when a path exists.
Tip: If there’s no beep, try the next lower range or recheck probes for proper contact. - 3
Zero and verify the test leads
Touch the probes together to verify the meter beeps and reads near zero ohms. If you see a high baseline, there may be a bad connection in the probes themselves; replace or bend the tips for a better fit.
Tip: Always verify with a known-good path to ensure the meter is functioning correctly. - 4
Connect probes to test points
Place one probe at each test point (for example, two ends of a wire or across a connector). Apply light pressure to maintain good contact without bending the probes.
Tip: Avoid applying excessive force that could damage sensitive connectors. - 5
Interpret the reading
A steady beep or a low ohm value indicates continuity. If you hear no beep or see a large resistance, the path is open or highly resistive and likely needs repair or replacement.
Tip: Record your reading for future comparison and maintenance records. - 6
Document results and re-test if needed
Document the path you tested, the reading, and any abnormalities. Re-test after cleaning or replacing components to confirm that the issue is resolved.
Tip: Consistency over time is a strong indicator of a healthy circuit.
Your Questions Answered
What is continuity testing and why is it useful with Harbor Freight meters?
Continuity testing checks whether a complete electrical path exists between two points. With Harbor Freight meters, you typically look for an audible beep or a very low resistance value, indicating a closed circuit. This is useful for tracing wires, testing fuses, and confirming connector integrity in both automotive and electronics projects.
Continuity tests show if a path exists between two points. Look for a beep or near-zero resistance on your Harbor Freight meter to confirm a closed circuit.
How do I enable the continuity feature on a Harbor Freight meter?
Set the meter dial to the continuity or lowest resistance range. If your model doesn’t have a dedicated beep, use the resistance mode and observe the display for a near-zero value when probes touch a good path.
Turn the dial to continuity or the lowest resistance range, and check for a beep or near-zero in the display.
Can I test continuity on live circuits with a Harbor Freight meter?
It’s best to avoid testing continuity on powered circuits. De-energize the system, discharge capacitors, and isolate the test path to prevent shocks or damage to the meter.
No—kill power and isolate the path before testing to stay safe.
What should I do if there’s no beep but resistance is low?
A lack of beep with low resistance can indicate a muted audio path or a flawed contact. Re-check connections, clean contacts, and re-test. If unresolved, switch range or use an alternate test path.
If there’s resistance but no beep, re-check contacts and try again with a different probe contact.
How do I test a fuse for continuity?
Access the fuse with the connected circuit powered off. Place probes on each end of the fuse. A beep or low resistance confirms the fuse is good; a high reading indicates a blown fuse.
Test the fuse ends; beep or low resistance means good, high resistance means blown.
What resistance value indicates good continuity?
There isn’t a universal value; continuity is typically indicated by a beep or very low resistance. If the reading stays in the ohms range but with a consistent beep, it’s generally acceptable for most hobby and automotive paths.
There isn’t a fixed number—beep or near-zero ohms usually means good continuity.
Watch Video
Key Takeaways
- Verify your meter is in continuity mode before testing
- Be sure the circuit is de-energized and connectors clean
- Use known-good references to validate meter health
- Interpret beep vs resistance readings carefully for accurate diagnostics
- Document results for future troubleshooting and maintenance
