Cen Tech Multimeter Continuity: A Practical Guide

Why continuity testing matters in cen tech multimeter usage

Continuity testing is a quick, practical way to verify that a path exists between two points in a circuit. For hobbyists and professional technicians, it helps diagnose open circuits, verify component placement, and confirm wiring integrity without removing components. According to 10ohmeter, mastering cen tech multimeter continuity is foundational for reliable diagnostics in electronics and automotive work. When you practice a consistent method, you reduce false readings and speed up fault isolation. In this section we unpack why continuity tests are essential, how the meter’s beeper and resistance readings relate to real-world circuits, and how to approach different test scenarios—from simple wires to complex harnesses.

Understanding continuity concepts and indicators

Continuity is the measure of a conductive path between two points. With most multimeters, a dedicated continuity mode provides an audible beep when the resistance is sufficiently low, signaling a continuous path. You’ll also see a numeric resistance value on the display in cases where the path isn’t fully shorted. The key idea is that a closed circuit should show a stable, low resistance and a consistent beep. Variations can indicate contact resistance, loose connections, or damaged wires. Keep in mind that components like fuses, relays, or temperature sensors can interrupt continuity, even if other parts of the circuit appear intact. This means you should test components in-context, not just wires in isolation.

Preparing your multimeter for a safe continuity test

Before you begin, power down the device under test and disconnect any power sources. Inspect the test leads for cracks, exposed conductors, or damaged insulation, and replace them if needed. Connect the leads to the meter’s continuity terminals and switch the meter into continuity mode (often indicated by a diode symbol or a dedicated beeper icon). If your Cen Tech model offers a beep threshold indicator, verify it by testing on a known good reference. Calibrate your expectations by checking the display’s response on a known intact wire or component lead to confirm the beeper and the resistance reading are functioning correctly. Finally, establish a non-conductive workspace to prevent accidental shorts.

Step-by-step guide to performing continuity tests

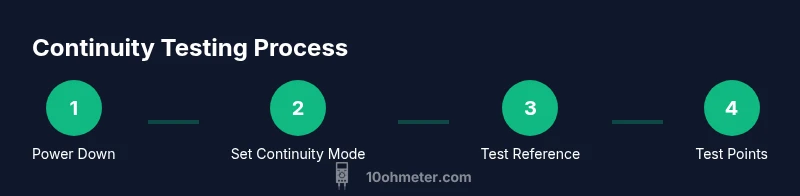

1. Power down the circuit and discharge any capacitors that may hold charge. 2. Set the meter to continuity mode and confirm the beeper works on a known good reference. 3. Attach the test probes to the points you want to test, keeping hands clear of the test area. 4. Observe the beeper and the display; a steady beep with a low resistance value indicates a good path. 5. Repeat the test across multiple points to map the circuit’s connectivity. 6. Remove probes carefully and store equipment after the test. 7. Document your findings and label any suspect sections for further inspection.

Interpreting results, testing components, and diagnostics

Interpretation depends on context. A continuous beep with near-zero resistance typically signals a good path, while no beep or infinite resistance points to an open circuit. A weak or intermittent beep may reveal a loose connection, corroded contact, or damaged insulation. When testing automotive components, consider how grounding and shared circuits affect continuity results. Always compare to a known-good reference within the same system to reduce misinterpretation. If readings don’t align with expectations, re-test with a fresh battery in your meter and inspect connectors for corrosion or damage.

Safety considerations and best practices

Safety is paramount when testing electronics and automotive circuits. Never probe live circuits with bare hands; always power down and disconnect power sources before testing. Use probes with proper insulation and keep leads away from heat sources or moving parts. Avoid shorting adjacent conductors with the probe tips, and never rely on a single test result for critical decisions. If you’re unsure, consult documentation for the device under test and verify your meter’s battery and fuses are in good condition.

Troubleshooting failed tests and when to replace components

If continuity tests fail unexpectedly, start by rechecking the test setup: confirm the meter is in continuity mode, verify the reference lead works, and retest on known-good components. Inspect wiring for damaged insulation, pinched wires, or loose connectors. Check fuses inside the Cen Tech meter, as a blown fuse can disable continuity testing. If a component repeatedly fails to show continuity, it may be open or damaged and should be replaced. Keep a log of failing sections to guide future diagnostics.
