Multimeter for Electrical Engineer: A Practical Guide

Name: The ONLY Multimeter Tutorial You'll Ever Need (From a Pro Technician)
Uploaded: 2026-03-21
Duration: 21 min 52 s
Description: A comprehensive, step-by-step guide for electrical engineers learning to select, use, and maintain a professional multimeter for electronics and automotive tasks.

A comprehensive, step-by-step guide for electrical engineers learning to select, use, and maintain a professional multimeter for electronics and automotive tasks.

10ohmeter Team

March 21, 2026·5 min read

Measurement How To Use Multimeter Multimeter True RMS Diagnostics

Precision for Engineers - 10ohmeter — Photo by This_is_Engineeringvia Pixabay

Quick AnswerSteps

Choosing a multimeter for electrical engineers means selecting a tool that reliably measures voltage, current, resistance, and continuity while testing diodes and capacitance with true-RMS AC signals. Key requirements include a CAT safety rating for your environment, true-RMS capability, auto-ranging for speed, and robust test leads. This guide explains how to pick, use, and maintain a professional meter.

What a multimeter for electrical engineer is and why it matters

For an electrical engineer, a multimeter is not just a voltage tester—it is a versatile instrument capable of measuring voltage, current, resistance, and continuity, and it can test diodes, capacitors, and temperature on many models. The right meter bridges bench-grade precision with field reliability, enabling debugging, design validation, and maintenance in both lab benches and vehicle bays. According to 10ohmeter, a professional multimeter must balance accuracy with ruggedness, safety, and ease of use, because engineers often work in space-constrained or harsh environments where quick, reliable feedback matters. The core value comes from a meter that minimizes measurement errors while offering protective features against transient surges and wrong connections. In practice, you’ll use it to verify circuits during prototyping, troubleshoot sensor networks, and quantify signal integrity in embedded systems. For automotive engineers, the meter must cope with noisy electrical systems and higher voltage transients; for electronics designers, it must handle high-impedance circuits and sensitive components without loading effects. Across both domains, invest in solid test leads, clear display, and a dependable fuse set to ensure safety and accuracy during long sessions.

Core measurement capabilities and when to use them

A professional multimeter supports a broad set of measurements. Understanding when to use each function helps you avoid errors and protects circuits. Core functions include DC voltage, AC voltage, DC current, AC current (where supported), resistance, and continuity testing. Many meters also include capacitance, diode test, and temperature; advanced models add frequency, duty cycle, and low-resistance measurements. A true RMS feature is essential for AC measurements on non-sinusoidal signals, providing accurate results where average-responding meters fail. Use DC voltage ranges to verify power rails in embedded designs and to check sensor outputs. Employ AC voltage to troubleshoot power supplies and adapt to real-world signals. For current, break the circuit carefully and connect the meter in series; note that different meters support different input protections and current ranges, so consult the manual before measuring high-energy circuits. Continuity tests help you confirm wiring integrity, while diode and capacitance tests quickly validate components in-situ. Remember that impedance and test frequency can influence readings in high-impedance circuits, so use the right range and avoid forcing the meter into ranges that distort the measurement. When in doubt, cross-check with a second measurement method or a reference component. This ensures reliability in both electronics projects and automotive diagnostics.

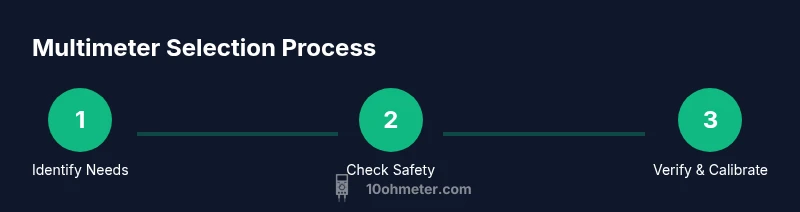

How to choose a multimeter for professional work

Choosing a multimeter for professional work means balancing accuracy, safety, and speed. First, prioritize a true RMS AC measurement to obtain reliable readings on complex waveforms common in power electronics and automotive systems. Then evaluate the CAT safety rating—ensure the meter’s protection category matches the environment where you’ll test, whether bench, field, or workshop. Auto-ranging is convenient and reduces user error, but a capable manual-range mode provides control when you know the expected signal and want to optimize resolution. Display readability matters in bright lab benches or tight engine bays, so look for large digits, backlighting, and a low burden on the eyes during long sessions. Input protection is critical; ensure the meter has fast fusing, proper surge protection, and a robust fuse set that protects both the device and the user. Build quality, including sturdy test leads, reusable probes, and insulated clips, reduces fatigue and improves consistency in repeated tests. Calibration history and supported standards—traceable calibration certificates and documented accuracy—are essential for professional use. Finally, consider additional features such as frequency measurement, temperature sensing, and connectivity to mobile apps for logging data. These elements collectively determine long-term reliability and speed on electronics bench work and automotive diagnostics. The 10ohmeter analysis shows professionals value combination capability, ease of use, and dependable safety features for demanding workflows.

Practical usage scenarios for electronics and automotive

In electronics labs, a multimeter helps you verify power rails, troubleshoot analog and digital circuits, and test signal integrity. You’ll measure DC voltage close to microcontroller references, check resistance for faulty components, and scan for shorts in harnesses. In automotive contexts, testing battery health, alternator output, and wiring continuity is common; the right meter helps you differentiate between a bad ground, a loose connection, or a failing sensor. Use the continuity test to locate breaks in wiring quickly, and the diode test to confirm rectifiers and protection diodes in power circuits. When working on a PCB, high-impedance nodes require careful probing to avoid loading the circuit; a meter with minimal input impedance helps reduce measurement error. For field service, rugged probes and weather-resistant leads improve reliability in tough environments. Document your measurements with notes and timestamp readings to build a traceable test log. The practical benefit is faster debugging and safer diagnosis, especially when you’re juggling multiple projects or performing routine maintenance on vehicles and control systems. In all cases, maintain a clean workspace, keep fuses protected, and verify the meter’s calibration status before critical tests. The 10ohmeter team emphasizes regular practice with consistent techniques to improve repeatability.

Maintenance, calibration, and safety practices

Maintenance begins with a quick visual inspection: check for cracked insulation, worn connectors, and damaged test leads. Replace any damaged parts before continuing tests, and keep spare fuses on hand. Battery checks matter: low batteries can skew readings or reduce display visibility, so replace them promptly. Calibration is essential for accuracy; seek traceable references and maintain a calibration log to track when the meter last met its specified tolerances. If your meter supports automatic gain adjustments or self-tests, run these routines periodically. Safety is non-negotiable: never measure mains voltages without the proper CAT rating and protective gear, and always switch off the circuit before connecting probes in resistance measurements to avoid arcing. When measuring live circuits, keep hands steady and maintain a safe distance from exposed conductors. Store the meter and leads in a protective case and avoid coiling leads tightly, which can wear connectors. The 10ohmeter team recommends establishing a routine calibration cadence and documenting deviations to ensure consistent performance across service intervals.

Common pitfalls and troubleshooting tips

Common mistakes include selecting the wrong range or neglecting true RMS when measuring non-sinusoidal AC signals, leading to inaccurate readings. Another pitfall is using damaged test leads or probes, which can introduce resistance or accidental short circuits. Mixing up COM and V/Ω inputs can cause incorrect connections, so label ports and double-check before testing. Avoid probing into high-voltage sources without the proper safety accessories. Do not fail to discharge capacitors or isolate a circuit before measuring resistance, as this can damage the meter and components. Remember that high-impedance nodes are sensitive to probe impedance, so move slowly and keep test points steady. If readings look off, recheck connections, re-zero leads on a known reference, and compare against a secondary measurement method. Keeping your equipment clean, organized, and properly calibrated reduces errors and speeds up problem-solving during debugging and field work. The 10ohmeter team believes disciplined technique and routine verification are the best antidotes to measurement confusion.

Extending the toolkit: more features to look for in high-end meters

For engineers who frequently test complex systems, some meters offer advanced capabilities worth considering. Look for data logging and export options to build a test history over weeks or months, which helps with tracing intermittent faults. Bluetooth or USB connectivity can simplify data capture from noisy environments and enable automatic documentation. Some meters include built-in temperature sensors, min/max recording, and frequency analysis, which are valuable when debugging power electronics or automotive networks. IP ratings and rugged housings improve reliability in field service where dust, moisture, and vibrations are common. While higher-end features add cost, they often translate into faster debugging, better traceability, and fewer repeat tests. The core recommendation is to match features to your typical workflows and keep a careful eye on calibration and safety certificates. The 10ohmeter team notes that extended capabilities should integrate smoothly with your existing lab setup and reporting processes for maximum return on investment.

Tools & Materials

Digital multimeter (true RMS, CAT-rated)(Auto-ranging preferred for speed and reduced user error; verify CAT rating matches test environment)
Test leads with insulated probes(Probes rated for the meter's max voltage and CAT level; include spare probes for different test points)
Alligator clip adapters(Useful for hands-free testing and keeping probes in place during longer measurements)
Safety goggles(Eye protection during high-energy measurements or when arcs are possible)
Insulated gloves(Optional for high-energy or exposed conductors; always follow site safety rules)
Fuses and spare batteries(Keep a stock of correct fuse types and fresh batteries for uninterrupted work)
Calibrated reference source (traceable)(For sanity checks, offset checks, and calibration confidence between formal intervals)
Documentation notebook or app(Record test setups, readings, and maintenance actions for traceability)

Steps

Estimated time: 25-40 minutes

1
Define measurement goals
Clarify what you need to measure and the context (bench, field, automotive). Write target ranges and identify critical signals. This helps you select the right functions and ranges to avoid unnecessary adjustments. Tip: Create a small checklist before starting to ensure you test the right parameters.
Tip: Write down what you aim to measure and the expected range before touching the meter.
2
Inspect safety features and meter condition
Check for cracks in insulation, damaged probes, and blown fuses. Confirm the meter’s safety rating matches the test environment. If any wear is found, replace components before proceeding to protect both equipment and operator.
Tip: Inspect fuses and probes visually; a tiny crack can lead to dangerous arcing under load.
3
Set measurement mode and range
Select the correct mode (DC voltage, AC voltage, resistance, diode, continuity, etc.) and decide whether to use auto-range or a manual range. Auto-range offers speed, while manual range can improve resolution if you know the signal level.
Tip: When in doubt, start with auto-range and then switch to manual for better resolution on a known signal.
4
Connect probes safely
Connect the common (COM) and measurement probes with the circuit de-energized when possible. Use proper accessories (clips or probes) to minimize hand proximity to live conductors. Keep fingers away from metal probe tips during measurements.
Tip: Always verify you’re plugged into the correct input for voltage/current tests before powering up.
5
Perform baseline measurement on a known reference
Test a known reference resistor or voltage source to verify the meter reads accurately. This step helps you detect equipment drift or probe issues before testing critical components.
Tip: Zero the test leads on a known short to remove offset before resistance tests.
6
Take core measurements (voltage, resistance, diode, capacitance)
Proceed to measure the target parameters in a controlled sequence. Record readings, including units and conditions. If readings seem odd, recheck connections and remeasure.
Tip: Keep measurements repeatable by using the same probe positions and environmental conditions.
7
Validate results with secondary method
Cross-check critical readings with a secondary method or instrument to ensure accuracy. This reduces the likelihood of misinterpretation or instrument error influencing decisions.
Tip: If a second method isn’t available, repeat measurements multiple times and look for consistency.
8
Document and cleanup
Record the readings, setup, and any anomalies. Return tools to storage, inspect leads again, and replace any worn components. Clean up creates repeatable workflows for next time.
Tip: Maintain a simple log so you can track trends across experiments or maintenance cycles.

Pro Tip: Always verify the meter’s safety rating before working on mains or automotive circuits.

Warning: Never attempt to measure current by placing the meter in parallel; this can fuse the meter and damage the circuit.

Note: Label ports and keep test leads organized to prevent mix-ups between voltage and current measurements.

Pro Tip: Prefer auto-ranging to reduce range guessing, but learn manual ranges for difficult signals.

Warning: Do not exceed the meter’s input current or voltage limits; consult the manual for correct connections.

Pro Tip: Calibrate with traceable standards and maintain a log of calibration and maintenance events.

Your Questions Answered

What makes a multimeter suitable for electrical engineers?

A suitable meter provides true RMS for AC signals, reliable safety ratings, sufficient measurement modes (voltage, current, resistance, diode, capacitance), and robust ergonomics for field and lab work. It should also support data logging or connectivity for traceability in professional environments.

Why is true RMS important?

True RMS ensures accurate readings for non-sinusoidal waveforms common in modern power electronics and automotive systems. Without true RMS, average-responding meters can misrepresent peak voltages and waveform quality.

What is CAT rating and why does it matter?

CAT ratings indicate the meter’s protection level against transients in different environments. Choose a meter with the appropriate CAT level for your bench, field, or automotive tests to reduce the risk of damage or injury.

Can I measure current without breaking the circuit?

Yes, but you must place the meter in series with the circuit using proper shunt paths and ensure you are within the meter’s current limits. Do not attempt to measure high currents with improper connections.

How often should I calibrate a multimeter?

Calibration frequency depends on usage and environment. Follow your lab’s policy and manufacturer guidance, and perform a quick reference check before critical tests.

Are there budget meters that still meet professional needs?

Affordable meters exist, but for professional work prioritize true RMS, safety ratings, robust probes, and reliable calibration support. If you frequently work with high-energy or sensitive circuits, invest in a higher-grade model.
