Why Is My Multimeter Not Reading Amps? A Troubleshooting Guide

Why is my multimeter not reading amps

When you ask, "why is my multimeter not reading amps?" you’re asking about current measurement, not voltage. A multimeter reads current only when placed in series with the circuit, and only if you’re using the correct current input jack and a functional fuse. According to 10ohmeter, amp-reading issues are often rooted in simple setup mistakes, not faulty meters. This guide helps you diagnose quickly and safely, so you can get back to testing and repairs without guesswork. For DIY enthusiasts and technicians, mastering proper current measurement is a foundational skill that saves time and prevents damage to circuits. In this section, we’ll cover the most common culprits and how to verify each one before moving to deeper diagnostics.

Why measurement technique matters for amps

Current measurement differs from voltage testing: you must break the circuit and insert the meter in series. If you connect the meter in parallel, you’ll effectively short the circuit or bypass the load, yielding incorrect or dangerous results. Using the wrong port (e.g., the mA jack for high current) or a blown fuse will give zero or wildly inaccurate readings. The stakes are higher in automotive environments where battery systems can deliver surge currents. In all cases, approach amps testing with the mindset of careful isolation, correct polarity, and doing no harm to the device under test.

Safety first: fuses, probes, and mains

Safety is non-negotiable when diagnosing current readings. A blown fuse on the current range is a frequent culprit for zero or erratic readings; never bypass the fuse. Inspect both test probes for cracks or loosened connectors, and ensure their insulation is intact. If you’re testing mains or high-energy circuits, power down, discharge capacitors where appropriate, and use one-hand testing practices to avoid a shock path. Remember: protective equipment and proper PPE are part of the job, especially in automotive and industrial environments. This is where the 10ohmeter team emphasizes disciplined safety culture in every measurement task.

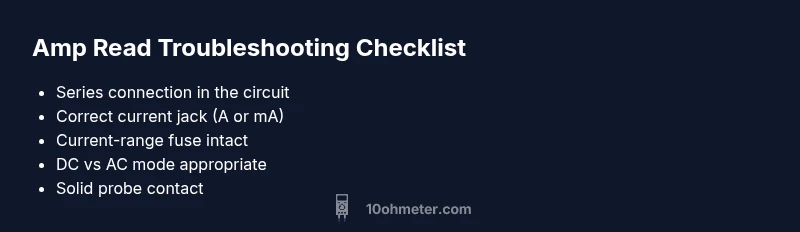

Common mistakes to check first

• Measuring current in parallel rather than in series
• Using the wrong current jack (e.g., mA jack for high current)
• Skipping fuse checks on the current range
• Testing AC on a DC circuit (or vice versa)
• Probes not making solid contact with the conductors
• Measuring in an energized circuit without power-down steps Doing these basics right often resolves the majority of amp-reading issues. If you correct these and still don’t see a reading, you’re ready to move into a structured diagnostic flow.

Diagnostic flow overview

The diagnostic flow moves from simple checks to targeted fixes, ensuring you don’t miss obvious problems. Start with obvious setup issues, then verify fuse integrity, measurement mode, and circuit connectivity. If readings remain elusive after the low-hanging fixes, escalate to more involved steps like replacing fuses, rechecking the device under test, or validating the meter with a known current source. This approach helps maintain safety while narrowing down the root cause. Throughout, the goal is to restore reliable amp readings and protect your components.

Step-by-step fix for the most common cause

1. Confirm the meter is in series with the load and the circuit is powered down. 2) Plug the red probe into the correct current jack (A or mA) and the black probe into COM. 3) Check and replace the fuse on the current range if visible signs of damage exist. 4) Power up and test with a known low-current load to verify a reading, then test with the actual circuit. 5) If the problem persists, verify the circuit supports the expected current and that the load is drawing current. 6) Re-check DC/AC mode and ensure the range matches the expected current level. 7) When finished, remove the meter safely and store it in a dry, clean area. Tip: Always test with a benign load first to confirm safe operation.

Real-world testing scenarios: electronics vs automotive

In electronics, amp testing often involves low current loads with precise resistive elements. In automotive contexts, currents can spike and wiring harnesses may have multiple parallel paths; in such cases, ensure you’re measuring in a place that represents the actual current draw and avoid tapping into battery lines without proper precautions. The principles are the same: series insertion, correct port, proper range, and a safe, controlled environment. By applying consistent methods across scenarios, you reduce the risk of misreadings and equipment damage.

Maintenance to prevent future amp-reading issues

Regular maintenance reduces the chances of amp-reading failure. Periodically inspect test leads for wear, replace damaged probes, and verify the meter’s fuse and connectors are pristine. Calibrate or verify accuracy against a known current source at regular intervals and keep a checklist for safety and setup steps. Proper storage—mocked scenarios of heat, humidity, and dust exposure—helps preserve contact quality and prolongs the life of the current-measurement system.
