Testing Car Battery with a Multimeter: Step-by-Step Guide
Learn how to test a car battery with a multimeter safely and accurately. This educational guide covers resting voltage, charging voltage, and practical steps to diagnose battery health and charging system issues.
With a multimeter, you can assess a car battery by measuring resting voltage with the engine off, performing a cranking test if possible, and checking the charging voltage with the engine running. A healthy resting voltage around 12.6V and charging voltage between 13.7 and 14.7V indicate good health.
Understanding the goal of testing car battery with a multimeter
Testing a car battery with a multimeter is a practical way to quickly gauge battery health without removing it from the car. The goal is to determine whether the battery holds a sufficient charge and whether the alternator is charging correctly. According to 10ohmeter, a fast voltage check can reveal a battery that is near failure or a charging system that’s failing, which helps you avoid unexpected roadside issues and protects other electrical components from damage. In everyday DIY work, a reliable voltage reading saves time and money by guiding you toward recharge, cleaning, or replacement decisions before you get stranded.
Safety considerations before you start
Before touching a live battery, wear safety glasses and gloves. Work in a well-ventilated area, away from sparks or open flames, because car batteries emit flammable gases. Keep metal jewelry and tools clear of terminals to prevent short circuits. If you notice cracking, leaking, or swollen terminals, postpone testing and seek professional help.
The voltage language: what numbers mean
Voltage is a quick proxy for state of charge. A healthy, fully charged 12-volt lead-acid car battery typically reads about 12.6 volts with the engine off. Readings around 12.4–12.6 volts indicate a solid charge, while numbers below 12.0 volts suggest the battery is discharged and may need charging or replacement. When the engine is running, the alternator should push the battery voltage into the 13.7–14.7-volt range, indicating the charging system is restoring the charge lost during operation. Variations can occur with temperature, age, and battery type, but these benchmarks give you a clear baseline for interpretation.
Preparations: tools, environment, and setup
Gather your tools before starting to minimize interruptions: a digital multimeter capable of DC voltage, probes or alligator clips, safety gloves and eye protection, a clean rag for the terminals, and the vehicle manual for any model-specific cautions. Park on a level, dry surface, engage the parking brake, and turn off all accessories. If your battery has visible corrosion, clean the terminals carefully with a rag and, if needed, a terminal brush. Ensure the engine and ignition are off, and remove any metal jewelry. A calm, dry environment reduces the risk of sparks and improves reading accuracy.

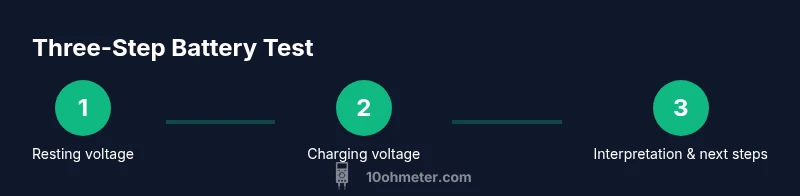

Step-by-step plan overview
Here is a concise overview of how to approach the test safely and efficiently: (1) prepare and protect yourself, (2) locate the battery and inspect for corrosion, (3) set up the multimeter for DC voltage, (4) measure resting voltage with the engine off, (5) perform a brief cranking test if safe, (6) measure charging voltage with the engine running, and (7) interpret readings to decide next actions. If you don’t have the ability to crank, skip step 5 and focus on resting and charging voltages. This plan keeps you within a 15–25 minute window for most cars.
Resting voltage test: measuring with engine off
To measure resting voltage, connect the multimeter probes across the battery terminals with the engine off and all accessories turned off. Place the black probe on the negative terminal and the red probe on the positive terminal. Wait 30 seconds for the reading to settle, then record the voltage. A steady value around 12.6V indicates a healthy charge, while readings below 12.4V suggest a discharged battery that may benefit from charging before further testing.
Cranking test: brief engine start if safe
If you have a helper and a safe environment, you can perform a brief cranking test. With the engine (or a helper) attempting to start, observe the voltage drop across the battery. A voltage sag below 9.6–10V during cranking is common for a healthy battery under load; a much lower drop or failure to crank can indicate severe battery weakness or a bad connection. Do not hold the cranking for more than a few seconds to prevent overheating or damage.
Charging voltage test: engine running
Start the engine and let it run at a fast idle. With the engine running, measure the battery voltage again across the same terminals. The charging voltage should be in the range of about 13.7–14.7V for a healthy charging system. If the reading remains near 12.6V or lower, the alternator or charging circuit may have issues, or the battery may be too discharged to accept a charge. If you see over 14.7V persistently, there may be an overcharging issue or a faulty regulator.
Load testing and cranking test options
For a more rigorous assessment, a load tester can apply a simulated high load to the battery and measure how much voltage drops under strain. Many DIYers don’t have such equipment; in that case, a simple “voltage under load” test using headlights for 30 seconds can provide rough insight, but it is not as precise as a dedicated load tester. If you experience frequent starting issues, consider having the battery tested at a shop or auto parts store. Remember, safety first: never perform high-load tests in wet or enclosed spaces.
Interpreting results and next steps
If resting voltage is around 12.6V and charging voltage sits in the 13.7–14.7V range, your battery and alternator are likely healthy. If resting voltage is below 12.4V, charge the battery fully and retest. If it fails to hold charge after a charging cycle, replace the battery. If charging voltage exceeds 14.7V or is too low, inspect the alternator, voltage regulator, and wiring; persistent abnormal readings may require a professional diagnostic.
Maintenance and prevention to extend battery life
To prolong battery life, keep terminals clean and tight, apply a protective spray to prevent corrosion, and avoid leaving lights or electronics on when the engine is off. Regularly check the battery’s age and replace after 3–5 years as a general guideline (varies by climate and usage). Store the vehicle with a trickle charge if it won’t be used for extended periods, and consider a high-quality battery with a warranty. A routine voltage check every few months helps catch problems before they become failures.
Common mistakes to avoid
Common mistakes include testing with a dirty or corroded terminal, not disconnecting accessories, testing while the engine is on with the hood closed, and misinterpreting readings without accounting for temperature or state of charge. Never rely on a single reading; always retest and compare over time. Finally, if you are unsure about any step, consult a professional to avoid personal injury or vehicle damage.
Tools & Materials
- Digital multimeter (DC voltage capable)(Prefer auto-range; ensure 20V range or higher for accuracy)
- Probes or alligator clips(For secure contact with battery terminals)
- Safety gloves and eye protection(Protect from acid splashes and sparks)
- Rag or paper towels(Clean terminals and wipe away residue)
- Battery terminal cleaner or brush(Optional for corroded terminals)
- Vehicle owner's manual(Model-specific cautions or battery type guidance)
- Anti-corrosion spray or terminal protector(Optional for maintenance after testing)
Steps
Estimated time: 20-25 minutes
- 1
Prepare safely
Clear the workspace, wear PPE, and gather all tools. Ensure the car is on level ground and the parking brake is engaged. Remove metal jewelry and avoid loose clothing that could snag test leads.
Tip: Double-check the multimeter is set to DC voltage before touching the terminals. - 2
Locate battery and inspect
Open the hood and locate the battery. Check for corrosion, loose cables, or damaged terminals. If you see obvious damage, address it before testing or consult a professional.
Tip: If terminals are corroded, gently clean with a rag or terminal brush before proceeding. - 3
Set up the multimeter
Turn the multimeter to DC voltage measurement within a range that comfortably covers 12V (e.g., 20V). Attach the black probe to the negative terminal and the red probe to the positive terminal.
Tip: Ensure good contact and avoid touching the probes with your hands while connected. - 4
Measure resting voltage
With all lights and accessories off, read the resting voltage across the terminals. Wait a few moments for the value to stabilize before recording.
Tip: A steady 12.6V indicates a healthy charge; lower values suggest discharge or aging. - 5
Optional: brief cranking test
If safe and you have a helper, briefly attempt to start the vehicle and observe voltage drop under load. Do not crank for long periods to avoid heat buildup or battery damage.
Tip: If the vehicle won’t crank or the voltage drops dramatically, stop and seek professional help. - 6
Measure charging voltage
With the engine running, measure the voltage again. A healthy system typically shows 13.7–14.7V. Record the value and compare it to resting voltage to assess charging performance.
Tip: If charging voltage is outside the normal range, suspect the alternator or regulator. - 7
Interpret and plan next steps
Use resting and charging readings to decide if the battery needs charging, replacement, or further diagnostics of the charging system.
Tip: When in doubt, test again or consult a professional to confirm the diagnosis.
Your Questions Answered
Can I test a car battery with a basic multimeter without starting the car?
Yes. You can measure resting voltage with the engine off to gauge state of charge and look for signs of a healthy battery. This is the simplest initial test and does not require starting the vehicle.
Yes, you can test the resting voltage with the engine off to check charge and health.
What resting voltage indicates a healthy battery?
A healthy resting voltage is typically around 12.6 volts. Readings near 12.4 volts suggest the battery is partially charged, while readings below 12.0 volts indicate significant discharge.
Around 12.6 volts is healthy; lower readings mean the battery likely needs charging or replacement.
What charging voltage should I see with the engine running?
With the engine running, you should see about 13.7 to 14.7 volts indicating the alternator is charging the battery properly. Substantially higher or lower readings warrant further diagnosis.
Expect roughly 13.7 to 14.7 volts when the engine runs.
What if the voltage drops under load or during cranking?
A significant voltage drop under load or during cranking can indicate a weak battery, bad connections, or aging cables. If observed, inspect terminals and consider a professional battery/charging system test.
If voltage drops a lot under load, the battery or connections may be bad.
Is it safe to test near a hot engine?
Testers should be performed when the engine is cool or only after allowing it to rest. Hot engines and batteries can be hazardous; avoid contact with hot surfaces and moving parts.
Do not test on a hot engine; wait for it to cool and ensure safe conditions.
Do I need to replace the battery if readings are off?
Not always. Readings can indicate charging problems, corroded terminals, or worn cables. A full diagnostic, including testing the alternator and battery under different conditions, helps decide replacement.
Sometimes readings point to the charging system rather than the battery itself.
Watch Video
Key Takeaways
- Test resting voltage to assess the battery’s state of charge.
- Check charging voltage with the engine running to verify the alternator works.
- A healthy system often shows ~12.6V resting and ~13.7–14.7V charging.
- Use a brief cranking test only if safe and practical.
- Address corrosion and wiring issues to prevent misleading readings.
