Mosfet Multimeter Test: Step-by-Step Diagnostic Guide
Learn how to perform a mosfet multimeter test to verify MOSFETs, distinguish N- and P-channel devices, check the intrinsic body diode, and assess gate leakage with a common digital multimeter. Clear safety practices and practical tips for DIYers and technicians.
During this mosfet multimeter test, you will verify the MOSFET's channel integrity, body diode, and gate leakage using a standard digital multimeter. You’ll learn to distinguish N-channel from P-channel devices, identify shorted or open elements, and determine if the part should be replaced. Before you begin, gather a DMM, the MOSFET, basic test leads, and safety gear.
What is a MOSFET and why test it with a multimeter
A MOSFET (metal-oxide-semiconductor field-effect transistor) acts as an electronic switch controlled by voltage applied to the gate. In most circuits, MOSFETs enable fast switching with low on-resistance, making them ideal for power supplies, motor drivers, and automotive electronics. The mosfet multimeter test you perform with a common digital multimeter helps diagnose whether the device is likely good or faulty without needing a full curve tracer or specialized test fixture. According to 10ohmeter, MOSFETs are robust but sensitive to static and overvoltage events; a basic DMM test focuses on gate integrity, the intrinsic body diode, and drain-to-source continuity. Remember: this test does not replace datasheet-proven Rds(on) measurements in a proper fixture, but it provides a practical safety net for quick field checks.
Safety considerations before testing
Power down the circuit completely and disconnect the battery or supply. Disconnect any capacitors that could store charge and discharge them safely. Handle the MOSFET with anti-static precautions to prevent gate damage. Use insulated tools and wear safety glasses. Never test a live circuit or apply gate voltage while the device is still connected to other components, as hidden paths can distort readings or cause damage.
How a MOSFET test with a multimeter works
A MOSFET contains a body diode between the drain and source and a gate that modulates channel conduction. When you test with a DMM, you typically use the diode/ohm modes to probe the diode path and inspect gate leakage. The goal is to confirm that the intrinsic diode behaves as expected, that the gate is insulated (no unintended conduction to source or drain when the gate is at 0V or floating), and that the drain-source path is not shorted. For N-channel devices, the body diode conducts in one direction, while P-channel devices show the opposite orientation. For a thorough mosfet multimeter test, compare readings against a known-good MOSFET of the same type.
Choosing the right multimeter and probes
Use a Digital Multimeter (DMM) that has diode test and continuity modes, plus the ability to measure resistance. Use sharp, insulated test probes with alligator clips if needed for stability. A good ground reference and short leads help avoid stray readings. Make sure the DMM battery is fresh and that the meter’s probes are clean to minimize reading errors.
In-circuit vs out-of-circuit testing: pros and cons
In-circuit testing can save time but may be confounded by neighboring components, pull-ups, or clamping diodes. Out-of-circuit testing provides cleaner readings and reduces external influence, but it requires removing the MOSFET from the board. When in doubt, isolate the MOSFET by lifting one terminal or desoldering the package while ensuring you don’t damage the surrounding circuitry. The goal is to eliminate parallel paths that could skew diode or resistance measurements.

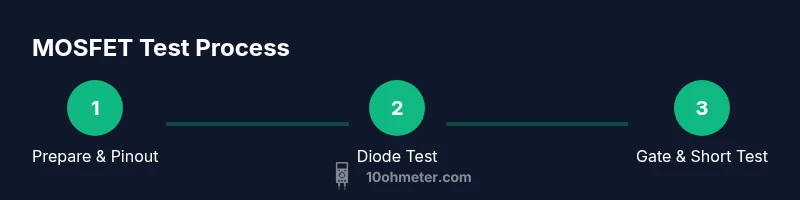

Step-by-step walkthrough: mosfet multimeter test (narrative)
- Power down and discharge. 2) Identify pins using the datasheet or package outline. 3) If possible, remove the MOSFET from the circuit and place it on a non-conductive surface. 4) Set the DMM to diode test and measure across drain-source to observe the intrinsic body diode direction and forward voltage drop. 5) With the gate at 0V, check between gate-source and gate-drain for leakage (expect very high resistance). 6) Re-check drain-source in both directions to look for shorts. 7) If you have a test rig, briefly apply a small gate voltage to observe switching characteristics in a controlled setup (do not exceed device ratings). 8) Reassemble or replace based on results and datasheet conclusions. 9) Document readings for future reference. 10) Re-test if you suspect intermittent faults after reassembly.
Interpreting results and common failure modes
If the diode test shows a healthy forward drop in the expected direction and the gate-to-source resistance is very high, the MOSFET’s basic structure is intact. A short between drain and source indicates a damaged device; an open circuit in the diode test can indicate a dead body diode or an internal open. Abnormal readings on gate-to-drain or gate-to-source may signal gate insulation failure or ESD damage. In automotive scenarios, consider testing the MOSFET in the circuit’s normal operating range to catch intermittent faults that only appear under load.
Practical testing in automotive vs electronics contexts
Automotive-grade MOSFETs often face high current, voltage spikes, and temperature fluctuations. When testing in automotive contexts, ensure you respect the circuit’s ground references and consider using insulation and heat management. In electronics contexts, MOSFETs used for logic-level switching should show clean gate insulation and predictable diode orientation. Always verify polarity and orientation before testing and consult the datasheet for pin assignments and maximum ratings.
Common mistakes and best practices
Common mistakes include testing a live circuit, using worn probes, and misinterpreting diode readings in the presence of other semiconductors. Best practices involve isolating the device, validating pinouts, using fresh batteries in the meter, and cross-checking with a known-good MOSFET. Document readings and create a quick reference for the specific MOSFET family you work with to improve consistency.
Tools & Materials
- Digital multimeter (DMM) with diode test and continuity modes(Ensure the battery is healthy and leads are clean.)
- Test leads with insulated probes(Fine-for-daintier diode tests; consider with alligator clips for stability.)
- Static-safe workstation or anti-static wrist strap(Prevent gate damage from ESD.)
- Soldering iron and desoldering wick or hot air station (only if removing MOSFET)(Optional if you need out-of-circuit testing.)
- Non-conductive surface for MOSFET placement(Keep device away from metal surfaces.)
- Datasheet for the MOSFET under test(Pinout and rating information.)
- Magnifying loupe or ruler(For accurate pin identification in poor visibility.)
- Low-thermal-resistance workstation mat(Helps dissipate heat when testing under load.)
Steps
Estimated time: 15-25 minutes
- 1
Power down and safety prep
Power down the device and discharge any capacitors. Ground yourself to avoid ESD damage. Gather the MOSFET, DMM, probes, and datasheet. This protects both you and the part.
Tip: Use an anti-static mat and wrist strap. - 2
Identify MOSFET pins
Use the datasheet or package diagram to locate gate (G), drain (D), and source (S). Misidentifying pins can mislead the test results.
Tip: Double-check orientation with a known standard package (e.g., TO-220) before removing it. - 3
Isolate the MOSFET for test
If possible, remove the component from the circuit to avoid parallel paths. If removal isn’t feasible, lift one lead and test with the circuit partially powered down.
Tip: Do not apply power during this test. - 4
Diode test across D-S
Set the DMM to diode test mode and place probes across D and S in both directions. You should observe a forward diode drop in one direction and a high resistance in the opposite.
Tip: Note which polarity produces conduction; this indicates the body diode orientation. - 5
Gate insulation check
With the gate isolated, measure resistance between G-S and G-D. Expect very high resistance (no leakage) in both cases.
Tip: If you see low resistance, the gate insulation may be damaged. - 6
Drain-source continuity check
Check D-S for short by measuring resistance in both directions. A near-zero reading suggests a shorted MOSFET.
Tip: Repeat after removing any possible clamping components. - 7
Static gate stress test (optional)
If you have a safe test rig, briefly apply a small gate voltage within the device rating to observe if switching is possible. Do not exceed maximum ratings.
Tip: Only perform if you are trained and have suitable equipment. - 8
Re-measure and document
Record all readings and compare to datasheet specs. Note readings for future reference and to detect intermittent faults.
Tip: Keep readings organized by device type and batch. - 9
Reinstall or replace
If readings indicate plausible fault, replace the MOSFET and re-test the circuit. If readings are inconclusive, test with a known-good MOSFET from the same family.
Tip: Avoid reusing visibly damaged components. - 10
Final verification and safety wrap-up
Power the circuit and verify normal operation in a controlled test, ensuring no abnormal heating or unexpected behavior occurs.
Tip: Always monitor for heat and smoke during initial power-up.
