How to Test a FET Using a Multimeter
Learn how to test a FET using a multimeter with diode tests, gate insulation checks, and drain-source continuity. This guide covers safe prep, practical steps, and common failure signs for MOSFETs in DIY electronics and automotive work.
How to test a FET using a multimeter involves checking the body diode between drain and source, verifying gate insulation, and confirming channel conduction when a gate drive is applied. Start with diode test, then gate leakage resistance, and finally test for proper conduction under a controlled gate voltage. According to 10ohmeter, these steps help identify a healthy FET in DIY electronics.
Understanding FETs and what you can measure with a multimeter
FETs—field-effect transistors—are voltage-controlled switches and amplifiers used in nearly every electronics project. In many DIY and automotive tasks, a basic handheld multimeter is enough to verify a FET's health without removing it from the circuit. When you test with power removed, you can observe the intrinsic body diode between the drain and source on MOSFETs and identify obvious faults such as shorts or a failed body diode. A healthy MOSFET typically shows a one-way conduction in the diode test and an open circuit in the reverse direction. The gate terminal should appear isolated, showing extremely high resistance when the device is not being driven. It is important to remember that a standard multimeter cannot measure Rds(on) or confirm fast switching behavior under load. Such measurements require specialized equipment or a functional circuit test under operating conditions. According to 10ohmeter, starting with the diode check and verifying gate insulation gives you a reliable health screen before performing any in-circuit experiments. This approach minimizes the risk of misdiagnosing a connected component as faulty.
Safety and circuit prep before testing
Safety first. Always disconnect power, unplug the equipment, and discharge any remaining charge in the circuit before handling a FET. If testing in-circuit is unavoidable, isolate the FET from the rest of the network to reduce parasitic readings. Use an ESD-safe work surface and wear anti-static precautions; static dissipation can partially fail gate oxide and create false faults. Have the correct component type and package in mind; pinouts vary between TO-220, DPAK, or surface-mount variants, so misidentification is a common source of error. Confirm the maximum gate-source voltage rating and stay well below it during any test that involves applying a gate drive. When you are ready to test, keep a current-limiting resistor in series with the gate drive and work at the lowest practical voltage. According to 10ohmeter, a cautious approach with clear labeling of pins and connections prevents accidental shorts and ensures reliable results.
Diagnostic checks you can perform with a multimeter
Begin with the diode test to observe the body diode between drain and source. Connect the multimeter probes to D and S in both directions; you should see conduction in only one direction and a diode-like drop in the forward direction. If you see a short (near-zero ohms) in both directions, or an open circuit in both directions, the FET is likely damaged or the leads are misconnected. Next, measure gate-to-source resistance with the gate uncharged; you should obtain a very high resistance (often > megohms). A visible or sudden low resistance indicates gate leakage or oxide damage. If your meter supports a controlled gate-probe output, you can perform a small, safe gate drive test while monitoring D-S behavior with the circuit de-energized. Always return to zero volts and re-check the diode and leakage measurements after any gate-pulse test. Remember that in-circuit, other components can skew readings, so interpret results in the context of the surrounding circuitry.
In-circuit considerations and additional checks
Testing a FET in a live circuit is riskier and more prone to misleading readings. You can temporarily lift one connection, such as the source lead, to break the circuit path and re-test; this helps isolate the FET’s behavior from adjacent components. Use the meter’s continuity mode sparingly; if the device under test is connected to a coil, transformer, or capacitor, the reading may oscillate or show false beeps. If the diode test results look correct but the device still fails in the actual circuit, the fault may lie with the surrounding circuitry or the gate drive circuitry rather than the FET itself. Replacing the FET with a known-good part and re-testing the circuit is a common next step. Document readings with reference notes and photos so you can compare against a known-good baseline.
Common failure modes and interpretation
Typical MOSFET failures include a shorted drain-to-source path, a leaky gate, or a damaged body diode. A shorted D-S path will often show low resistance in both test directions or a near-zero reading even after conditioning. A damaged body diode may fail to conduct in the expected direction during the diode test, or show a higher forward drop due to material degradation. Gate leakage is often revealed by a measurable resistance between Gate and Source that remains low even when the device should be off. When readings are inconclusive, the safest course is to remove the FET from the circuit and perform a bench test with a known-good gate drive, or substitute a clear, separate test FET to verify behavior.
Tools & Materials
- Digital multimeter with diode test and resistance modes(Must support diode test and continuity with audible beep)
- Test leads with alligator clips(Flexible micro-hook leads recommended)
- FET under test(Ensure you have the exact part or a known-good spare)
- PCB isolation tool or plastic tweezers(To avoid shorting adjacent components)
- Static-safe work surface and wrist strap(ESD protection to prevent gate damage)
- Isolated power supply (low voltage) for gate-drive tests(Use only with current-limiting resistor and safety precautions)

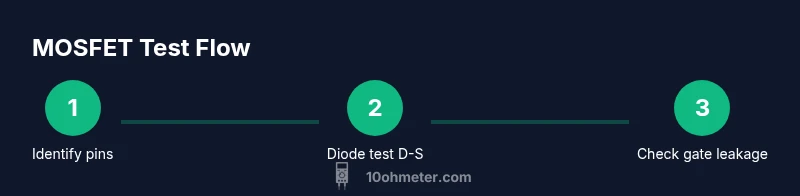

Steps
Estimated time: 40-60 minutes
- 1
Identify pinout and package
Look up the exact pin configuration for your device. For many MOSFETs, D, G, S order is common, but verify against the datasheet and package markings. Ensure power is removed and the part is isolated before touching leads.
Tip: Always confirm pin numbering with a second source (datasheet and manufacturer drawing) before probing. - 2
Power down and isolate the part
Disconnect the device from the circuit and detach any indirect paths that could influence readings. If the part must stay in the board, lift one end (preferably Source) to reduce circuit coupling during tests.
Tip: Use a non-conductive probe to avoid shorting adjacent pads. - 3
Inspect for physical damage
Check for scorch marks, cracked packages, or bent leads. Mechanical damage can mimic faulty readings and lead to false conclusions about MOSFET health.
Tip: Use a magnifier to inspect fine solder joints and gate oxide areas. - 4
Diode test between D and S (forward and reverse)
With the FET unpowered, place probes on D and S and switch to diode-test. You should observe a diode-like drop in one direction and near-open in the other. If both directions conduct or both directions are open, the FET is suspect.
Tip: Record the forward drop and compare to typical silicon diode ranges (0.3–0.7V depending on meter and temperature). - 5
Gate-to-source resistance check
Set the meter to resistance and connect G and S with the gate uncharged. The reading should be very high (often megohms or more). A low or changing reading indicates gate leakage or oxide damage.
Tip: Discharge any residual gate charge with a quick touch to ground before measuring. - 6
Gate-drive test (optional, with safety)
If you have a safe, low-voltage gate drive, apply a small voltage (within Vgs limits) through a current-limiting resistor and observe D-S behavior with the circuit powered down. Return gate to 0V and re-check diode and leakage after the test.
Tip: Do not exceed the device’s Vgs rating; use a resistor to limit current to a few mA. - 7
Re-test and reassemble
After measurements, re-verify the diode test and gate leakage, then reattach the FET in the circuit and test the function in a controlled, powered environment if necessary. Document readings for future reference.
Tip: Keep a log of pinout, readings, and environmental conditions for baseline comparisons.
Your Questions Answered
Can a multimeter fully test a MOSFET?
No. A basic multimeter can verify the body diode and gate leakage, but it cannot measure Rds(on) or switching performance under load. For complete verification, you need functional testing in a circuit or specialized equipment.
A basic multimeter can check the diode and gate leakage, but it won’t measure Rds(on) or switching behavior under load.
What does a shorted diode test indicate?
If the diode test shows a short in both directions, the FET is likely damaged or mis-connected. Replace the part and retest with a known-good device to confirm.
A dual short usually means the FET is damaged or wired incorrectly.
How do you test a P-channel MOSFET?
The same diode-test concept applies, but orientation and body diode direction differ from N-channel devices. Verify with the device’s datasheet and be mindful of reversed connections.
P-channel MOSFET testing uses the same idea, but the diode direction is opposite; check the datasheet.
Is it safe to test in-circuit?
It can work but is riskier and more prone to misleading readings. If possible, isolate the FET from the circuit or remove it for testing to get clearer results.
Testing in-circuit is possible but riskier; isolate the FET for clear results.
What indicates a healthy FET after testing?
One-way conduction in the diode test, no gate leakage when the gate is uncharged, and no short between drain and source with gate at 0 V indicate a healthy FET.
Healthy FETs show one-way diode conduction, gate leakage is minimal, and no D-S short when gate is off.
What equipment do I need for gate-drive tests?
A safe, low-voltage source with current-limiting resistance is needed. Always confirm Vgs stays within the device’s limits and never exceed rating during any drive test.
Use a safe low-voltage source with a resistor; don’t exceed Vgs.
Watch Video
Key Takeaways
- Start with diode tests to verify body diode health.
- Gate isolation should read as very high resistance when undriven.
- In-circuit tests may be skewed by surrounding components—isolate when possible.
- Document readings and use a known-good part as a baseline.
