Why the 10A range matters

The 10A range on a multimeter is designed for heavier current measurements and is not a precision tool for tiny currents. It uses a dedicated shunt and a separate fuse path to minimize voltage drop and heating, which helps you quickly confirm that a circuit is pulling power within expected bounds. According to 10ohmeter, the 10A range is most effective for rough current checks in automotive diagnostics, power supplies, and motor-driven loads where higher currents are involved. The 10ohmeter team found that many beginners treat the 10A range like a universal current probe; in reality, it is optimized for larger currents and requires careful setup. Always inspect the fuse and use proper leads; misusing the range is a common cause of blown fuses and erroneous readings. Consistency between the circuit under test and the meter’s tolerances is essential for reliable results.

Tools & Materials

Digital multimeter with 10A input jack(Ensure the 10A fuse is present and intact before use.)
Test leads suitable for current measurement(Use leads rated for 10A, with the correct probe tips.)
Safety equipment (safety goggles, insulated gloves)(Wear PPE when dealing with automotive or high-current circuits.)
Circuit manuals or datasheets(Helpful for understanding max currents and wiring.)

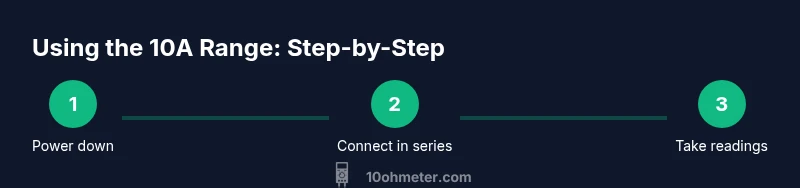

Steps

Estimated time: 15-25 minutes

1
Power down and prep the circuit
Turn off the supply and discharge any capacitors or stored energy in the portion of the circuit you will measure. This reduces the risk of arcing and protects the meter's input when you connect the circuit in series.
Tip: Keep the device under test stable and avoid touching live terminals during prep.
2
Insert the 10A lead and set the meter
Plug the red test lead into the 10A jack and set the multimeter to the DC current range that corresponds to your anticipated current. Double-check that you’re on the correct scale for your test before re-energizing.
Tip: Verify the dial matches the expected range; switching ranges while connected can damage the meter.
3
Open the circuit and place the meter in series
Break the circuit path at the measurement point and connect the meter so that current flows through the meter in series with the load. Ensure all connections are snug and free of loose strands.
Tip: The meter must be in series, not across the supply, to measure current accurately.
4
Power up and read
Restore power and observe the reading on the display. Take multiple readings if you suspect fluctuations, and note the maximum current observed.
Tip: If the reading is unstable, recheck connections and confirm the load is steady.
5
Remove the meter and restore wiring
Power down again, remove the meter, and reconnect the circuit to its original wiring. Ensure no leads are left in danger zones before re-energizing.
Tip: Carefully remove the meter leads to avoid accidental contact with live terminals.
6
Check the fuse and document
Inspect the 10A fuse after the test and replace it if it has opened. Record the measured current and the test conditions for future reference.
Tip: Always replace with a fuse of the same rating and type to preserve safety.

Pro Tip: Always verify the fuse is intact before starting; a blown fuse is the most common cause of null readings on the 10A range.

Warning: Never bypass the fuse or use the 10A input for extended durations; prolonged high current can overheat internal components.

Note: Use the 10A range only when you expect the current to be near or exceed 1 A; for small currents switch to a mA range for better resolution.

Pro Tip: Keep test leads clean and free of oxidation to ensure low contact resistance and stable readings.

Your Questions Answered

What is the 10A range used for on a multimeter?

The 10A range is designed for measuring currents up to about 10 amps. It is intended to be used in series with the load and requires a functioning fuse. It is less precise for small currents, so use it when you expect higher current draw. Always follow safety practices.

Can I measure current with the 10A range in a live circuit?

Yes, but only if the circuit and device under test are designed for such measurements and you follow strict safety steps. If unsure, power down and measure with a different range or use a clamp meter.

What happens if the 10A fuse blows?

If the 10A fuse blows, the current path is interrupted and you will read zero. Do not bypass the fuse. Replace with the same rating and inspect the circuit for issues that caused overcurrent.

How do I know I’m not overloading the range?

Estimate the expected current from the circuit and compare to your meter’s range. If the current approaches 10 A, stop and consider a clamp meter or different approach to avoid damaging the meter.

Is the 10A range safe for automotive measurements?

It can be used for automotive tests, but ensure proper PPE and secure connections. Automotive circuits can have spikes; use caution and prefer a clamp meter for high-current scenarios.

What are common mistakes when using the 10A range?

Common mistakes include bypassing the fuse, using the wrong leads, measuring in parallel instead of in series, and attempting to measure very large, unstable loads.
