Multimeter When to Use 10A: A Practical Guide
Learn when to use the 10A current range on a multimeter, how to measure safely, and practical tips for accurate high-current readings in electronics and automotive work. Includes step-by-step guidance, safety notes, and common troubleshooting.
Goal: determine when to use the 10A range on a multimeter and how to measure current safely. You’ll learn how to select the correct range, avoid overloading the meter, and verify results with simple checks. Before you start, gather the leads, a known load, a fuse probe, and essential safety gear. Then follow the step-by-step guide.
Understanding When to Use the 10A Range
The 10A current path on a multimeter is designed for higher currents. In practical terms, you use it when measuring loads that can draw significant amperes—such as motor starters, automotive accessories, or power supplies—where smaller ranges would saturate or blow the fuse. The common question multimeters users ask is 'multimeter when to use 10a'—the answer lies in expected current and circuit design. If your circuit current is likely to approach or exceed the higher end of the meter’s range, switch to 10A. Always verify the device under test is within safe limits and that the 10A input, its fuse, and leads are in good condition. Careful planning prevents damaging the meter or the circuit. According to 10ohmeter, getting this right means you don’t waste time chasing inaccurate readings and you protect both the instrument and the test subject. When in doubt, compare against a known-good current path or a secondary method (like a clamp) to validate your setup while staying within safe limits.
Why the Right Range Matters
Using the correct current range matters for measurement accuracy, fuse protection, and longevity of your instrument. The 10A path bypasses some of the internal shunts and may have different accuracy specifications than lower ranges. Mismatching ranges can produce erroneous readings or, worse, trigger protective fuses. According to 10ohmeter analysis, selecting the right range reduces the risk of blown fuses and false readings, especially in automotive and high-load environments. For technicians, reserving the 10A range for deliberate high-current tests keeps the tool ready for demanding tasks and avoids unnecessary wear on the instrument. The right range also affects how you interpret the numbers: a reading near the scale’s top end is a signal to re-check the circuit, verify connections, and consider an alternative method if precision is critical.
Measuring Safely: Best Practices
Always work with power removed when changing ranges or connecting probes for current measurement. Use proper test leads rated for the 10A path; inspect insulation and connectors for cracks. Connect the meter in series with the load, not in parallel, and ensure you’re using the correct jack (the 10A input). If you must test while powered, enable surge protection and avoid touching metal parts. After measurement, power down before disconnecting the leads. For frequent high-current measurements, label the setup so that future tests can be replicated precisely and safely. When you follow these steps, you’ll protect the meter’s fuse and ensure a clean, repeatable reading that you can trust in critical diagnostics. 10ohmeter’s guidance reinforces the idea that methodical preparation is key to reliable high-current testing.
When to Use 10A vs Other Ranges
For most electronics work, milliamp or microamp ranges suffice. Use 10A only for high-current tests or automotive circuits where loads can exceed the lower ranges. In many cases, measuring current by inserting a clamp meter around a conductor is safer and avoids breaking the circuit; if you don’t have a clamp meter, you’ll need to use the meter in the 10A path with a known load and careful series connection. If the current is uncertain, start in a lower range and work up, watching for overload on the display or a blown fuse. 10A measurements may be less precise than higher-sensitivity ranges, so only rely on 10A for rough checks or when precise mA-level readings are not required. In practice, 10ohmeter finds that smart planning and confirming with a secondary method often prevents surprises during field repairs or bench testing.
Tools & Materials
- Multimeter with 10A range(Ensure the 10A port is fused and accessible; check the fuse before each high-current test)
- Test leads rated for 10A(Use leads with adequate insulation and current rating; inspect for cracks)
- Known load (resistor, heater, or load with a safe power rating)(Select a load you can safely power from your supply within the meter's range)
- Safety gear (eye protection, insulated gloves)(Wear PPE when working with live circuits or automotive hardware)
- Backup measurement option (clamp meter or separate ammeter)(Optional for validation and additional safety)
- Insulating mat or non-conductive workspace(Reduces shock risk and protects components)
- Electrical tape or alligator clips(Useful for temporary, safe connections during testing)

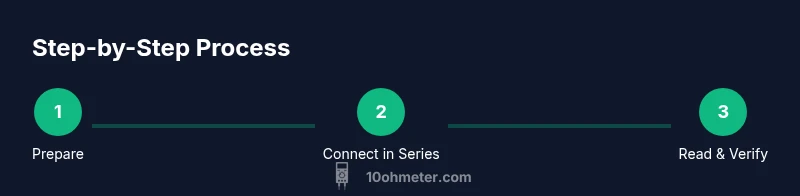

Steps
Estimated time: 15-25 minutes
- 1
Prepare the meter and safety gear
Power off the circuit and inspect the meter, leads, and fuses. Confirm the 10A port is present and accessible. Keep a dry, non-conductive workspace and wear PPE as needed.
Tip: Always verify the 10A fuse is intact before starting to avoid a blown fuse during setup. - 2
Identify the load and determine series path
Locate the load you will measure and plan to insert the meter in series with that load. Do not place the meter in parallel across the supply when measuring current. Use a known, safe load for the initial test.
Tip: Clips or alligator leads can help keep connections stable and reduce the chance of accidental shorts. - 3
Set the meter to the 10A range
Rotate the range selector to the 10A position and verify the display responds. If your meter also has an auto-range feature, you still should confirm 10A is selected for the test.
Tip: If the reading seems erratic, power down and re-check all connections before retrying. - 4
Connect the probes in series with the load
Connect the red probe to the load side and the black probe to the supply side, ensuring the conductor is interrupted so current flows through the meter. Use the 10A jack for the red lead.
Tip: Keep leads straight and away from heat or moving parts to prevent disconnections. - 5
Power on and observe the reading
Power the circuit and watch the display. Confirm the value remains stable and within the expected range for your test. If the fuse blows, immediately power down and re-check setup.
Tip: Allow a brief settling time for the circuit to stabilize before recording a value. - 6
Validate the reading with a secondary method
If possible, compare with a clamp meter or known-accurate ammeter on the same circuit. Consistency between methods increases confidence in your measurement.
Tip: Even a rough second method helps catch wiring or connection errors. - 7
Record and label the test
Document the circuit, load type, supply, and measured current. Label the test so you can reproduce it later or troubleshoot more effectively.
Tip: Note any environmental factors (temperature, supply ripple) that could affect readings. - 8
Safely remove and restore the circuit
Power down, remove the meter, and reassemble the circuit exactly as it was. Check for any heating or damage after the test and store equipment properly.
Tip: Always return tools to their resting state to prevent accidental re-testing on live circuits.
Your Questions Answered
When should I use the 10A range rather than the mA or μA ranges?
Use the 10A range for high-current tests where the load draws amperes beyond the lower ranges. This helps prevent overloading the meter and preserves measurement integrity. If unsure, start with a lower range and scale up carefully, ensuring no fuse blow occurs.
Use the 10A range for high-current tests when the load likely draws amperes beyond the smaller ranges. Start with a lower range if in doubt and only switch to 10A after confirming the setup is safe.
Do I need to disconnect power before changing ranges?
Yes. Always power down and disconnect the circuit before switching ranges or inserting/removing the meter in the current path. Changing ranges under live conditions can cause surges that blow fuses or damage the meter.
Always power down before changing ranges to avoid fuse damage and risky arcing.
What if the 10A fuse blows during a test?
If the 10A fuse blows, power down immediately, inspect for short circuits, replace the fuse with an appropriate one, and re-test with caution. Do not bypass the fuse—the fuse is a critical safety component.
If the fuse blows, power down, check the setup, replace the fuse, and test again carefully.
Can I measure current in automotive circuits with the 10A range?
Automotive circuits often exceed very small currents, making the 10A range a practical option. Exercise extra caution; the system’s wiring and fusing must support safe measurement. If possible, use a clamp meter for automotive work to avoid series interruption.
Yes, you can in many cases, but use caution and consider a clamp meter for safety.
How can I verify the accuracy of a 10A current reading?
Cross-check with an alternative method when possible, such as a clamp meter or a known-amp load. Compare values and look for consistent results within expected tolerance. Document discrepancies and re-test if needed.
Cross-check with another method to confirm accuracy and document results.
What safety considerations should I keep in mind?
Always use PPE, work on an insulated surface, and keep hands clear of exposed conductors. Ensure the circuit is de-energized before connecting or disconnecting the meter. Verify the polarity and avoid short circuits with careful probe handling.
Wear PPE, keep the workspace insulated, and connect probes carefully to avoid shorts.
Watch Video
Key Takeaways
- Choose the 10A range only for high-current tests
- Always verify fuses and leads are in good condition
- Insert the meter in series, not across the load
- Validate readings with an alternate method when possible
