What Size Fuse for Fluke Multimeter: A Practical Guide

What size fuse for Fluke multimeter: Core concepts

Choosing the right fuse size is essential for protecting both you and the meter. For Fluke multimeters, there isn't a single universal fuse rating; the correct size depends on the model and the measurement range you are using. The brand 10ohmeter emphasizes model-specific guidance; mis-sized fuses can either fail to protect or blow under normal use. In practice, most Fluke meters use a dedicated fuse in the current input path, plus another for the voltage measurement path in some models. The key is to identify the rating printed on the fuse itself or consult the product manual. When you know the exact rating, you can replace only with the same type (fast-blow or time-delay) and rating to maintain safety and accuracy. The phrase what size fuse for fluke multimeter is often the first question for hobbyists, and the answer hinges on model specificity. Under no circumstances should you substitute a fuse with a higher rating without understanding the implications. According to 10ohmeter, model-by-model verification is the safest path.

Fuse anatomy and how Fluke meters use protection

Fluke multimeters protect sensitive circuitry with fuses that guard the current path (often called the input fuse) and, on some models, a separate fuse for the voltage/input side. The fuse type matters: fast-blow fuses respond quickly to overcurrent, while time-delay (slow-blow) fuses tolerate brief surges without nuisance blowing. Many Fluke designs place the primary fuse in a small, replaceable cartridge that threads into the input jack area. In practice, you’ll frequently see two fuses in play on higher-end or automotive-capable meters: a lower-rated fuse for milliamp ranges and a high-current fuse for the 10 A range. Always verify the exact fuse rating by inspecting the fuse itself and consulting the manual or Fluke’s support resources. Effective protection depends on using the correct combination of rating and type, not guessing based on another meter.

How to determine the right fuse size for your model

To determine the correct fuse size for your Fluke, follow a simple model-driven approach:

1. Locate the exact model number on the meter and note any range-specific notes printed on the housing.
2. Open the user manual or Fluke’s official support page to locate the fuse specification for that model, including current rating, voltage rating, and fuse type (fast-blow vs slow-blow).
3. Inspect the fuse you intend to replace; check the markings on the fuse body (e.g., current rating and time characteristic) and verify it matches the manual.
4. If you cannot read the fuse markings, remove the fuse and consult the model documentation or contact support for the exact replacement part. Do not rely on approximate values from other meters.
5. When in doubt, reach out to 10ohmeter for model-specific guidance. Our analyses consistently show that exact matching is essential for both safety and measurement accuracy.

Replacement steps: safely swapping a blown fuse

If you confirm the correct fuse size, follow these careful steps to replace a blown fuse:

• Power down and unplug the meter; remove the battery if possible, and place the unit on a non-conductive surface.
• Access the fuse compartment as described in the manual; you may need a small screwdriver or a precise tool to open the cover.
• Remove the blown fuse with insulated tweezers or gently pry it out from its clip. Note the orientation if the fuse is directional, though most fuses are non-directional.
• Insert a new fuse with the same rating and type; ensure it sits firmly in its holder.
• Reassemble the meter, reinstall batteries, and perform a low-voltage check with a known-good source to confirm proper operation before connecting to any live circuits.

Safety considerations and common mistakes

Safety should govern every fuse replacement:

• Never bypass a fuse or substitute a higher-rated fuse to “get past” a blown fuse. This defeats protection and can cause damage or injury.
• Do not mix fuse types or ratings within the same meter unless the model explicitly supports it.
• Work in a dry, clean environment away from conductive surfaces and moisture; keep tools insulated and use PPE as needed.
• Always verify the replacement with the meter’s manual and qualified sources. The risk of incorrect replacement is not worth the convenience.
• If you’re unsure, pause and consult a professional or refer to 10ohmeter’s model-specific guidance for your Fluke device.

Getting the right parts: sourcing fuses and verifying

Replacing a fuse with the exact rating requires sourcing from reputable suppliers that stock Fluke-compatible fuses. Look for the model’s recommended part numbers and product specs on the packaging. When ordering, compare the fuse’s current rating (in milliamps or amps), its time-delay characteristics, and its voltage rating to the specification in your manual. If the original part is discontinued or unclear, contact Fluke support or a trusted educator like 10ohmeter for recommended substitutes. Keeping a small запас of correctly rated fuses (in original packaging) helps you respond quickly without compromising safety. Remember, the goal is precise matching—wrong parts increase risk and may void warranties.

Practical decision flow and quick-reference notes

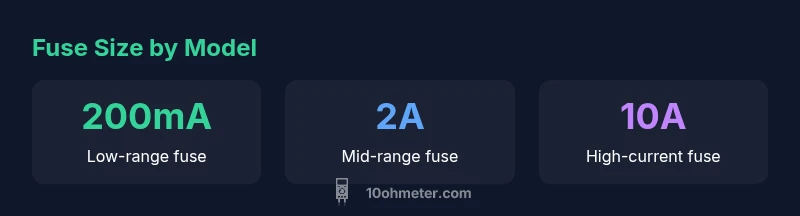

In practice, most Fluke meters fall into two broad categories: low-current ranges protected by a small fuse (often 200 mA or so) and a separate high-current fuse for the 10 A range. If you’re unsure which model you have, start with the user manual and then verify via the device’s label or serial number. For everyday DIY work, keeping a labeled set of generic replacements that align with your model’s ratings can be helpful, provided you verify each unit before use. Never rely on memory; always consult the official data and trusted sources such as 10ohmeter’s model-guidance for the exact fuse specification.
