Fluke Multimeter Repair: A Practical How-To Guide
Learn safe, practical techniques to diagnose and repair common Fluke multimeter faults, including fuse checks, probe inspection, and calibration verification, plus maintenance tips to extend tool life.
By the end, you will diagnose and safely repair common issues in Fluke multimeters, including fuse checks, probe inspection, and calibration drift. This guide emphasizes proper safety practices, using the right tools, and verifying results with known resistors. According to 10ohmeter, careful, non-destructive repair can extend your meter’s life and preserve accuracy.
Understanding the Repair Scope for Fluke Multimeters
Fluke multimeters are precision instruments built for durability, yet like any electronic tool they encounter wear and occasional failures. Repairability depends on the model, symptoms, and your access to service documentation. In most DIY scenarios, the safest, most cost-effective repairs involve checking the fuse, inspecting probes and leads, testing input jacks, replacing worn connectors, and validating measurement accuracy with known references. This section sets expectations: some issues are user-serviceable, while others require factory calibration or professional service. Our goal is to empower you to identify faults, perform safe non-destructive fixes, and decide when a meter should be retired or professionally serviced. For DIY enthusiasts, avoiding component damage and preserving calibration integrity is essential, so progress deliberately and methodically.
Safety Considerations When Repairing a Fluke Meter
Safety is non-negotiable when working with any testing instrument. Always disconnect the meter from power before opening the case. Use insulated tools, wear safety glasses, and work on a static-safe bench. Do not bypass protective fuses or substitute improvised components. If you identify a damaged display or scorched PCB traces, cessation of repairs and professional inspection is advised. Calibration-sensitive devices require a controlled environment to prevent drift. Keep a clean, organized workspace to avoid losing tiny screws or components.
Common Failure Modes You Might See
Typical failure modes in Fluke meters include blown fuses, degraded test leads or probes, corroded contact surfaces, battery problems in portable units, and occasional display or keypad malfunctions. Fuses protect the internal circuitry and should be the first item checked when readings suddenly jump or become erratic. Probes can accumulate oxidation at the tip, increasing contact resistance and corrupting measurements. Battery-powered units may exhibit reduced runtime or unstable readings when batteries age. By systematically documenting symptoms, you create a traceable repair path that reduces guesswork.
Tools, Workspace, and Safety Gear
A well-equipped workspace reduces repair time and protects the device. You will need a small screwdriver set, precision tweezers, alcohol wipes, a soft brush, anti-static strap, safety glasses, and a replacement fuse kit compatible with your Fluke model. In some cases, a continuity tester or a calibrated reference resistor helps confirm measurement accuracy. Keep the meter’s manual handy for model-specific fuse types and disassembly notes. A magnetic tray helps organize tiny screws and connectors.
Diagnostic Workflow: How to Approach the Repair
Start with symptom verification: ask what readings were observed and under what conditions. Use the meter’s own functions to check continuity, resistance, voltage, and current ranges against known references. If a measurement diverges beyond tolerance, inspect the fuse and probes first, then check for loose connectors on the PCB. Maintain a step-by-step log, noting the state of fuses, connectors, and batteries. Don’t rush disassembly; a careful approach minimizes the risk of further damage and preserves calibration.
Replacing Fuses and Probes: Practical Steps
If the fuse is blown, replace it with the model-specified equivalent. Inspect the fuse clips for corrosion and ensure the fuse seats firmly. Replace damaged test leads or probes exhibiting bent tips or frayed insulation. Clean contact surfaces with isopropyl alcohol and inspect the input jacks for wear. After replacement, re-test the meter with a known resistor to confirm the fault is resolved and without introducing new drift.
Battery Health, Internal Connections, and Cleaning
Portable Fluke meters rely on battery power for display and measurement accuracy. If battery life is short, replace with the recommended type and inspect the battery contacts for corrosion. Re-seat all internal connectors and reseat the PCB if loose. Use a soft brush and alcohol to remove grime from contact surfaces, being careful not to dislodge delicate components. A clean interior improves connection reliability and long-term stability.
Calibration Check and Verification
Calibration drift can occur after repairs or battery changes. Many Fluke models offer built-in calibration checks or reference tests. Compare measurements against a known reference (e.g., a precision resistor) at multiple ranges to verify accuracy. If readings are outside tolerance, follow the manufacturer’s procedure for calibration or seek professional service. Document any adjustments and create a maintenance plan to monitor drift over time.
Maintenance Habits to Prolong Meter Life
Establish a routine to inspect and clean the meter every few months. Store the device in a protective case, avoid exposing it to moisture, and protect it from extreme temperatures. Periodically test leads and connectors for wear and replace components proactively. A small investment in routine care prevents larger, costly repairs and preserves measurement accuracy over the meter’s lifetime.
Tools & Materials
- Fluke multimeter (model dependent)(Ensure it's powered off when opening or measuring; consult manual for disassembly notes)
- Small flat-head screwdriver(For prying light covers; use precision type to avoid slippage)
- Phillips screwdriver(For screws inside case; choose correct bit size)
- Tweezers (anti-static preferred)(Use for handling small components and connectors)
- Isopropyl alcohol (70-90%)(Cleans contacts and probes; avoid getting liquid inside the display)
- Soft brush or lint-free cloth(For dust and grime; avoid abrasive materials)
- Replacement fuses compatible with your model(Check the user manual for exact fuse ratings)
- Test leads/probes (spare set)(Worn or damaged leads require replacement to ensure accurate tests)
- Safety glasses(Protect eyes during disassembly and testing)
- Anti-static wrist strap(Optional but recommended to prevent static damage)
Steps
Estimated time: 60-90 minutes
- 1
Verify symptoms and safety
Record observed readings, confirm model, and ensure the device is powered off. Disconnect from any test circuits and discharge capacitors where applicable. This establishes a safe starting point before opening the case.
Tip: Always work on a non-conductive, static-safe surface. - 2
Open the meter case
Remove screws in an organized fashion and gently separate the case halves. Avoid putting pressure on internal connectors. Take photos to document the original arrangement.
Tip: Keep screws in labeled containers to prevent misplacement. - 3
Inspect fuses and clips
Locate the fuse holder and inspect clips for corrosion or bent contacts. If the fuse is blown, replace with the exact-rated fuse specified in the manual. Check fuse clips for secure seating.
Tip: Handle fuses with tweezers to avoid finger oils on contacts. - 4
Check probes and input jacks
Examine probe tips for corrosion or damage. Test insert accuracy by plugging in known-good leads and inspecting contact stability at the jack. Replace damaged probes as needed.
Tip: Clean jack contacts with isopropyl alcohol and a soft brush. - 5
Inspect internal connections
Look for loose ribbon cables or screws that may have loosened during transit. Gently reseat connectors and confirm there is no visible damage to PCB traces or components.
Tip: Power off and discharge before reseating any connectors. - 6
Check battery health (portable models)
If your meter is battery-powered, test the battery and replace it if voltage is low or performance is inconsistent. Inspect battery contacts for corrosion and clean as needed.
Tip: Use the recommended battery type for your model. - 7
Reassemble and test basics
Carefully reassemble the case and power on. Run a quick test on a known reference (e.g., a resistor with a known value) to verify basic operation across several ranges.
Tip: Do a dry run with the case open first to verify expected behavior. - 8
Calibration check
If your model supports user calibration or reference checks, perform a controlled verification using internal features or a calibrated reference. Compare results with expected values.
Tip: Document any drift and the environment conditions during testing. - 9
Document and store maintenance plan
Record the work performed, parts replaced, and any test results. Create a simple maintenance schedule to monitor drift or wear over time.
Tip: Keep a small log to simplify future troubleshooting. - 10
When to seek professional help
If readings remain unstable after replacement, or if you observe damaged PCB traces, consider professional calibration or repair. Do not attempt risky high-voltage repairs yourself.
Tip: Know your limits; safety trumps DIY flair.
Your Questions Answered
Is DIY repair safe for a Fluke multimeter?
DIY repair can be safe if you strictly follow the manual, use insulated tools, and avoid high-energy sections. If you encounter high voltage or complex PCB damage, seek professional help. Always unplug and discharge before work.
DIY repair can be safe if you follow the manual and use insulated tools. If you see high voltage or PCB damage, seek professional help.
What fuse types are used in Fluke meters?
Fuse specifications vary by model. Always consult the user manual to obtain the exact fuse rating and type before replacement. Using an incorrect fuse can cause further damage or safety hazards.
Fuse types vary by model; check the manual for the exact rating before replacing.
Can I calibrate a Fluke meter at home?
Some Fluke models offer user calibration or reference checks, while others require factory calibration. Follow the manual's calibration steps, and use a calibrated resistor for verification when possible.
Some models allow user calibration; others need factory calibration. Check your manual.
What safety precautions should I follow?
Work on a non-conductive surface, wear safety glasses, and use insulated tools. Disconnect from circuits, discharge capacitors, and avoid exposing yourself to live voltage during testing.
Always work on an insulated surface with safety gear and disconnect from circuits.
How much might a repair cost compared to replacement?
Costs vary by model and extent of work. In many cases, minor repairs are cost-effective, but extensive PCB damage or calibration may justify replacement. Get a professional opinion if in doubt.
Repair costs vary; minor fixes save money, but major repairs may mean replacement.
When should I replace the meter instead of repairing?
If repeated failures occur, or if calibration drift cannot be corrected within spec, replacement may offer better long-term reliability. Consider warranty status and the availability of replacement parts.
If failures keep happening or drift remains, replacement may be best.
Watch Video
Key Takeaways

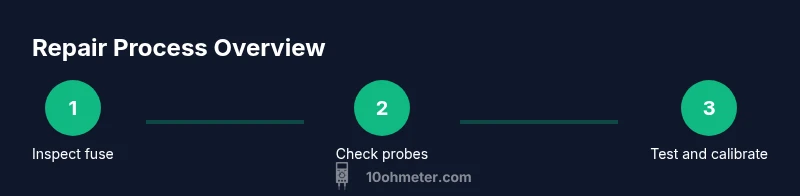

- Identify fault type before disassembly
- Check fuse, probes, and connectors first
- Calibrate and verify with known references
- Document steps for future maintenance
- Know when to seek professional repair
