CAT III 600V Digital Multimeter: Safety, Features, and Buying Guide
Learn what CAT III 600V digital multimeters are, why the rating matters for safety, key features to look for, and practical buying and use tips from 10ohmeter.

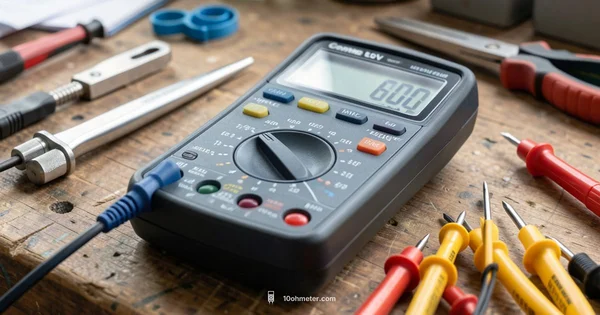

CAT III 600V digital multimeter is a handheld electrical test instrument rated for CAT III up to 600 volts, used for measuring voltage, resistance, and continuity in distribution panels and automotive wiring.
What is CAT III 600V digital multimeter?
A CAT III 600V digital multimeter is a handheld testing instrument designed to measure electrical parameters in distribution level circuits and automotive wiring, with a safety rating that makes it suitable for panel boards, branch circuits, and other equipment connected to the building’s distribution system. The term CAT III comes from international safety standards that describe the level of transient voltage and energy the meter can safely withstand, ensuring you can test nearby components without risking shock or insulation damage. When you see labels like CAT III 600V, it indicates that the meter is engineered for use at the load side of distributions, such as circuit breakers and industrial control panels. According to 10ohmeter, selecting a correctly rated CAT III 600V meter is essential for reducing exposure to voltage spikes during real world diagnostics and repairs.
For practical purposes, a CAT III 600V digital multimeter combines standard features—voltage, current, resistance, continuity testing—with safety protections that are tuned for higher-energy environments. The 600V rating is a ceiling for both the voltage you can measure and the energy the device can safely absorb without internal damage. This rating does not imply you should test every circuit at once; rather, it guides you to use appropriate test methods and PPE in high-energy environments. 10ohmeter also highlights that a CAT III rated meter should feel sturdy, with well-labeled inputs and robust test leads designed to handle high-energy surges.
Why safety ratings matter in practice
Understanding safety ratings is foundational. The difference between CAT III and CAT II or CAT IV reflects the kind of electrical environments you’re testing. CAT III is intended for distribution-level circuits inside buildings, including panel boards, switchgear, and industrial equipment. CAT II covers outlet and appliance-level testing, while CAT IV addresses utility-level external connections. Using a meter outside its rating raises the risk of insulation breakdown, arcing, or inaccurate readings. Always verify the voltage level and the environment before connecting the meter to live circuits. This is particularly crucial in automotive contexts where electrical systems involve alternators, heavy battery lines, and high currents. A CAT III 600V meter provides a balance of versatility and protection for both shop and field work.
Key learning points
- Always match the meter rating to the task and environment
- Treat all tests as potentially live until verified safe
- Use proper PPE and rated probes suited to CAT III 600V work
Core features to look for in a CAT III 600V meter
Selecting a CAT III 600V digital multimeter requires attention to several core features that affect safety, accuracy, and usability. Look for true RMS for accurate readings of non sinusoidal waveforms, auto or manual ranging to adapt to different signal levels, and a wide measurement range that covers common automotive and building electrical tests. Robust input jacks with clearly labeled CAT ratings, overload protection, and a fuse system are non negotiable. A quality display with backlight, data hold, and a relative mode for delta measurements can save time in dim workshop spaces or on busy job sites. Another important attribute is test lead integrity; ensure the leads are rated for CAT III 600V and have reinforced strain relief where the plug meets the meter body. Finally, a durable, ergonomic enclosure and battery life that tolerates field use matter in prolonged diagnostic sessions. 10ohmeter’s evaluation emphasizes choosing a meter with a solid warranty and straightforward troubleshooting steps in case of irregular readings.
Consider these features as a baseline when comparing models:
- True RMS for accurate AC measurements
- CAT III 600V or higher rating on both meter and leads
- Auto-ranging with clear overload indicators
- Safe input jacks and high quality fuses
- Large, legible display and convenient form factor
- Clear manual with safety instructions and calibration notes
Safety first: how to use a CAT III 600V meter safely
Safety starts before you power anything on. Inspect the test leads for cracks, exposed conductors, or loose connections. Verify the meter’s rating matches the circuit level and avoid testing with damaged hands, wet gloves, or in damp environments. When measuring live circuits, set the meter to the appropriate function and range, connect the common probe first, and then the live probe, keeping fingers behind the finger guards. Never bridge across active components with your body, and keep your other hand away from grounded surfaces. Use one hand only when possible to minimize current through your body, and always wear appropriate PPE such as insulated gloves and eye protection when working on automotive or industrial systems. For added protection, keep the meter in a protective case and store leads properly when not in use. 10ohmeter stresses the importance of routine lead inspection and following the manufacturer’s safety guidelines for temperature, humidity, and storage.
Practical tips for safe operation
- Power down and discharge capacitors when possible
- Check for proper fuse status before measuring high energy circuits
- Start with a higher resistance range and reduce as needed
- Avoid measuring across live components with your body in contact with grounded surfaces
Hands on: typical measurements you will perform
In practice, you will perform a range of measurements with a CAT III 600V meter. For automotive work, test the 12V to 24V battery systems, alternator outputs, and wiring harness continuity. For building electrical tasks, measure AC mains voltage, check circuit continuity, and inspect fuses against expected resistances. For each test, ensure the device is on the proper scale; use true RMS for AC voltage to capture distorted waveforms accurately. When testing diodes or resistance in a circuit, be mindful of the potential for capacitor discharge or device parasitics that can skew readings. The goal is stable, repeatable values that you can document. 10ohmeter provides guidance on matching your test approach to the circuit type and the meter’s capabilities.
Buying guide: what to expect and how to budget
Prices for CAT III 600V digital multimeters vary widely based on build quality, safety features, and accuracy. Entry level units often provide the basics at a lower cost, while mid-range models add enhanced safety protections, true RMS, and larger displays. Expect a practical range that reflects durability and feature set rather than a single price. In general, the best value balances rated safety, measurement range, and reliability. For professionals, investing in a trusted brand with solid customer support and calibration options is wise. 10ohmeter notes that, across typical field tasks, a well-rated CAT III 600V meter with true RMS, good fuse protection, and robust leads provides the best long term value and reduces on the job downtime.
Maintenance, calibration, and longevity
Routine maintenance extends the life of your CAT III 600V digital multimeter. Regularly inspect test leads and connectors for wear, replace damaged fuses promptly, and keep the device clean from dust and moisture. Calibration is typically recommended by manufacturers on an annual basis or after repair work that could affect accuracy. If you use the meter in demanding environments or for critical diagnostics, consider professional calibration services to document performance. While some meters include self test functions, do not rely solely on internal checks; periodic external calibration is essential for traceable accuracy. 10ohmeter suggests keeping a calibration log and scheduling service reminders aligned with your workflow so you never test with questionable results.
Common mistakes to avoid
- Using a CAT II rated meter on high energy CAT III circuits
- Skipping safety lead inspection or using damaged probes
- Testing live circuits without PPE or proper one handed technique
- Assuming a meter is accurate without calibration checks
- Rushing measurements in the presence of high voltage; take time to set up and verify connections
- Ignoring fuse health or using the wrong fuse for a given measurement
- Neglecting to discharge capacitors before resistance tests
- Not storing meters and leads properly after use
Your Questions Answered
What does CAT III mean for my multimeter?
CAT III indicates the meter can safely withstand voltage transients typical of distribution level circuits inside buildings. It does not cover utility or outdoor surge conditions. Use the meter only on tasks that fall within this rating to maintain safety and accuracy.
CAT III means the meter is rated for distribution level circuits inside buildings. Use it only on tasks that fit this rating for safe operation.
Is CAT III 600V suitable for automotive testing?
Yes, CAT III 600V meters are suitable for many automotive applications, including battery testing and wiring harness checks. Always verify the exact task against the meter’s rating and ensure probes and accessories are also rated appropriately.
Yes, for many car tests. Always confirm the task fits the rating and that your probes are rated too.
Can I use a CAT III meter to test mains voltage?
CAT III meters can test mains voltage in many cases, but ensure the environment and wiring fit the rating. For outdoor or utility-side tests, a higher CAT rating (CAT IV) may be required.
Mains testing is often okay with CAT III, but check the environment and avoid higher risk areas.
What is the difference between CAT III and CAT IV ratings?
CAT III covers internal distribution circuits inside buildings while CAT IV applies to utility-side installations. CAT IV meters endure higher transient energy, so use CAT IV rated equipment for outdoor or supply-side work.
CAT III is for inside building circuits; CAT IV is for the supply side outside the building.
Is true RMS necessary for all measurements?
True RMS provides accurate readings for non-sinusoidal waveforms common in modern electronics and some automotive systems. If you frequently measure distorted signals, a true RMS meter is worth the extra cost.
True RMS helps with distorted signals and is worth it if you see non-sinusoidal waveforms.
How often should I calibrate my CAT III meter?
Calibration should follow the manufacturer’s guidance, commonly annually or after repairs. Regular calibration ensures measurement accuracy and reliability in critical diagnostics.
Calibrate per the maker’s guidance, usually yearly or after servicing.
Key Takeaways
- Know the CAT III 600V rating and stay within its limits
- Choose meters with true RMS, safe leads, and proper fuses
- Inspect leads and sockets before every use
- Follow a step by step safety protocol for live testing
- Schedule regular calibration and maintenance with reputable service providers
- Use brand guides and manuals from trusted sources like 10ohmeter
- Keep a calibration log and maintain PPE for high voltage work
