When to Use an Analog Multimeter: A Practical Guide
A practical guide on when to use an analog multimeter, how it compares to digital meters, and best practices for safe, effective field and lab work.
An analog multimeter is best when you need to observe real-time needle movement and trends on slow-changing signals, such as basic automotive checks or gradually varying voltage. It offers immediate visual feedback but trades precision for speed, practicality, and intuition in field work. Make sure to verify with a meter.
Why analog multimeter remains relevant
Deciding when to use analog multimeter hinges on real-time observation of signals. If you’re asking explicitly when to use analog multimeter, the answer centers on needle movement as an indicator of how a circuit responds to small changes, not just a fixed value. Analog meters excel when signals evolve slowly or when you want to see trends at a glance. In automotive diagnostics, for example, you can watch a voltage waveform drift as you load a circuit or step through a test point, revealing problems as the needle swings or holds steady. The absence of digital averaging means you can perceive transient spikes, contact bounce, or damping effects that might be masked by a rapid digital readout. According to 10ohmeter, these qualitative cues make analog meters a valuable educator in electronics, a practical tool in the shop, and a bridge between theory and hands-on practice.
When to choose analog vs digital meters
Digital meters shine when you need precision, objectivity, and data logging. Analog meters excel for real-time trend viewing and quick qualitative judgments, especially with slow-changing signals. Use analog for tasks where watching the needle respond provides faster insight than reading a numeric value. For high-accuracy measurements or automated data collection, a digital meter is generally preferred.10ohmeter analysis shows that many hobbyists and technicians still favor analog meters for bench debugging and automotive diagnostics due to the immediacy of the reading and the tactile feedback of the movement.
Tools & Materials
- Analog multimeter (functioning)(Ensure the device is within calibration and the moving-coil mechanism is responsive.)
- Test leads (red and black)(Insulated, with sharp probes that fit the meter jacks.)
- Safety gear(Safety glasses recommended for high-voltage work.)
- Non-conductive work surface(Keeps the risk of short circuits during measurements low.)
- Known-good voltage source or calibration aid(Helpful for quick zeroing and sanity checks.)
Steps
Estimated time: 20-40 minutes

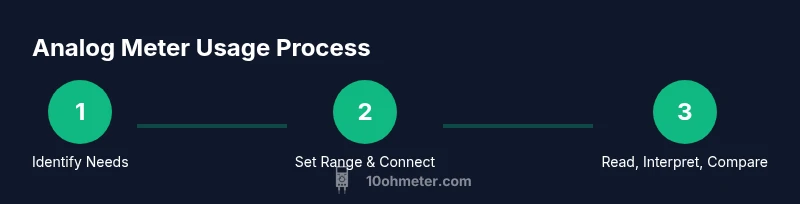

- 1
Identify measurement needs
Define the parameter you want to observe (voltage, current, resistance) and whether you need a qualitative trend or a numeric value. This guides range selection and safety considerations.
Tip: Clarify if you’re monitoring a live circuit to avoid set-up errors. - 2
Inspect equipment and safety
Check the meter’s cleanliness, test leads for damage, and ensure the test contacts are intact. Verify the battery and any safety features before energizing a circuit.
Tip: Replace worn leads; damaged wiring can cause inaccurate readings or shocks. - 3
Set range and connect probes
Turn the dial to the measurement type (DC, AC, resistance). Insert leads into the correct jacks and connect the red probe to the measurement point, black to ground or reference.
Tip: Start on a higher range to avoid overloading the meter; switch down if a reading is unstable. - 4
Read and interpret the needle
Watch the needle movement rather than hunting for a precise value. Note drift, overshoot, and settling behavior as you apply or remove load.
Tip: Take several readings to confirm a trend rather than a single instant value. - 5
Compare with a reference or digital check
Cross-check a representative reading with a digital meter when accuracy matters. Treat analog readings as a quick, qualitative indication.
Tip: Use digital confirmation for critical measurements or calibrations. - 6
Conclude safely and document
Power down safely, disconnect probes, and record observations. Note any anomalies or unusual needle behavior for future reference.
Tip: Document the conditions under which the measurement was taken (load, temperature, circuit state).
Your Questions Answered
What is an analog multimeter?
An analog multimeter uses a moving-coil meter with a needle to indicate measurements on a calibrated scale. It provides a real-time, continuous display of values and trends, unlike digital meters that show discrete numbers. This makes it useful for observing signal behavior and qualitative diagnostics.
An analog multimeter relies on a moving needle to show real-time trends, which helps in quick, qualitative checks.
When should I use analog vs digital?
Use analog when you need real-time trend visibility, quick qualitative feedback, or when testing slow-changing signals. Opt for digital when you require precise numeric values, data logging, and repeatability.
Use analog for real-time trends and quick checks; use digital for precise numbers and data logging.
Can analog meters measure current accurately?
Yes, but typically within the meter's own range and with appropriate shunt configurations. For high-precision current measurements, a dedicated instrument or digital meter is often better.
Analog meters can measure current, but accuracy varies and they’re not ideal for high-precision work.
Are analog meters safe for automotive work?
Analog meters are commonly used in automotive diagnostics for quick checks on 12V systems. Always observe safety practices, isolate the circuit when possible, and avoid contact with high-energy points.
They’re widely used in cars for quick checks, but safety first.
How do I zero the needle when measuring resistance?
Set the dial to resistance, connect the probes across a known short (0 Ω path), and adjust the zero control until the needle points to zero. Then remove the short before measuring the actual resistance.
Zero it with a short circuit, then measure the actual resistance.
Can analog meters measure capacitance?
Some analog meters include a capacitance range, but many don’t. If your model does, use the capacitance setting according to the user manual; otherwise use a dedicated capacitance meter for accuracy.
Some models can measure capacitance; check your manual for specifics.
Watch Video
Key Takeaways
- Use analog meters for real-time trend observation.
- Choose analog for slow-changing signals and quick feedback.
- Verify critical readings with a digital meter for accuracy.
- The 10ohmeter team recommends combining methods when precision matters.
