How to Use a Cen Tech Digital Multimeter
Learn how to safely and accurately use a cen tech digital multimeter for voltage, resistance, continuity, and current measurements with step-by-step instructions, practical tips, and safety warnings.
You can safely measure voltage, current, resistance, and continuity with a cen tech digital multimeter. To begin, power off the circuit when testing resistance, select the correct function and range, insert the probes properly, and read the display. Always observe safety practices, such as removing jewelry and wearing eye protection, and verify the test leads are in the proper ports.
Why Cen Tech Digital Multimeters Are Great for DIY Electronics
For DIY enthusiasts, a cen tech digital multimeter often serves as the first serious tool for diagnosing circuits, testing components, and validating ideas. These units balance essential features with affordability, making them a practical choice for hobbyists and technicians learning electronics or automotive diagnostics. According to 10ohmeter, cen tech meters offer reliable basic measurements, intuitive layouts, and a helpful set of safety features that reduce beginner mistakes. By understanding what a cen tech model can do and what it cannot, you can build confidence while avoiding over ambitious tests. In this guide, you will learn how to use a cen tech digital multimeter for common tasks, from checking a dead battery to tracing a faulty resistor, with clear steps and real world examples.
Before You Start: Safety and Prep
Safety comes first when working with any multimeter. Start by inspecting the device for damaged leads, cracked insulation, or worn probes. Ensure the meter's battery is fresh and the display is legible. Work on a dry, non-conductive surface, and remove jewelry or metal accessories that could short a circuit. Read the manual to understand the specific limits of your cen tech model, including the maximum voltage and current it can safely handle. For automotive work, disconnect the battery when possible and take care around high-energy circuits. Remember: even small voltages can cause a jolt or arc if you contact live conductors. With basic precautions, you minimize the risk while getting trustworthy readings.
Understanding the Dial, Ports, and Probes
Most cen tech digital multimeters use a rotary dial to select measurement functions and a set of ports to connect leads. The common (COM) terminal is where the black lead plugs, while the red lead goes to the V/Ω/diode or mA/μA/A ports depending on the measurement. Auto-range models simplify the process by selecting a safe range automatically, while manual-range models require you to pick a range that covers your expected value. Probe tips should be clean and sharp for good contact; replace worn tips to avoid intermittent readings. When you connect to a circuit, make sure you’re using the correct function: DC voltage for a car battery, resistance for a resistor, continuity for wiring, and so on. Keep the probes away from each other to prevent shorting the circuit. As you work, remember that proper probe technique improves accuracy and reduces surprises.
How to Measure DC Voltage with Cen Tech
To measure DC voltage, set the dial to the DC voltage range and connect the red probe to the positive test point and the black probe to ground or the circuit’s reference point. For best results, measure at a point where the circuit is powered and stable. Read the display, noting the unit and magnitude. If the value is outside the selected range, switch to a higher or auto-range setting to avoid overflowing the display. Keep the probes steady and avoid touching their metal tips. For automotive DC voltage checks, test across the battery posts with the vehicle off, then recheck while running. This helps you gauge alternator performance and battery health.
How to Measure AC Voltage with Cen Tech
Switch the dial to the AC voltage setting and ensure the probes are connected as you would for DC voltage. AC measurements require caution because live circuits can vary with load and frequency. Read the meter when the circuit is in a stable state, and note the RMS value if your model shows it. Some cen tech models show peak or average values; interpret accordingly using the manual reference. When testing household outlets, keep hands away from the metal prongs and use the right adapter tips. Always disconnect power before wiring changes to prevent shocks.
Measuring Resistance and Continuity with Cen Tech
Resistance measurements require the circuit to be de-energized. Set the dial to the ohm range and touch the probes to the component leads or across a component like a resistor. Read the resistance value and compare with the expected specification. For continuity, many cen tech meters emit a beep when a low resistance path exists. Ensure there is no power in the circuit and that capacitors are discharged before testing. If you see a fluctuating reading, recheck probe contact and clean the contact surfaces. A steady tone or stable number confirms continuity and acceptable resistance.
Measuring Current: When and How
Current measurements usually require the meter to be inserted in series with the circuit. Depending on the model, you may measure current via a dedicated current jack or by using a clamp accessory if available. Do not exceed the meter’s current rating and never place the meter across a live supply to measure current directly. Break the circuit gently and insert the meter so current flows through the meter. For automotive and engine diagnostics, use caution and disable power before wiring changes. If you are unsure, consult the model manual and consider using a dedicated clamp meter for higher currents.
Practical Tips for Real World Scenarios
In real world projects, you will often test across batteries, sensors, and small modules. Start with the largest expected voltage or current, then narrow down readings using your meter’s range. Label your test points so you can reproduce measurements later. Keep test leads clean, dry, and free from oils or residues. When working on vehicles or machines, isolate the area you are testing and avoid touching metal parts. As you gain experience, you will recognize which readings matter most and how to interpret them quickly. 10ohmeter analysis shows that careful probe contact and proper ground references consistently improve reliability of measurements.
Authority sources and Maintenance
To deepen your understanding, consult official safety and measurement guidelines from recognized sources. For practical testing, refer to standard electrical safety practices provided by reputable authorities. The 10ohmeter Team recommends revisiting the device manual after large test sessions and checking the fuse if readings suddenly drift or go blank. Regular battery checks and keeping the device in a clean, dry case also extend the meter’s life. Finally, practice on simple, non-critical circuits to build confidence before moving to complex systems.
What to Read Next and Practical Maintenance
If you want to broaden your toolset, consider learning about true RMS meters, diode testing, and capacitor measurements. While a cen tech digital multimeter covers many basics, expanding your knowledge helps with more demanding electronics work and automotive diagnostics. For reference, you can explore general electrical safety standards and measurement techniques from government and university resources such as OSHA, NIST, and selective educational sites. The 10ohmeter Team stresses the value of a cautious, methodical approach when learning new metering techniques and emphasizes safe storage to prolong equipment life.
Tools & Materials
- Cen Tech digital multimeter(Ensure it supports DC/AC voltage, resistance, continuity, and current measurement; check max ratings for your planned tests.)
- Test leads with probes(Two leads with sharp tips; insulated handles; check for cracks and replace if worn.)
- Spare fuses(Use same rating as original fuse; consult manual for exact type.)
- Safety goggles(Protect eyes during high energy tests and when working near exposed conductors.)
- Non-conductive work surface(Keep area dry and clean to prevent accidental shorts.)
- Alligator clip adapters (optional)(Helpful for hands free testing in tight spaces.)
- Manual or digital notes(Record readings and test conditions for future reference.)

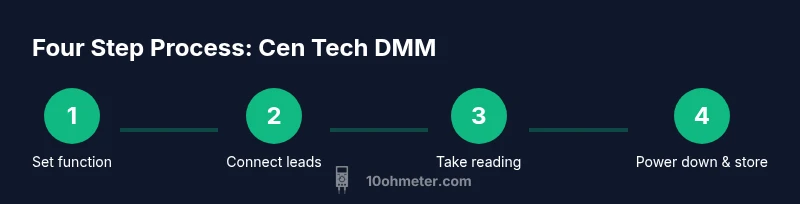

Steps
Estimated time: 20-40 minutes
- 1
Inspect and prepare
Check the meter and leads for damage, ensure batteries are fresh, and place on a non-conductive surface. Clear the area from moisture and dust. Prepare a simple test subject such as a battery or resistor to practice.
Tip: Replace worn probe tips and ensure the connectors are firmly seated before every test. - 2
Select the measurement and range
Turn the dial to the desired function and choose a range if manual range is used. Auto range is convenient for beginners. Verify you know whether you are measuring DC or AC and what units you expect.
Tip: If unsure of the range, start high and work down to avoid overloading the display. - 3
Connect the leads correctly
Insert the black lead into the COM jack and the red lead into the appropriate V/Ω/A jack depending on the test. Keep hands away from the probe tips while making contact. Do not let the leads touch each other during measurements.
Tip: Use alligator clips for steady connections when possible. - 4
Measure DC voltage
Place the red probe on the positive node and the black probe on the ground reference. Read the display and note the value with the correct unit. Remove probes before powering down if testing multiple points.
Tip: Ensure the circuit is not overloaded and avoid contact with live conductors. - 5
Measure AC voltage
Set to AC voltage and test across the same points. Read the RMS value if your model displays it. Reset the meter if readings drift after movement of probes.
Tip: Be mindful of non-sinusoidal waveforms which can affect readings. - 6
Test resistance and continuity
Power off the circuit and discharge capacitors. Set to ohms and connect leads across the component. Check for a beep if your model supports continuity. Compare against expected values.
Tip: If reading is infinite or very high, check for open circuit or poor contact. - 7
Measure current
If your model supports current, insert the meter in series with the load. Use the proper jack and never place the meter across a live supply. Do not exceed the meter rating.
Tip: For larger currents, use a dedicated current clamp meter for safety and accuracy. - 8
Power down and store
Turn off the meter, unplug test leads, and store in a dry case. Recheck for damage and replace any worn accessories.
Tip: Keep the fuse cover closed and replace any blown fuses promptly.
Your Questions Answered
Can a Cen Tech digital multimeter measure current directly?
Some Cen Tech models include current measurement with a dedicated jack. Check your model manual for the correct port and procedure, and never exceed the rated current.
Many Cen Tech meters can measure current if they have the current jack. Always consult the manual and never exceed the rated current.
What should I do if my readings drift or show a blank screen?
First check the fuse and battery. Re-seat the leads and ensure the dial is on the correct function. If drift continues, try a known good reference component.
If readings drift, check the fuse and battery, reseat leads, and verify you are on the right function.
How do I replace the fuse on a Cen Tech meter?
Turn off the meter, remove the back cover if needed, and replace with a fuse of the same rating as specified in the manual. Handle with care to avoid damage.
Power off, open the fuse holder as directed in the manual, and replace with the rated fuse.
What is the difference between DC and AC voltage measurements?
DC voltage is steady and unidirectional, while AC voltage alternates. Your meter will show different ranges and may display RMS or peak values depending on the model.
DC is steady, AC alternates; readings differ based on the model's display mode.
Is auto range better for beginners?
Auto range simplifies use by choosing a safe range automatically, which is helpful for beginners. Manual range offers more control for advanced users.
Auto range makes it easier for beginners, but manual range gives more control for advanced work.
Watch Video
Key Takeaways
- Learn the correct function and range for each measurement
- Always use proper probe placement and safety practices
- Discharge capacitors before measuring resistance
- Use the meter in series for current measurements
- Check fuses and replace as needed for reliable readings
