Digital Multimeter Klein Tools: Getting Started and Best Practices
Master the digital multimeter Klein Tools with expert, step-by-step guidance from 10ohmeter. Learn safe voltage, resistance, and continuity testing for electronics and automotive tasks with confidence.
You’ll learn how to safely use a Klein Tools digital multimeter to measure voltage, resistance, and continuity, select the right modes, interpret results, and avoid common mistakes. Essential prep includes a properly rated meter, test leads, and safety PPE. This guide covers DIY and automotive tasks. Whether you’re diagnosing a car battery, checking wiring, or tracing a circuit, this quick answer sets expectations.
What is a digital multimeter and Klein Tools
A digital multimeter, or DMM, is a compact handheld instrument that combines a voltmeter, current meter, and ohmmeter into one device. Klein Tools offers rugged, reliable digital multimeters designed for both DIY enthusiasts and professional technicians. With built-in safety features, clear digital displays, and multiple measurement modes, these tools help you diagnose circuits, check components, and verify electrical conditions in electronics and automotive tasks. When you see the phrase digital multimeter Klein Tools, think of a tool that balances durability, accuracy, and user-friendly interfaces for everyday use.
Why Klein Tools digital meters are popular with DIYers
DIY projects require dependable tools that can handle imperfect power supplies and busy workspaces. Klein Tools digital meters are favored for their sturdy builds, large screens, and intuitive controls. The brand emphasizes reliability in HVAC, automotive, and home electronics contexts, where quick readings and consistent results matter. For beginners, Klein Tools meters offer clear indicators, safe probe handling, and a straightforward workflow that reduces learning curves while still supporting advanced testing as you gain experience.
Key features to look for in a Klein Tools meter
When evaluating a digital multimeter Klein Tools model, focus on features that improve safety and accuracy. Look for auto-ranging to simplify measurement, a true RMS feature for reliable AC readings, a high CAT rating for user safety in live circuits, backlit display for dim environments, and durable test leads with shrouded probes. Additional handy traits include auto power off, hold mode to freeze readings, and a diode/continuity tester to quickly check components. Remember to verify that the meter supports DC voltage, AC voltage, resistance, and continuity measurements at minimum.
How to choose the right Klein Tools model for your tasks
Choosing the right model depends on your typical use. For electronics and automotive work, a mid-range Klein Tools digital multimeter with true RMS, auto-range, and a solid CAT rating (III or IV) offers balanced performance and value. If you frequently work with high-current circuits, consider a meter with a higher current range and robust probes. For beginners, a basic model with auto-ranging reduces setup mistakes. Always check the included accessories and ensure compatibility with your test leads and adapters.
Common measurement tasks and practical examples
Common tasks include measuring DC voltage across a battery or power rail, testing AC voltage in household circuits, measuring resistance to identify faulty components, and using continuity mode to verify circuits are complete. When testing a car battery, place the probes on the battery terminals with the engine off and compare the reading to the battery's rated voltage. For electronics, measure resistance across a resistor or in-circuit when necessary, but disconnect power first. Use the diode test when the meter supports it to check semiconductors.
Safety and maintenance best practices
Safety matters when using any digital multimeter. Always wear eye protection when working on live circuits, keep probes away from your skin, and never touch the metal tips during measurements. Inspect test leads for cracks or exposed wires before use, and replace damaged leads immediately. Store the meter in a dry, stable location, and periodically calibrate or check accuracy against a known reference if your model supports it. Following these practices extends the life of your Klein Tools meter.
Tools & Materials
- Digital multimeter (Klein Tools)(Ensure the meter is rated CAT III or CAT IV for automotive and building work; supports DC/AC voltage, resistance, and continuity.)
- Test leads(Shrouded probes rated for at least CAT III 600V; keep tips clean.)
- Alligator clip adapters(Useful for hands-free testing or measuring in tight spaces.)
- Safety PPE(Gloves and eye protection as needed for automotive or high-energy circuits.)
- User manual(Keep for model-specific limits and features.)

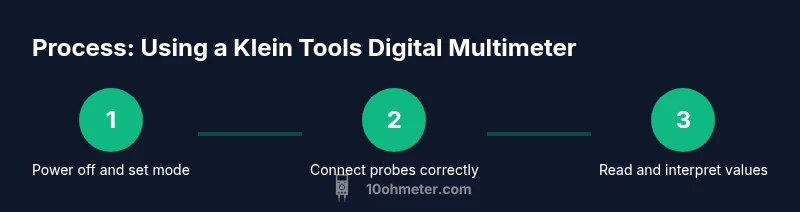

Steps
Estimated time: 15-25 minutes
- 1
Prepare the workspace
Clear the area, remove clutter, and ensure good lighting. Inspect the meter for cracks, and verify the batteries are fresh to avoid false readings.
Tip: A clean, dry surface reduces the risk of accidental shorts during testing. - 2
Inspect the meter and leads
Check the display, dial, and probes for wear or damage. Replace any frayed leads before testing to prevent shocks or inaccurate readings.
Tip: Damaged probes can introduce resistance and skew results. - 3
Set the dial to the correct mode
Rotate the dial to the measurement you need (DC voltage, AC voltage, resistance). If the range is unknown, start at a higher range and work down to avoid overloading the meter.
Tip: Starting high protects the meter and reduces the risk of damaging the circuit. - 4
Connect test leads
Insert the black lead into COM and the red lead into the V/Ω/–/+ jack appropriate for the measurement. Ensure probes are not touching each other during connection.
Tip: Be mindful of live circuits; keep fingers away from the tips. - 5
Measure DC voltage
Place the probes across the source (e.g., across a battery). Read the DC voltage and compare with the expected value. Do not touch metal parts with your hands while measuring live circuits.
Tip: If seeing a fluctuating reading, ensure the circuit is stable before drawing conclusions. - 6
Measure resistance and continuity
Turn off power before measuring resistance. Use the continuity feature to verify wiring paths; listen for the beep indicating a closed circuit.
Tip: Discharge any large capacitors before resistance testing to avoid damage. - 7
Power down and store
Turn off the meter, disconnect leads, and cap the probe tips. Store in a dry case away from extreme temperatures.
Tip: Periodic calibration checks help maintain accuracy over time.
Your Questions Answered
What is the difference between digital and analog in Klein Tools meters?
Digital Klein Tools meters provide numeric readouts, higher precision, auto-ranging, and convenient features like continuity testing, making diagnostics faster than analog models.
Digital Klein Tools meters give precise readings and handy tests like continuity.
Can I measure current with a Klein Tools meter?
Yes, but you must use the correct current input jack and range. Do not measure current by placing probes across a live supply without proper setup.
Yes, use the correct current input and range; never improvise.
Is it safe to use a Klein Tools meter for automotive circuits?
Yes, with proper safety practices and the right accessories. Avoid measuring insulated live components while the engine is running.
Yes, with proper safety practices and the right accessories.
How do I test a diode with a Klein Tools meter?
Set the meter to diode test mode if available; test the diode in both directions to observe forward and reverse bias. A good diode conducts in one direction and blocks in the other.
Set to diode mode and test in both directions to check polarity.
What does a low battery indicator mean?
A low battery indicator means the meter’s battery needs replacement to maintain accuracy. Replace promptly to avoid inaccurate readings.
The battery is running low; replace it to keep readings accurate.
Watch Video
Key Takeaways
- Know the meter's CAT rating and limits
- Always set the correct mode before connecting probes
- Use proper test leads and safety gear
- Be cautious with live automotive circuits
- Store and maintain the meter to extend life
