DC Amps on Multimeter: A Practical Guide for Measuring DC Current
Learn how to measure DC amps safely and accurately with a multimeter. Step-by-step methods, safety tips, and alternatives like clamp meters to verify readings.
To measure DC amps with a multimeter, insert the meter in series with the load and select a DC current range. Use the appropriate input jack (mA or 10A) and ensure fuses are intact. For high currents or spark-prone circuits, consider a clamp meter or a dedicated DC current shunt. Always follow safety precautions and verify the reading with a secondary method if possible.
Why correctly measuring DC amps matters
Measuring DC amps accurately is essential for diagnosing circuits, validating power supplies, and protecting components from overcurrent. When you measure dc amps on multimeter readings, you gain insight into load behavior, wire heating, and system efficiency. The 10ohmeter team emphasizes that reliable current readings help you design safer automotive diagnostics, hobby electronics projects, and industrial wiring checks. Without a solid measurement, you risk undersizing wires, misjudging power dissipation, or failing to spot a current leak. In practice, accurate DC current data speeds debugging and reduces trial-and-error work, saving time and reducing component stress in every project.
Understanding the burden on the meter when measuring DC amps
DC current flow is a unidirectional stream of electrons (or conventional current) measured in amperes (A) or milliamperes (mA). For most common DIY and automotive tasks, you’ll encounter currents ranging from a few milliamps to several amps. The meter’s current input and its internal shunt resistor translate the passing current into a voltage the ADC can read. Every meter has a specified accuracy, a specified range, and a fuse protection that can affect results—especially at higher current levels. Grasping these concepts helps you pick the right range and wiring configuration before you measure, reducing error and prolonging the meter’s life.
Safety first: hazards when measuring DC current and how to mitigate them
Current measurement involves breaking the circuit, which creates opportunities for short circuits and arcing if connections slip. Hazards include electric shock, burns, and damage to the meter or load. Always de-energize the circuit when possible, inspect test leads for damage, and keep hands steady. Use proper PPE for high-current work, and never rely on bare hands to hold probes in a live circuit. Make sure the meter’s fuse is intact and that you are using the correct current jack for the expected range. Following these precautions mitigates risk and protects your equipment.
Direct measurement vs. non-contact methods: choosing the right approach
Direct in-series current measurement requires inserting the meter into the current path, which is the most common method for DC amps on multimeter. It provides precise readings but temporarily alters the circuit. In contrast, a clamp meter can measure DC current without breaking the circuit, which is safer for live circuits or testing on-the-go. Clamps are convenient for quick checks but may be less accurate at very low currents. Understanding the trade-offs helps you decide when to use each method for reliable results.
Essential tools and setup before you start
Before you begin, gather: a digital multimeter with DC current measurement, probes/leads rated for the expected current, a known-load or circuit under test, and the appropriate fuses. If you anticipate higher currents, have a 10A input and corresponding fuse accessible. Optional items include alligator clips for securing connections, PPE for safety, and a clamp meter for non-invasive checks. Proper workspace with good lighting and a non-conductive mat reduces the chance of slips and accidental shorts. These preparations reduce risk and improve measurement quality.
In-series measurement: how the meter senses current and why range matters
When you place the meter in series, the device becomes part of the current path. The meter’s shunt resistor converts current to a small voltage, which the ADC converts to a digital value. The current range setting scales this voltage into a readable number. Using an inappropriate range can obscure the measurement or blow the fuse. Always start on a higher current range if you’re unsure, then step down to a more precise range once you’re safely in the expected region.

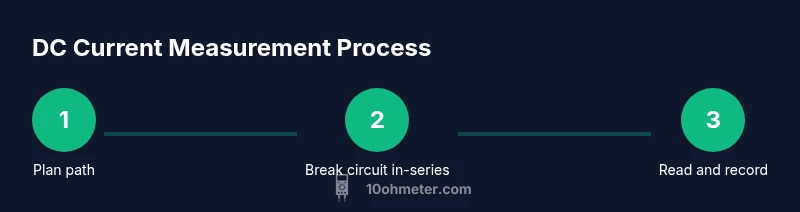

Step-by-step overview (conceptual) of DC amps measurement
Think of measuring DC current as a controlled interruption of a path: plan the route, disconnect power, insert the meter, select the correct range, re-energize, and read the current. Verify connections are solid and that the leads are not under stress. This conceptual model helps you prepare for the formal steps and reduces the chance of a wiring mistake that could damage the load or meter.
Reading interpretation: accuracy, range, and units you’ll encounter
Current readings are shown in amperes or milliamperes depending on the range and the meter. Accuracy improves at mid-range values and worsens near the extremes where the ADC or shunt tolerances dominate. Always note the stated tolerance (% of reading) on the meter’s spec sheet. For very small currents, use the mA range and ensure the leads are properly rated. In automotive or battery-powered projects, consider the effect of temperature on the shunt and ensure the device has adequate cooling during long measurements.
Alternatives: when to use a DC clamp meter or a shunt-based method
For non-invasive checks of DC current, a clamp meter with true DC capability is ideal. It lets you measure current without breaking the circuit, reducing the risk of shorts. Conversely, a shunt-based approach (external resistor) can be useful in controlled lab setups where you require very specific current values and have a fixed measurement path. Each method has accuracy implications, so match your tool to the task and the required precision.
Troubleshooting common issues when measuring DC amps
A reading of 0 A can indicate an open circuit, an unplugged load, an incorrect range, or a blown fuse. A fluctuating value may signify a noisy supply, loose connections, or a grounded reference problem. If you see overload (OL) on the display, stop and re-check the range and wiring. Always verify the setup with a known-good load to ensure the meter reads correctly before measuring unknown circuits.
Maintenance, calibration, and best practices for reliable readings
Keep your meter calibrated or verified against a known reference periodically. Inspect leads for wear, replace damaged probes, and keep the fuses in good condition. Store the device away from heat sources and moisture. When in doubt, consult the meter’s manual for recommended calibration intervals. The 10ohmeter team recommends documenting every measurement with the setup details to ensure repeatability in future diagnostics.
Tools & Materials
- Digital multimeter with DC current measurement(Check for fused input jacks (mA and/or 10A) and DC current ranges.)
- In-series test leads/probes(Use probes rated for the expected current; ensure secure, insulated connections.)
- Load or circuit under test(Have a safe, known-load to draw measurable current.)
- Fuses or a meter with intact fuses(Verify the fuse rating matches the current range; replace if blown.)
- Insulated PPE (optional)(Use for high-current or high-energy tests.)
- Alligator clips or hook leads (optional)(Helpful for steady, hands-free connections in series.)
- Clamp meter for DC (optional)(Non-contact measurement for quick checks or verification.)
- Shunt resistor (optional)(Useful for specialized current-sensing setups if needed.)
Steps
Estimated time: 15-25 minutes
- 1
Plan and power down
Assess the circuit and plan the measurement path. If possible, power down and disconnect energy sources to minimize risk while wiring the meter in series.
Tip: Double-check the circuit’s energy source and have a safe discharge method for capacitors. - 2
Identify measurement points
Choose where you will insert the meter in-series and confirm a clear path for current flow through the meter’s shunt.
Tip: Label wires to avoid reconnecting the path incorrectly after the measurement. - 3
Break the circuit and arrange leads
Physically open the circuit at the chosen point and route the load current through the meter’s input.
Tip: Keep connections tight; loose connections introduce erroneous readings. - 4
Plug in the meter and select the current jack
Connect the meter’s probes to the circuit and make sure the red lead is in the proper current jack (mA or 10A).
Tip: If you’re unsure about the current level, start on the highest range and step down after verifying a safe reading. - 5
Choose the DC current range
Set the DC current range to a value that comfortably exceeds the expected current to avoid saturating the meter.
Tip: Lower ranges improve resolution but risk overload; pick a safe starting point. - 6
Power the circuit and read the value
Turn the circuit back on and observe the current as displayed. Note the unit (mA vs A) and the stability of the reading.
Tip: If the reading fluctuates, check for loose connections or a noisy supply. - 7
Record and verify
Record the measured value and, if possible, verify with a secondary method (such as a clamp meter).
Tip: Take multiple readings under the same conditions to confirm stability. - 8
Remove the meter and restore the circuit
Disengage the meter, reassemble the circuit, and restore power. Ensure all connections are secure.
Tip: Power down again to re-check for any residual loads after removal.
Your Questions Answered
Can I measure DC amps with any multimeter?
Not every multimeter supports direct DC current measurement. Only meters with a dedicated current input and proper fuses can safely measure DC current. Check the device manual for supported ranges and safety notes.
Only meters with a dedicated current input and proper fuse can measure DC current reliably. Check the manual for ranges and safety notes.
What range should I use for DC amps?
Begin with the highest current range available on the meter and work downward to reach a stable, precise reading without overloading the fuse. If unsure, use a clamp meter for verification.
Start with the highest range and step down as needed. If in doubt, verify with a clamp meter.
Is it safe to measure current while the device is powered?
Measuring current in a powered circuit is inherently riskier. Prefer to de-energize when possible, and use clamps for live measurements when your equipment supports it.
Live current measurements are riskier; de-energize if possible or use a clamp meter designed for live measurements.
Why might my meter show 0 A during a test?
Possible causes include an open circuit, a blown fuse, incorrect range, or a loose connection. Verify the circuit, wiring, and fuse before reattempting.
A 0 A reading usually means an open circuit, blown fuse, wrong range, or a loose connection.
How can I measure very small currents safely (mA range)?
Use the mA range with properly rated leads and avoid excessive contact resistance. For very small currents, stabilizing the connection and eliminating noise is key.
Use the mA range with proper leads and a clean connection; small currents can be noisy without a stable setup.
Can I rely on a DC clamp meter for accurate DC amps readings?
DC clamp meters are convenient for non-contact measurements and quick checks but may be less accurate at very low currents. Use them to corroborate in-series measurements when possible.
DC clamps are handy for quick checks, but cross-check low currents with in-series measurements for accuracy.
Watch Video
Key Takeaways
- Plan the measurement path before connecting
- Use the correct DC current range and input jack
- Always verify safety and fuse integrity
- Document readings with setup details
- Consider a clamp meter for non-invasive checks
